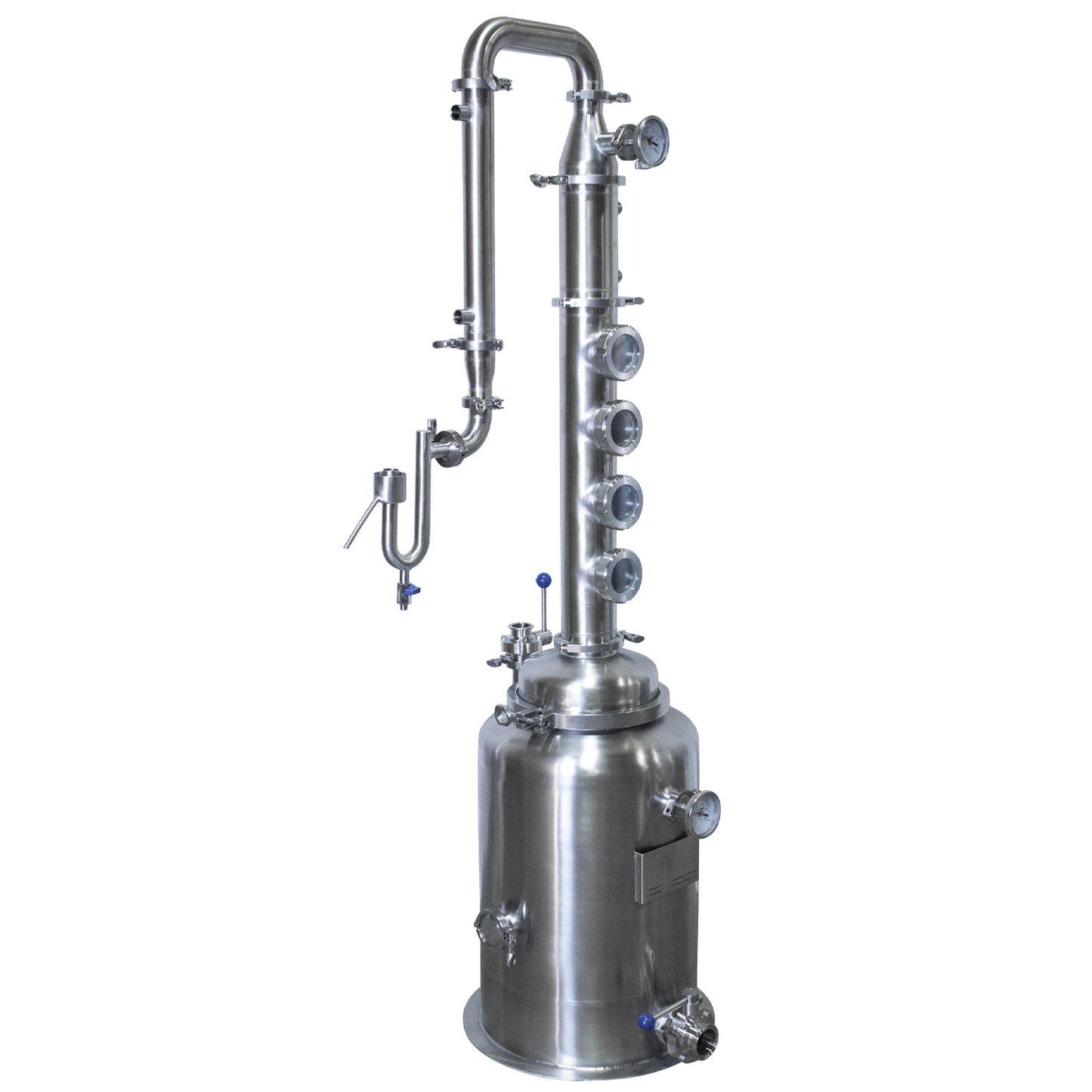

Reflux Column Still | 4" Plates | 50L

Reflux Column Still | 4" Plates | 50L

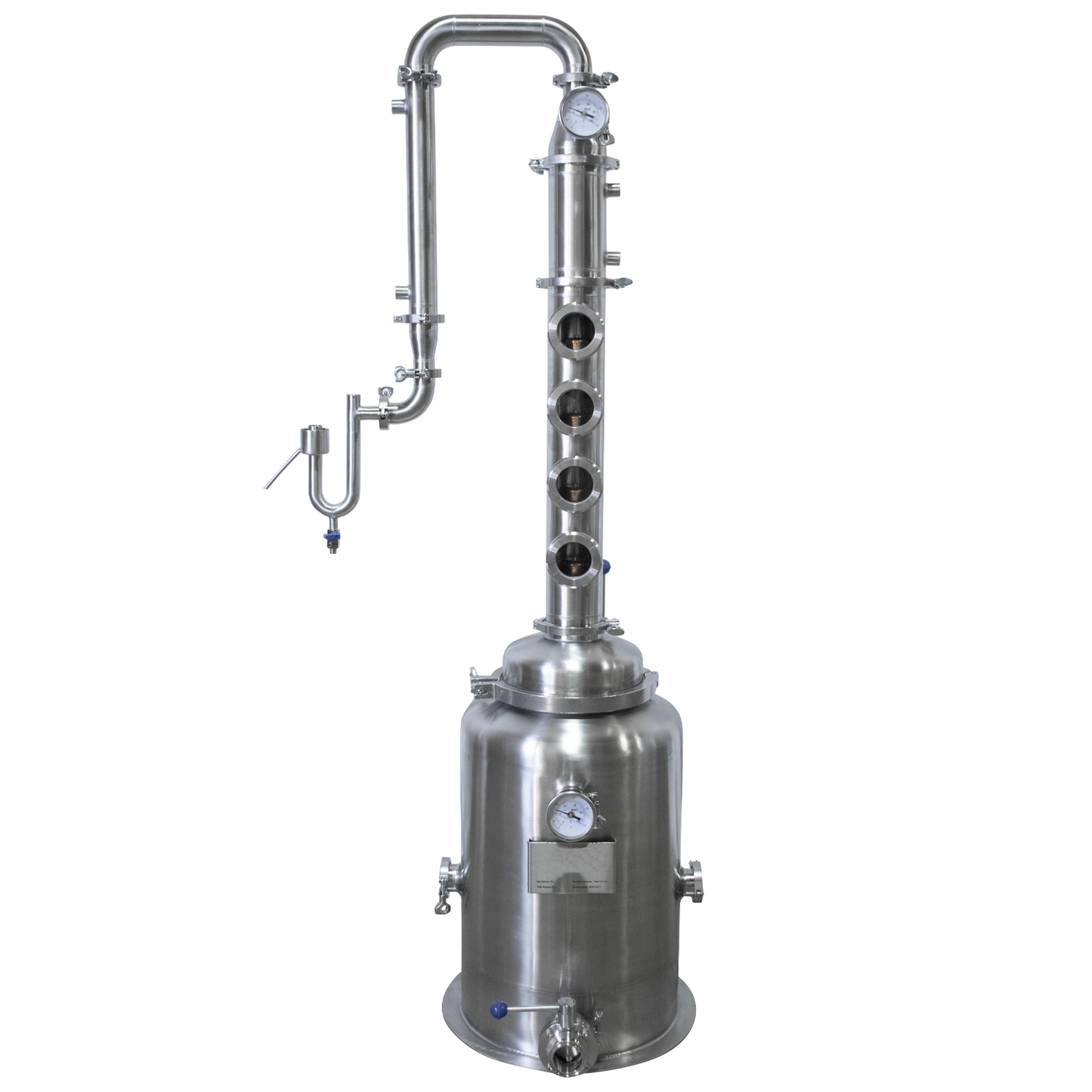

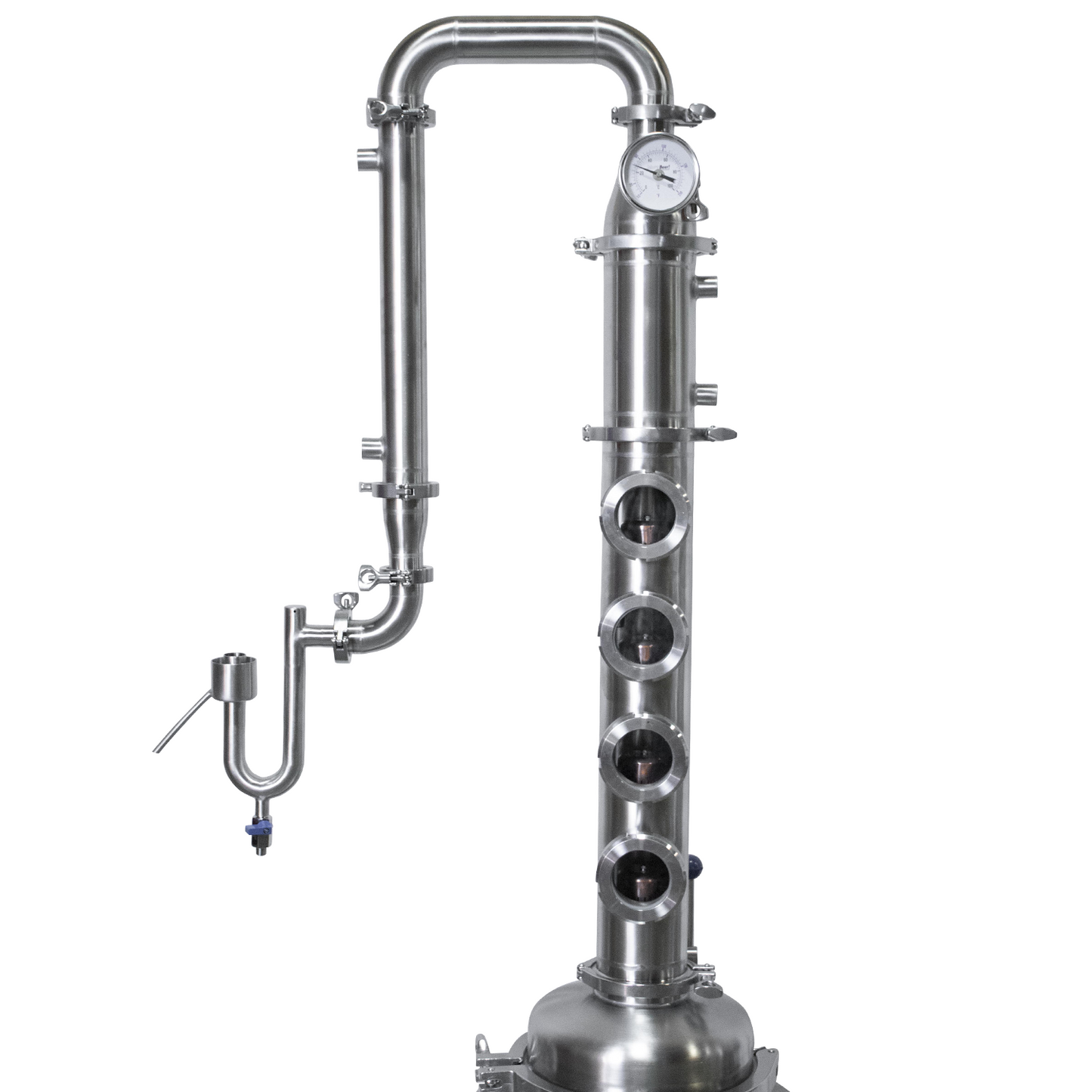

Our professional Reflux Column Still features a 4" column and sight glasses at each plate to allow you to watch the progress of your distilling run. The modular construction features 4" & 2" tri-clamp parts throughout, allowing you to add accessories or modify the still as you see fit. The heavy-duty kettle has an analog thermometer, multiple element ports, a shoulder port for pumping in wash, and a bottom dump valve for easy cleaning.

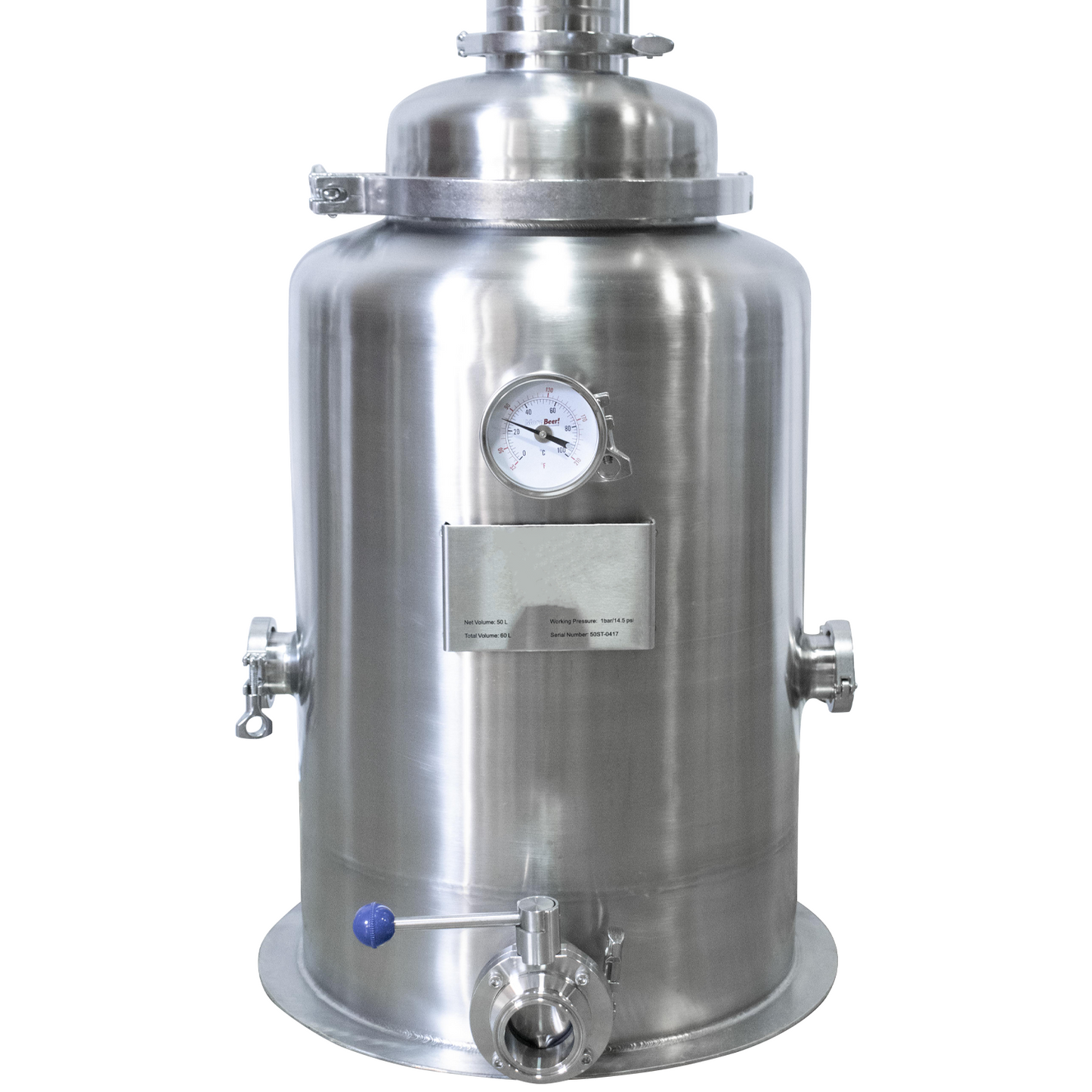

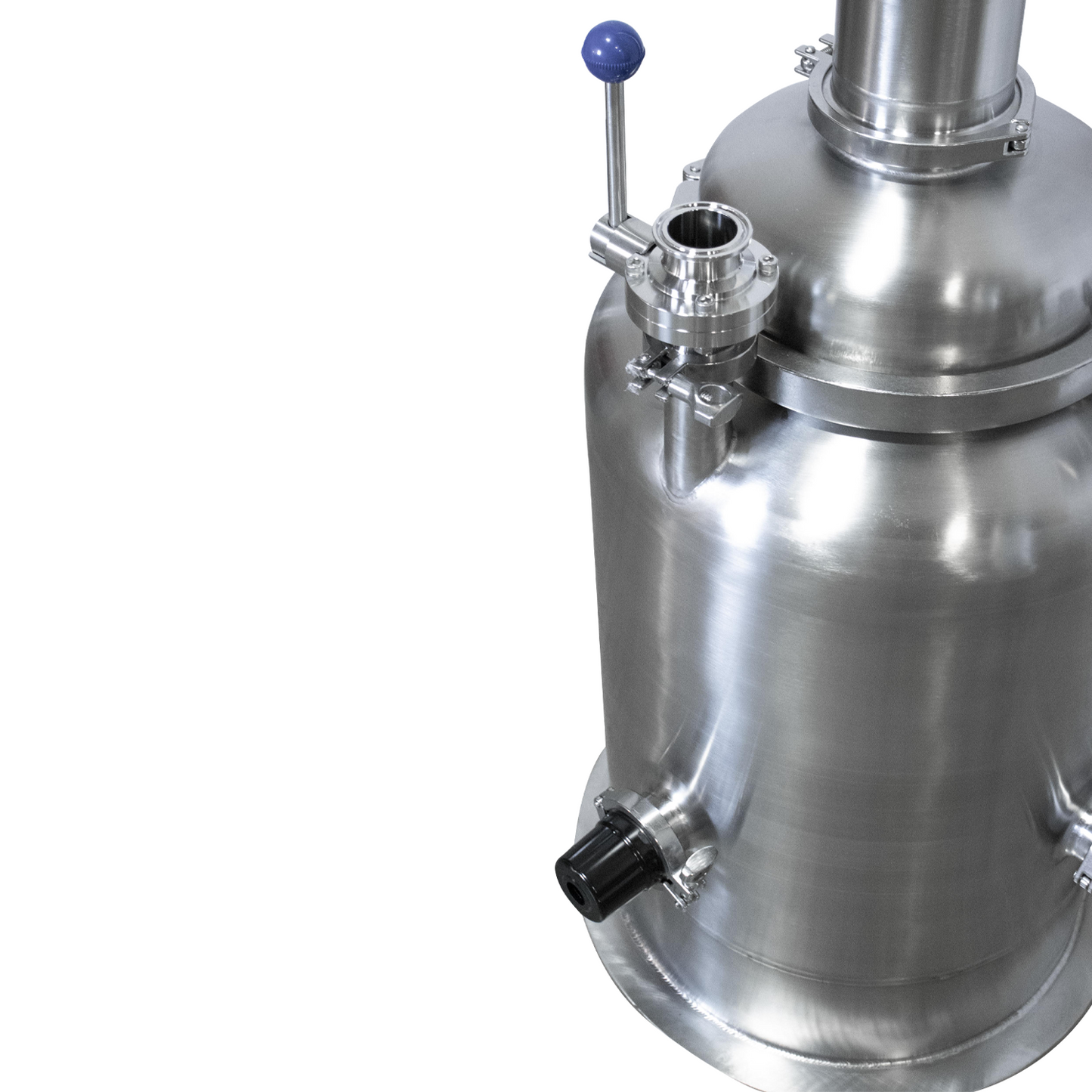

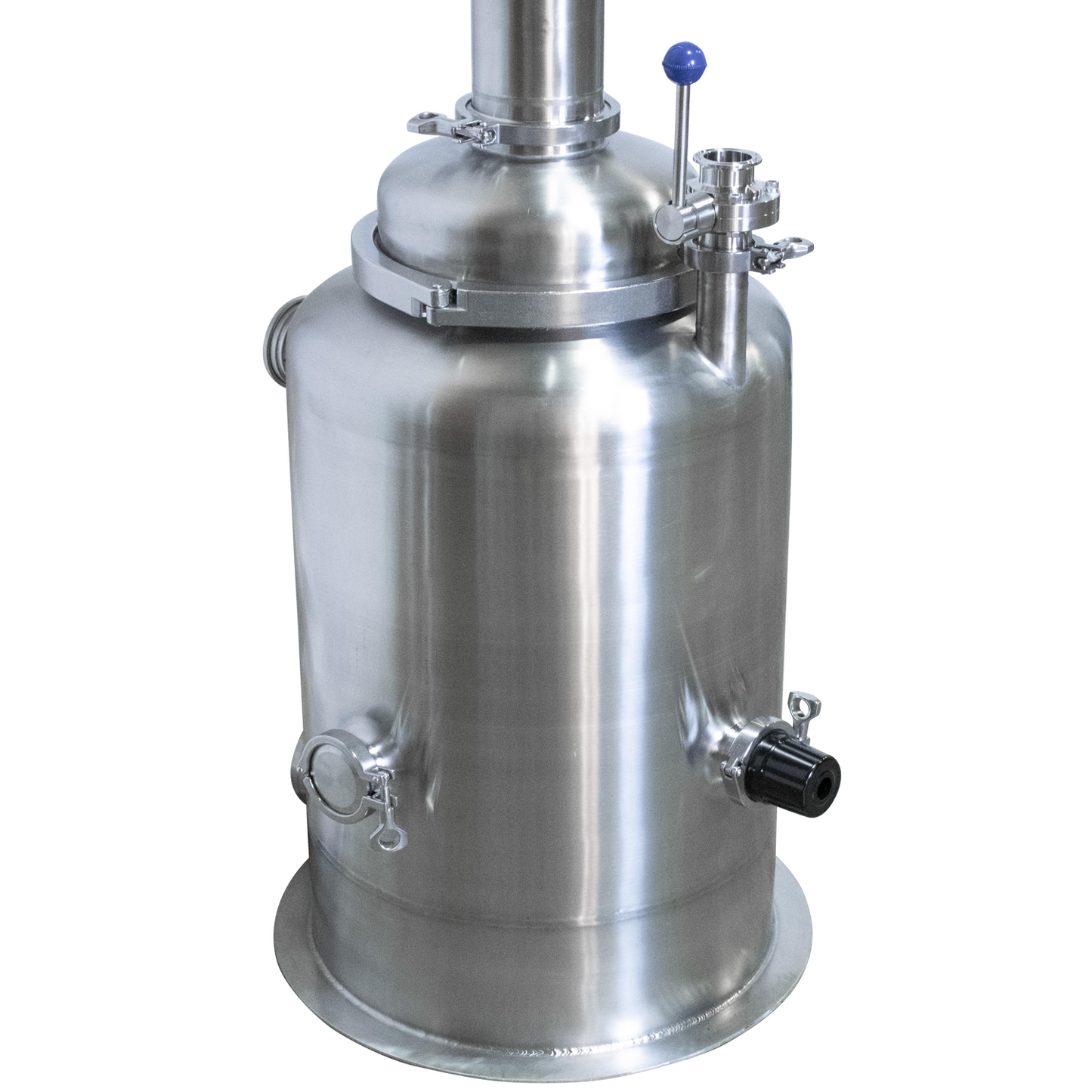

  • Heavy Duty Kettle: Built to last for generations to come

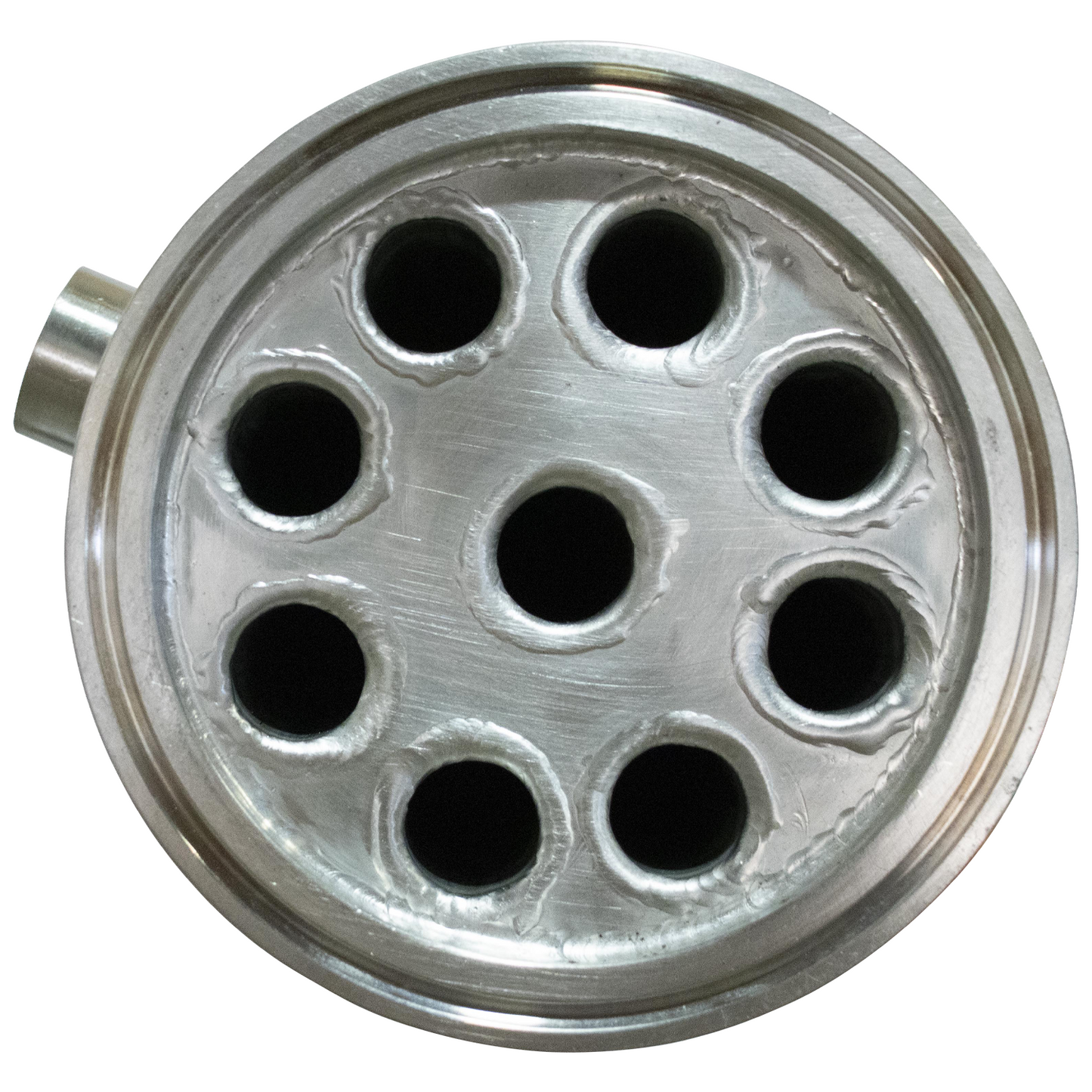

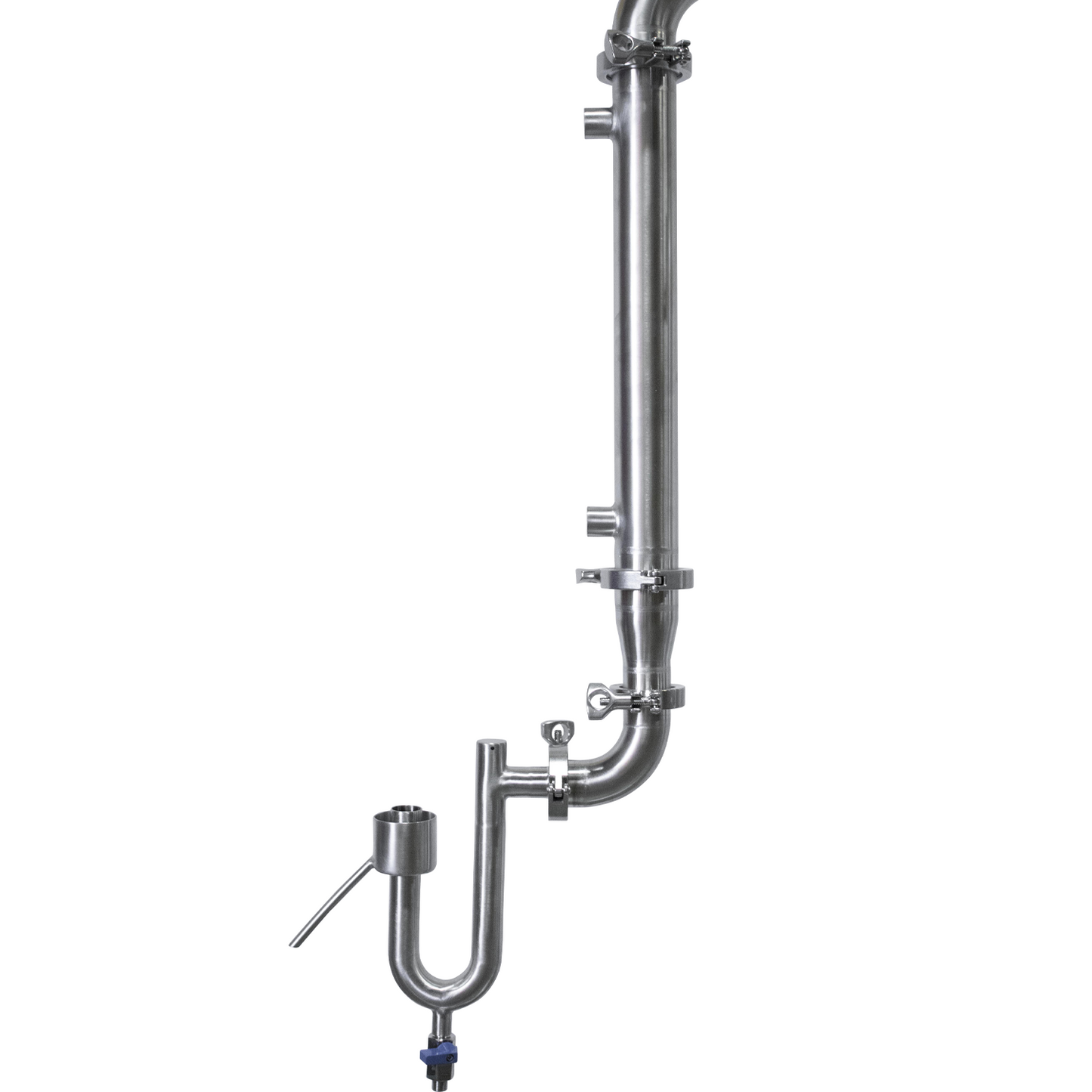

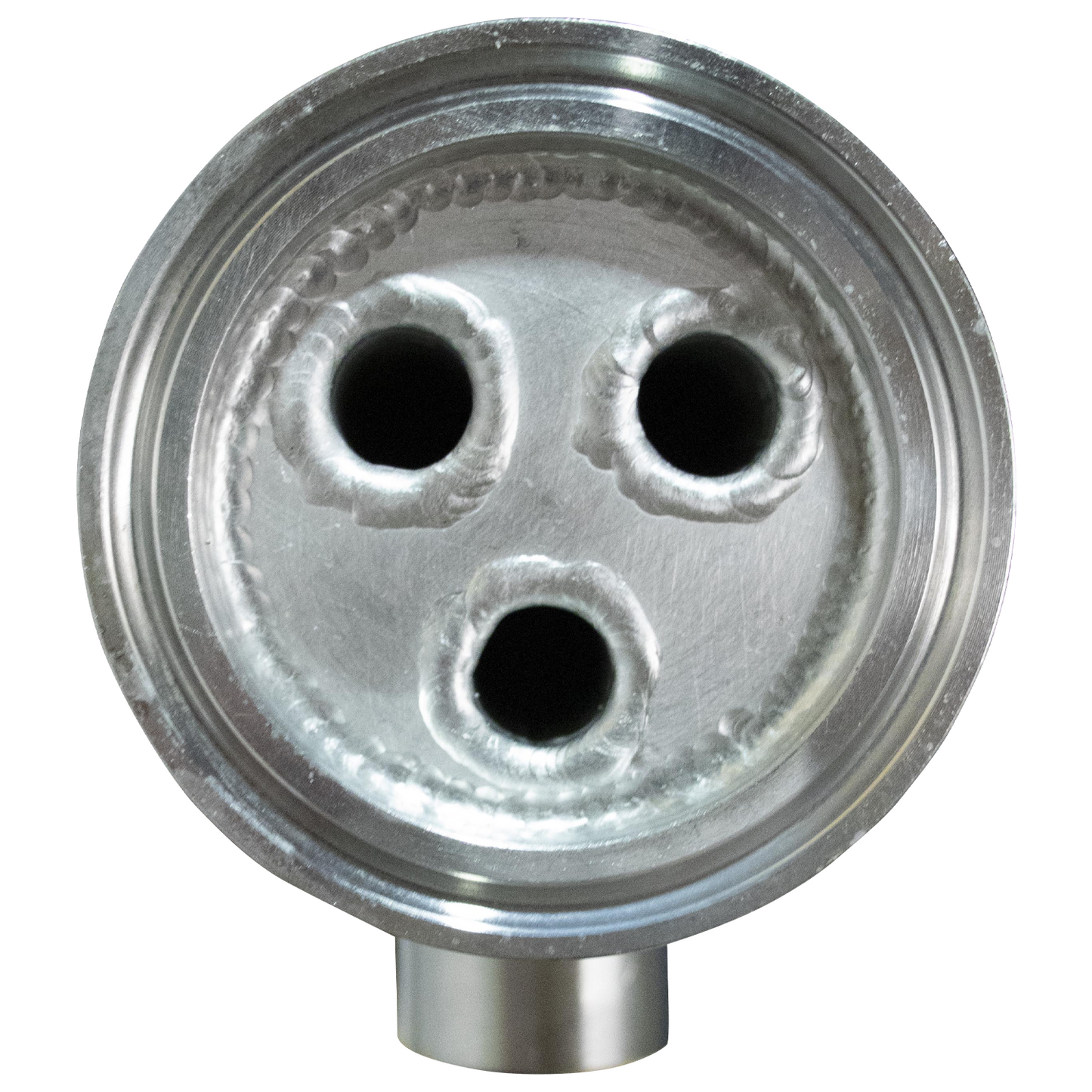

  • Shotgun Style Condensers: Efficient cooling and easy to clean

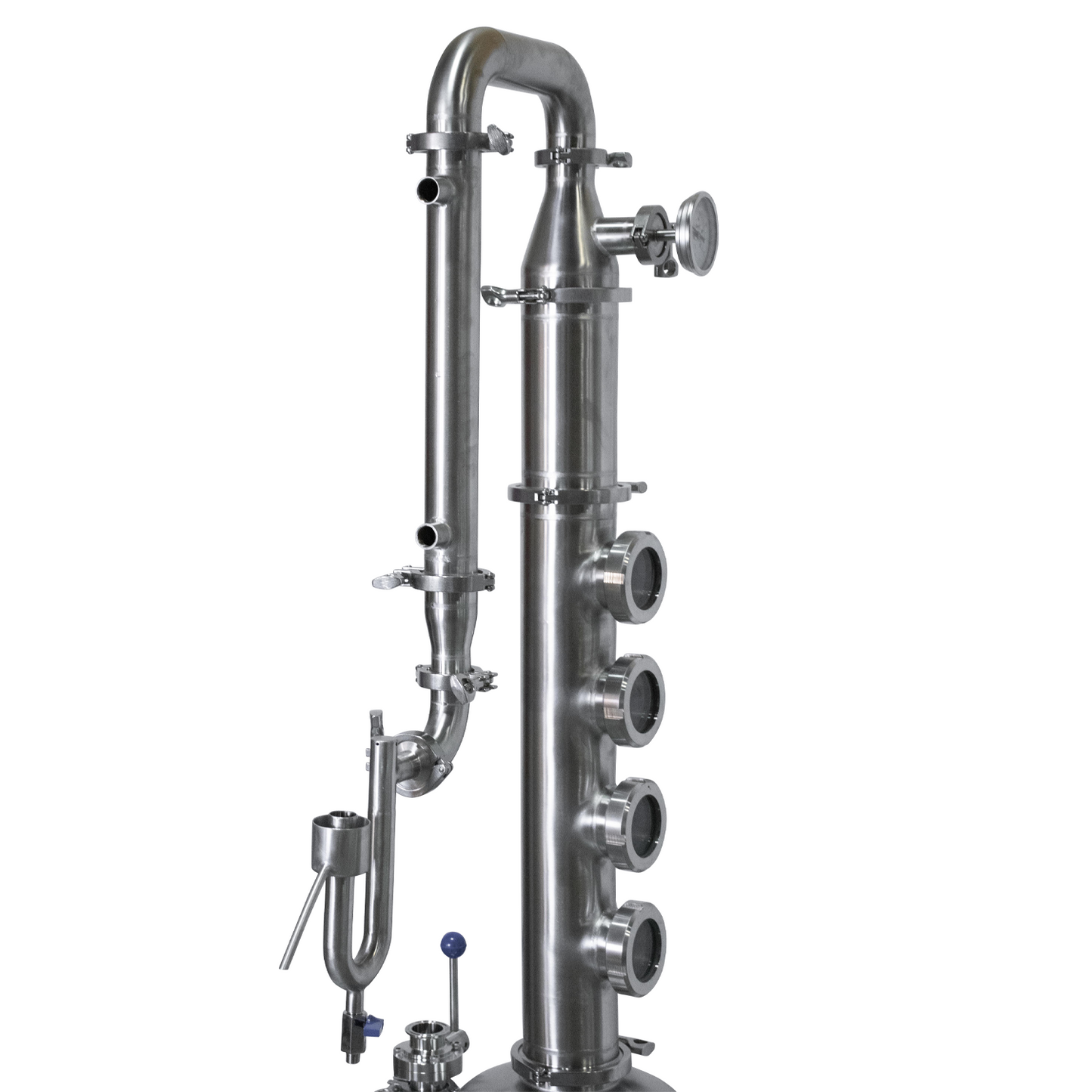

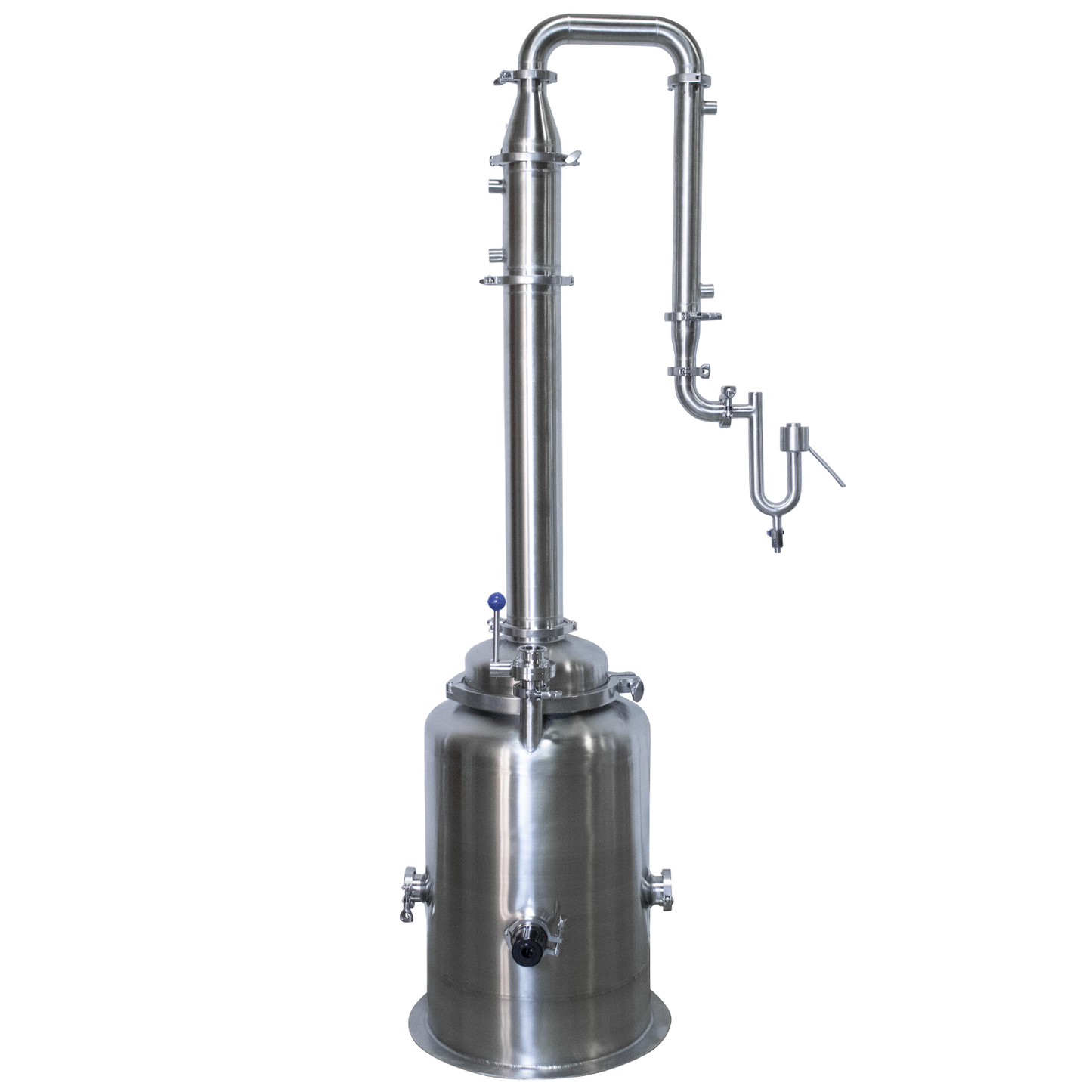

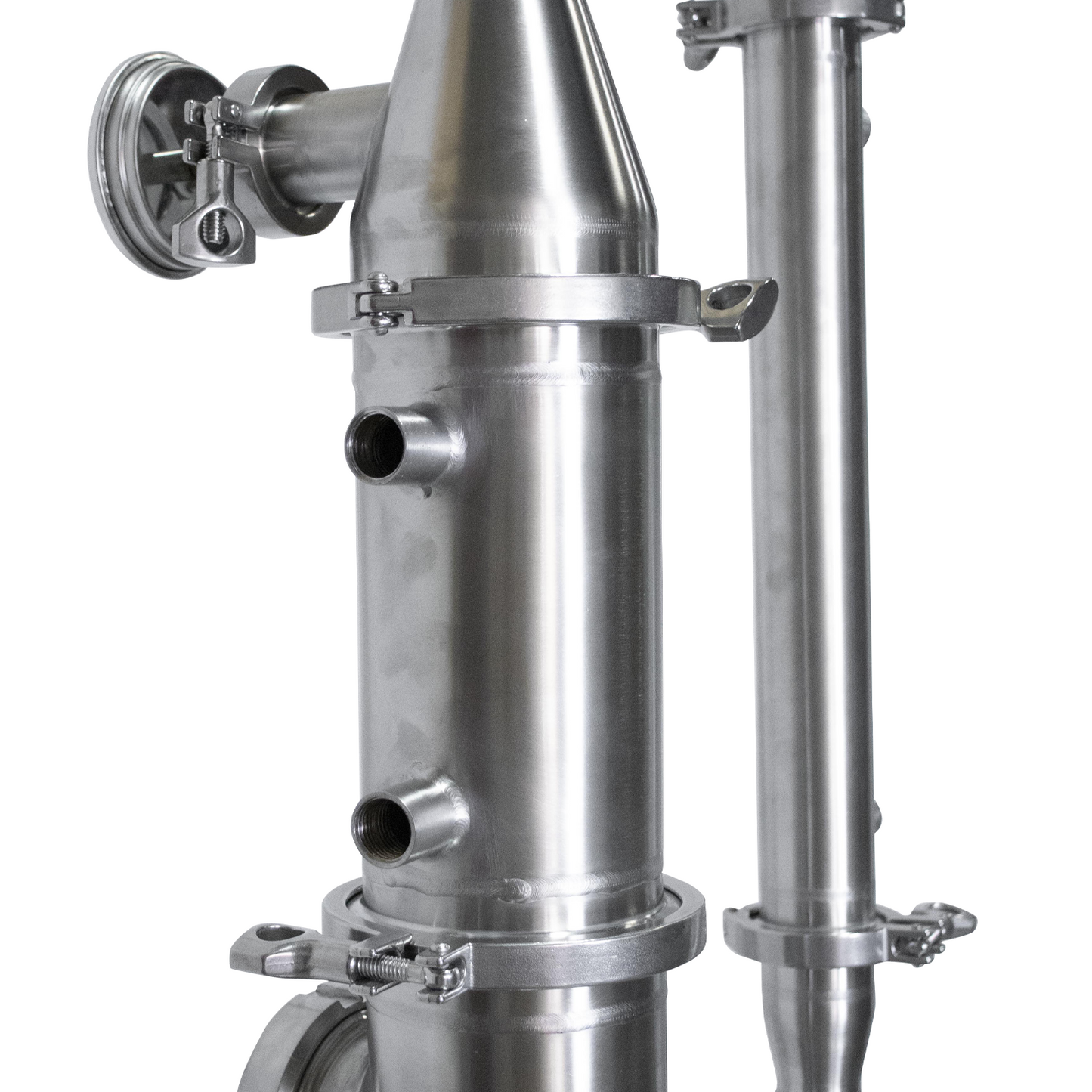

  • Modular Construction: Tri-clamp connected parts in the column and condenser allow you to remove or add parts as needed. Remove the plate section and dephlegmator (reflux condenser) for fast stripping runs or pot-style spirit distillation
  • 4 Copper Plates:  Each provides plenty of surface area to capture sulfur so that it doesn't make it into your finished spirit

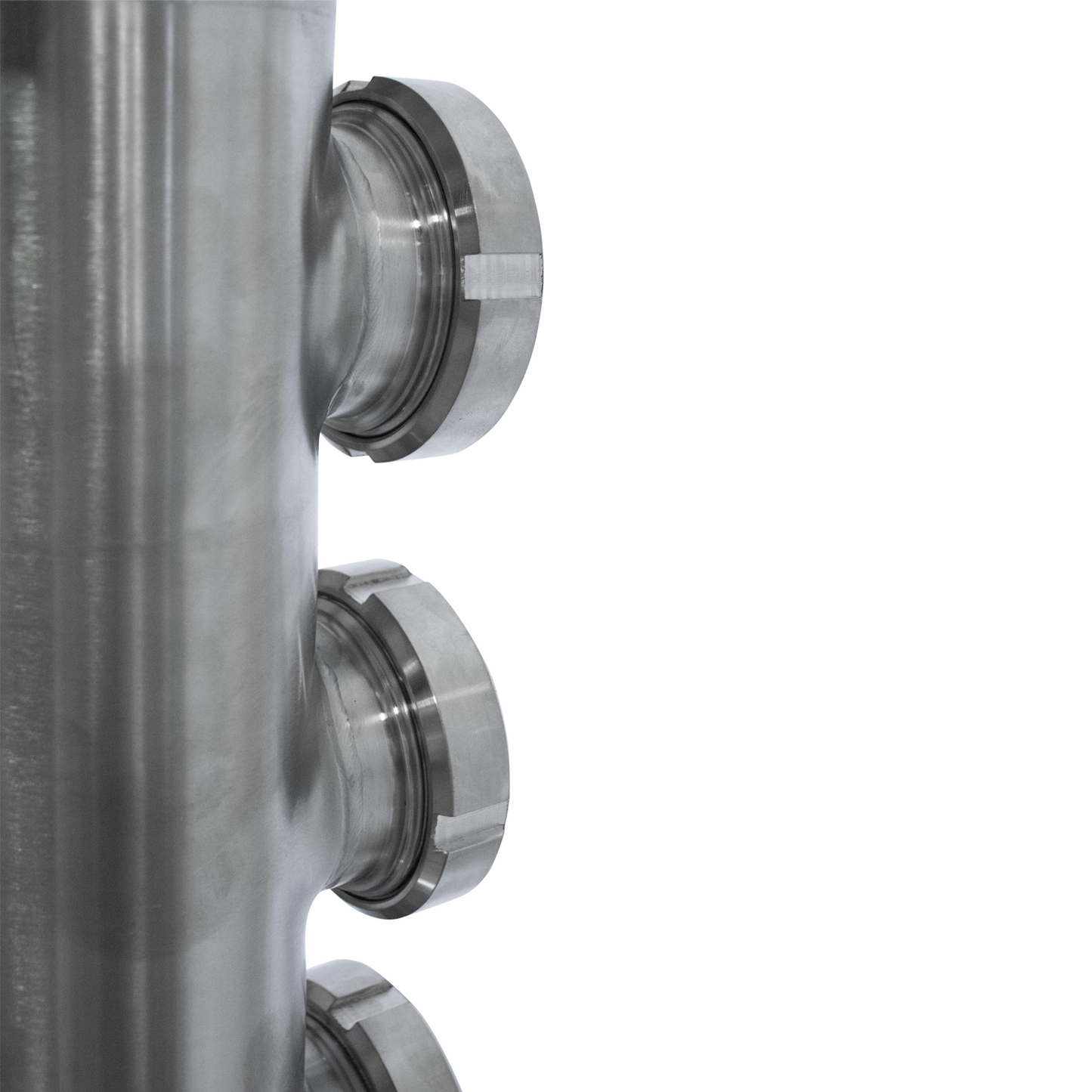

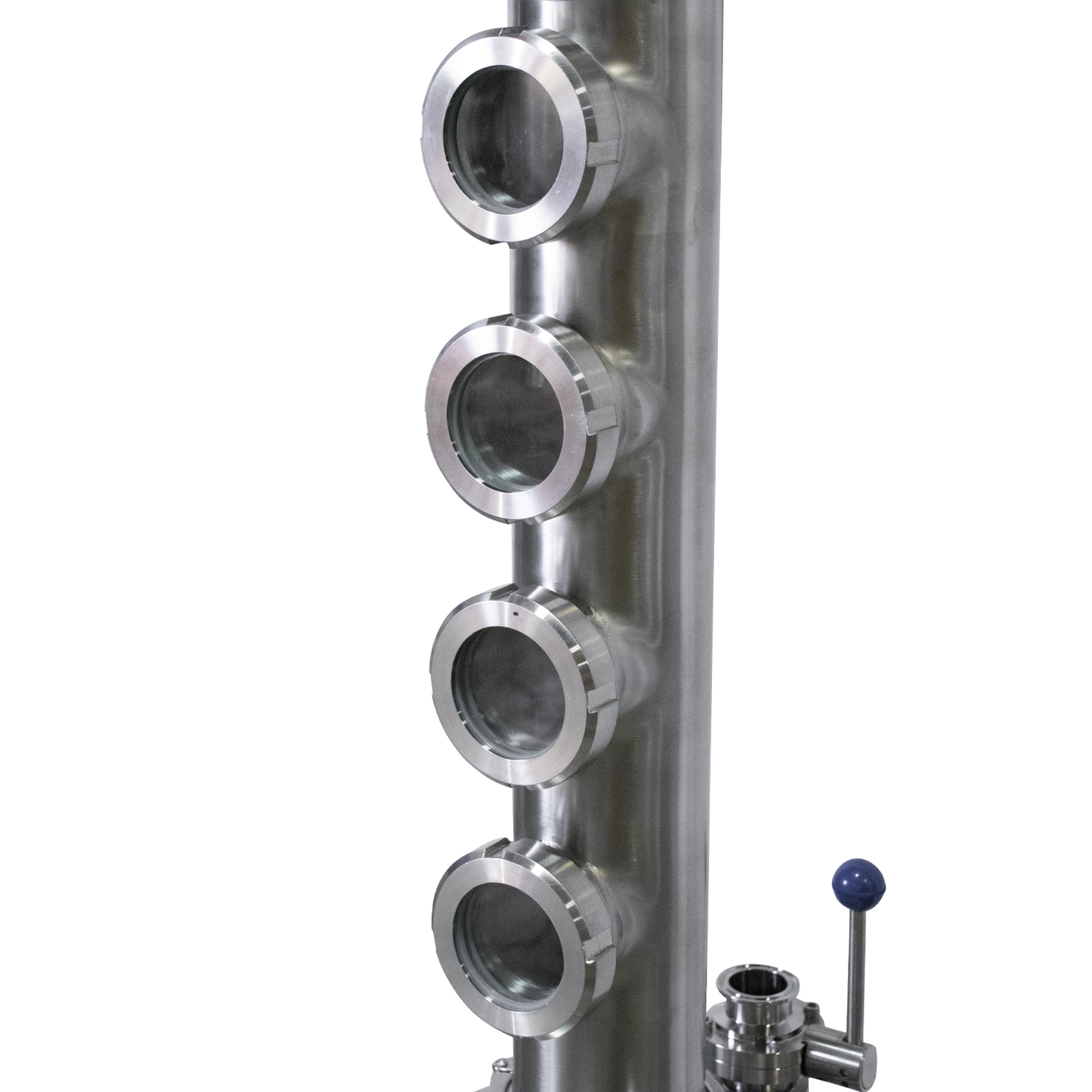

  • Sight Glasses: A sight glass at each plate allows you to double-check every plate is loaded for optimal reflux
  • Solid Column: Fewer leak points. No fussy plate gaskets, which are prone to twisting and leaking

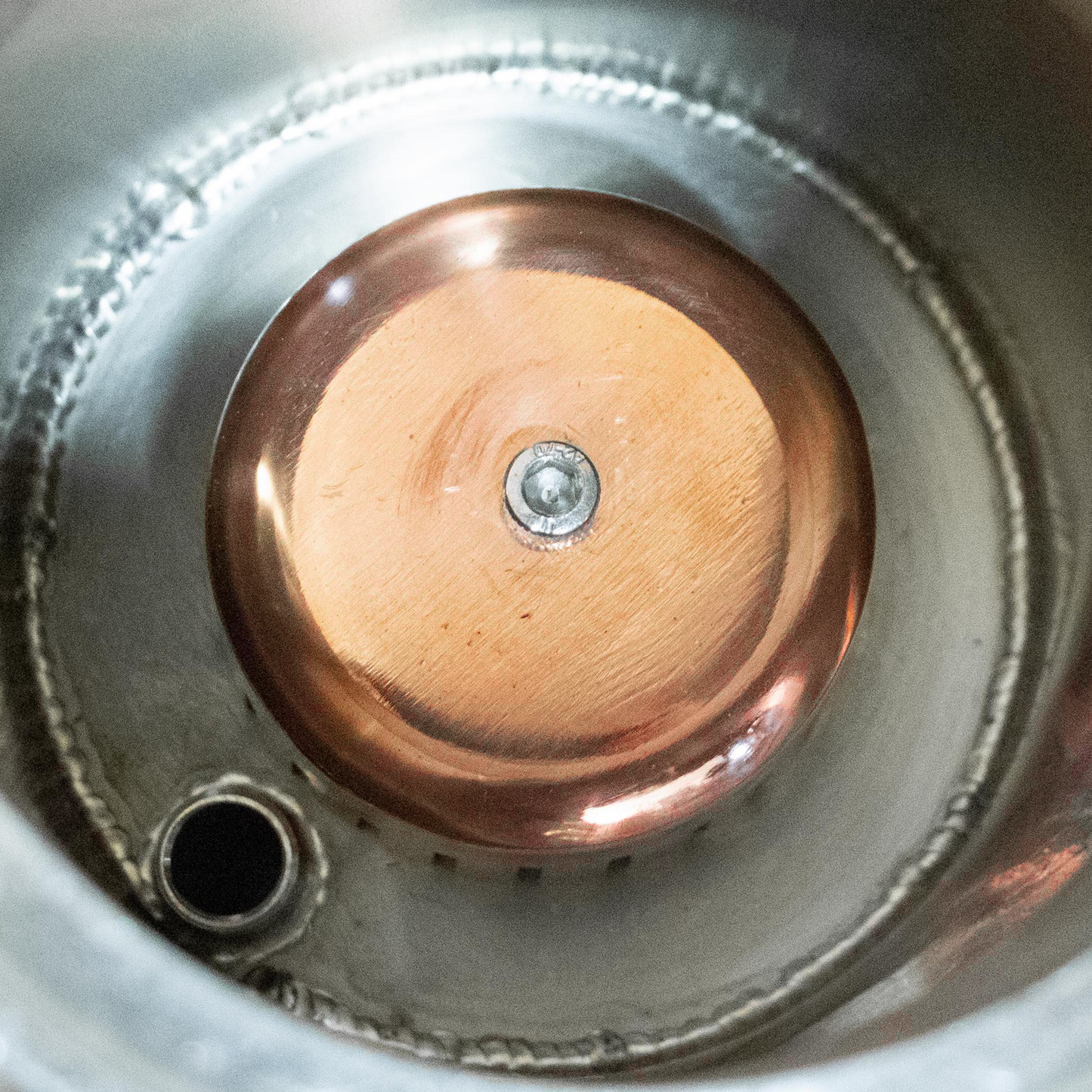

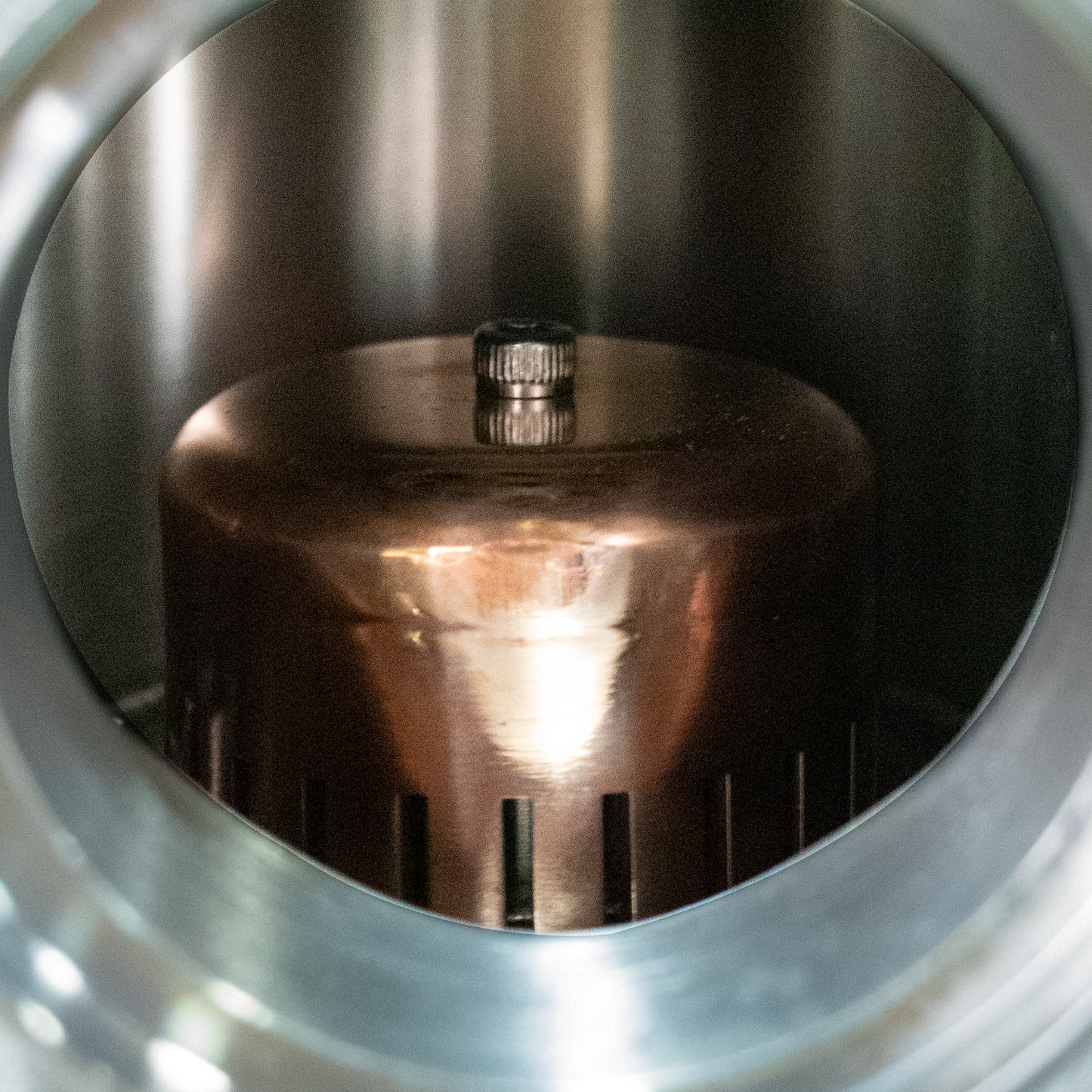

  • Large Bubble Cap: Each plate has one large bubble cap making them easy to clean and maintain

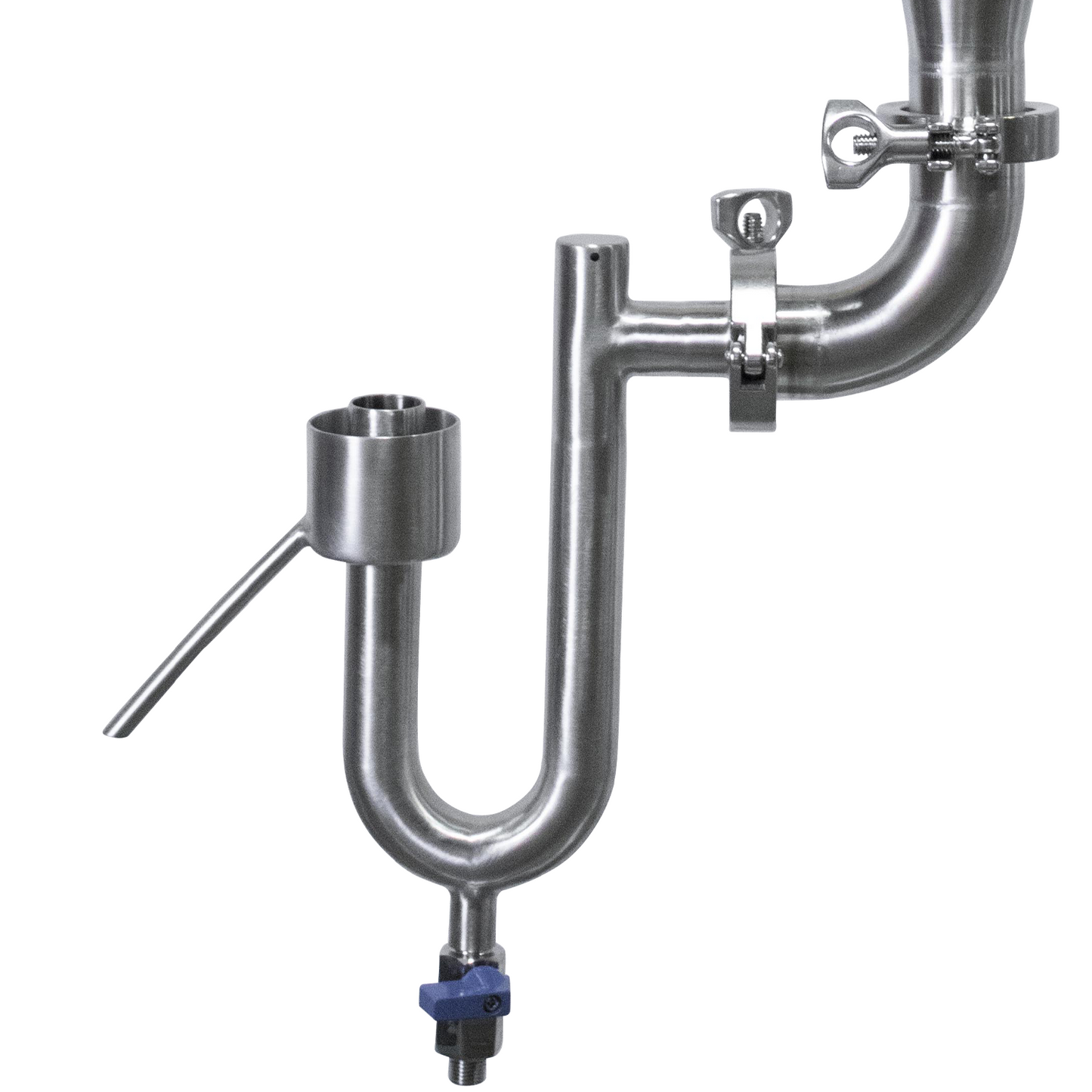

  • Parrot Dump Valve: Drain the Parrot periodically during the run to get an accurate reading with your hydrometer
  • Three 2" Tri-Clamp Element Ports: Use a combination of heating elements for more control
  • 2" T.C. Dump port with Butterfly Valve
  • 1.5" Shoulder port with Butterfly Valve
  • 1/2" FPT cooling source connections
