Continental Vintner™ Beverage Hose | ForgeFit | 1.5" T.C.

Our beverage tubing sets are custom-made to order using the highest quality ForgeFit® fittings and 1.5" Continental Vintners Reserve beverage tubing. For decades, Vintners Reserve tubing has been the go-to tubing choice for many breweries and wineries.

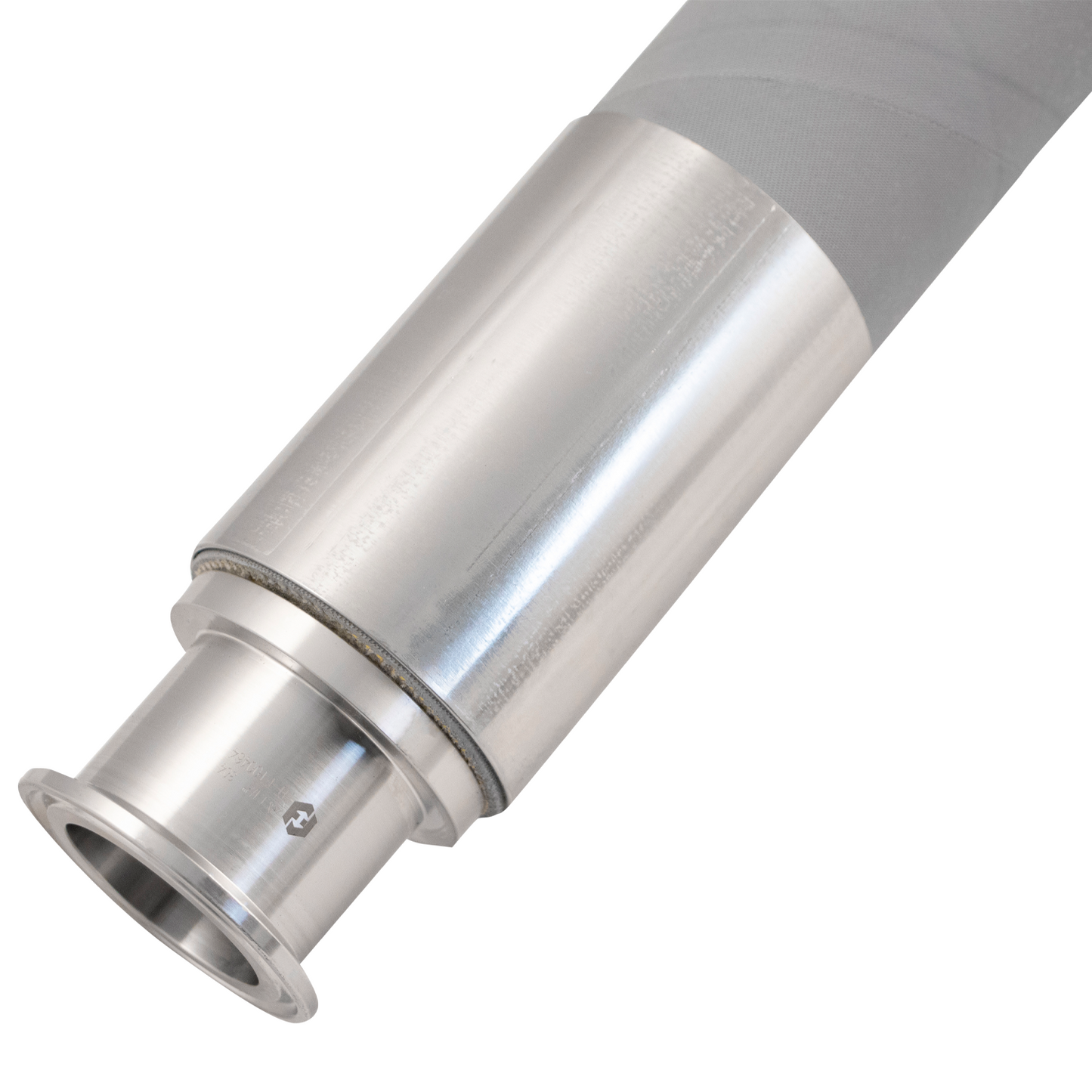

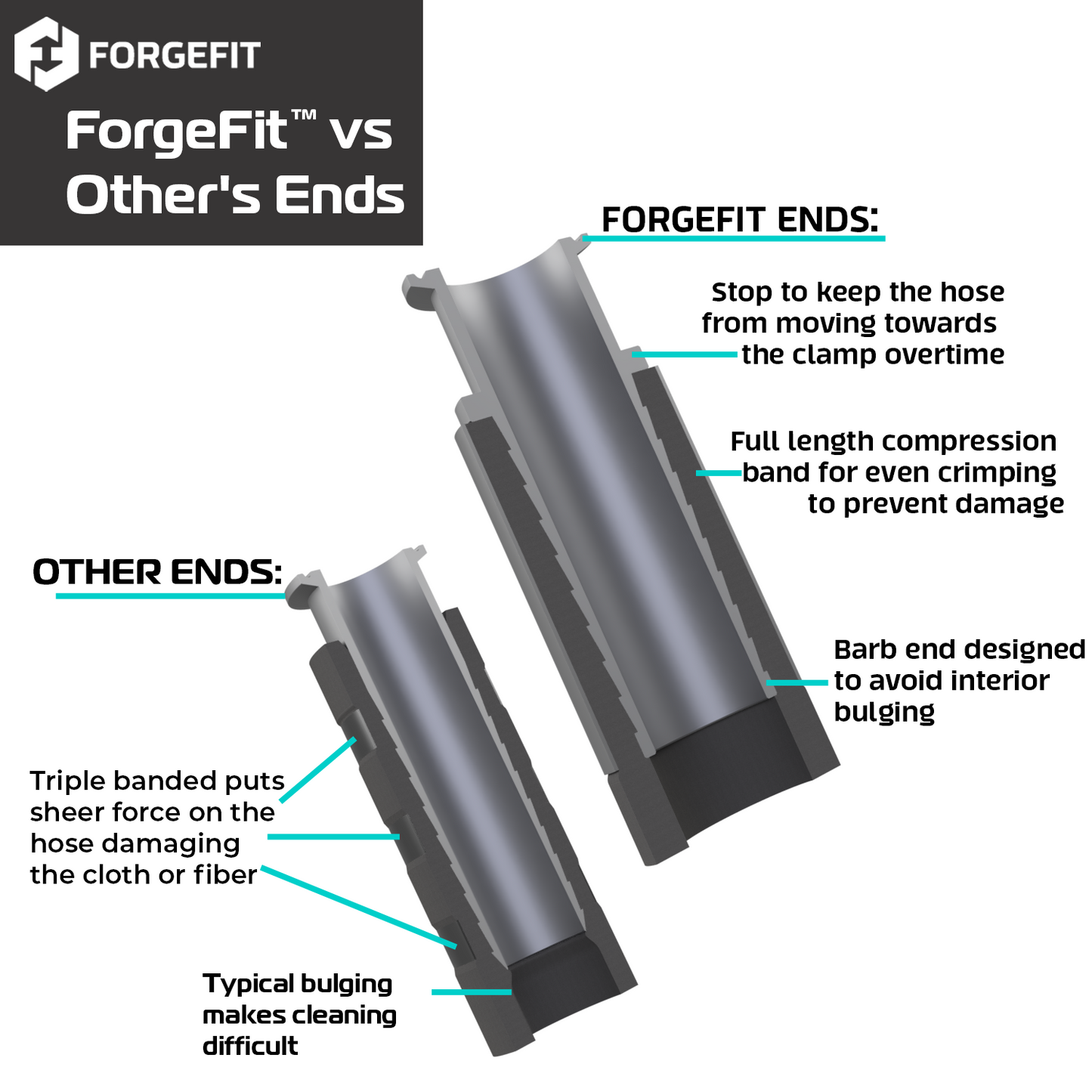

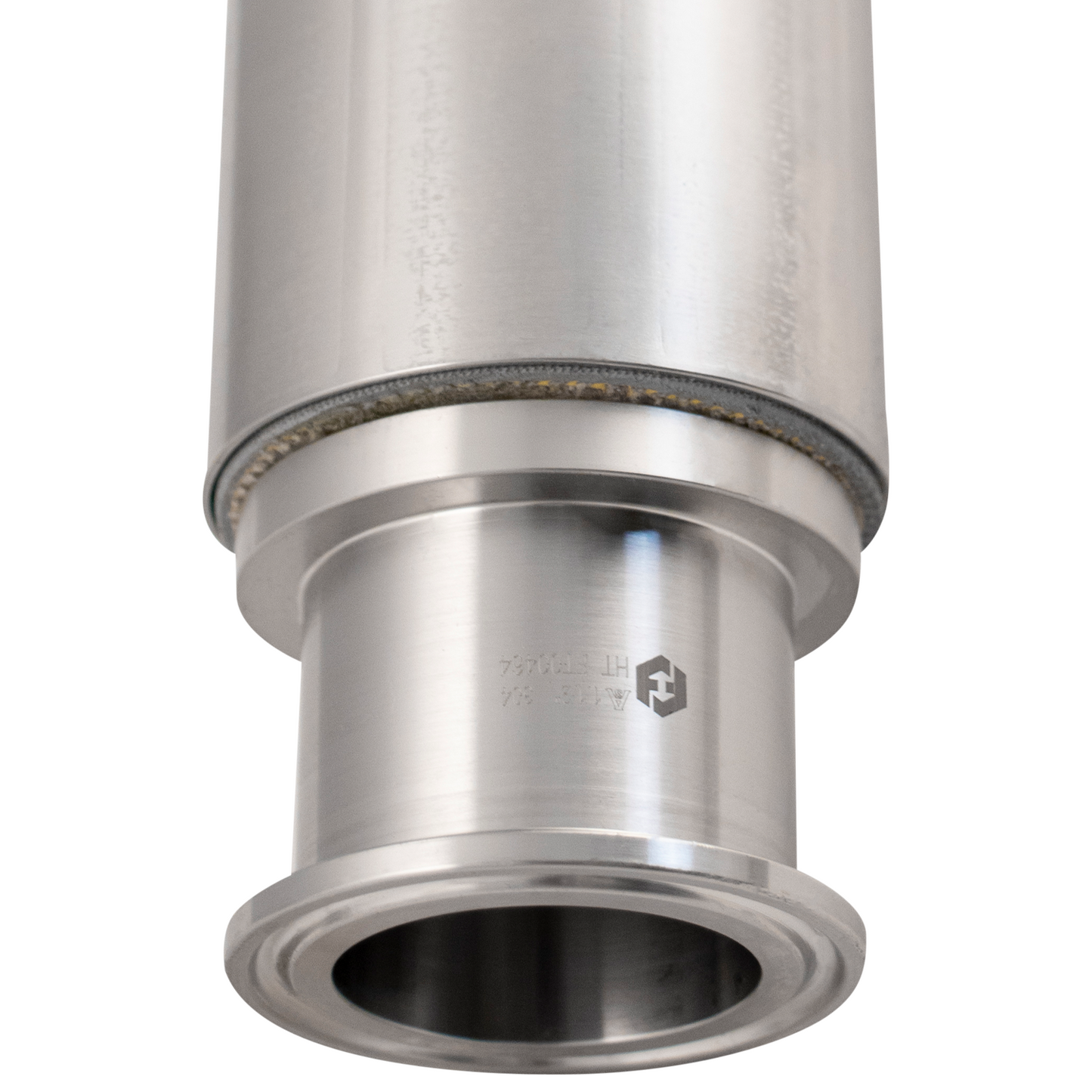

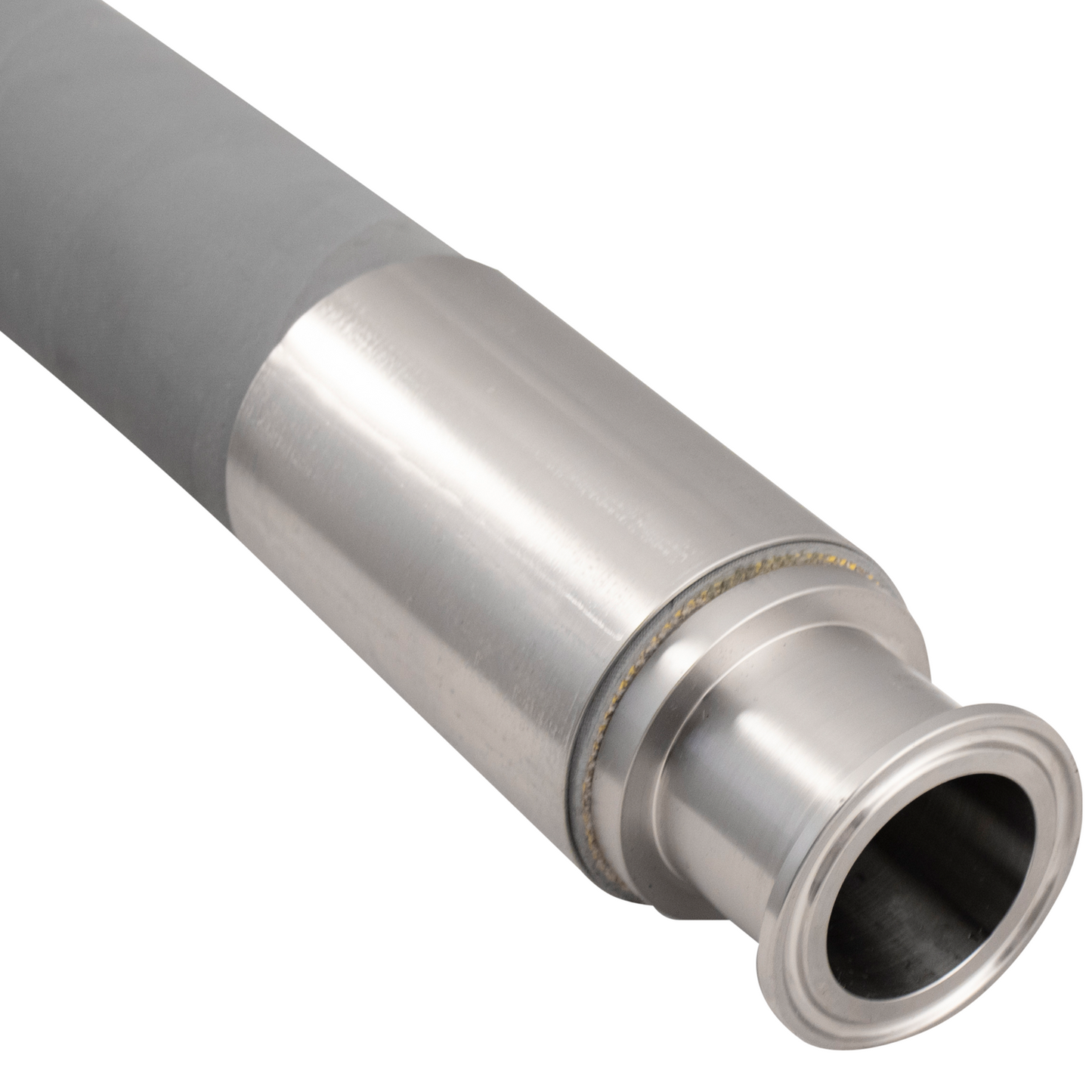

The ForgeFit® barbed connector and crimp sleeve system was designed to provide a hose connection that is easy to clean and will last longer than average fittings. The long barb and sleeve provide a secure crimp without crushing the hose. Other tubing sets use triple banding that can easily slip or damage the hose during installation and often have sharp edges. The ForgeFit® hose barb skips the first barb to provide a gapless and smooth transition to the tubing, making it easier to keep clean. The barb also features a stop to ensure the hose does not creep closer to the clamp during use.

Lead Time
The lead time is approximately 2 weeks for custom hose lengths with fittings installed.

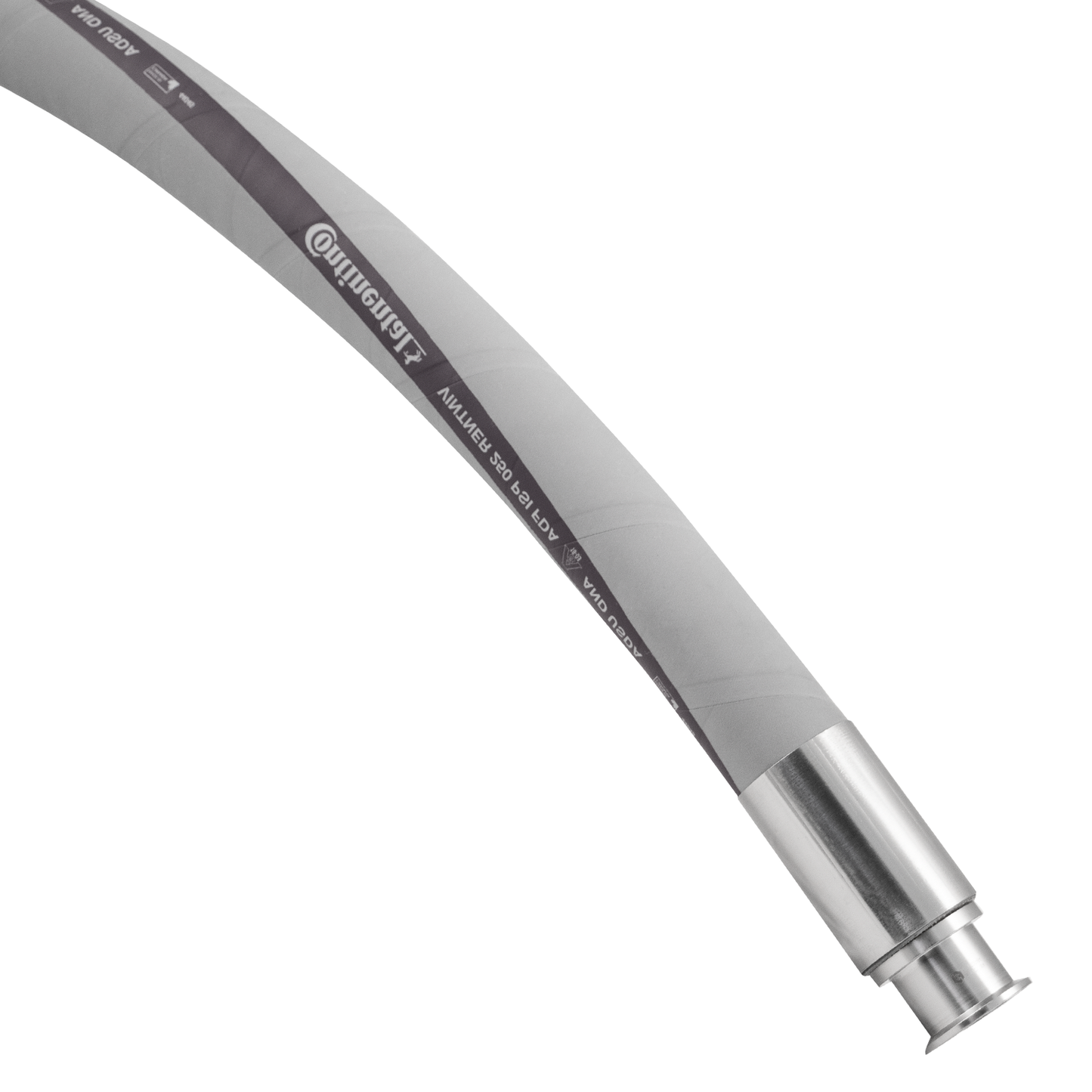

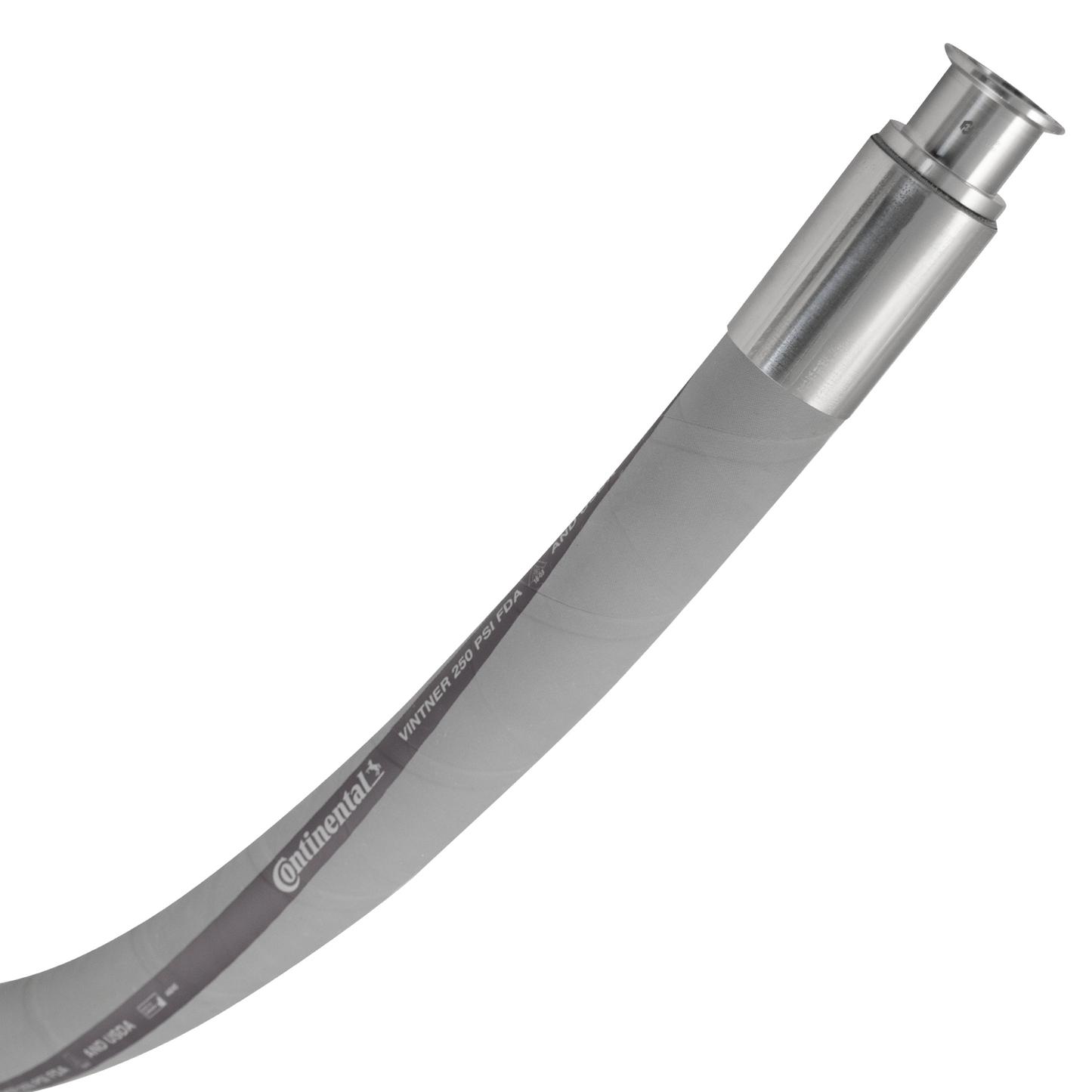

Vintner™ Reserve:

• Vintner™ Reserve is primarily for liquid transfer in wineries and breweries and beverage production
• For handling in-plant and or tank truck transfers of wine, beer, and other non-oily liquid foodstuffs
• Resistant to conventional cleaning agents and cleaning-in-place processes
• The hose is built on a special chrome mandrel to ensure maximum cleanliness
• FDA/USDA-compliant and conforms to 3-A Sanitary Standard 18-03

Features:

• Flexible
• The hose cover leaves no stain on the floor when dragged
• Won't discolor food or beverages
• The smooth, homogeneous liner will not impart taste or odor
• The monofilament helix is rust-proof and is a crush-resistant alternative to traditional softwall or steel wire, reinforced hoses
• 4-to-1 safety factor
• Easy to clean
•  Lightweight
• Crush and kink resistant
• Custom Length

Specifications:

• Temperature: -25°F to 220°F (-32°C to 105°C)
• Tube: White Chlorobutyl tube won't impart rubbery tastes or smells
• Reinforcement: Spiral-piled synthetic fabric with monofilament helix
• Cover: Gray EPDM synthetic rubber (wrapped)
• 1.5" tri-clamp ends
