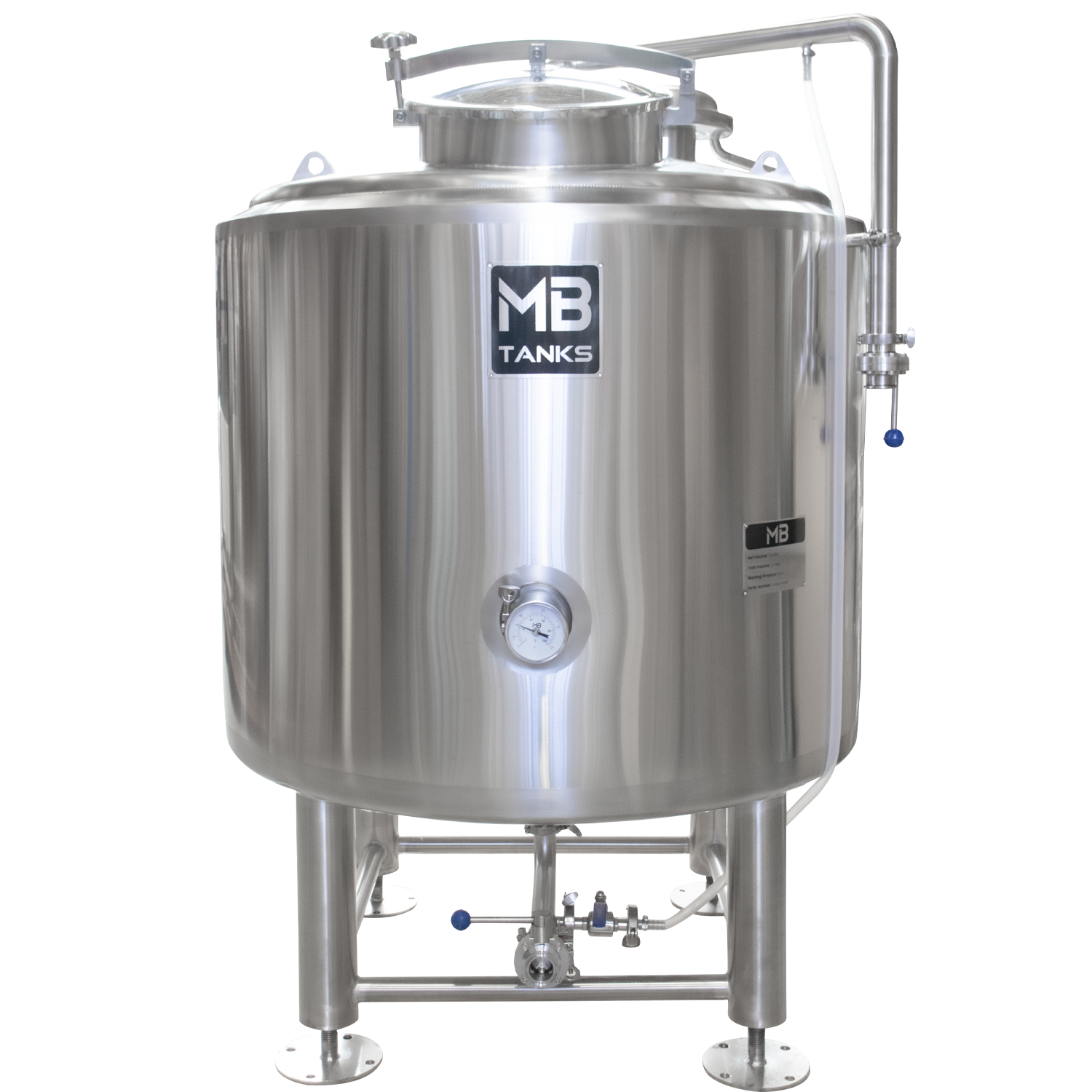

Electric Hot Liquor Tank | 3.5 bbl
Electric Hot Liquor Tank | 3.5 bbl
Couldn't load pickup availability
Our 3.5 bbl Electric Hot Liquor Tank features three 9,000W heating elements, insulated walls for energy efficiency, a condensation ring, and a host of other key features guaranteed to satisfy the expectations of today’s pro brewer. A float switch is pre-installed just above the heating elements, intended to protect the elements from running dry. The device comes unwired and must be included in a circuit to function.
MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.
Hot Liquor Tank Features:
- Oversized to allow mashing and sparging without having to top off
- Insulated walls for safety and energy efficiency

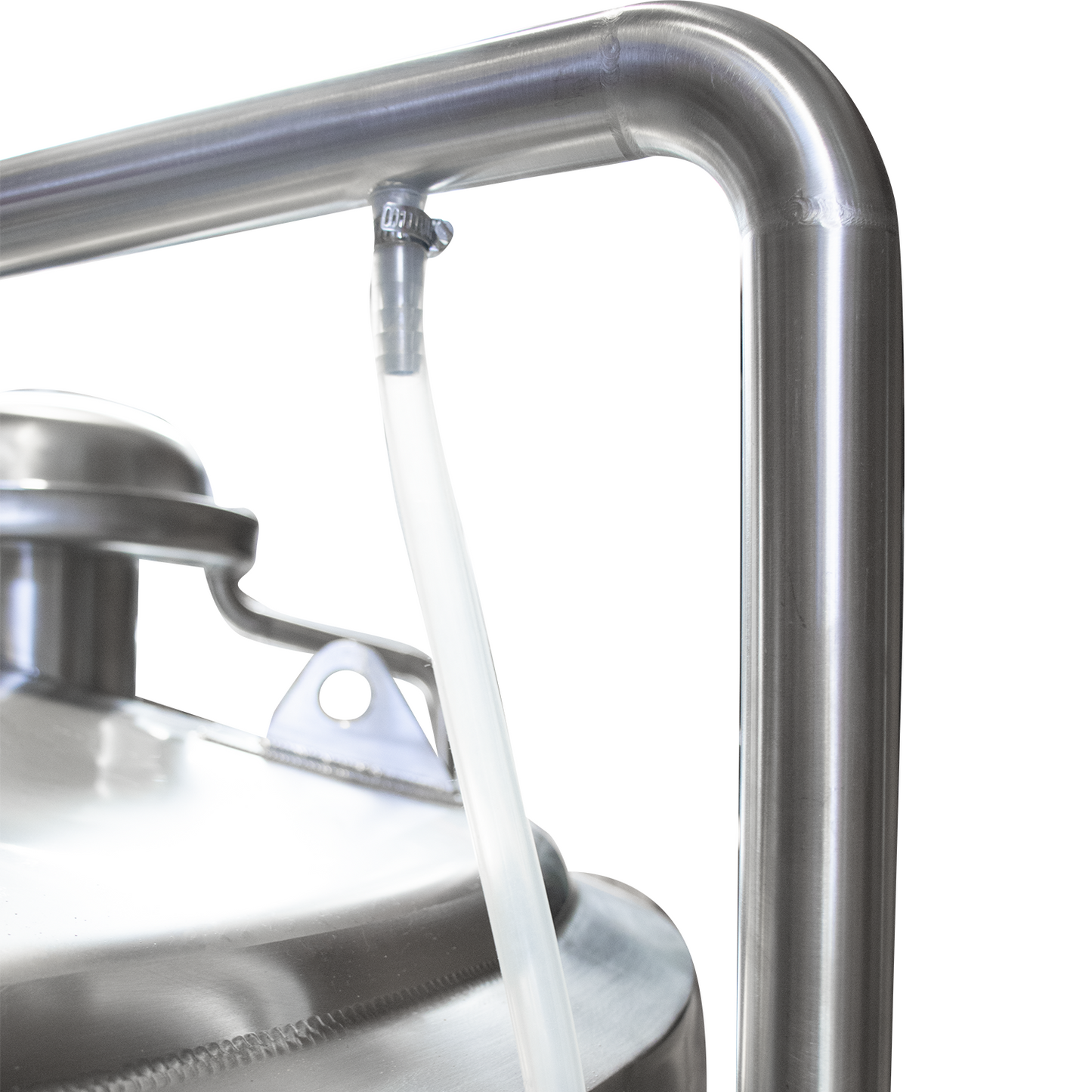

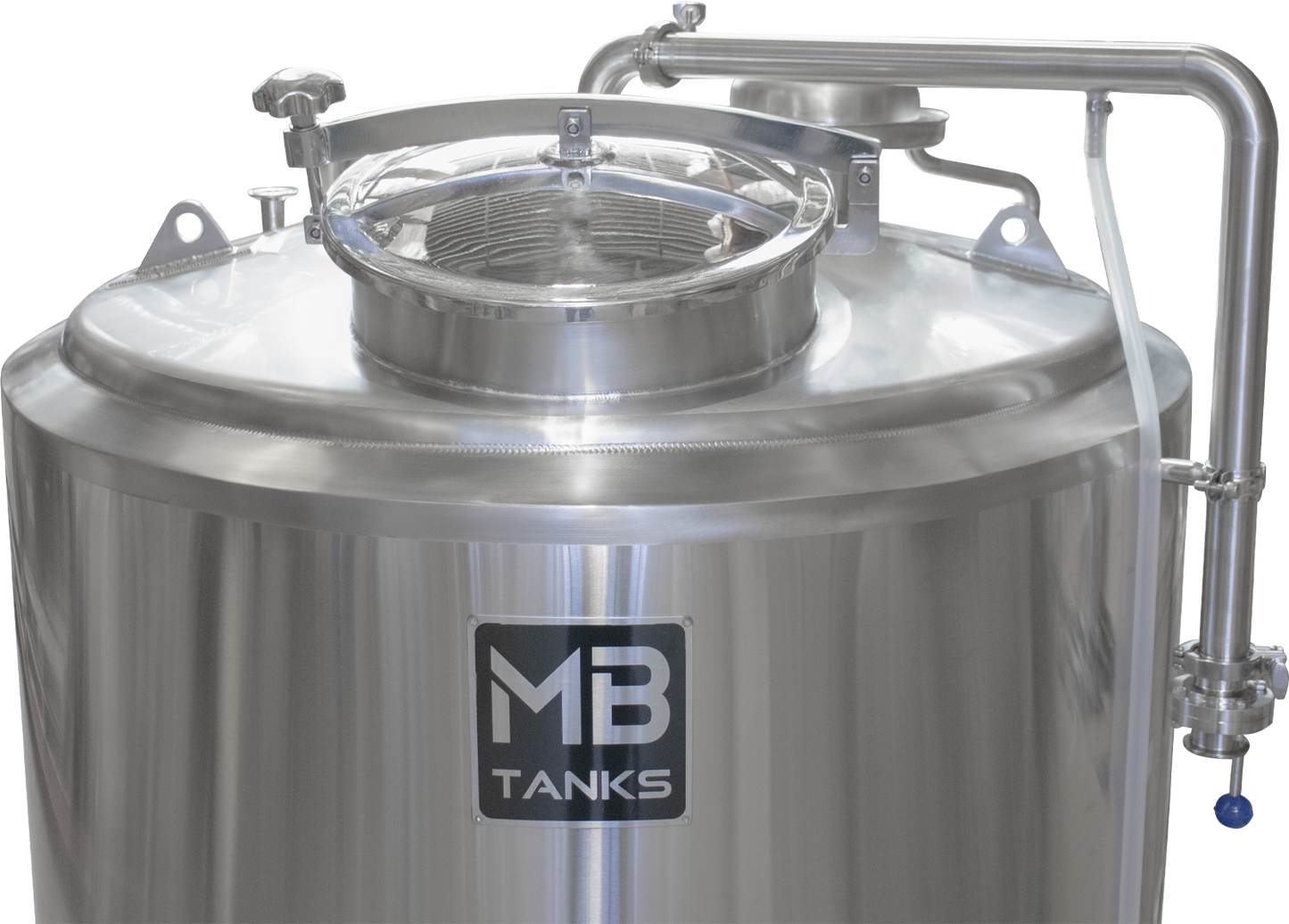

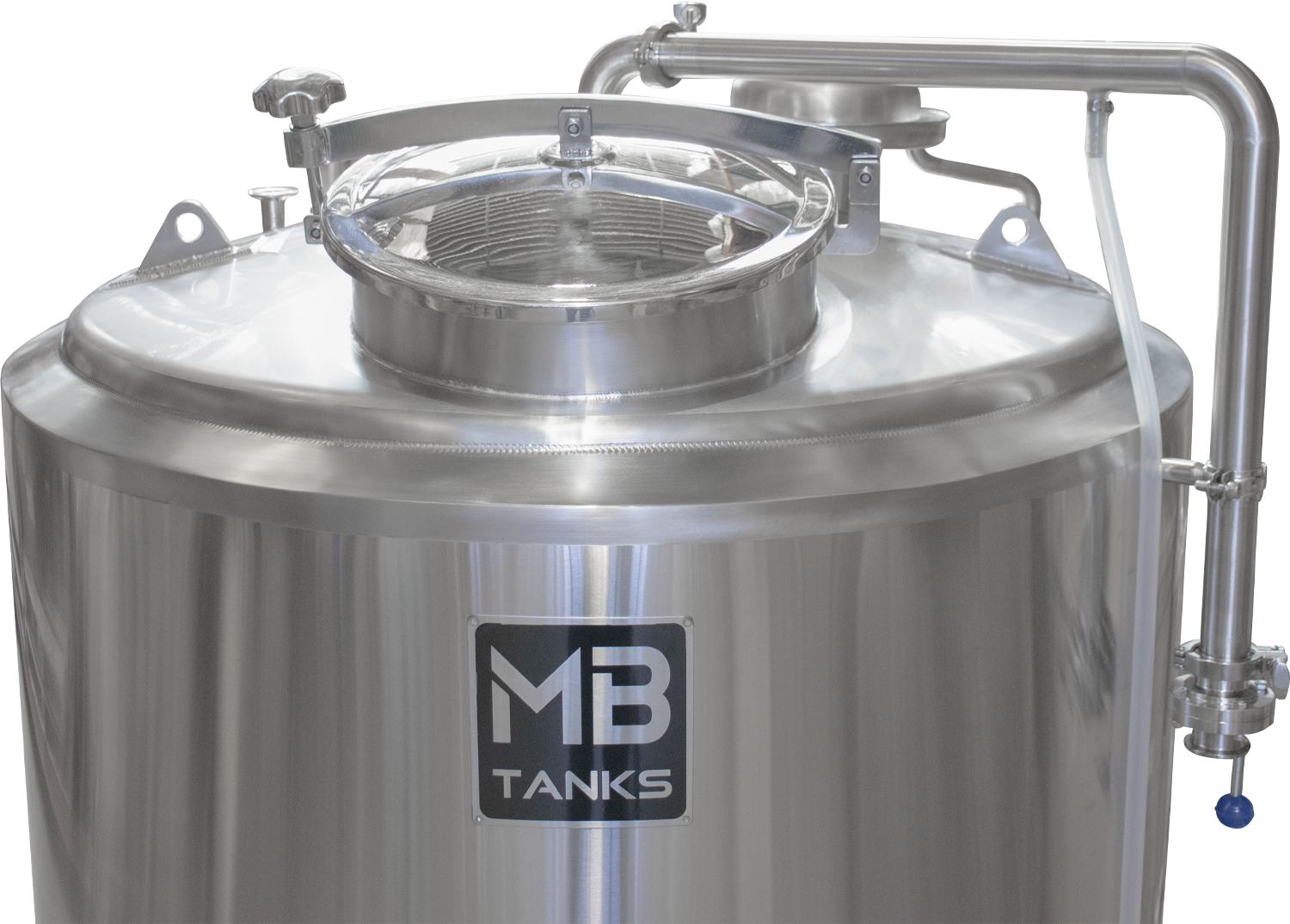

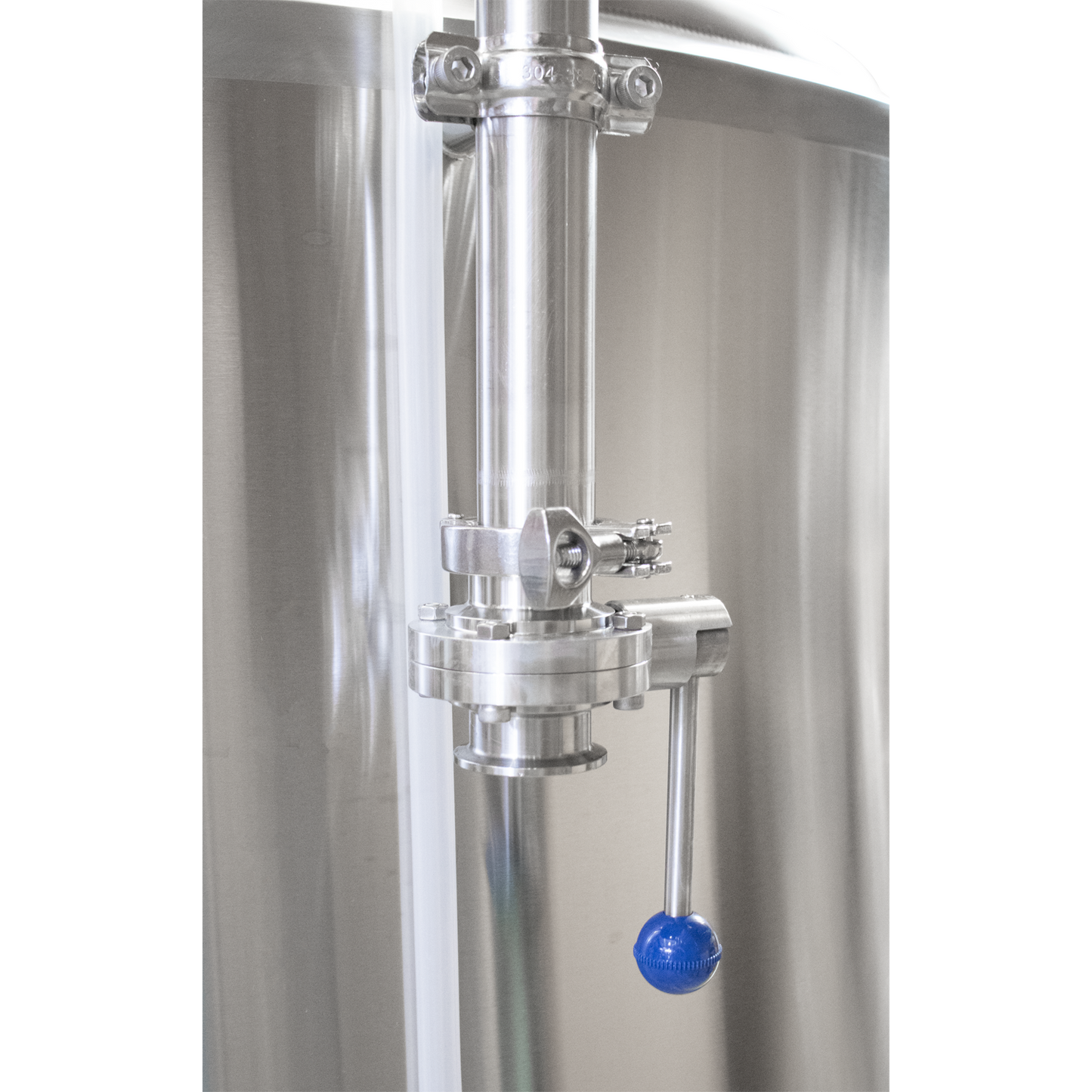

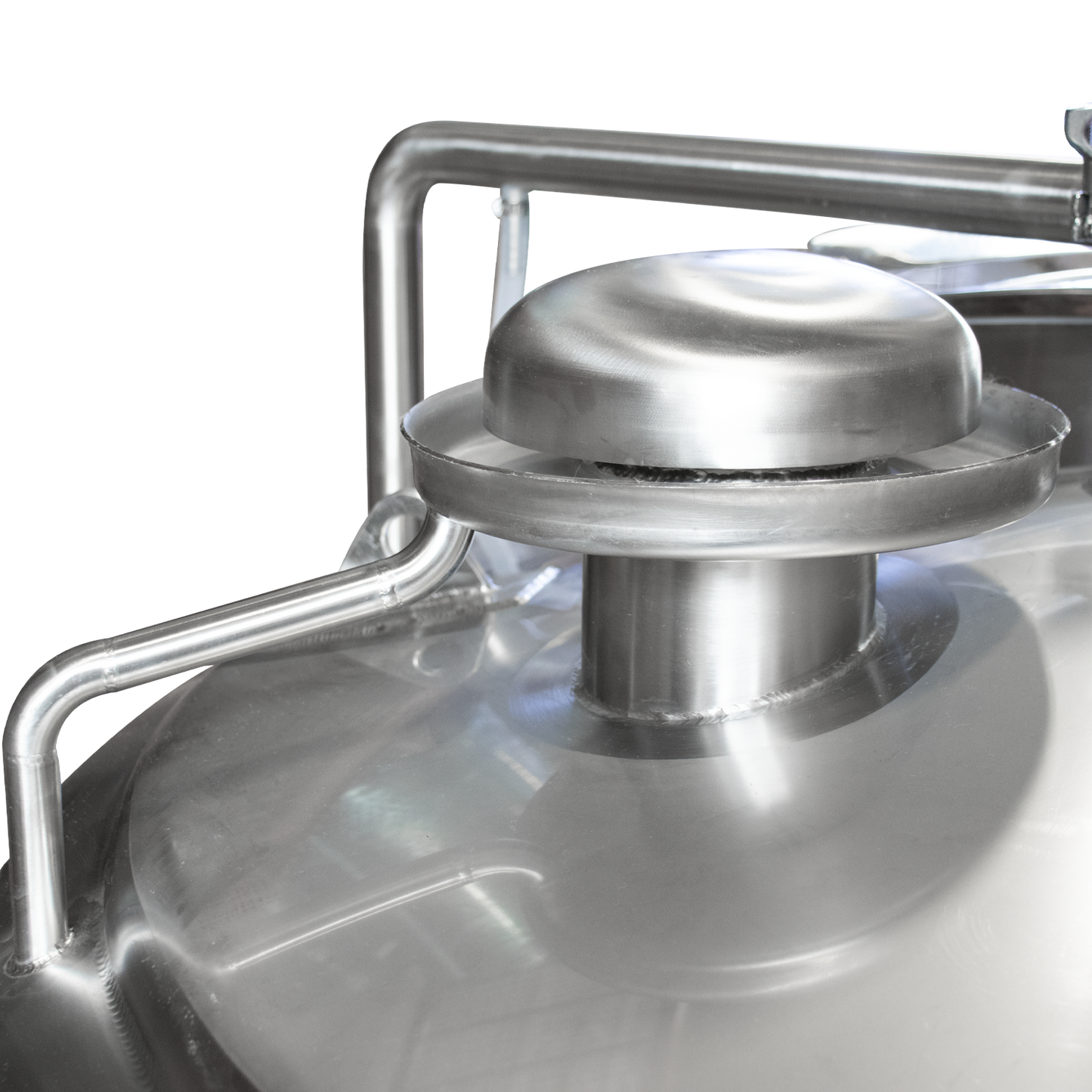

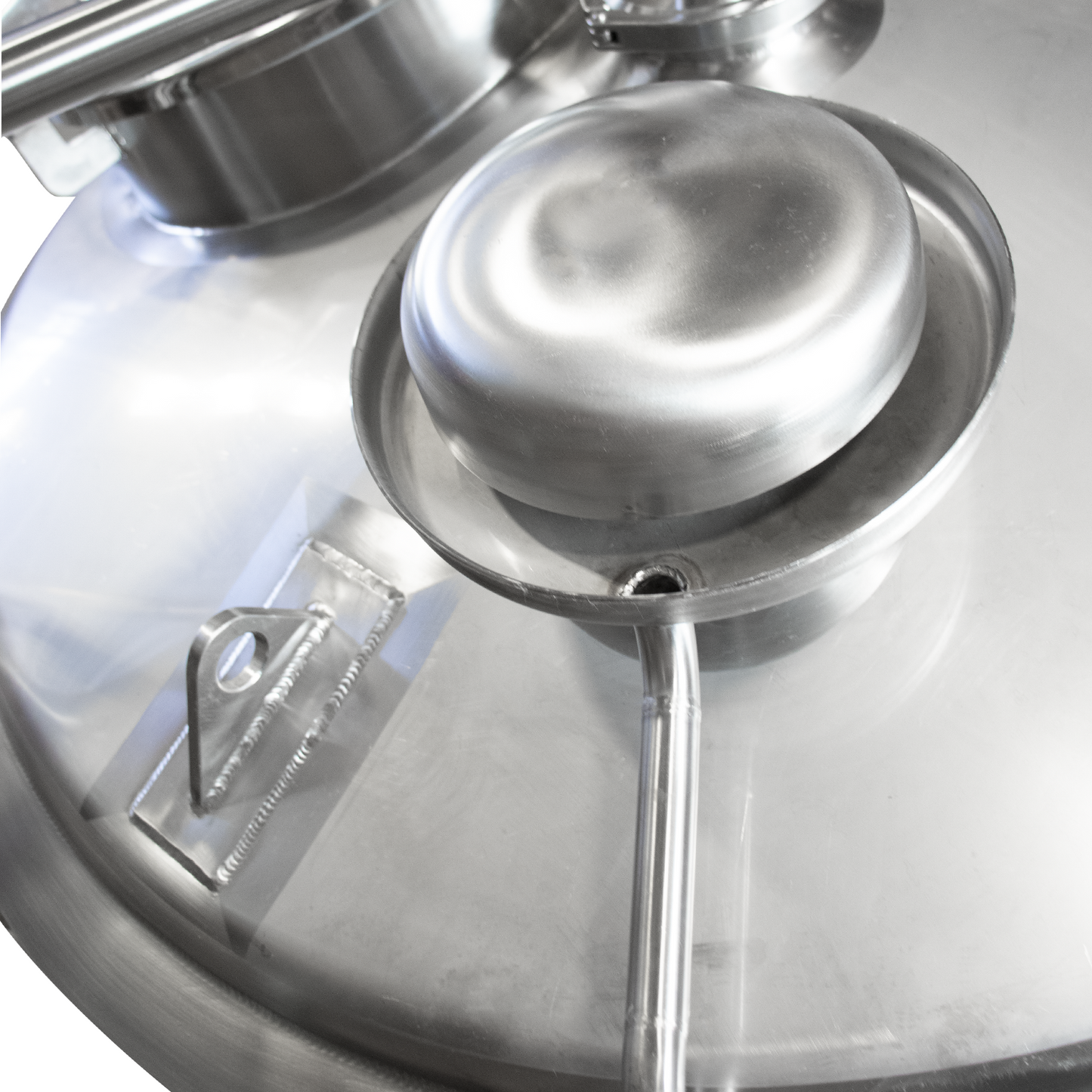

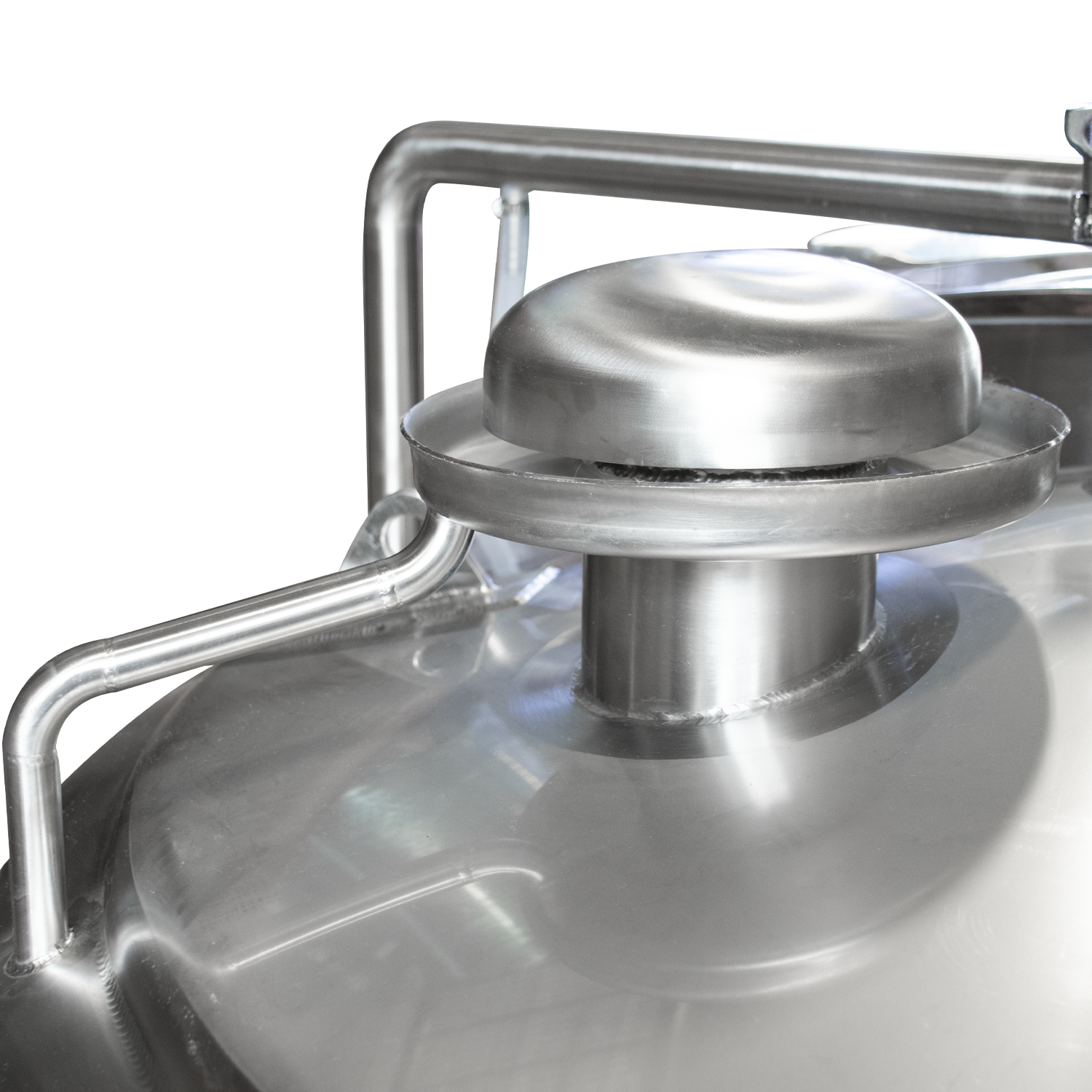

- Condensation Trap so no flue is used

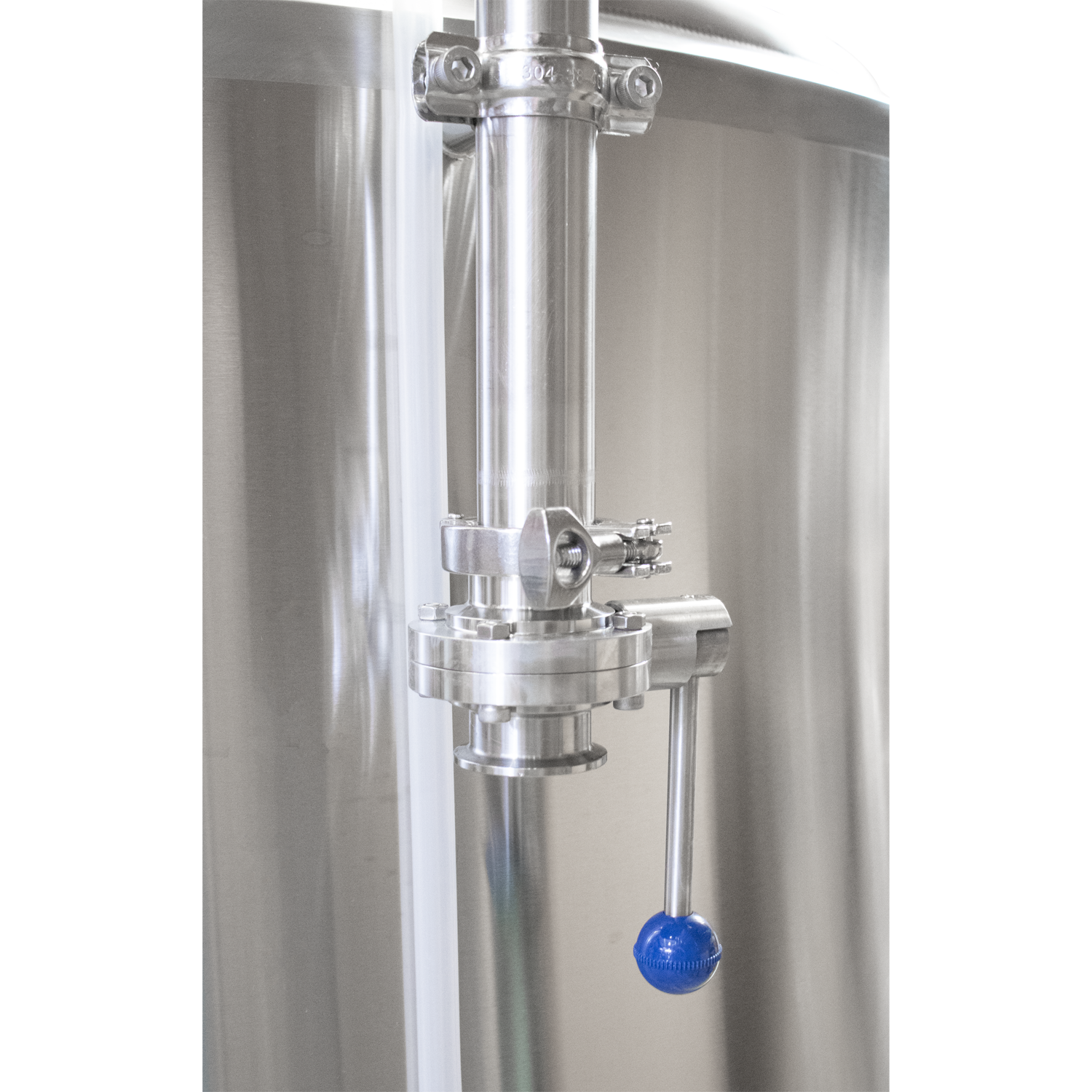

- Sight Gauge to check volume
- Fill Port
- Tapered Bottom w/ Center Drain
- Float Switch to protect the electric elements from running dry (wiring required)

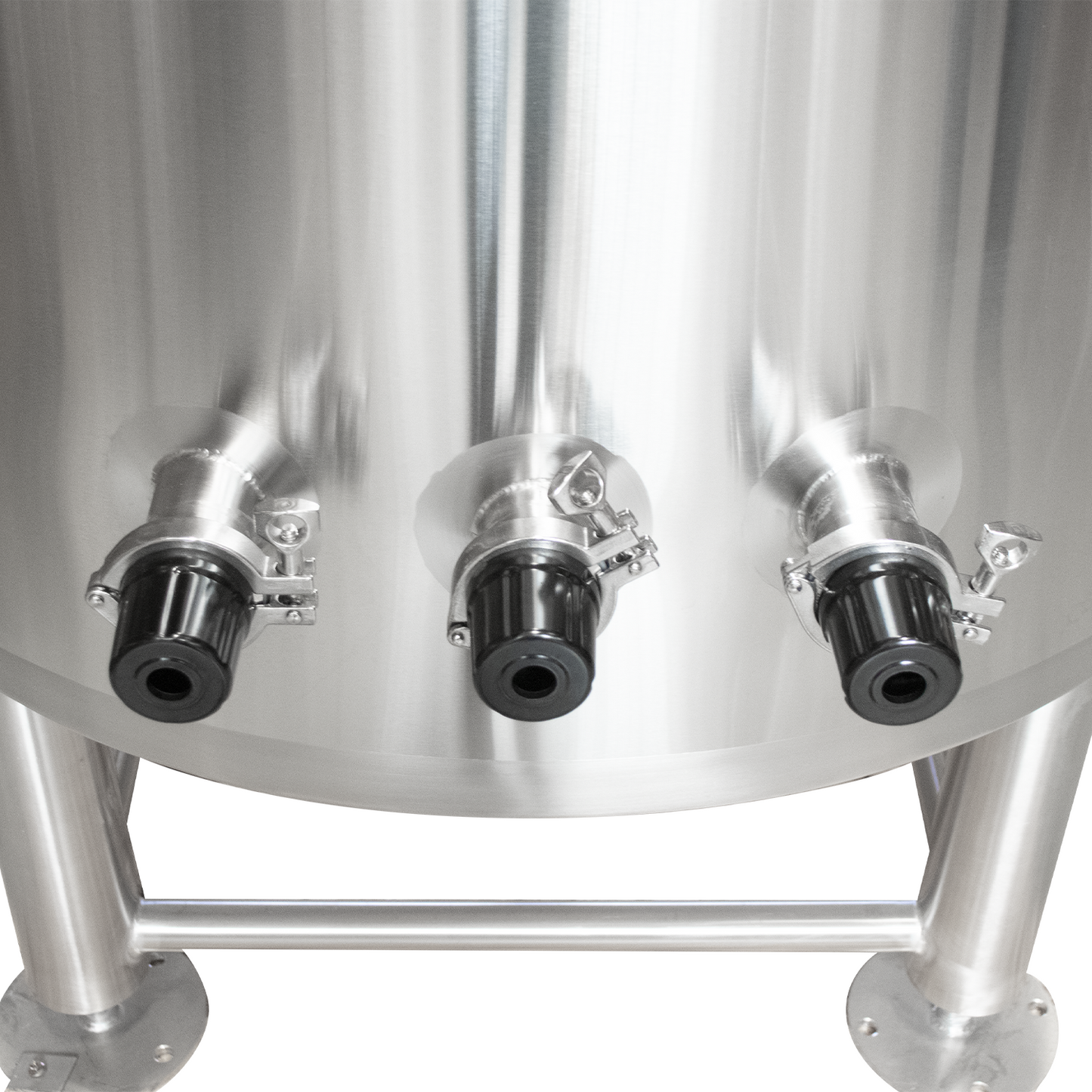

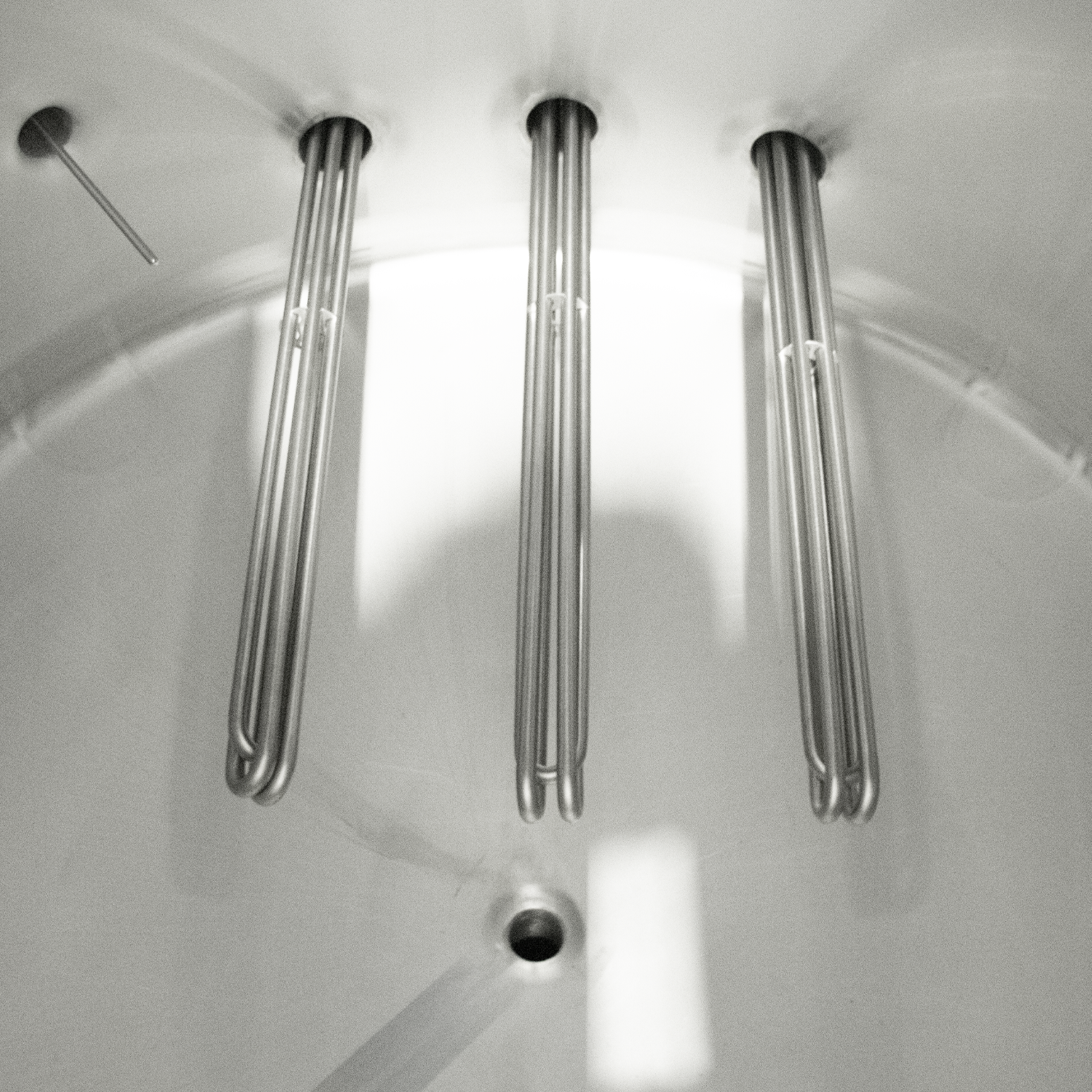

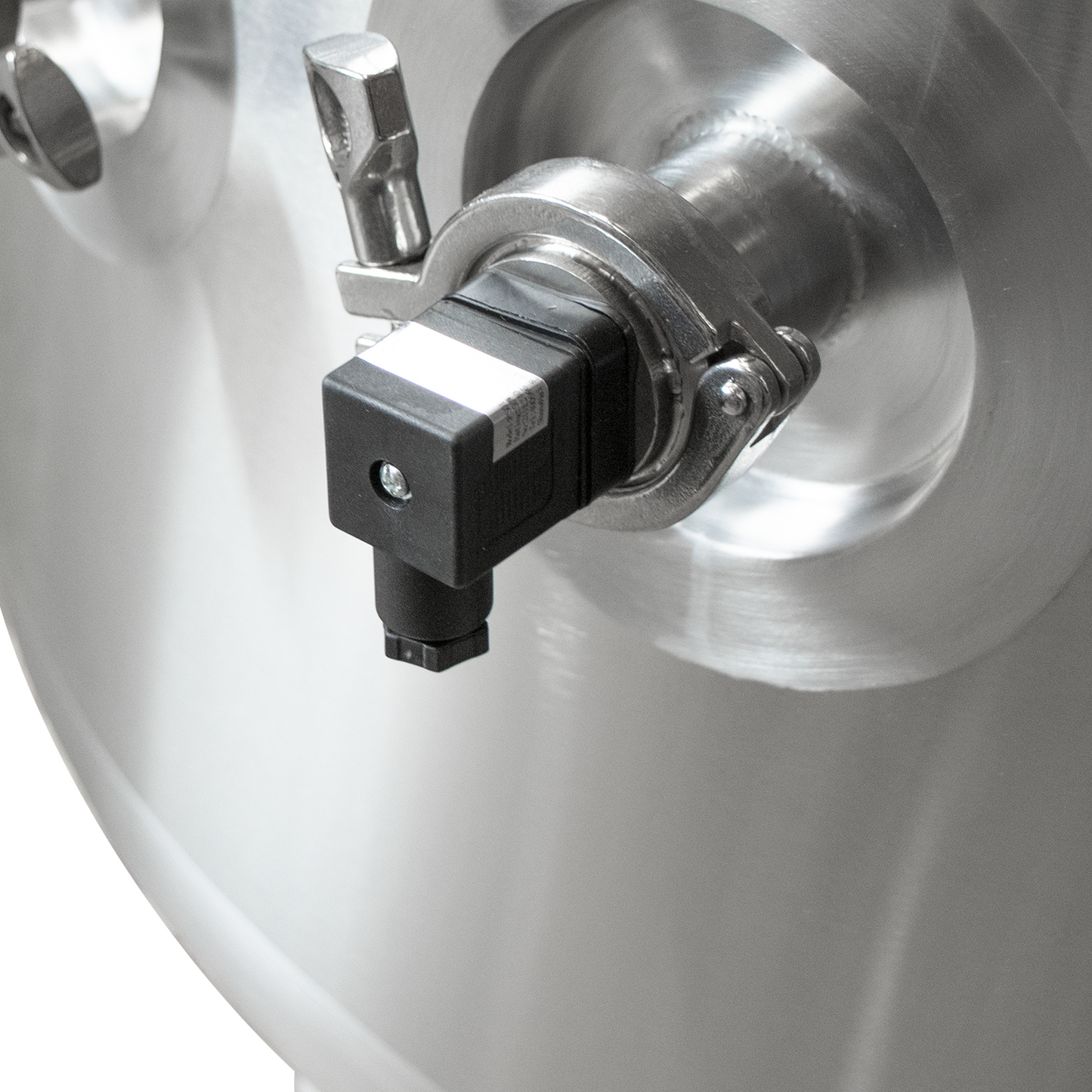

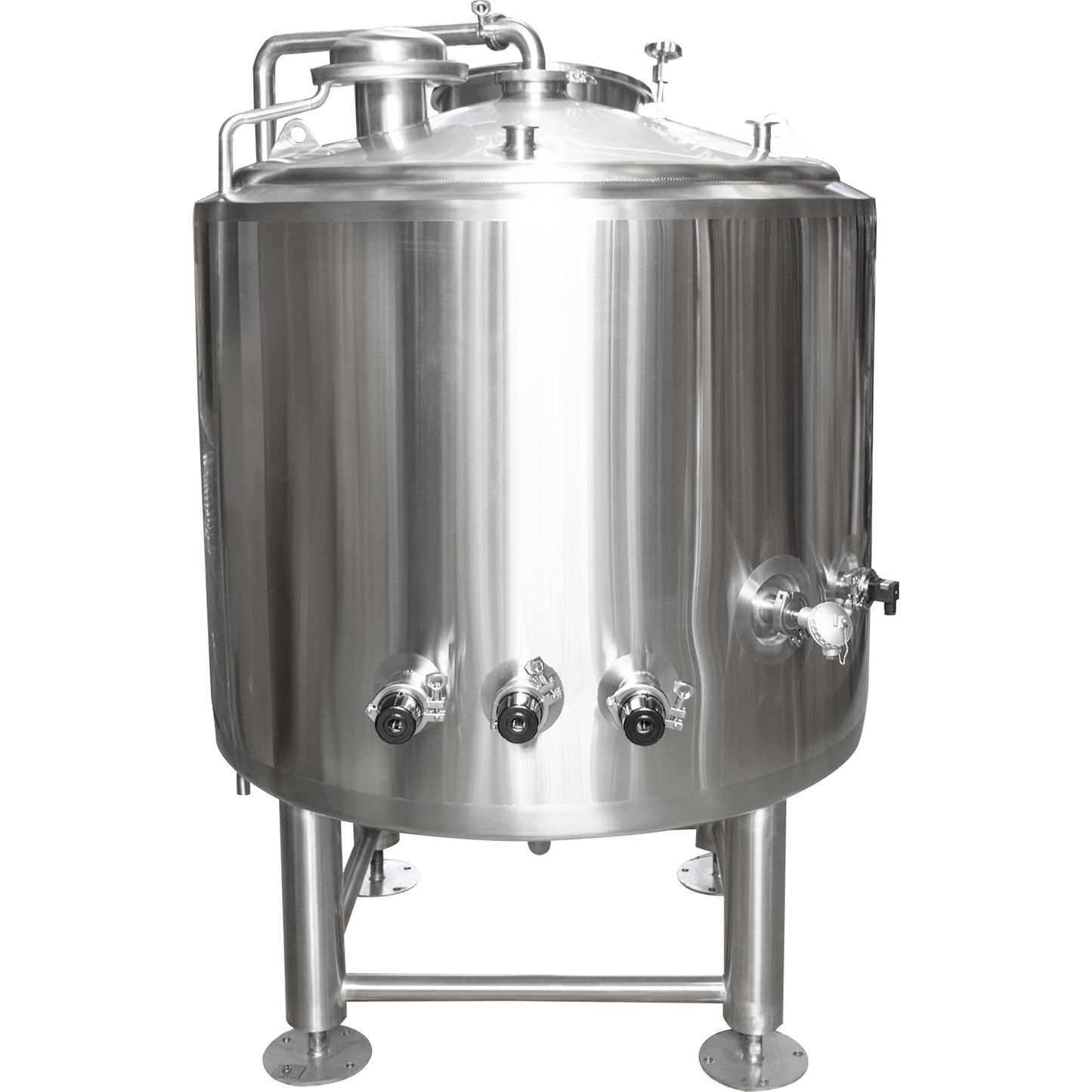

- Powered by three 9,000-watt 3-phase 208V elements
- Total Amperage Draw: 75 amps at 3ph 208V
- The kettle must be grounded

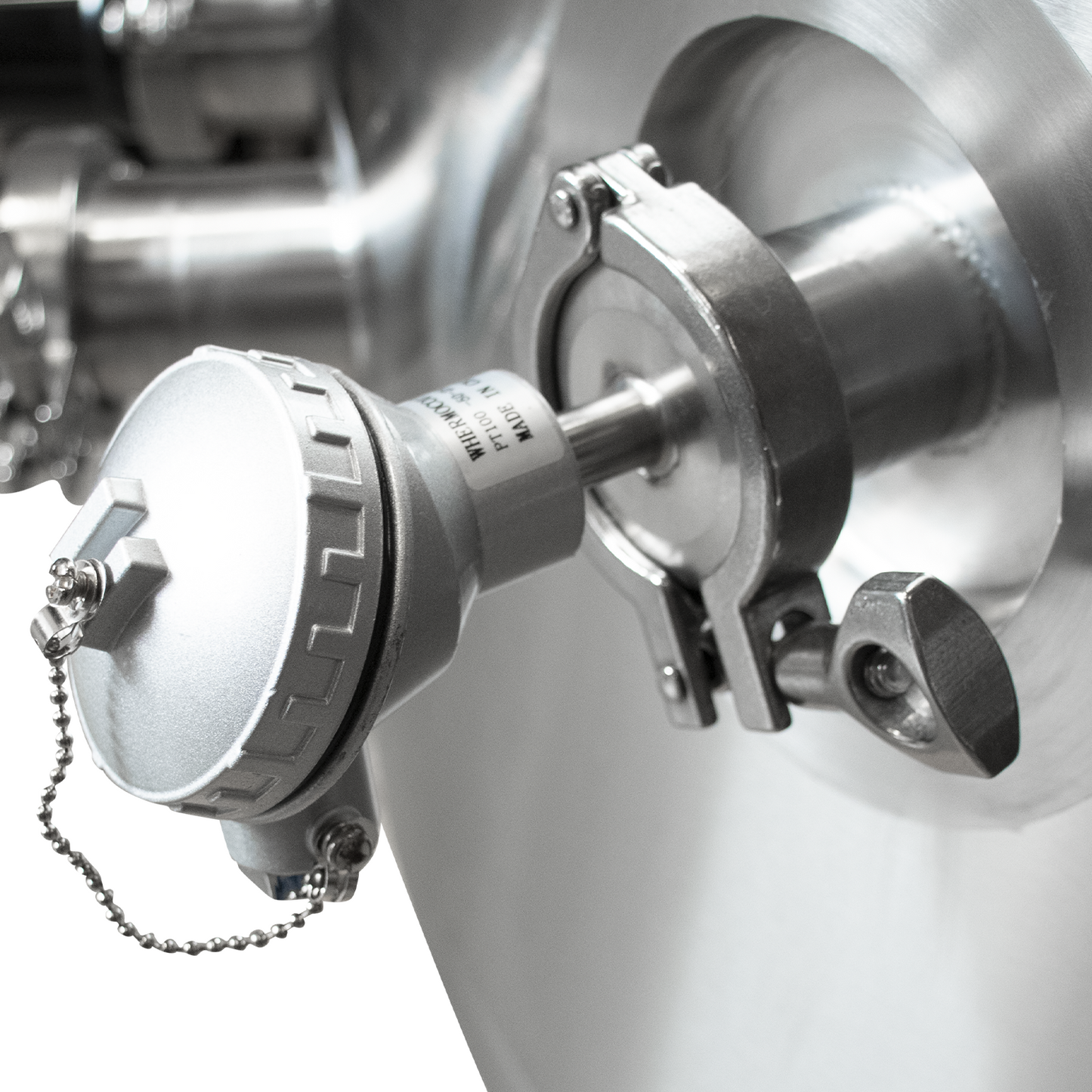

- PT100 Temp Sender

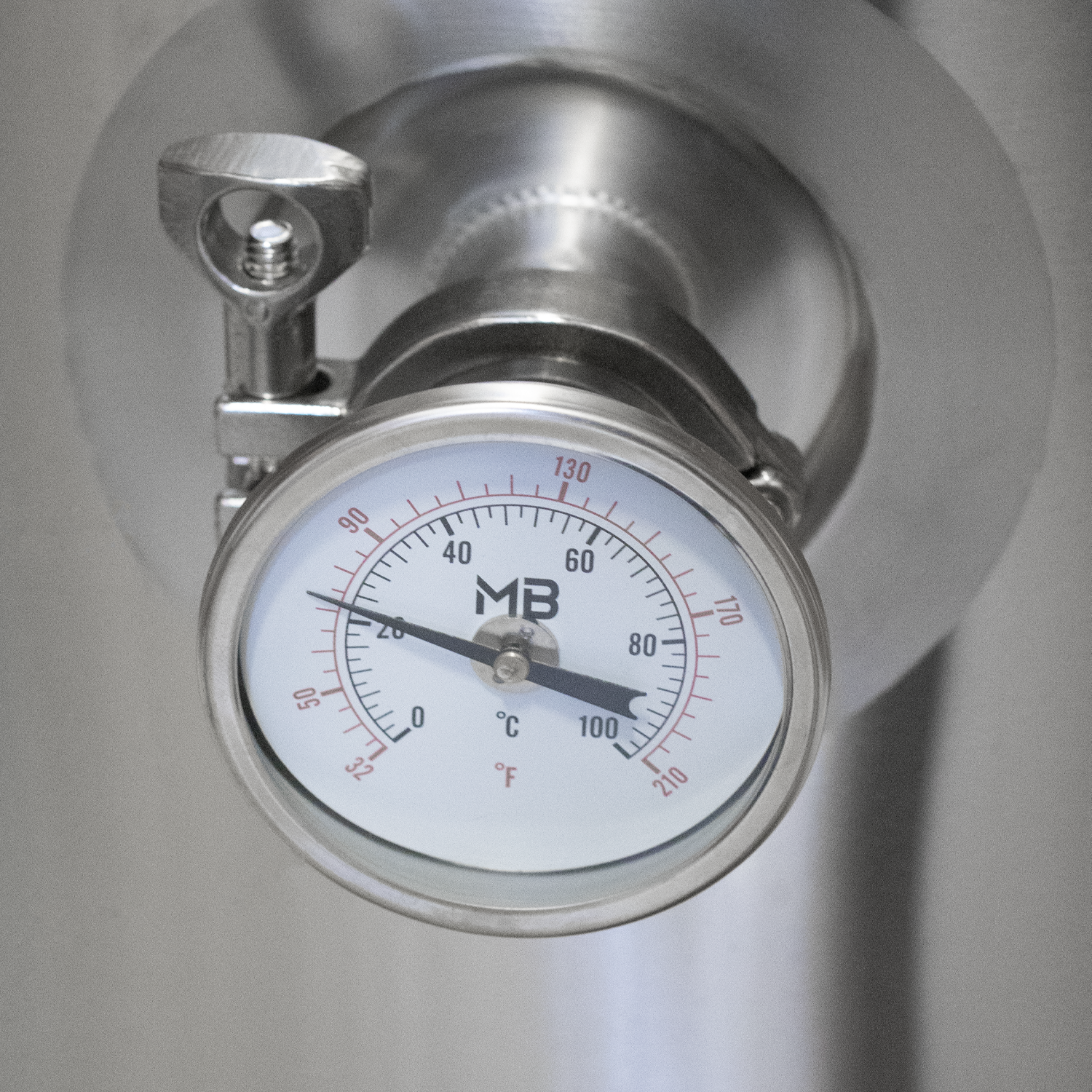

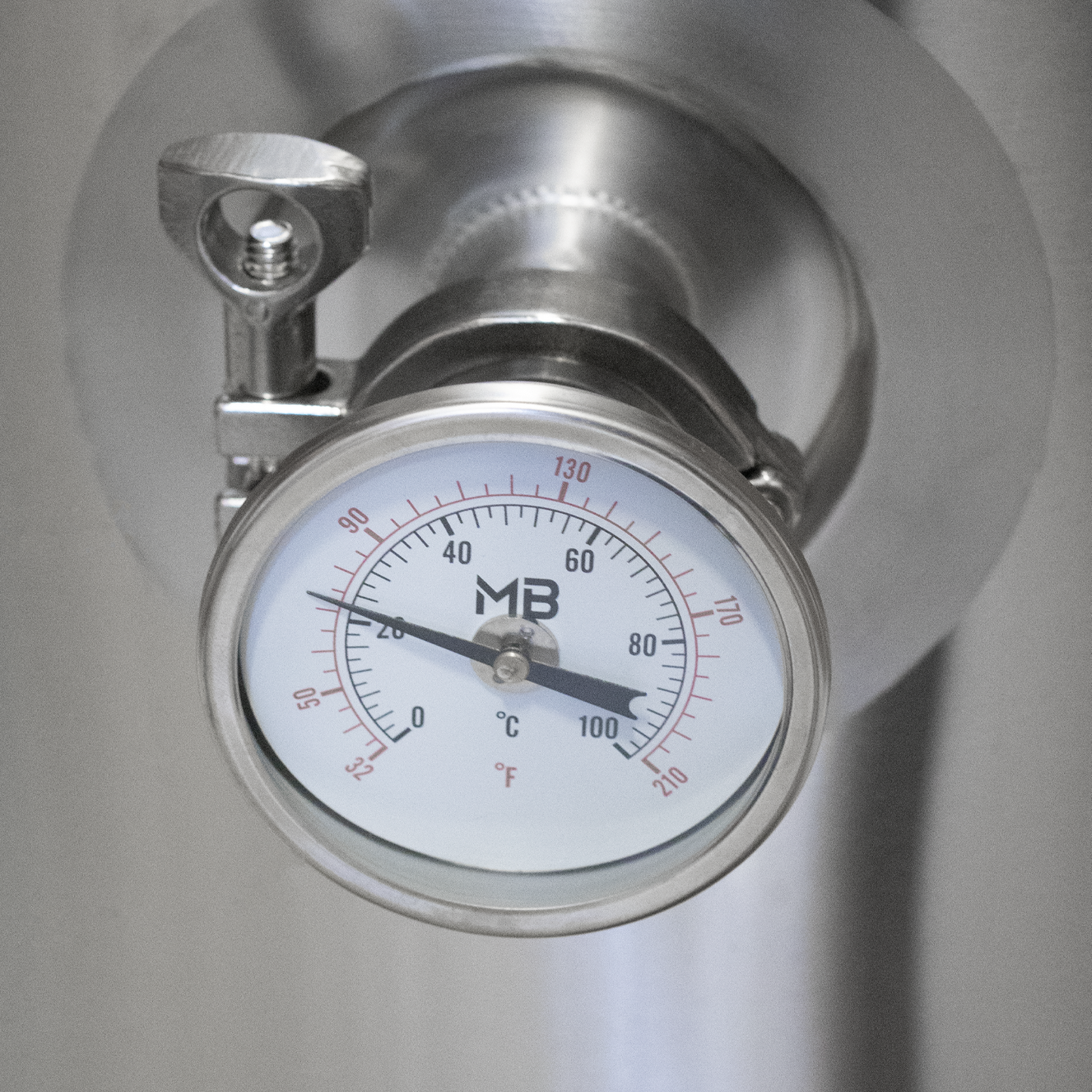

- Analog Temp Gauge for quick reading
- Internal LED Light
Hot Liquor Tank Specifications:
- Grade 304 Stainless Steel
- Internal Finish: #2B
- Tank Height: 61"
- Tank Diameter: 47"
- Empty Weight: 375 lb
- Working Volume: 4.5 bbl
- Max Volume: 5.1 bbl

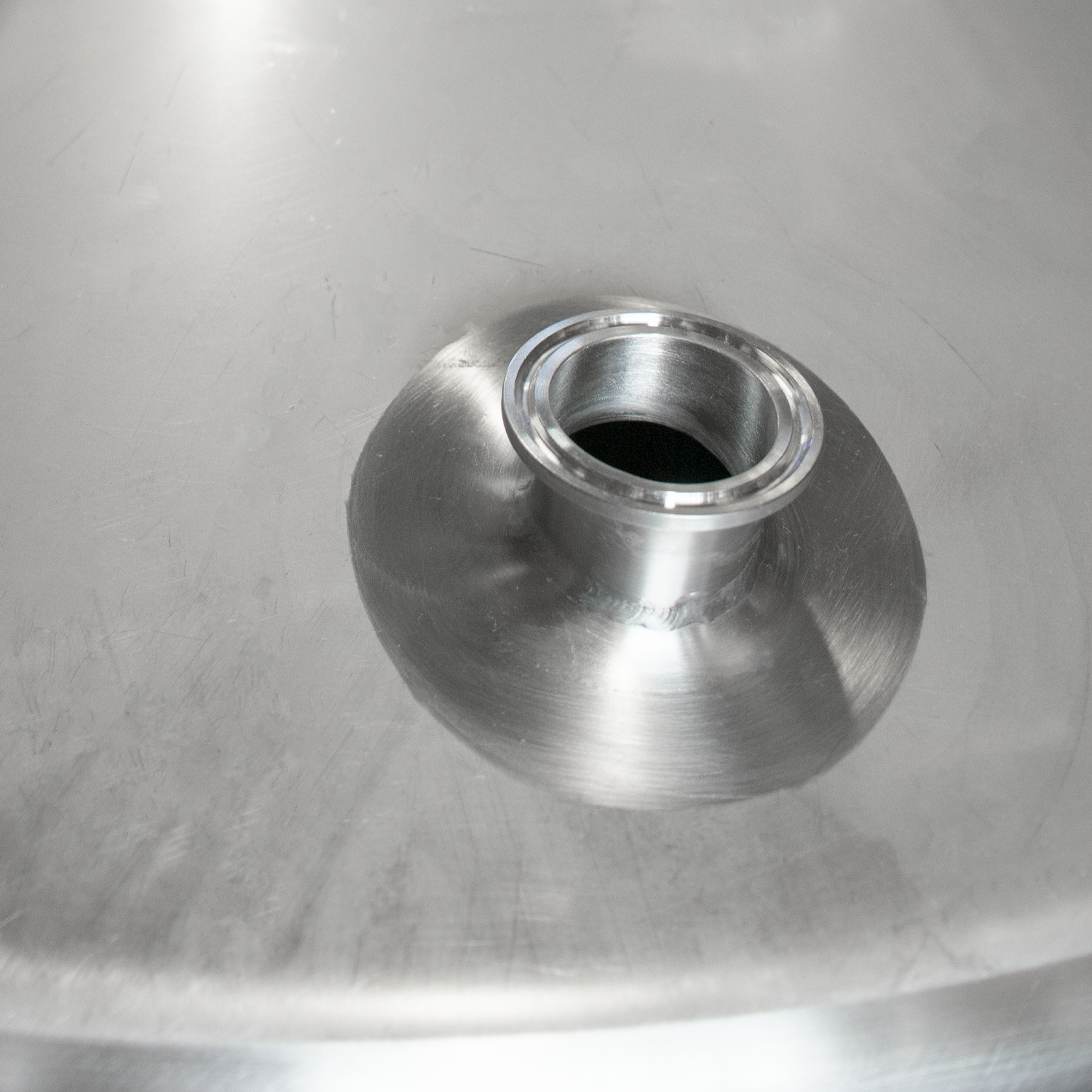

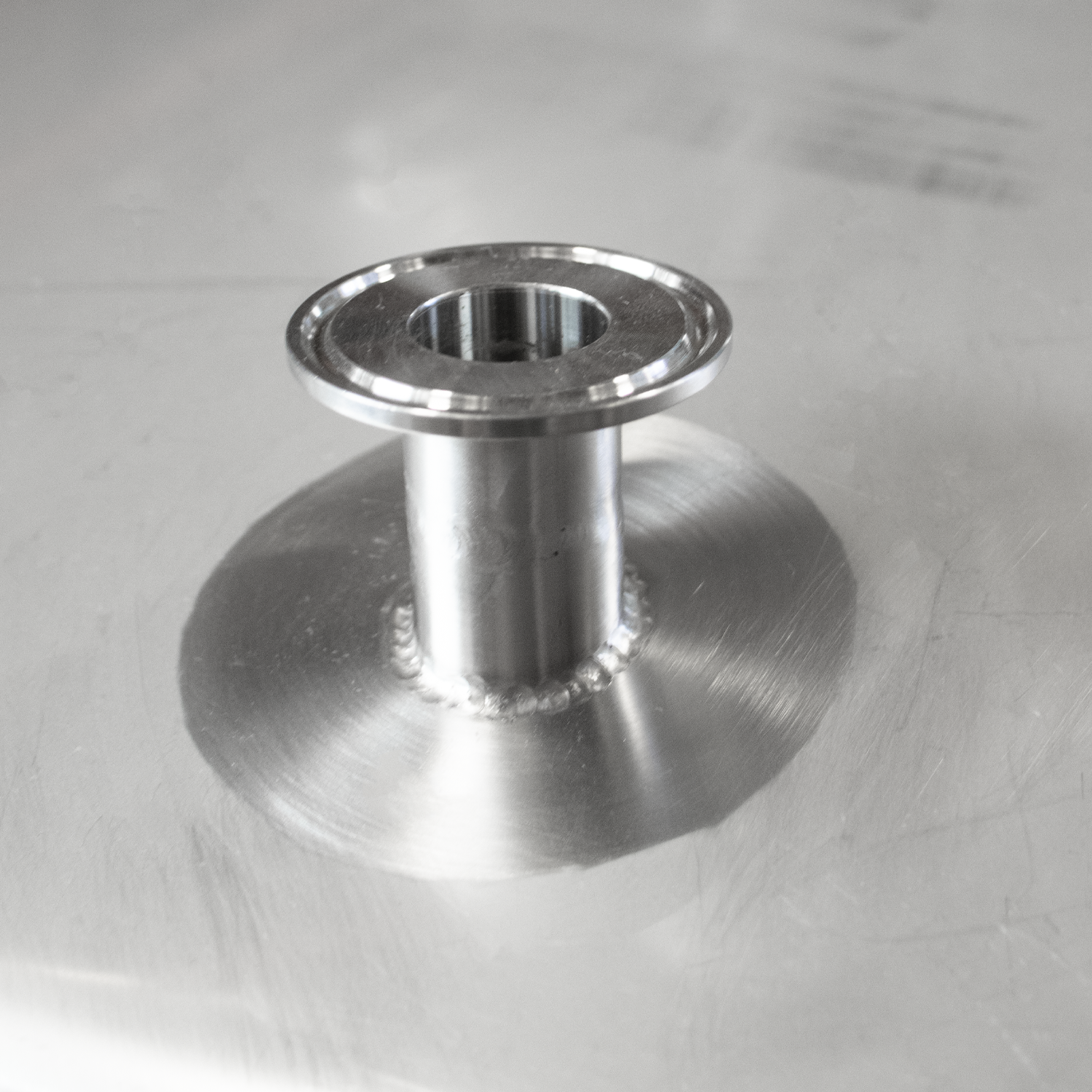

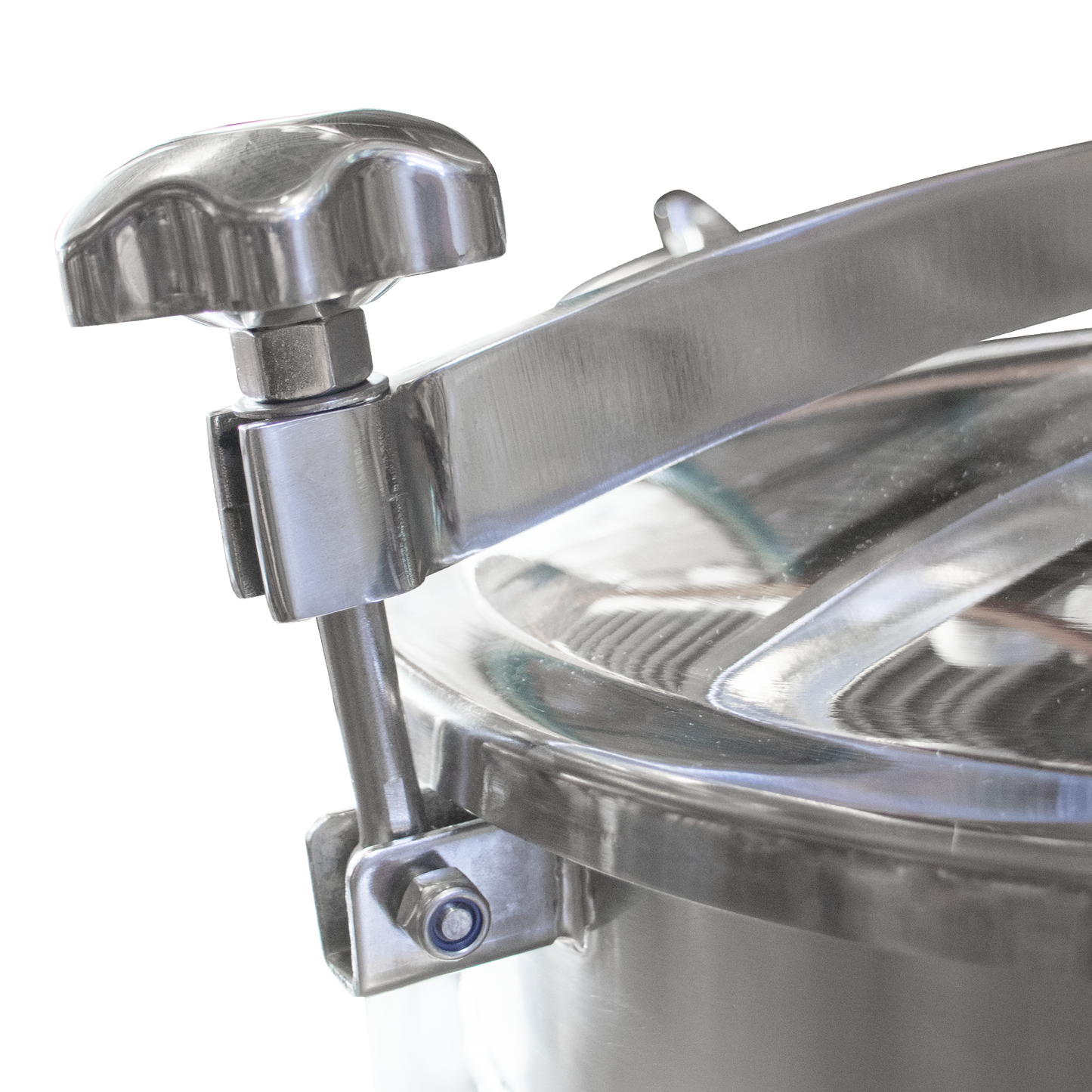

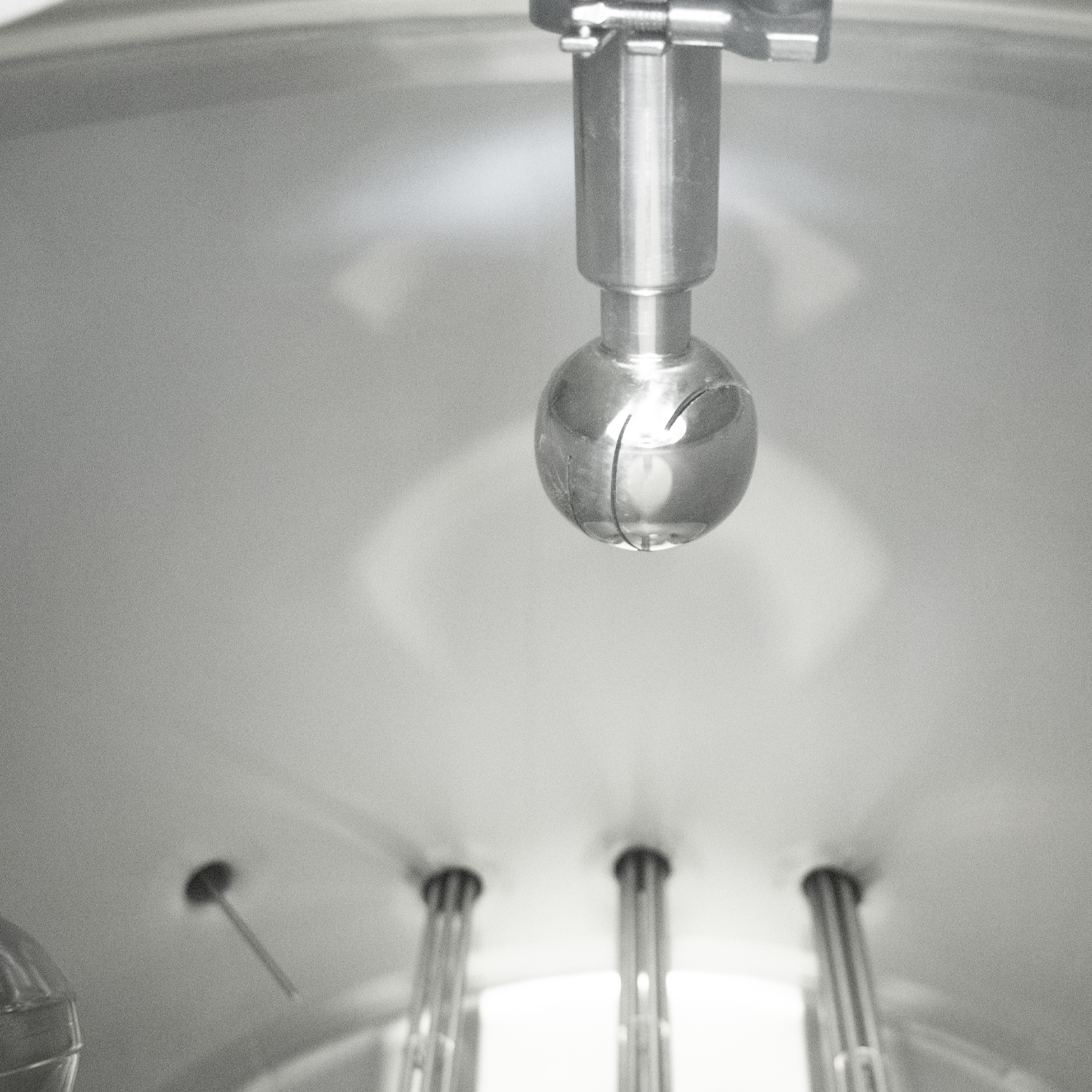

- All ports are 1.5" TC except for DN350 Manway, DN19 Condensation Pipe, 4" TC CIP Port, 2" TC Element Ports, 4" Welded Vent
Important Electrical Notes:
- This unit is supplied without controls for the electric elements.
- The power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
- This Electric Hot Liquor Tank requires a professional electrician for installation.
