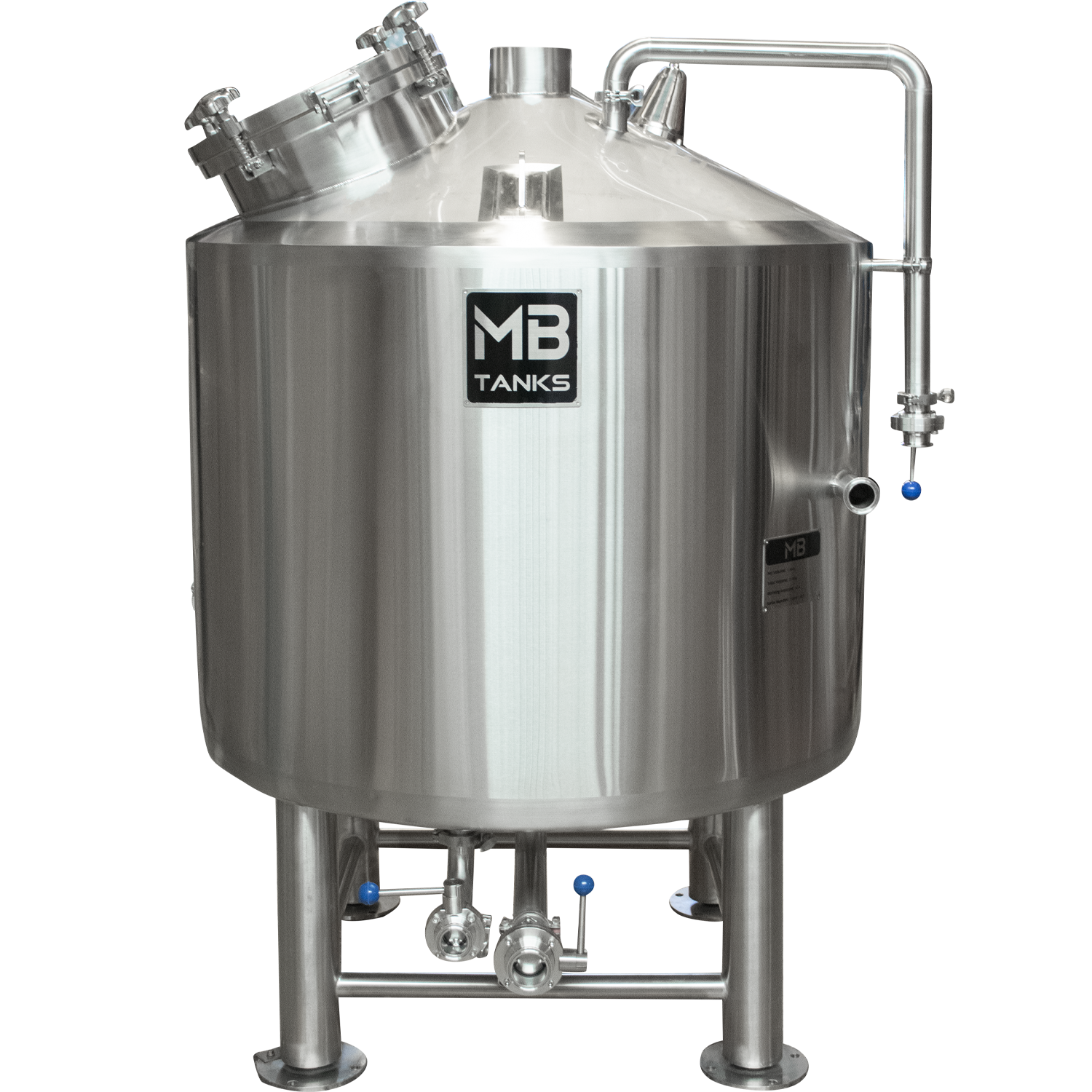

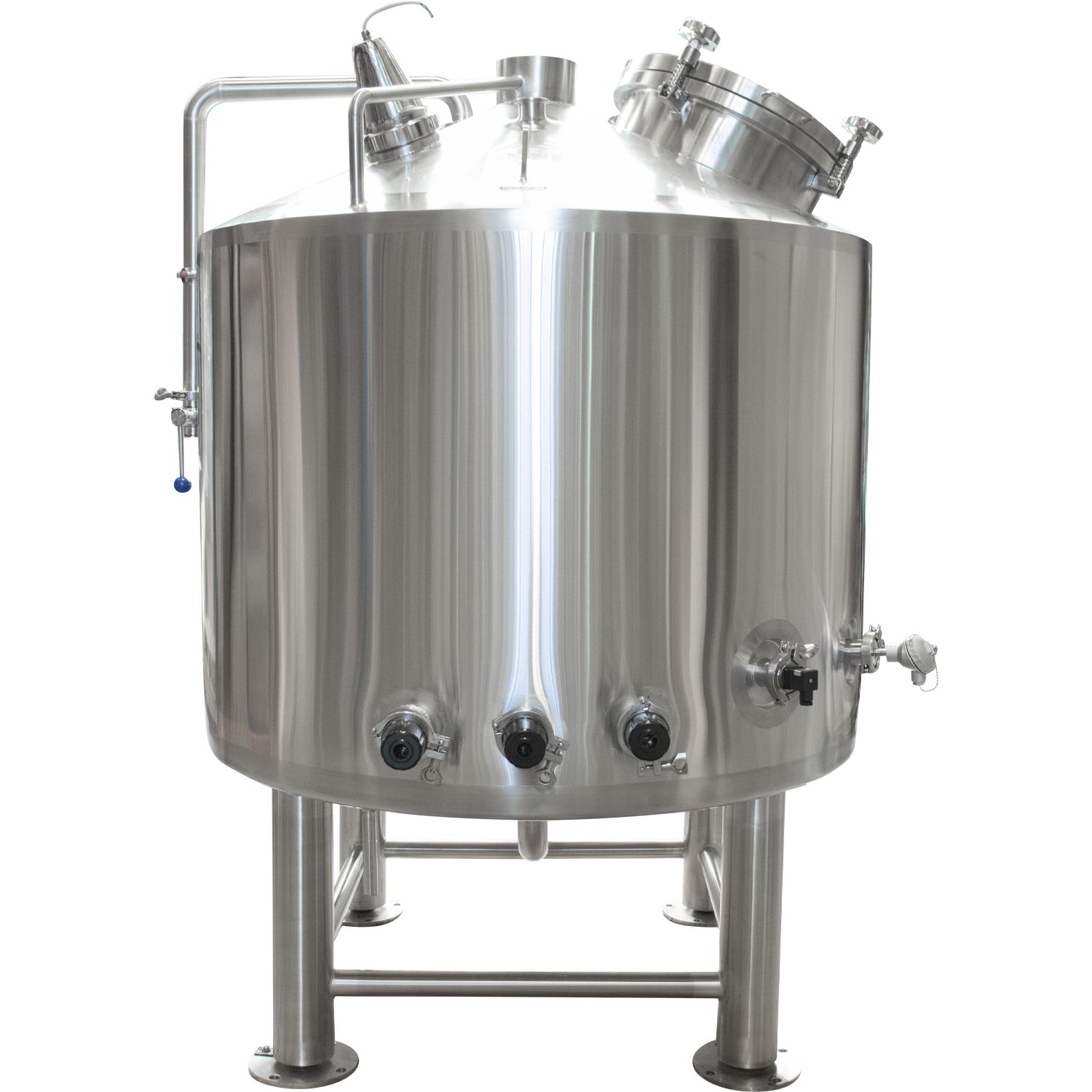

Electric Boil Kettle | 7 bbl

Electric Boil Kettle | 7 bbl

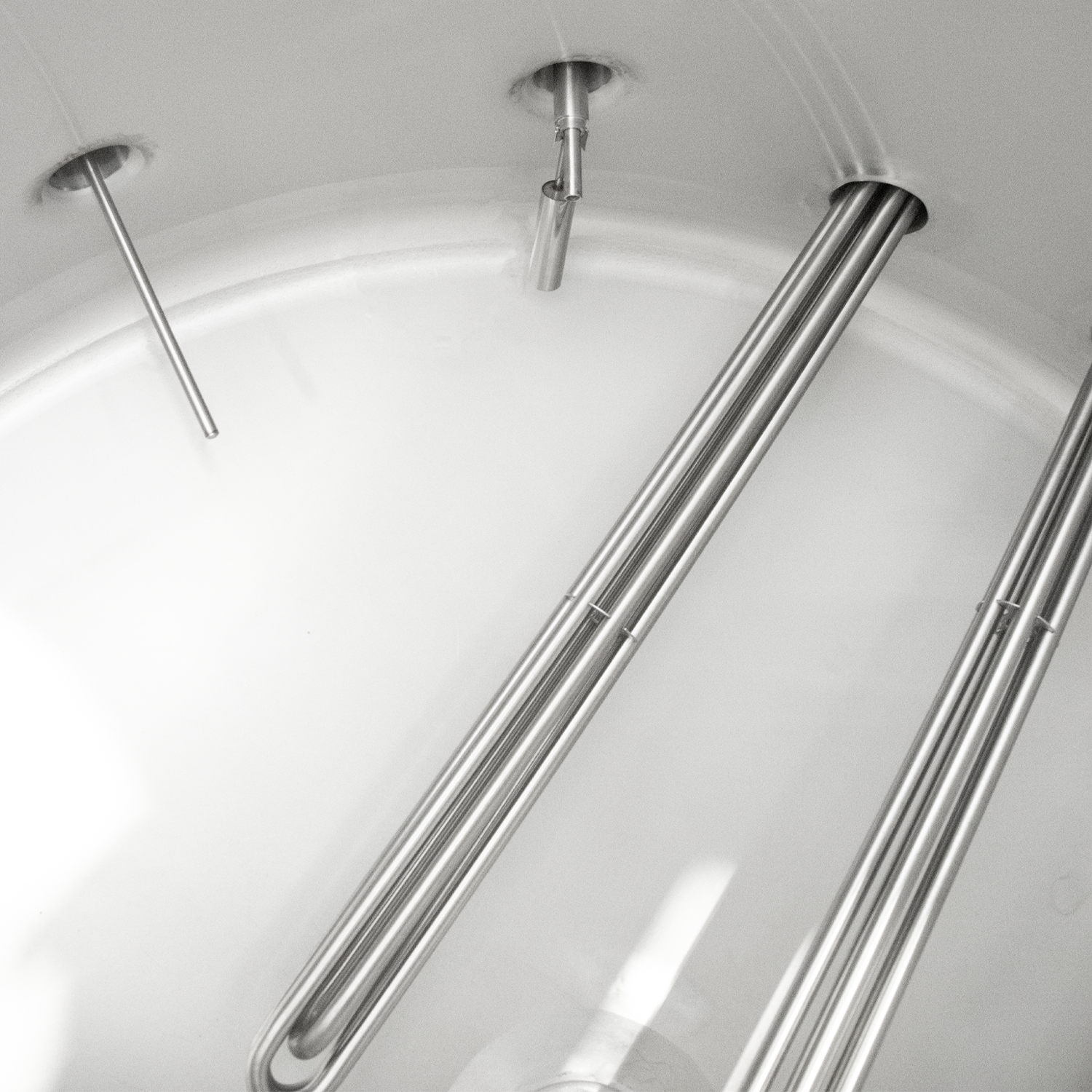

Our 7 bbl Electric Boil Kettle features three 9,000W heating elements, dedicated tangential whirlpool port, condensation ring, and a host of other features guaranteed to satisfy the users expectations.

A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function.

MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.

Boil Kettle Features:

  • Insulated walls for safety and energy efficiency

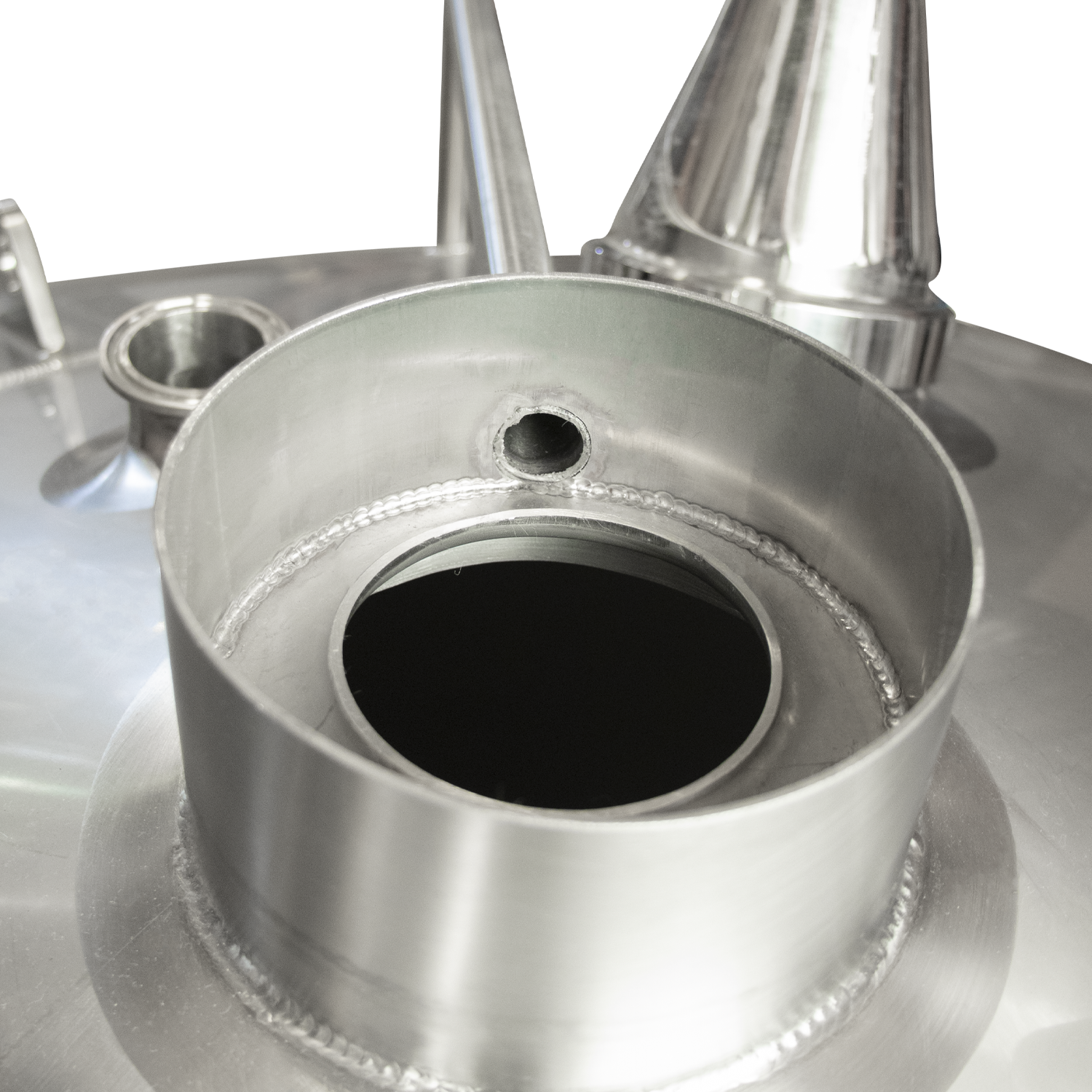

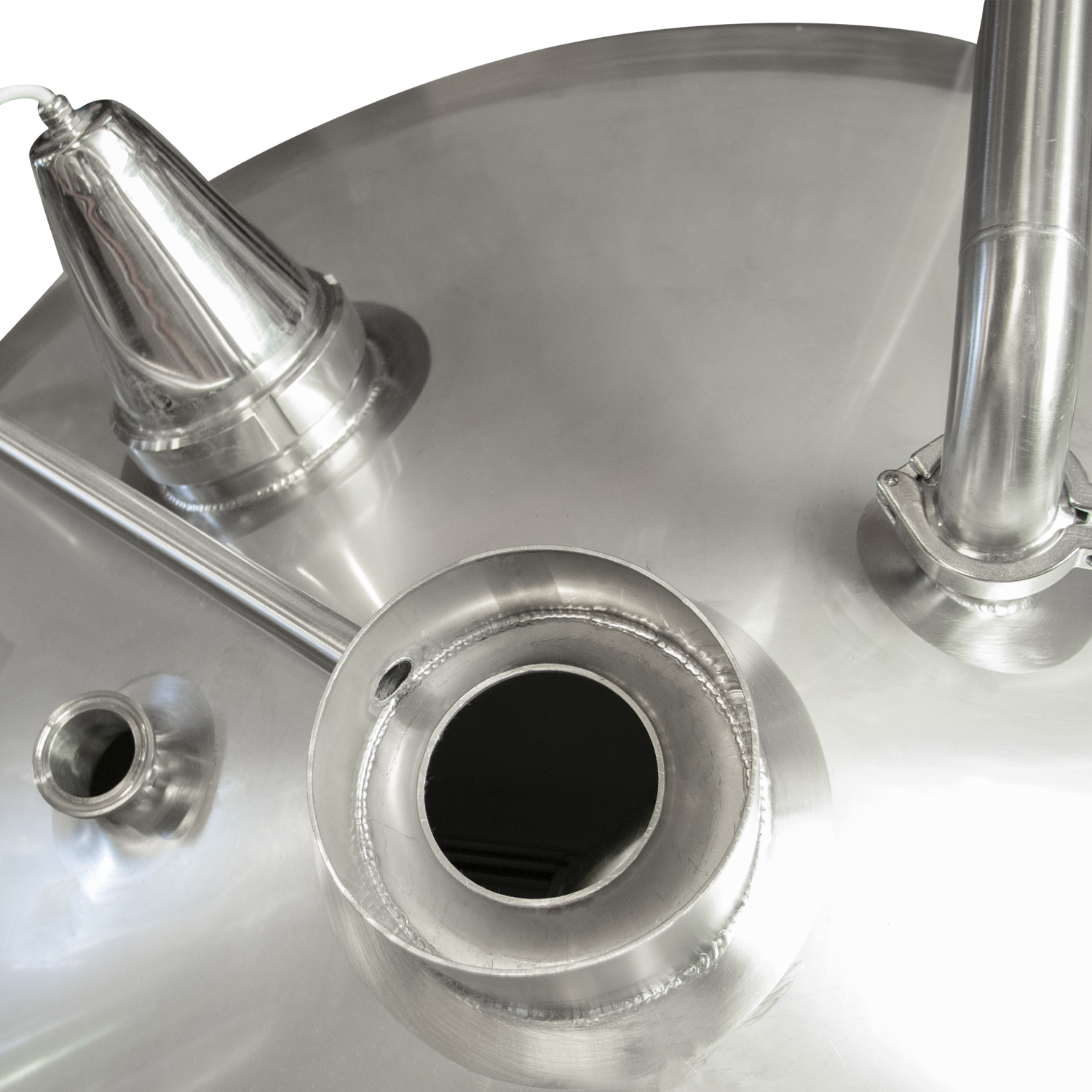

  • Condensation ring to keep flue condensation from entering the boil (Myrcene Ring)

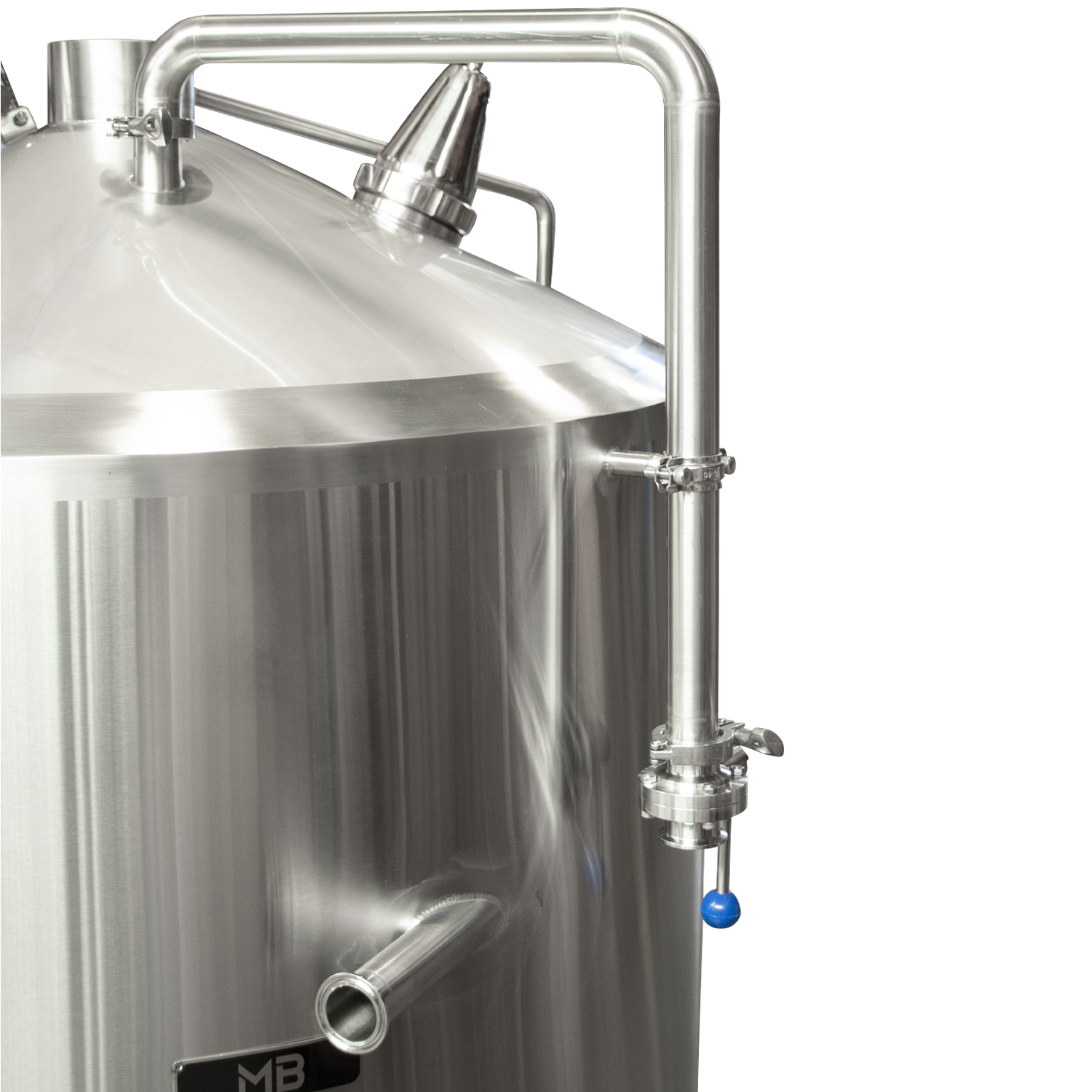

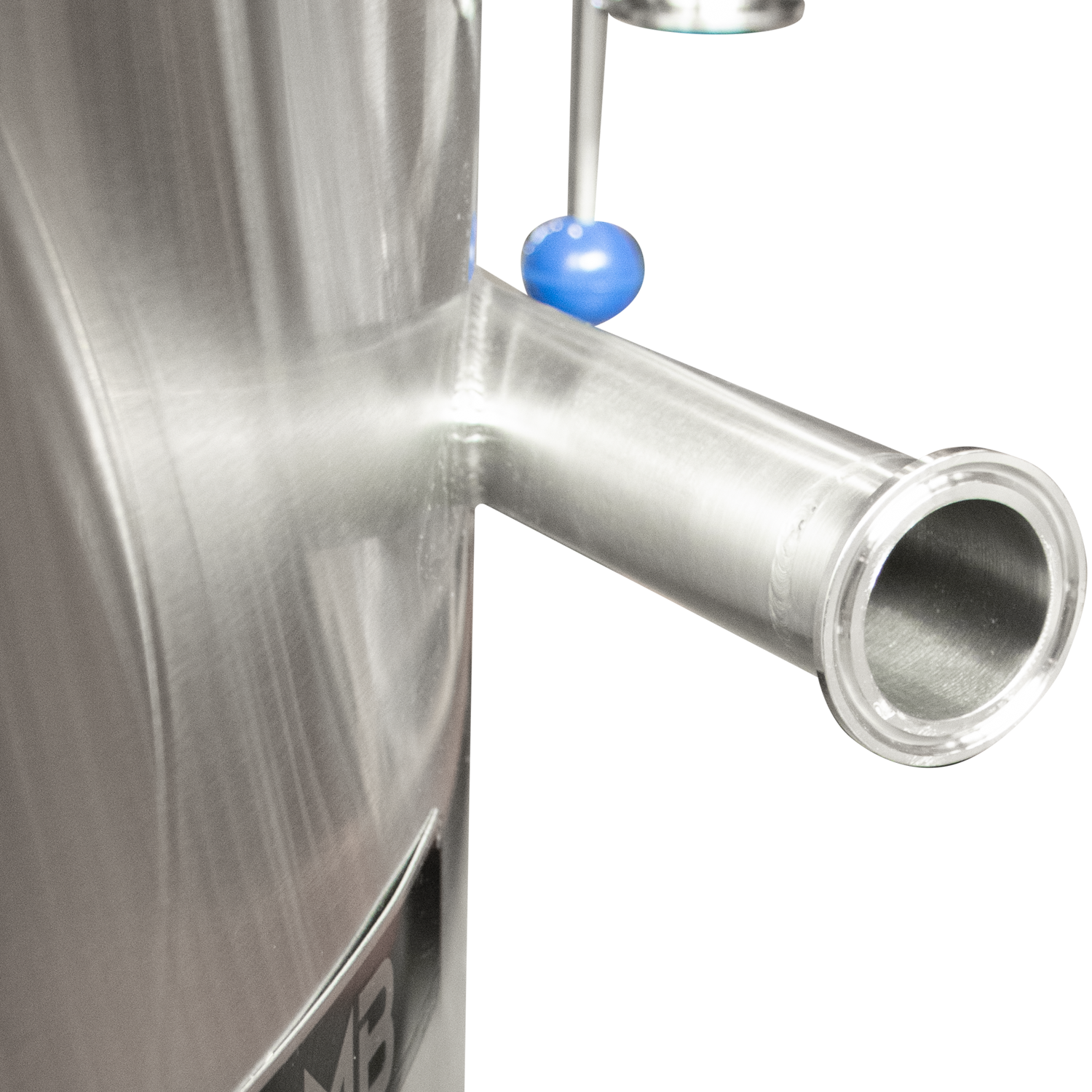

  • Tangential port for whirlpool

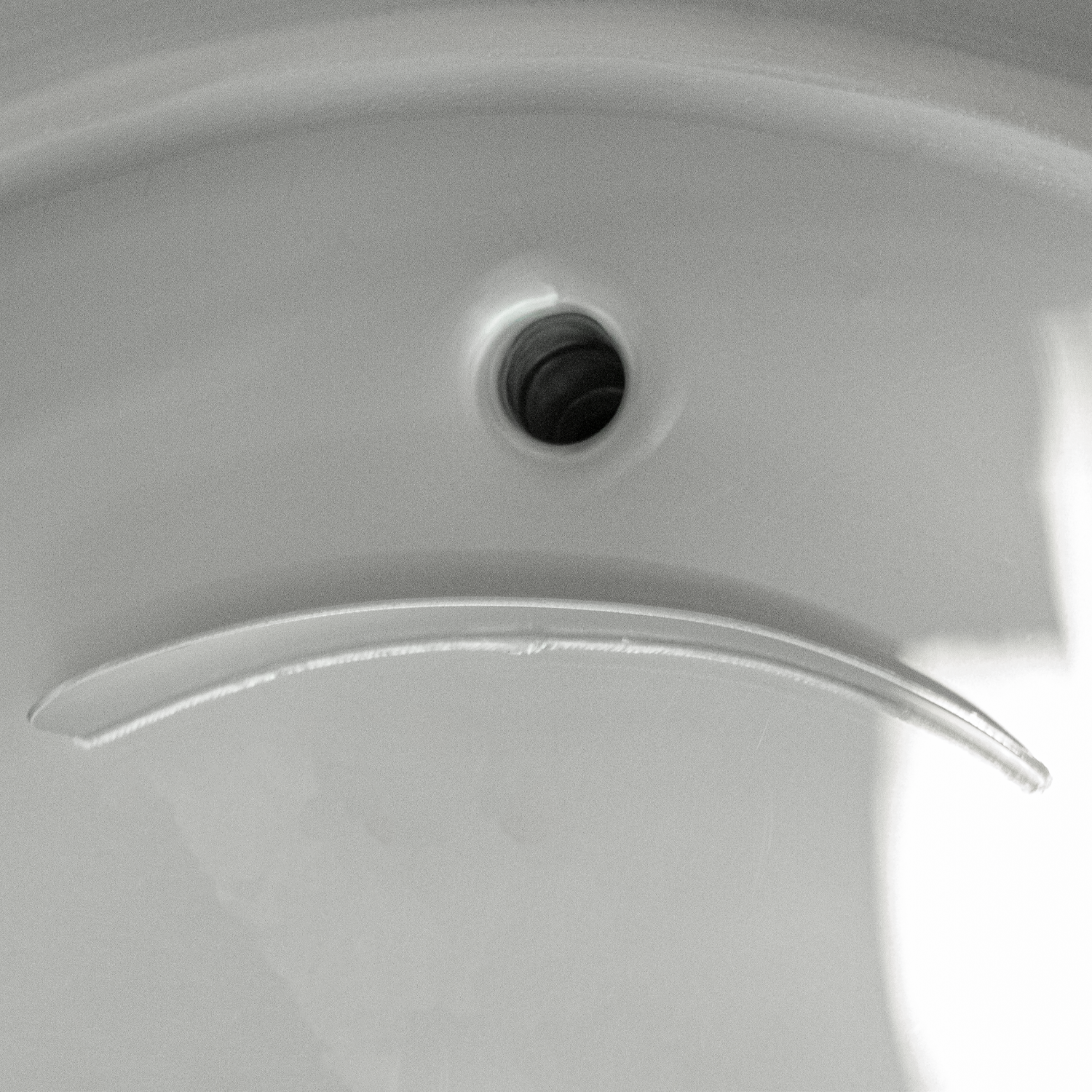

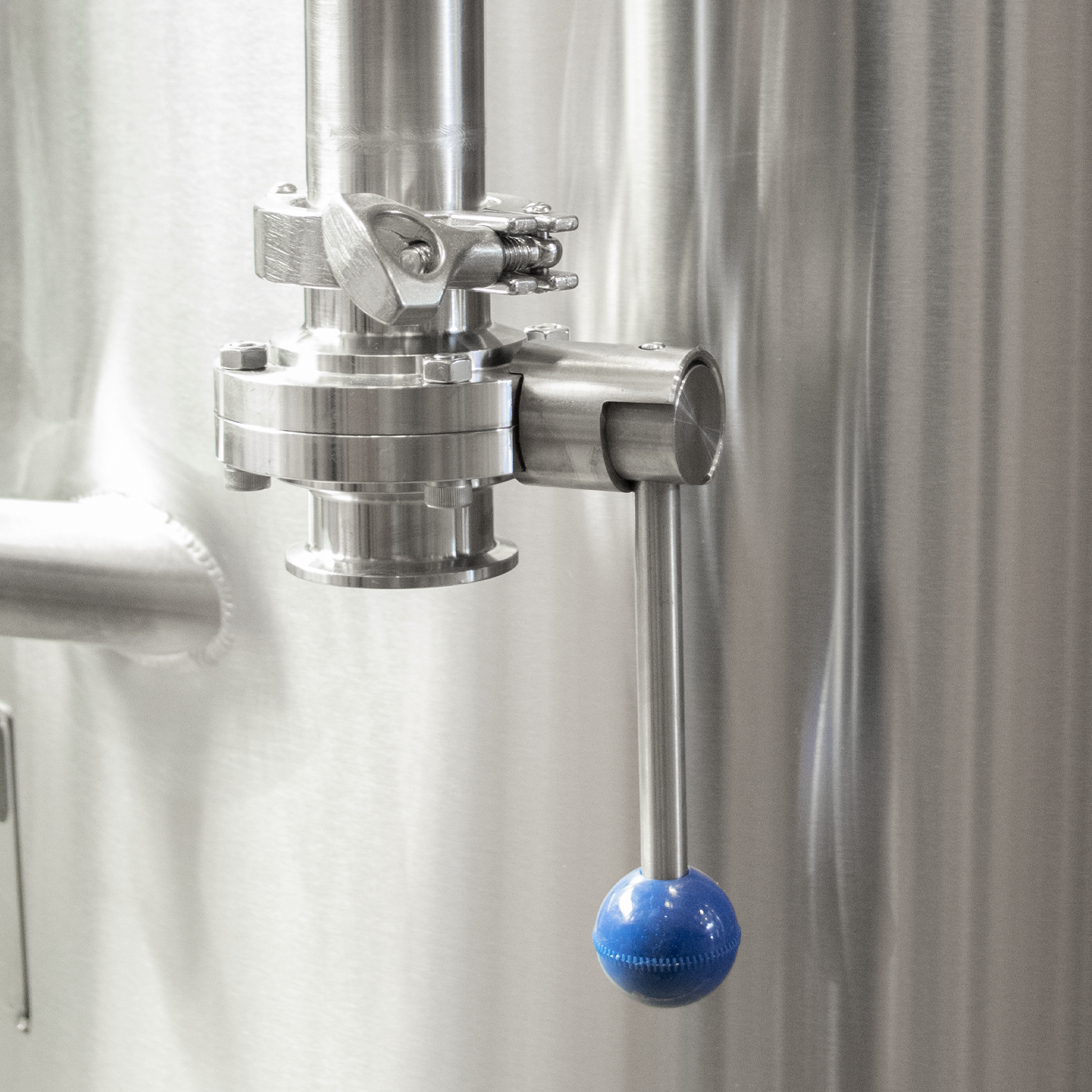

  • Side drain with hop dam for easy whirlpooling and good trub separation

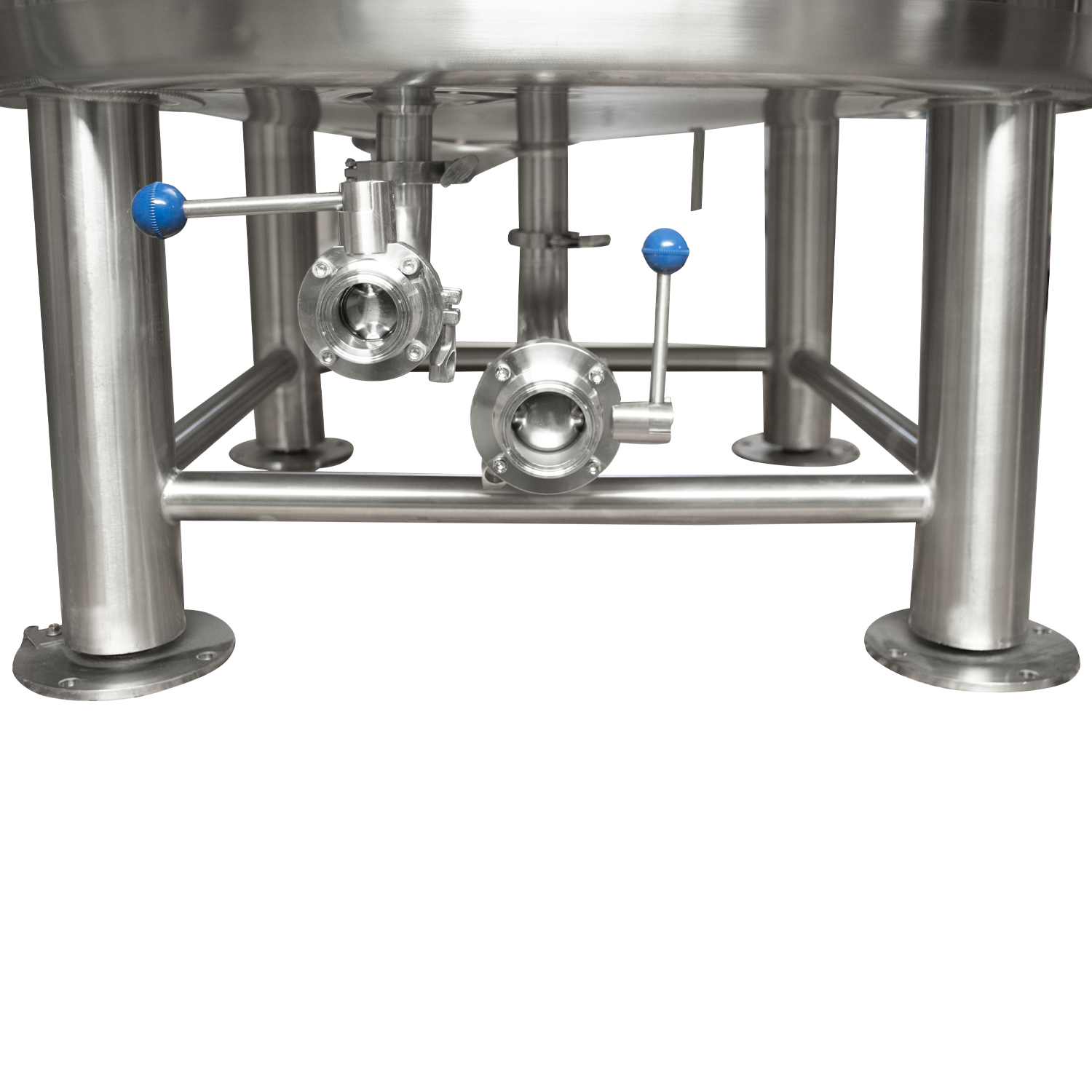

  • Dished bottom with 2" center drain for easy trub clean up

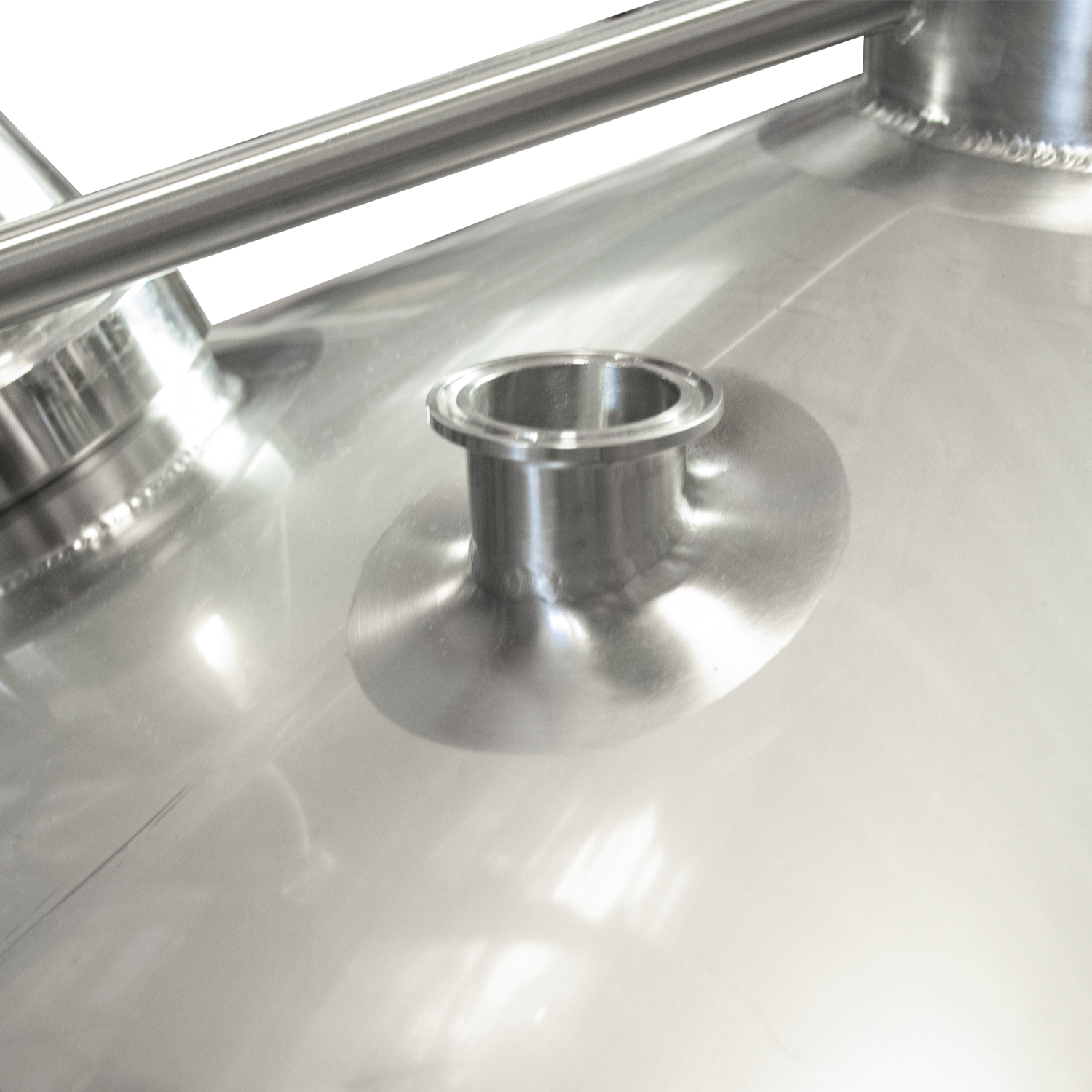

  • Fill Port for adding dilution water

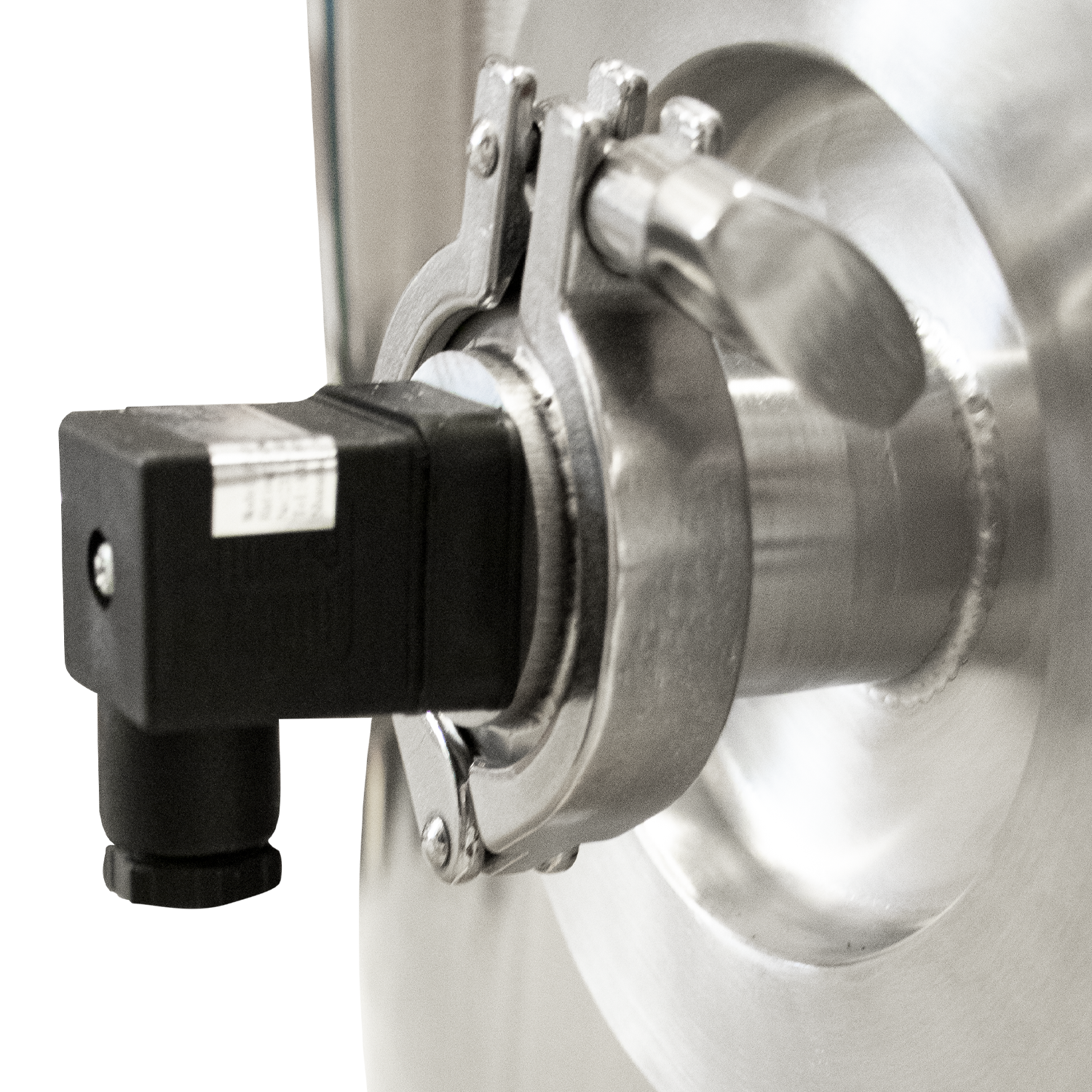

  • Float Switch to protect the electric elements from running dry (wiring required)

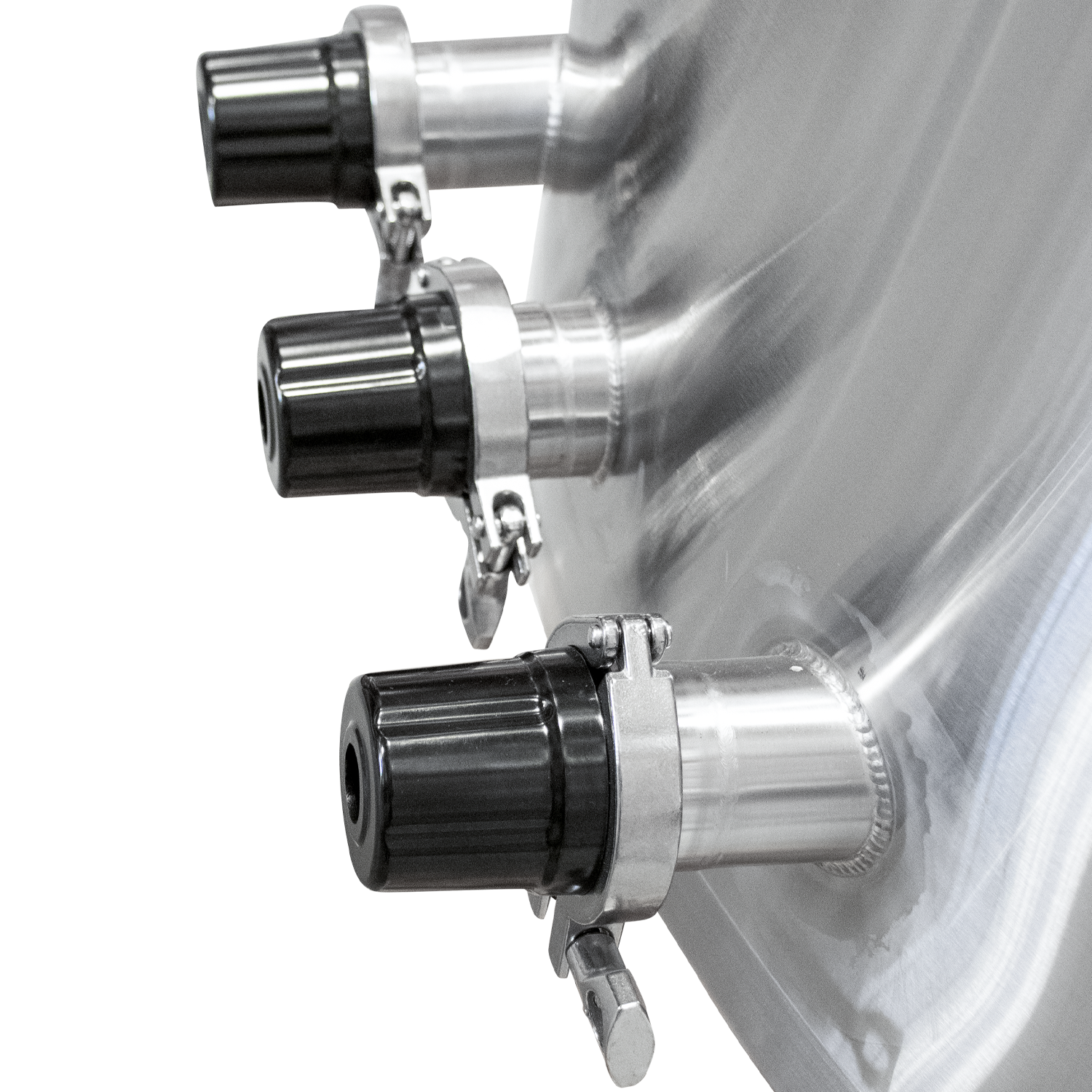

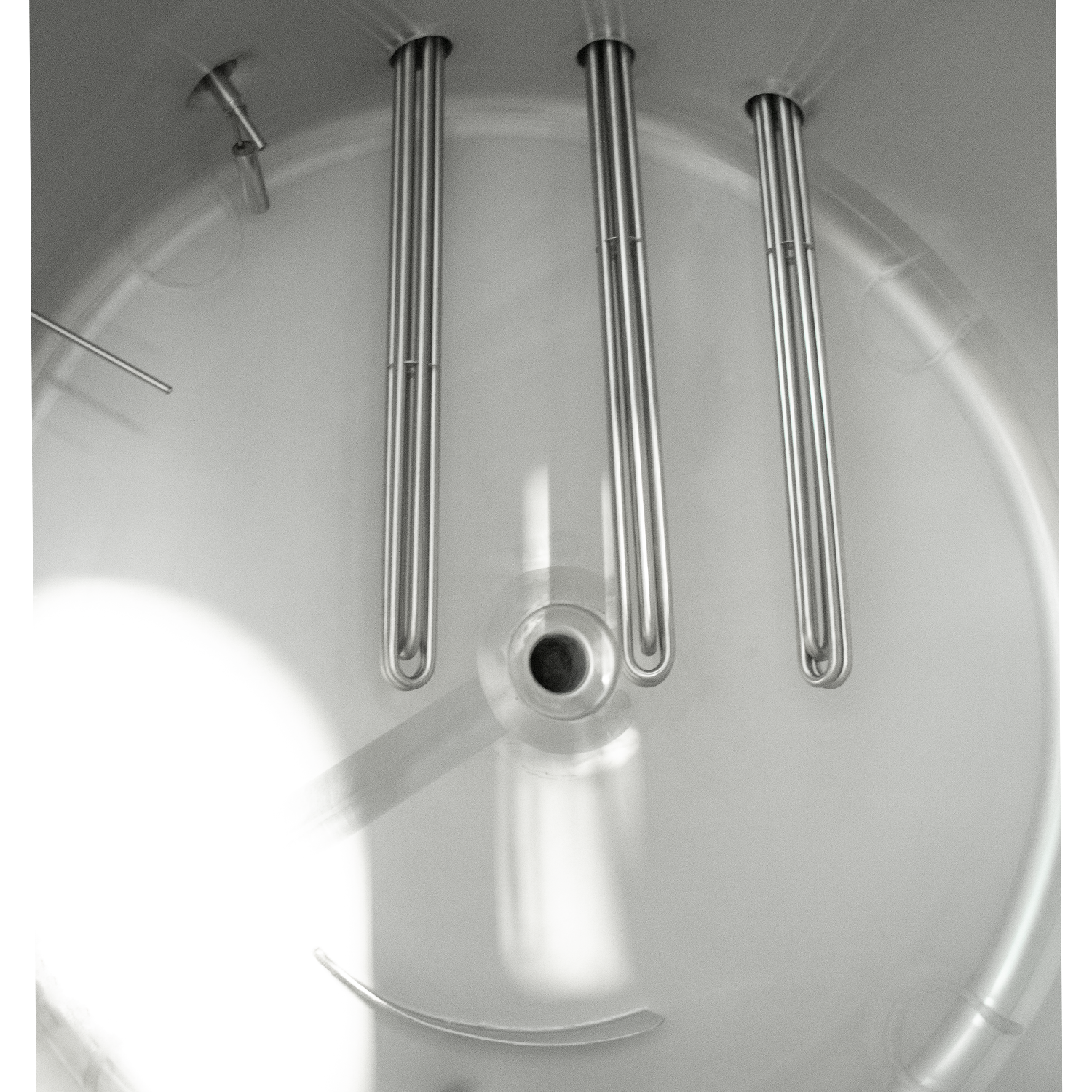

  • Powered by Three 15,000-watt 3-phase 208V elements
  • Total Amperage Draw: 125 amps at 3ph 208V
  • The kettle must be grounded

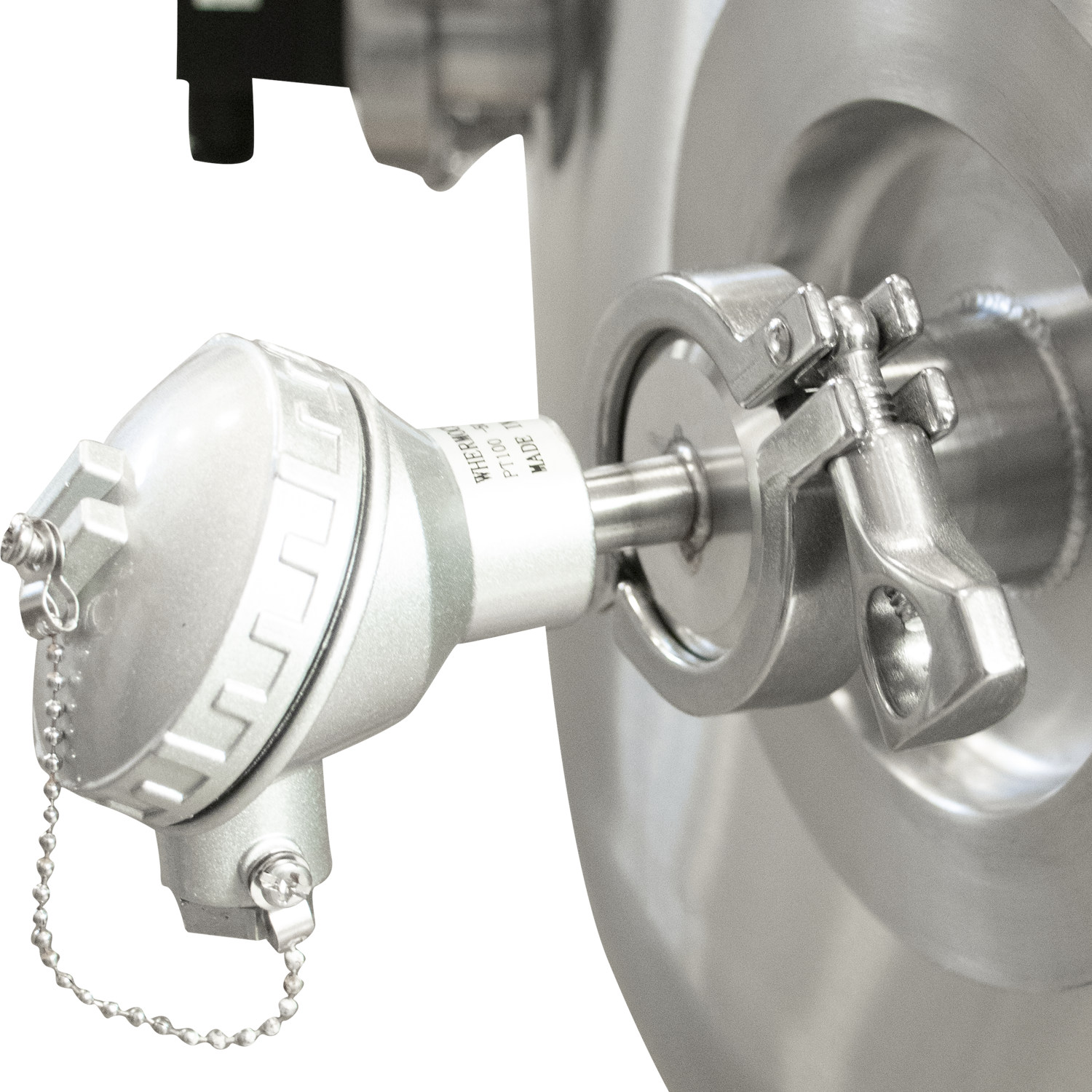

  • PT100 Temp Sender
  • Analog Temp Gauge for quick reading

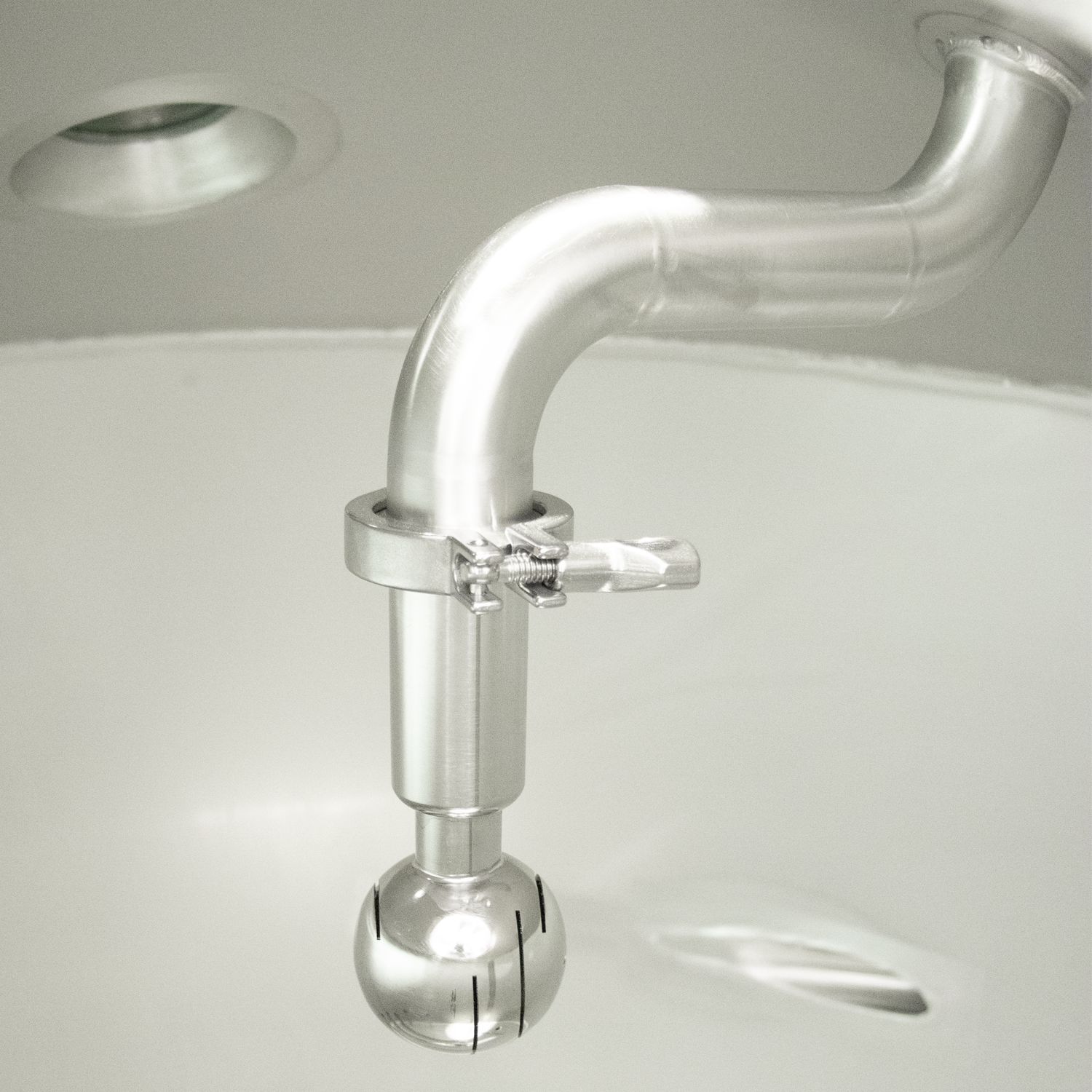

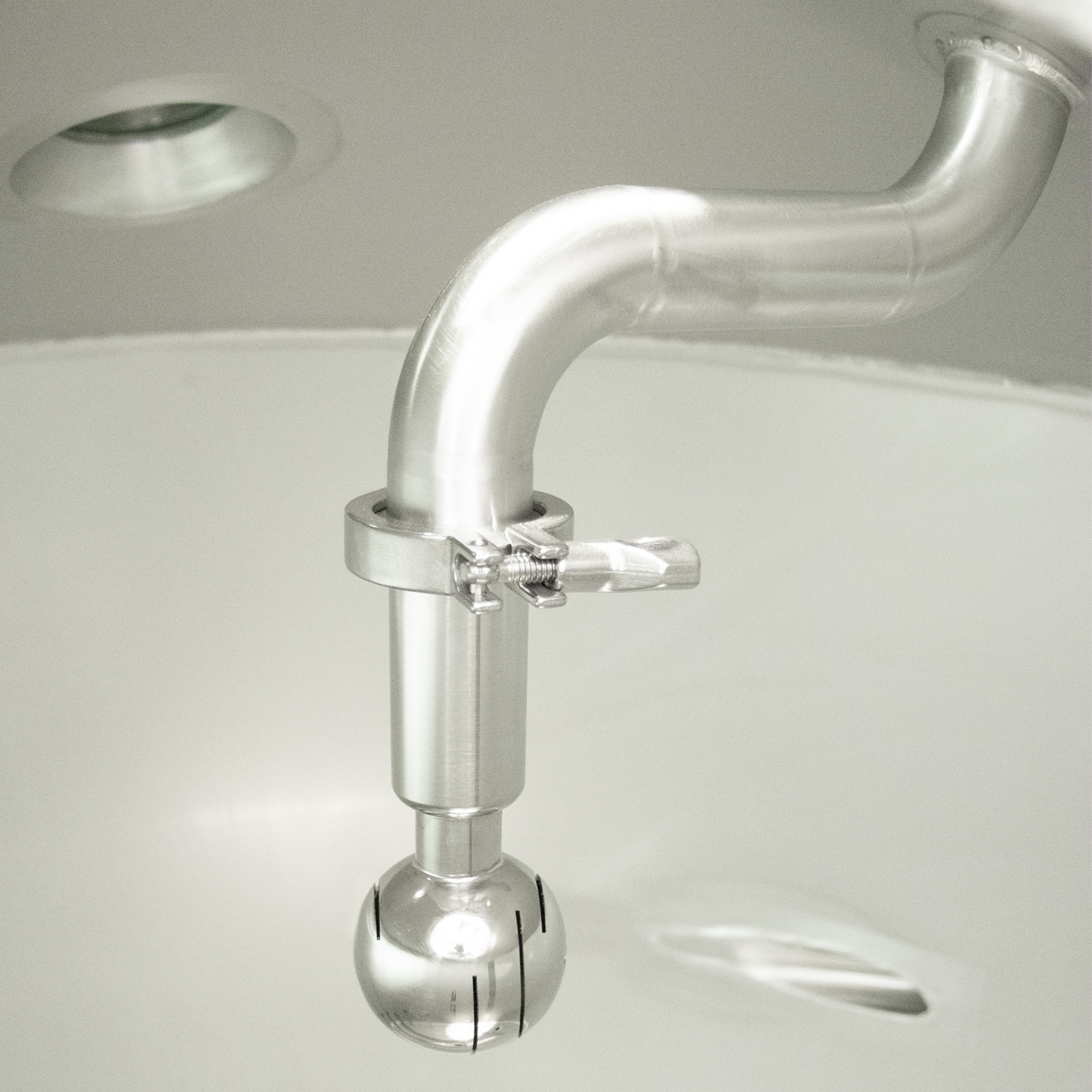

  • CIP Ball

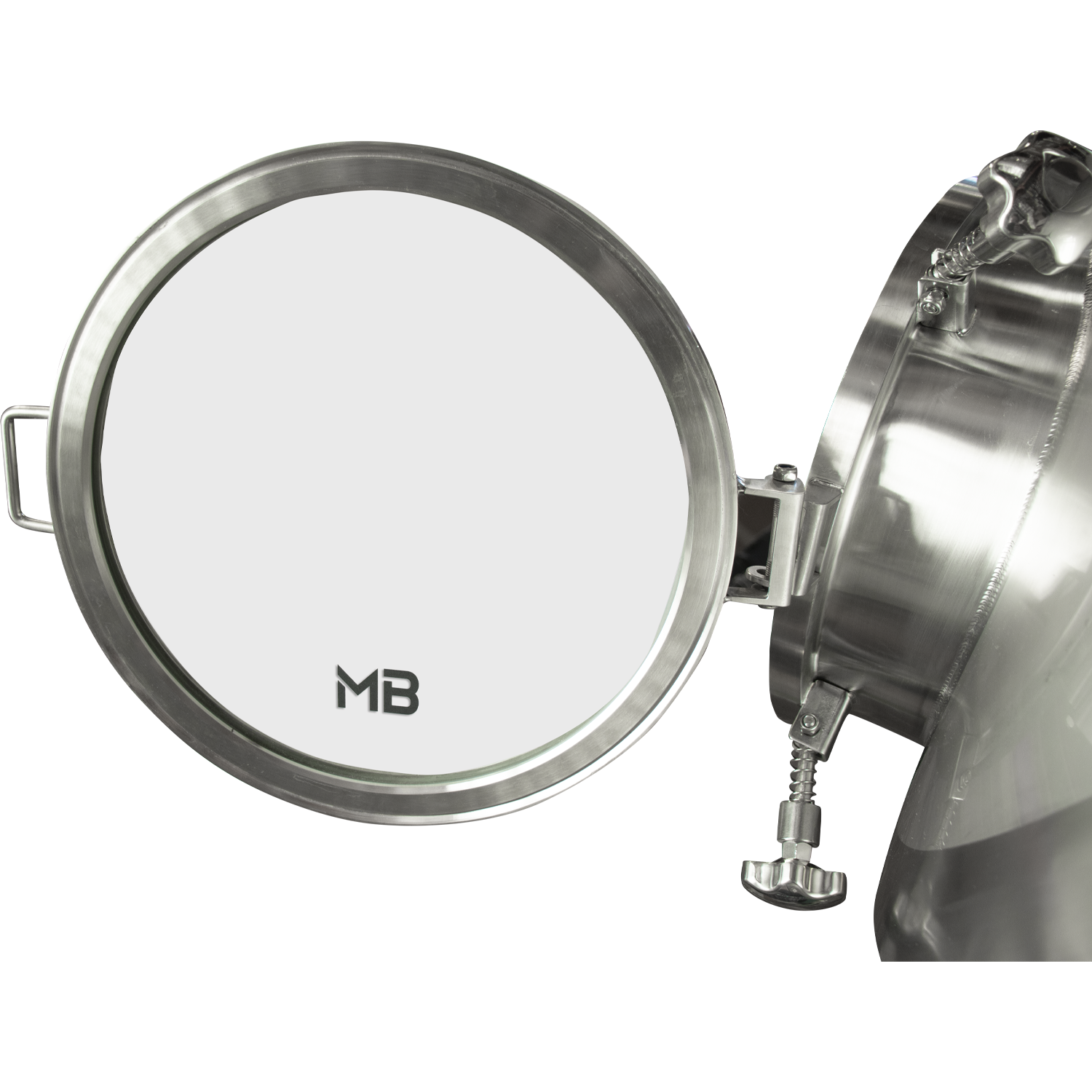

  • Glass Manway Door

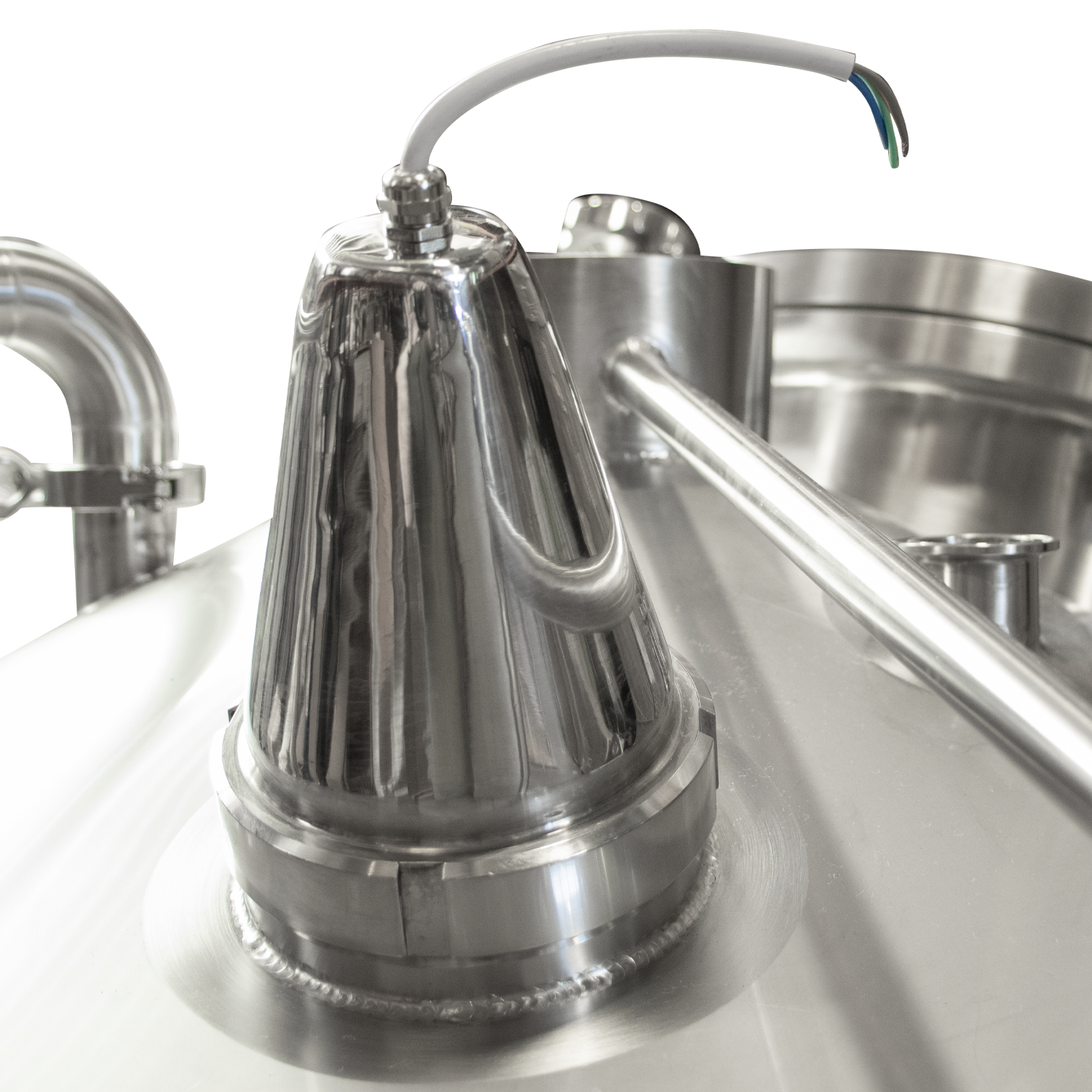

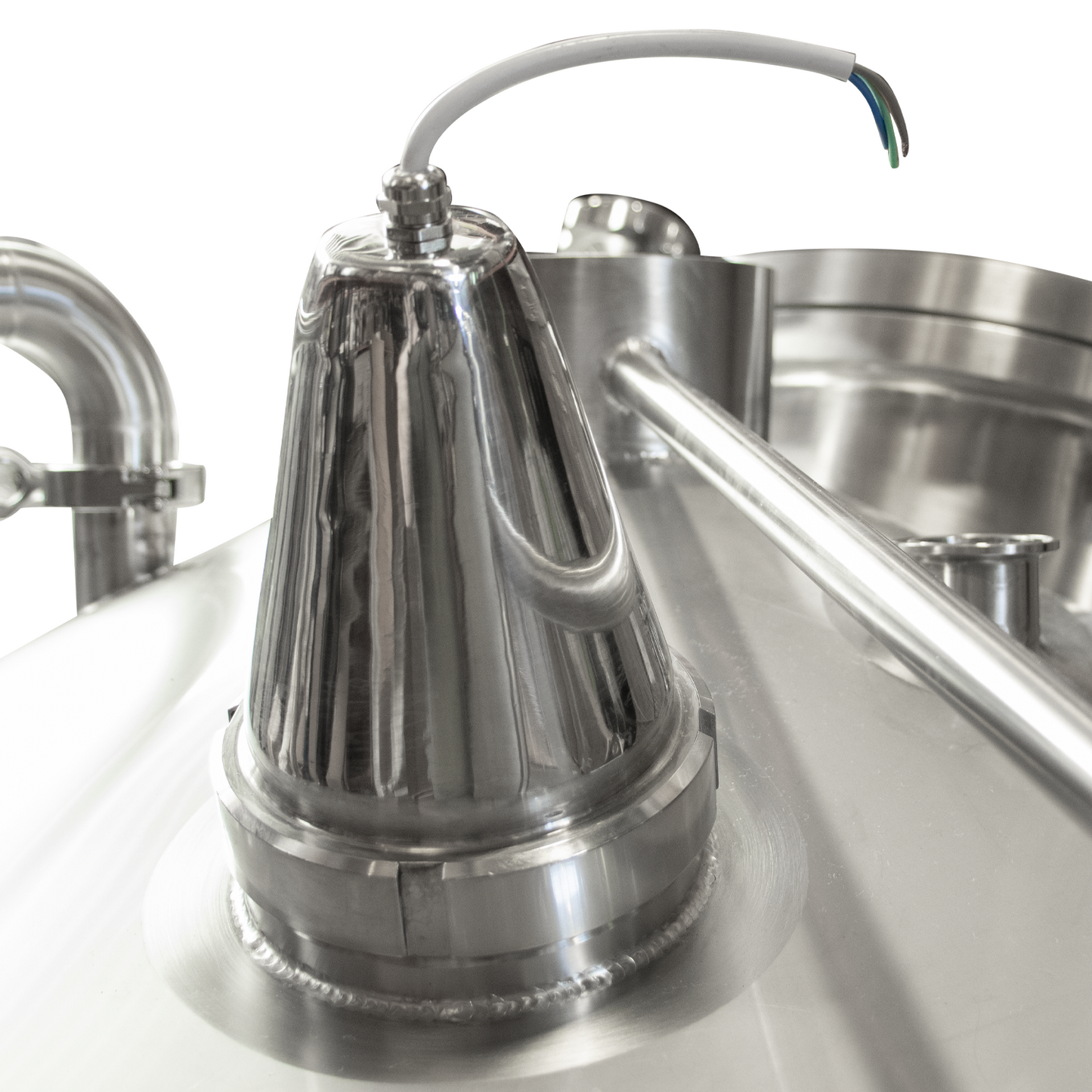

  • Internal LED Light

Boil Kettle Specifications:

  • Grade 304 Stainless Steel
  • Internal Finish: #2B
  • Tank Height: 71"
  • Tank Diameter: 50"
  • Empty Weight: 746 lbs
  • Working Volume: 7 bbl
  • Max Volume: 9.9 bbl
  • All ports are 1.5" TC except for DN350 Manway, DN219 Vent Port, DN80 LED Light Port, 2" TC Drain Outlet, 2" TC Element Ports

Important Electrical Notes:

  1. This unit is supplied without controls for the electric elements.
  2. The kettle must be grounded
  3. The power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
  4. This Electric Hot Liquor Tank requires a professional electrician for installation.
