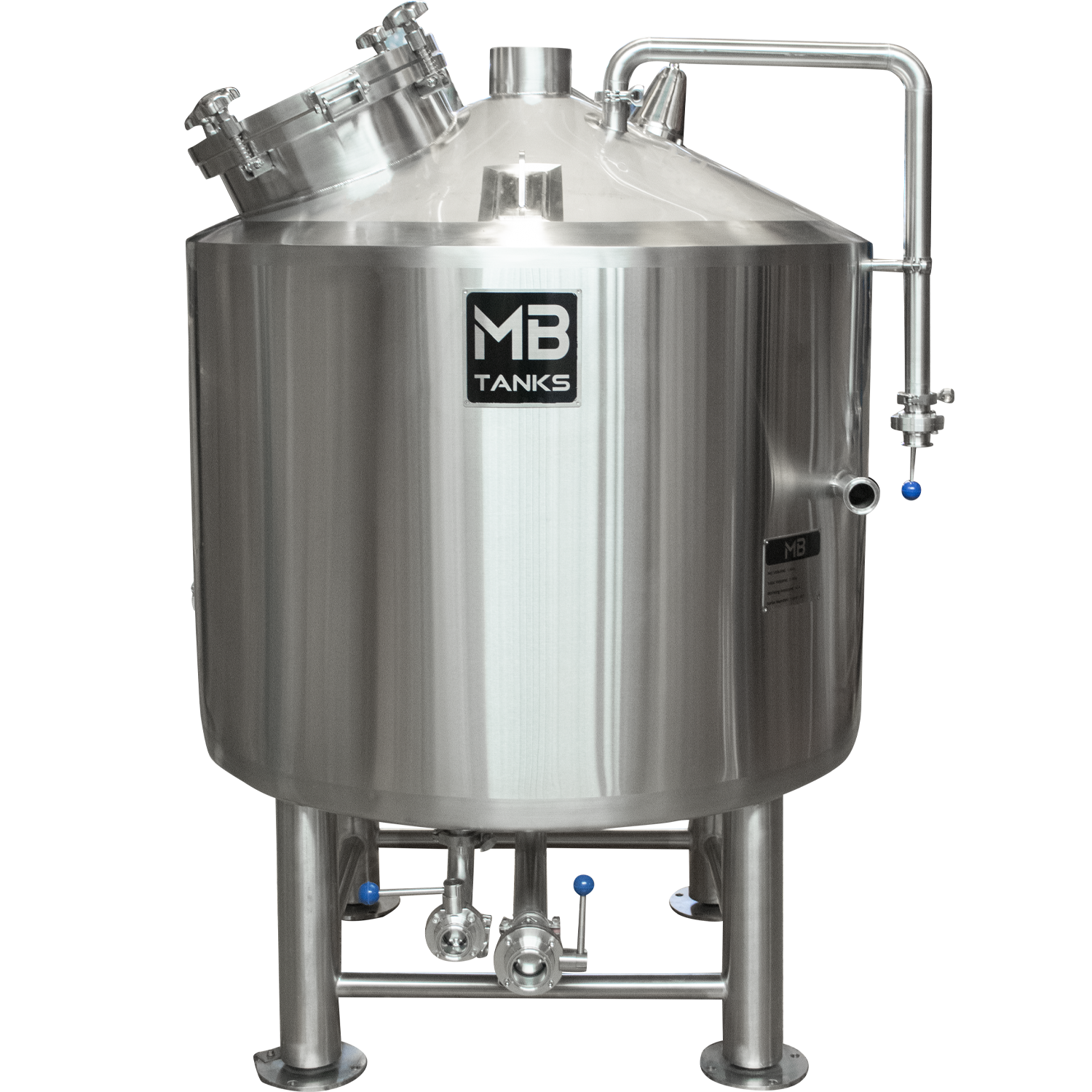

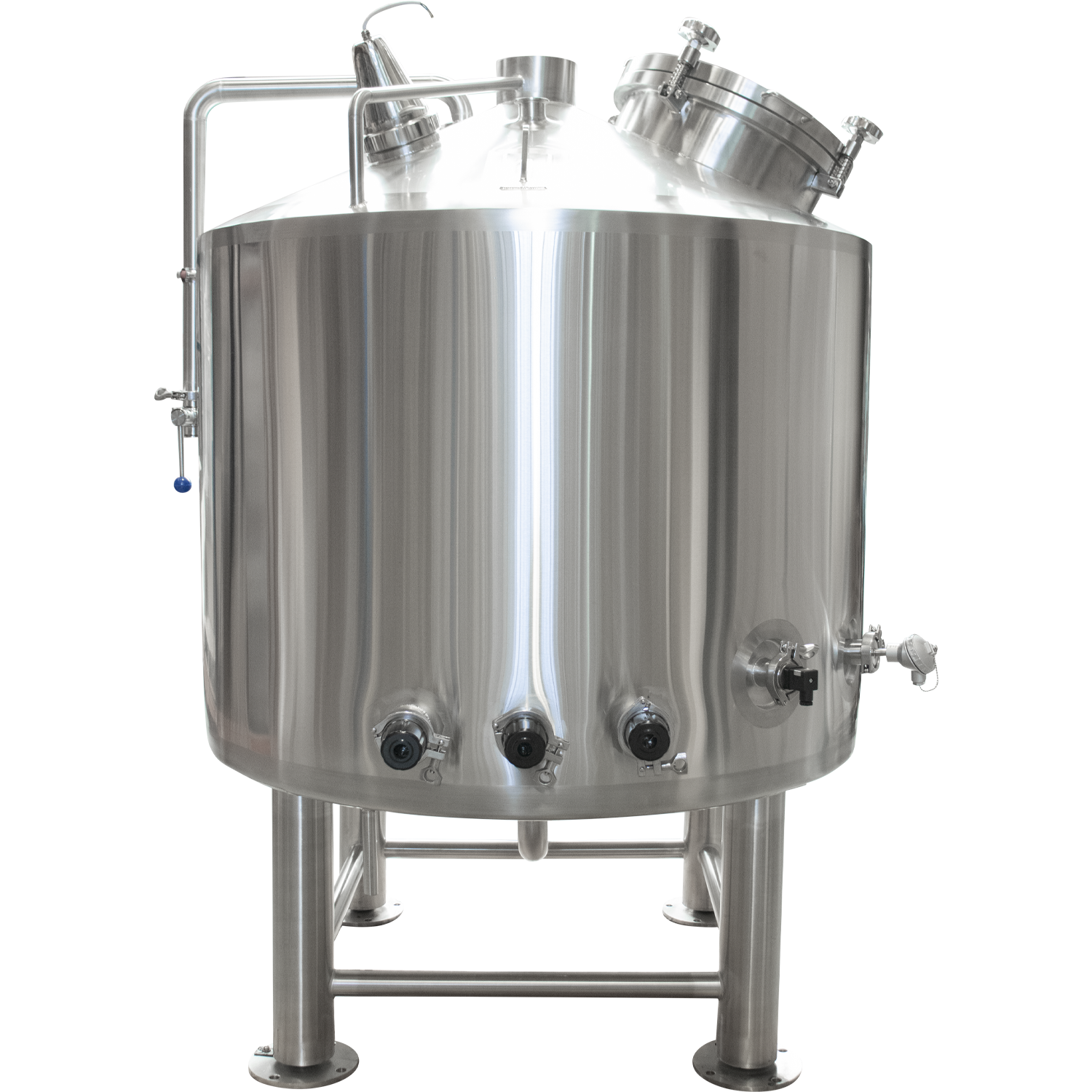

Electric Boil Kettle | 3.5 bbl

Our 3.5 bbl Electric Boil Kettle features three 9,000W heating elements, dedicated tangential whirlpool port, condensation ring, and a host of other features guaranteed to satisfy the users expectations.

A float switch is pre-installed just above the heating elements, which is intended to protect your elements from running dry. The device comes unwired and needs to be included in a circuit in order to function.

MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.

Boil Kettle Features:

• Insulated walls for safety and energy efficiency

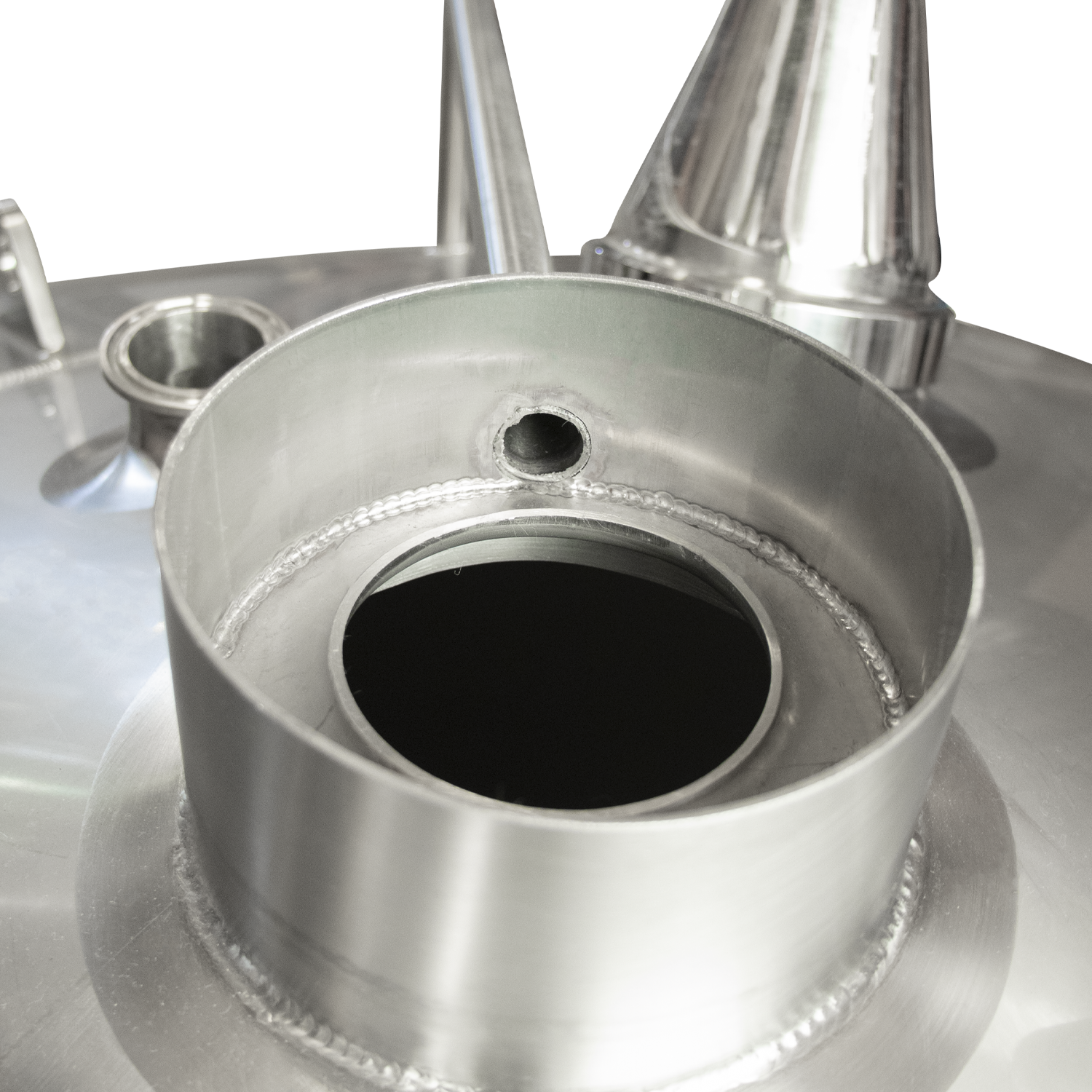

• Condensation ring to keep flue condensation from entering the boil (Myrcene Ring)

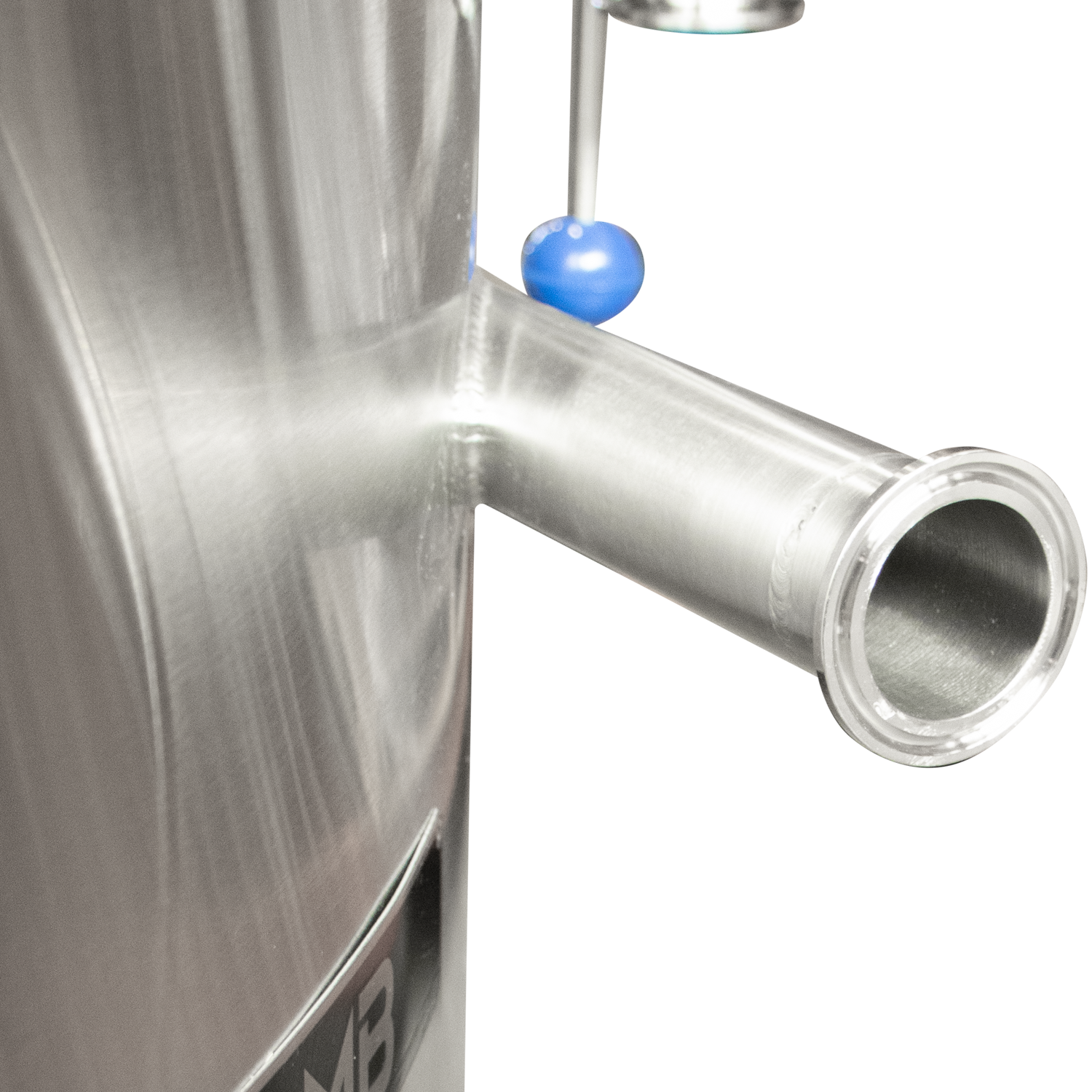

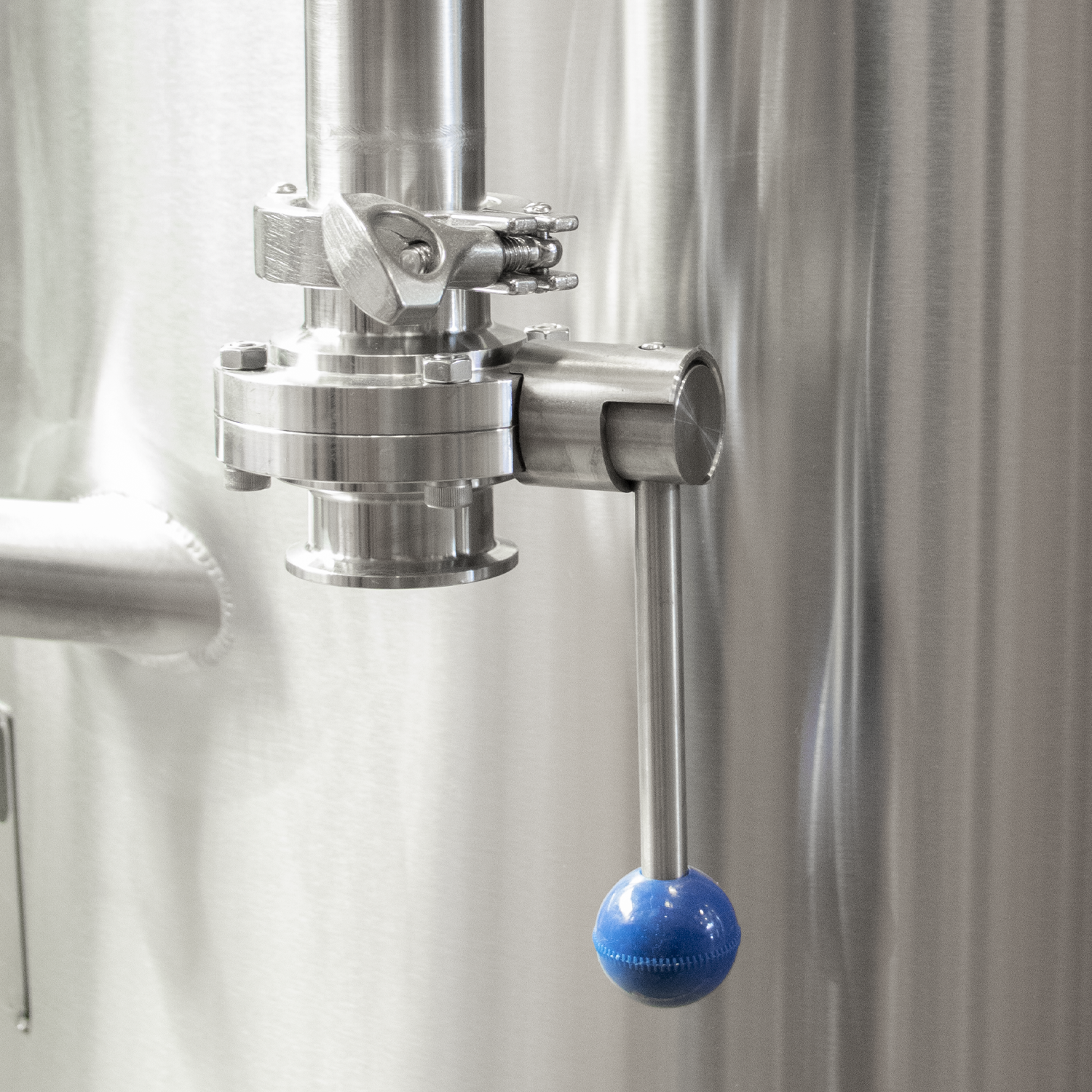

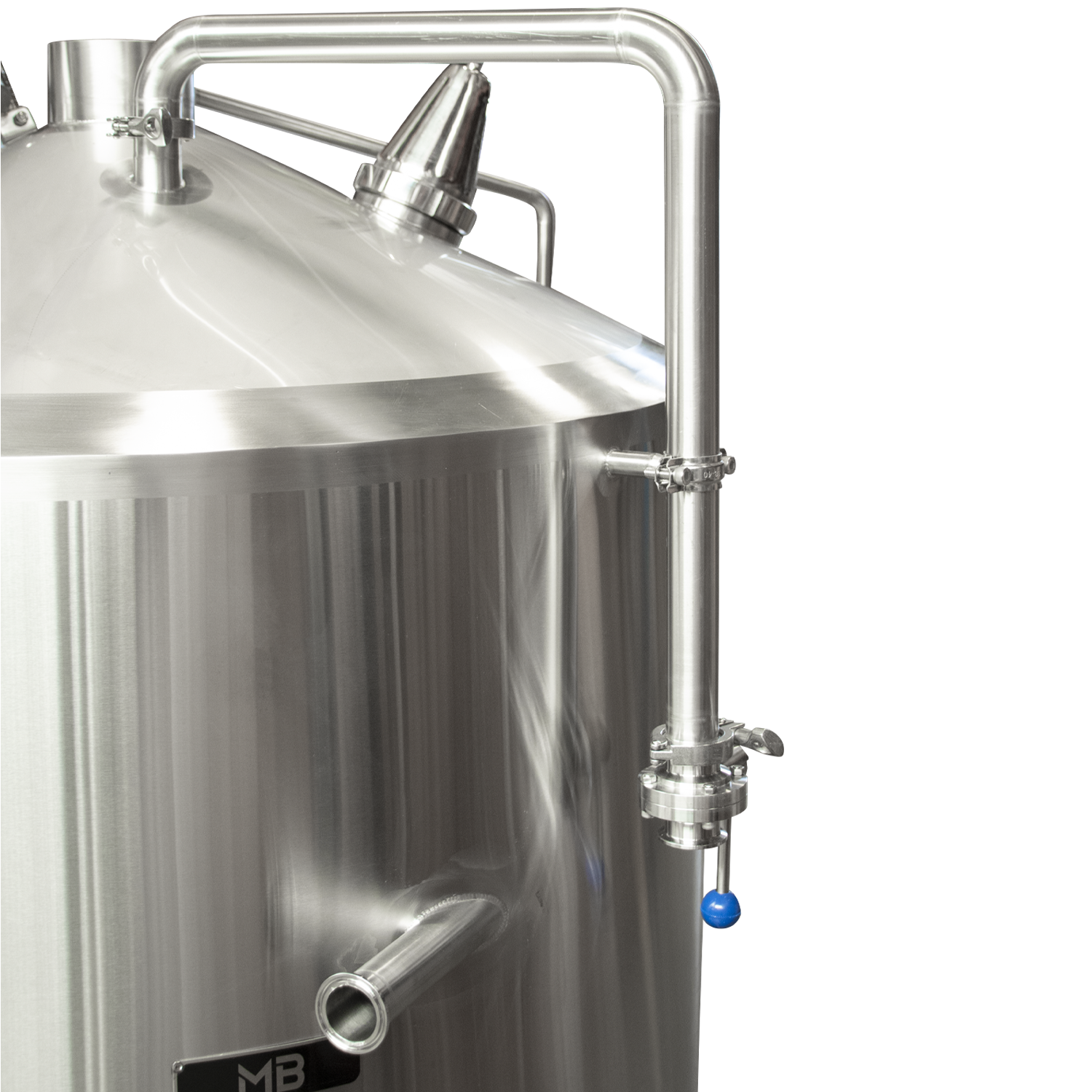

• Tangential port for whirlpool

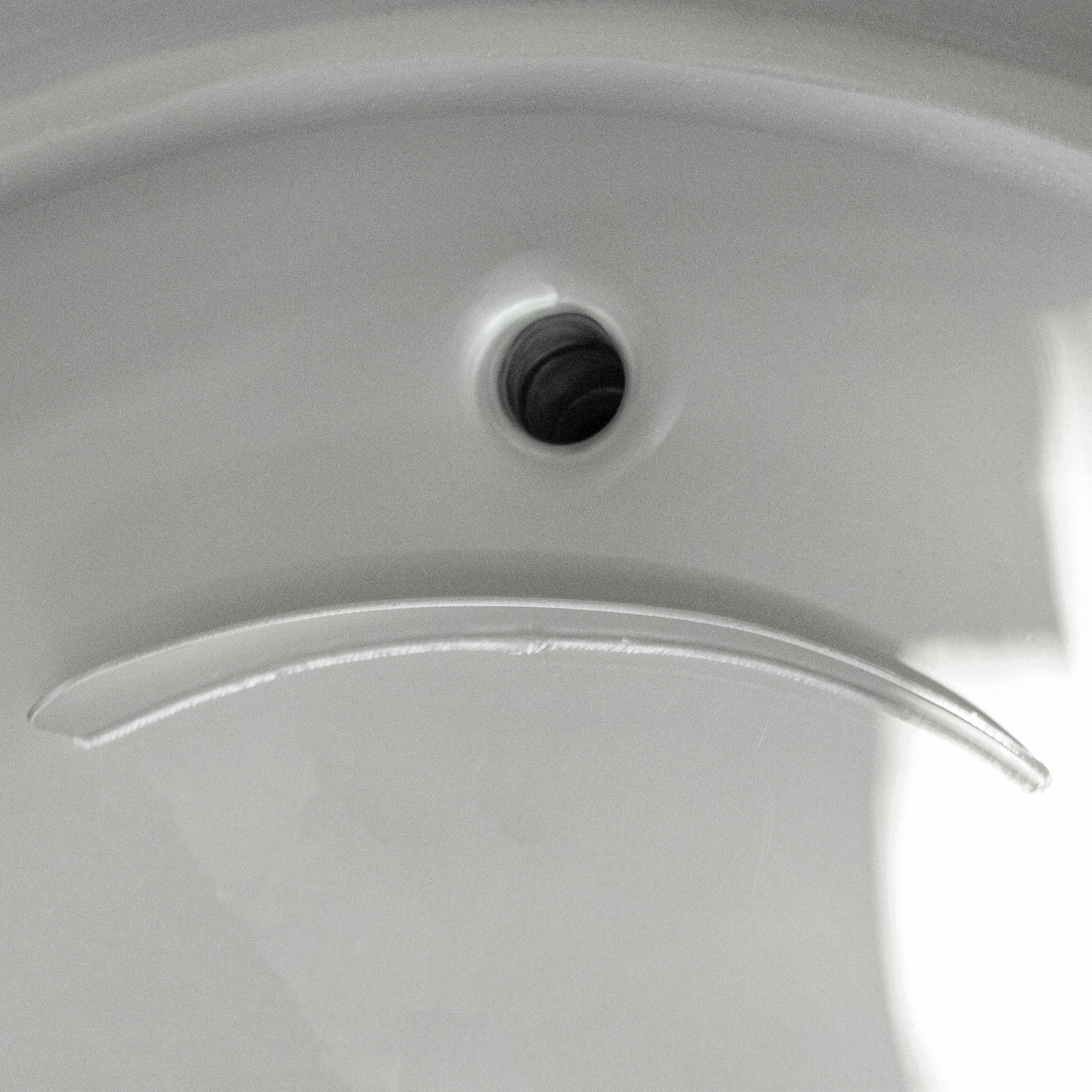

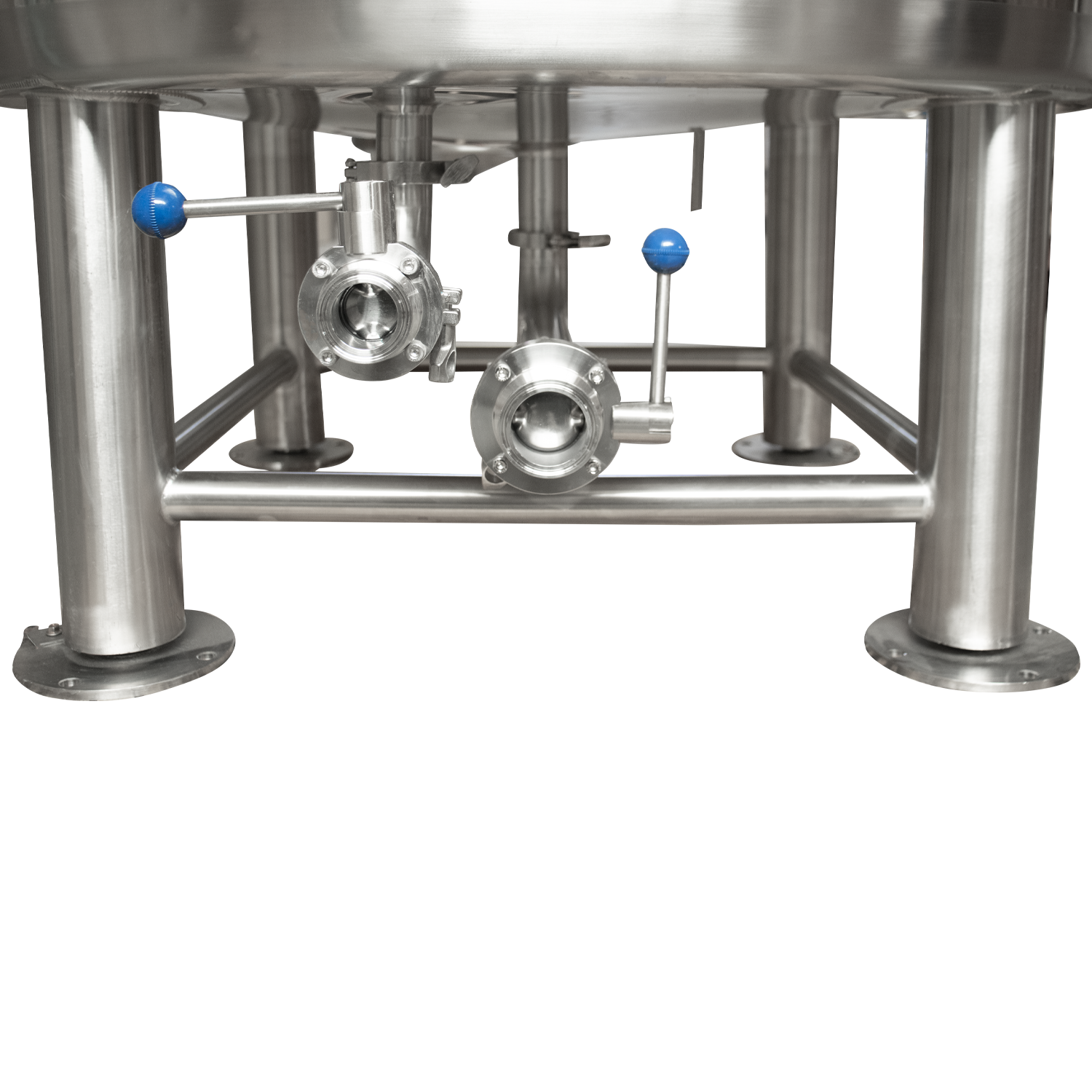

• Side drain with hop dam for easy whirlpooling and good trub separation
• Dished bottom with 2" center drain for easy trub clean up
• Fill Port for adding dilution water

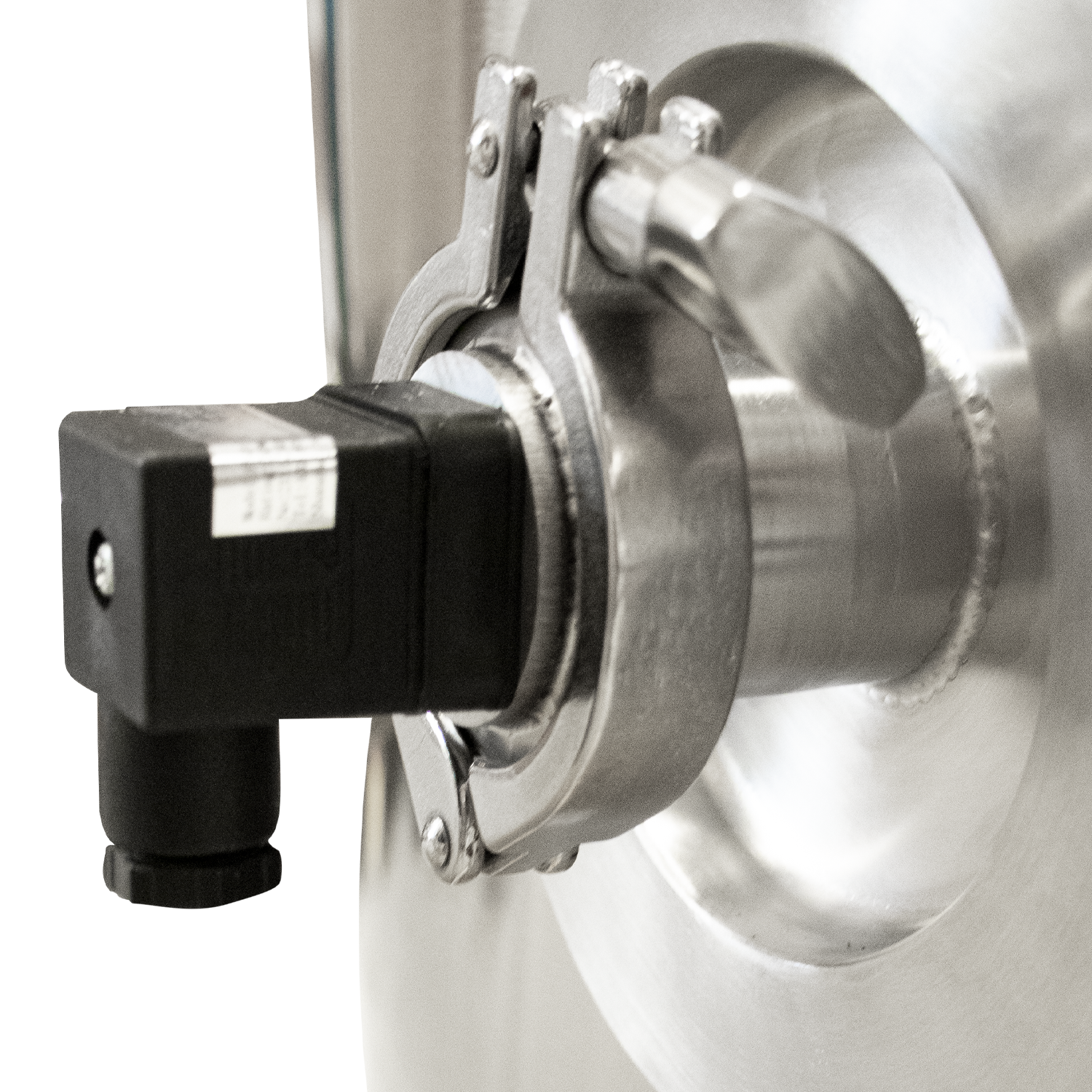

• Float Switch to protect the electric elements from running dry (wiring required)

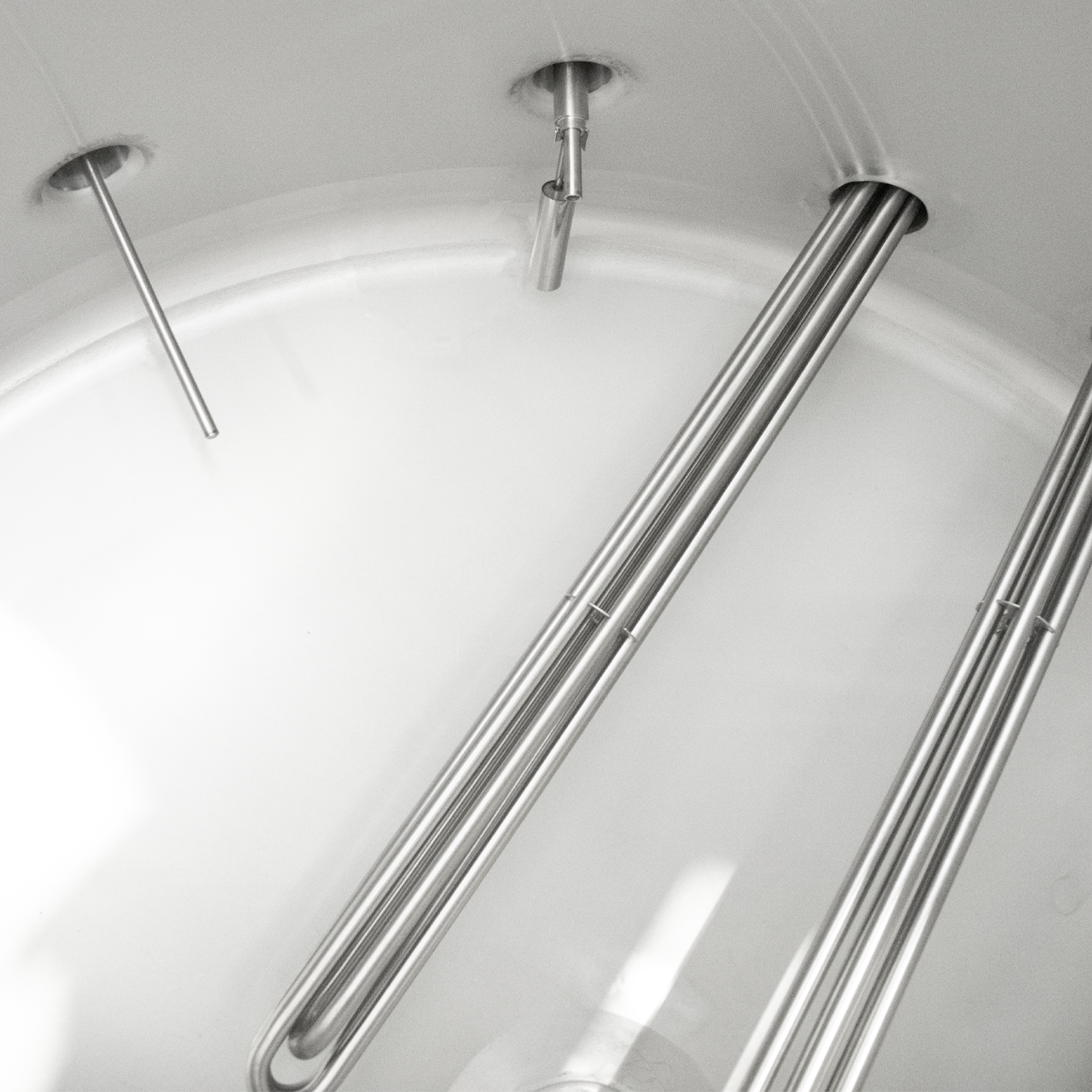

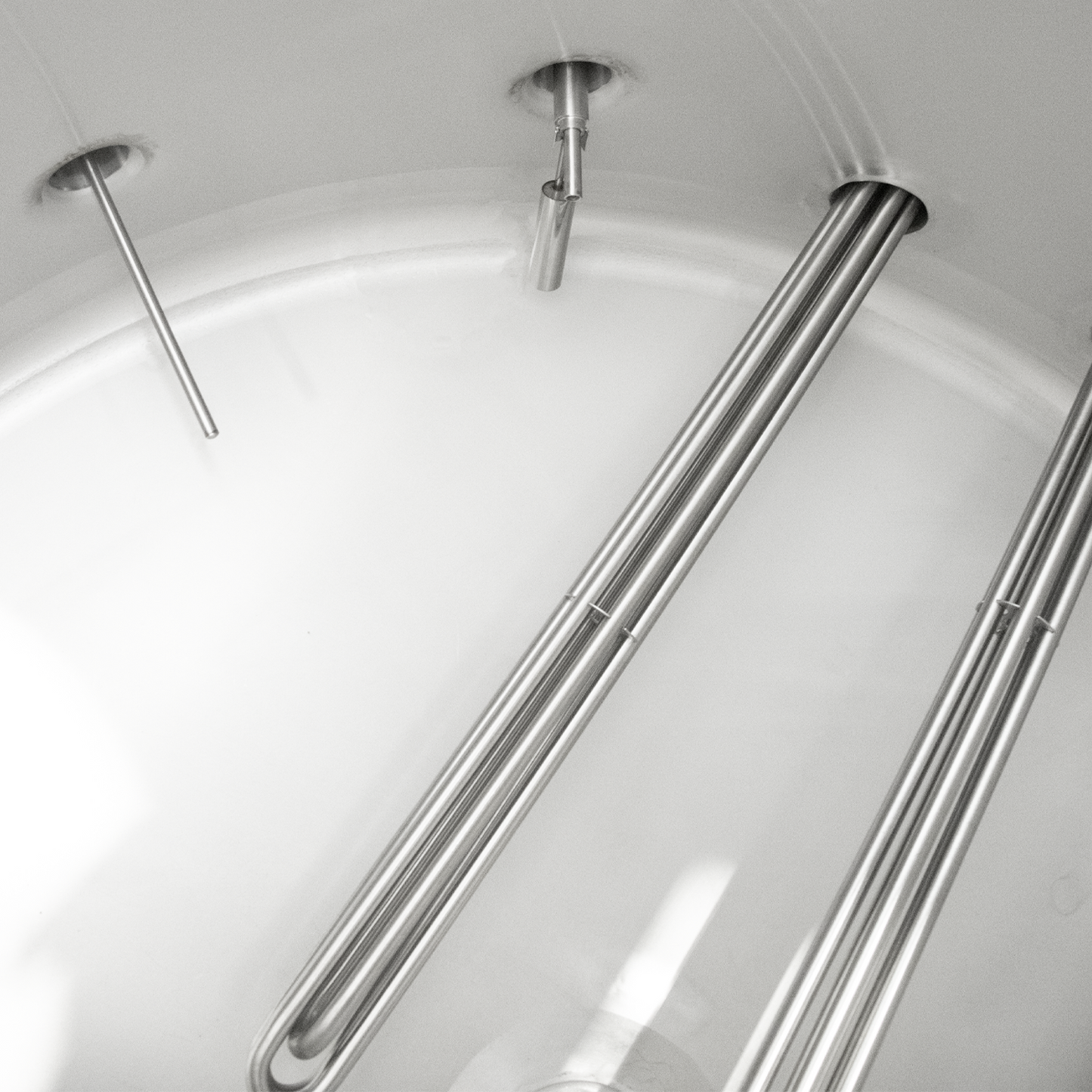

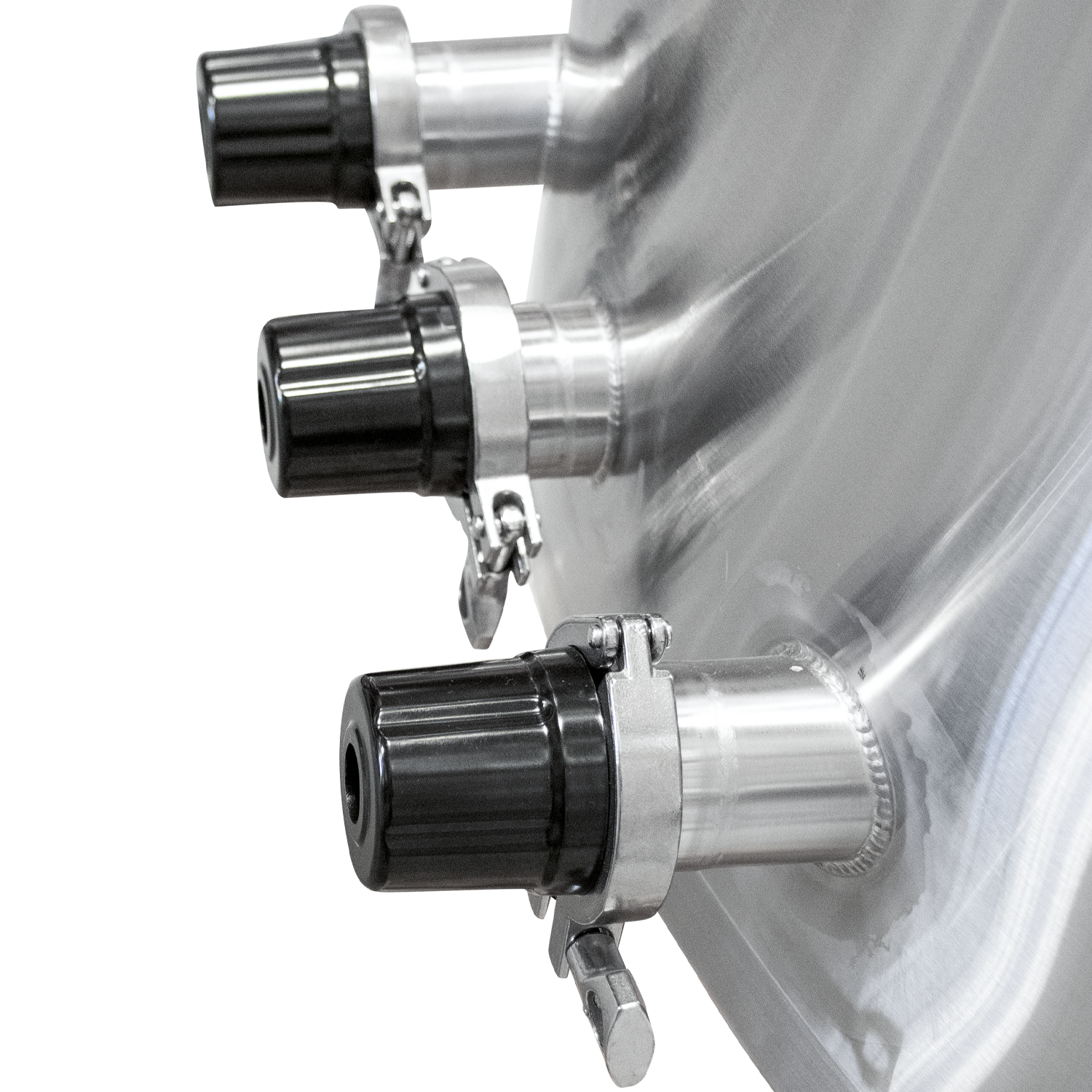

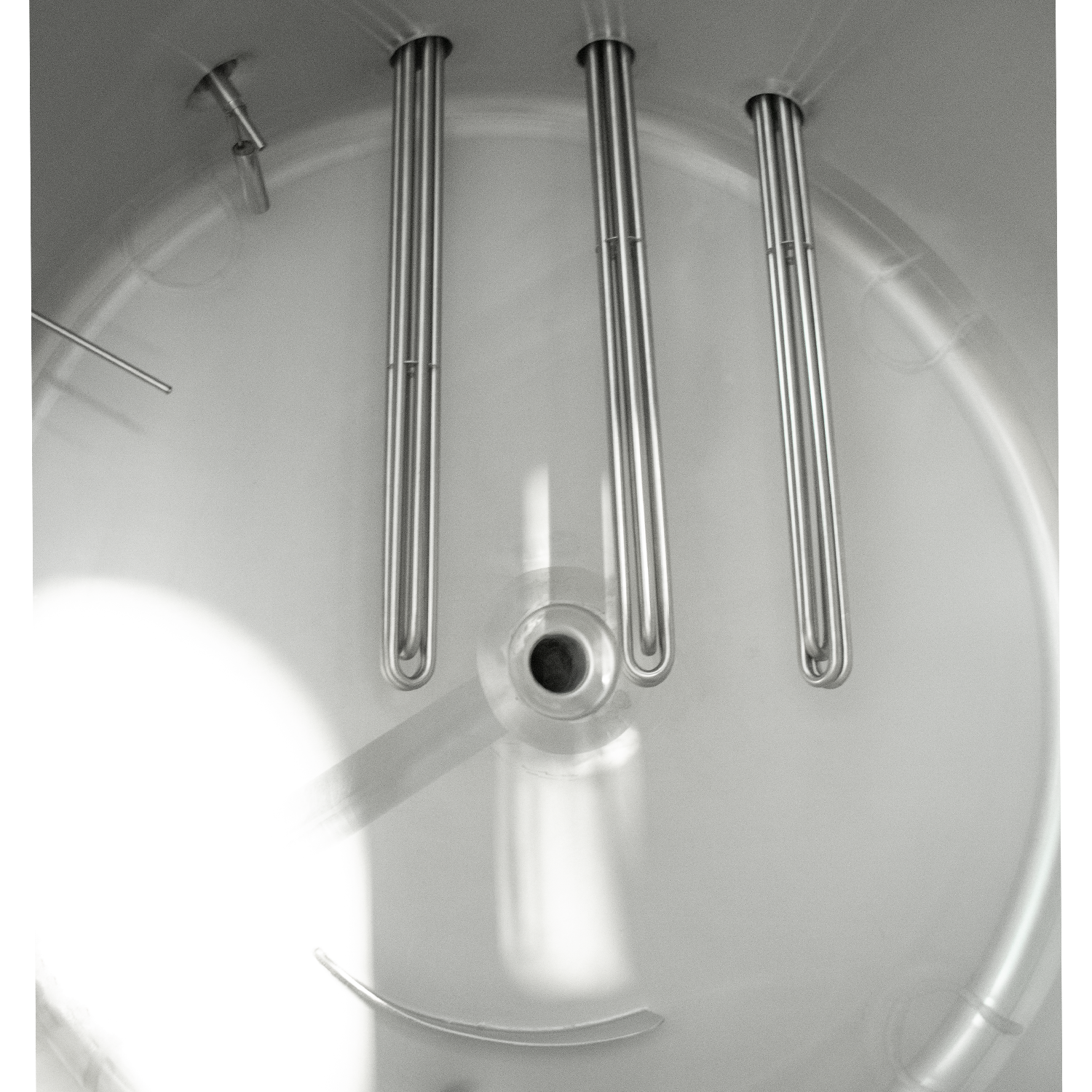

• Powered by Three 9,000-watt 3-phase 208V elements
• Total Amperage Draw: 75 amps at 3ph 208V
• The kettle must be grounded

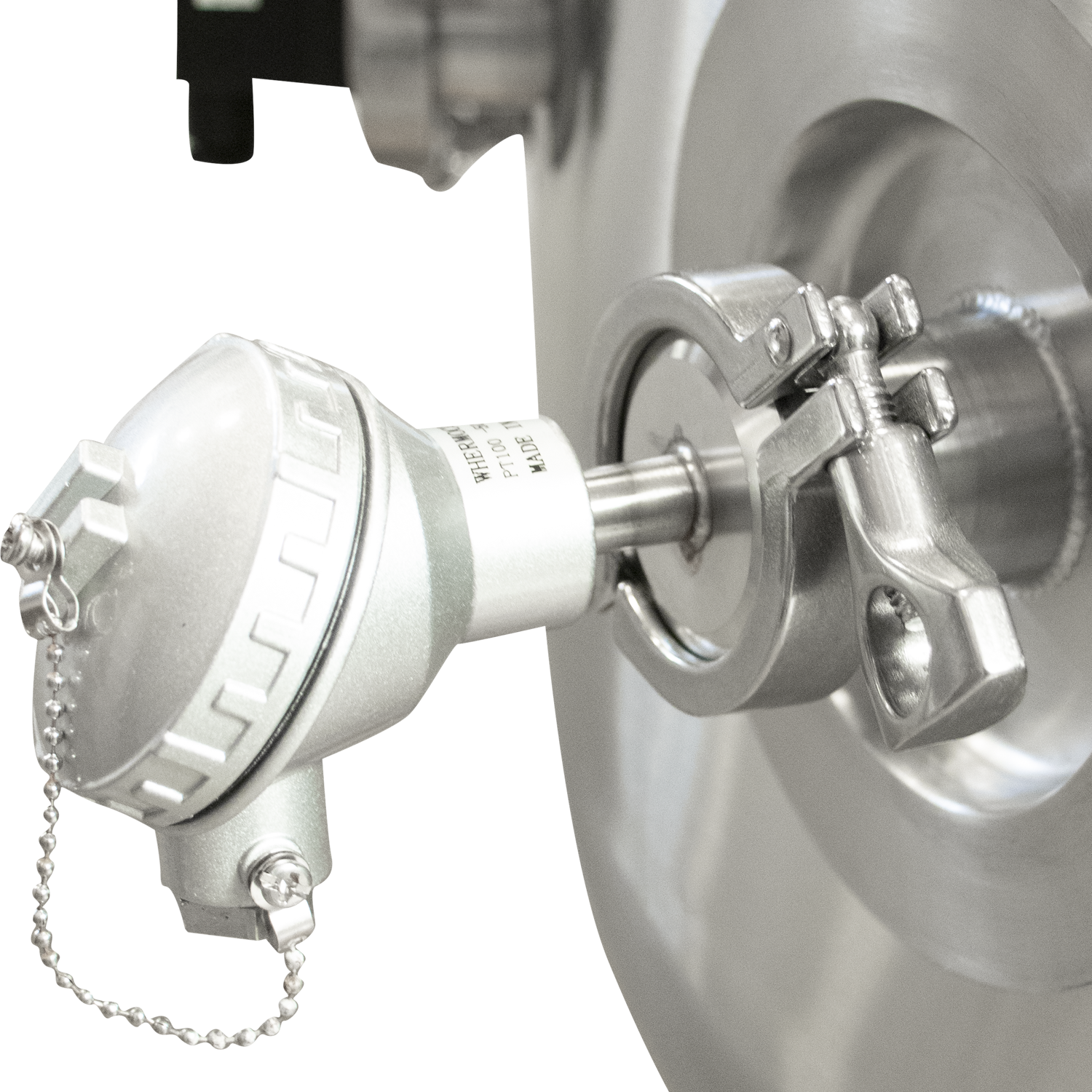

• PT100 Temp Sender
• Analog Temp Gauge for quick reading

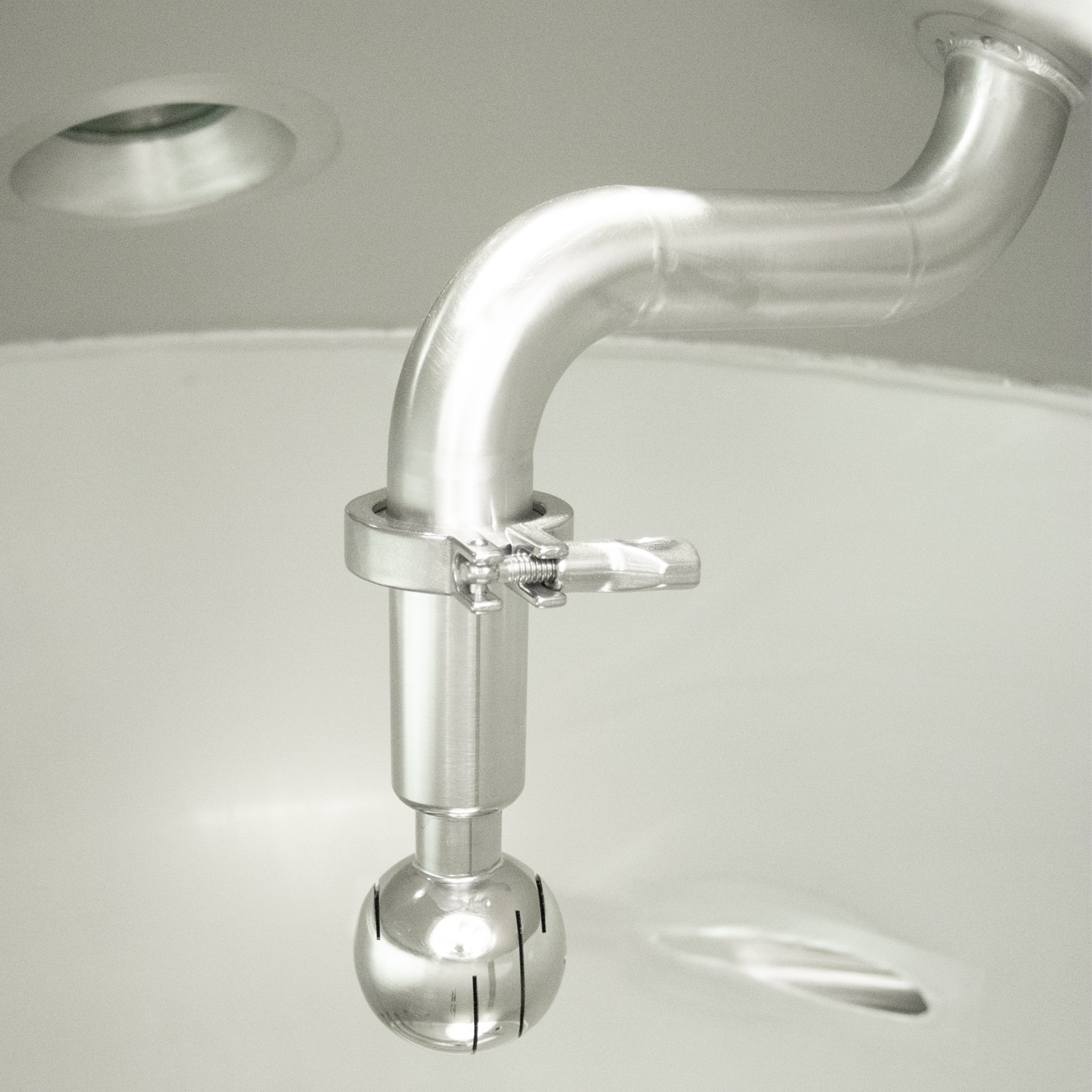

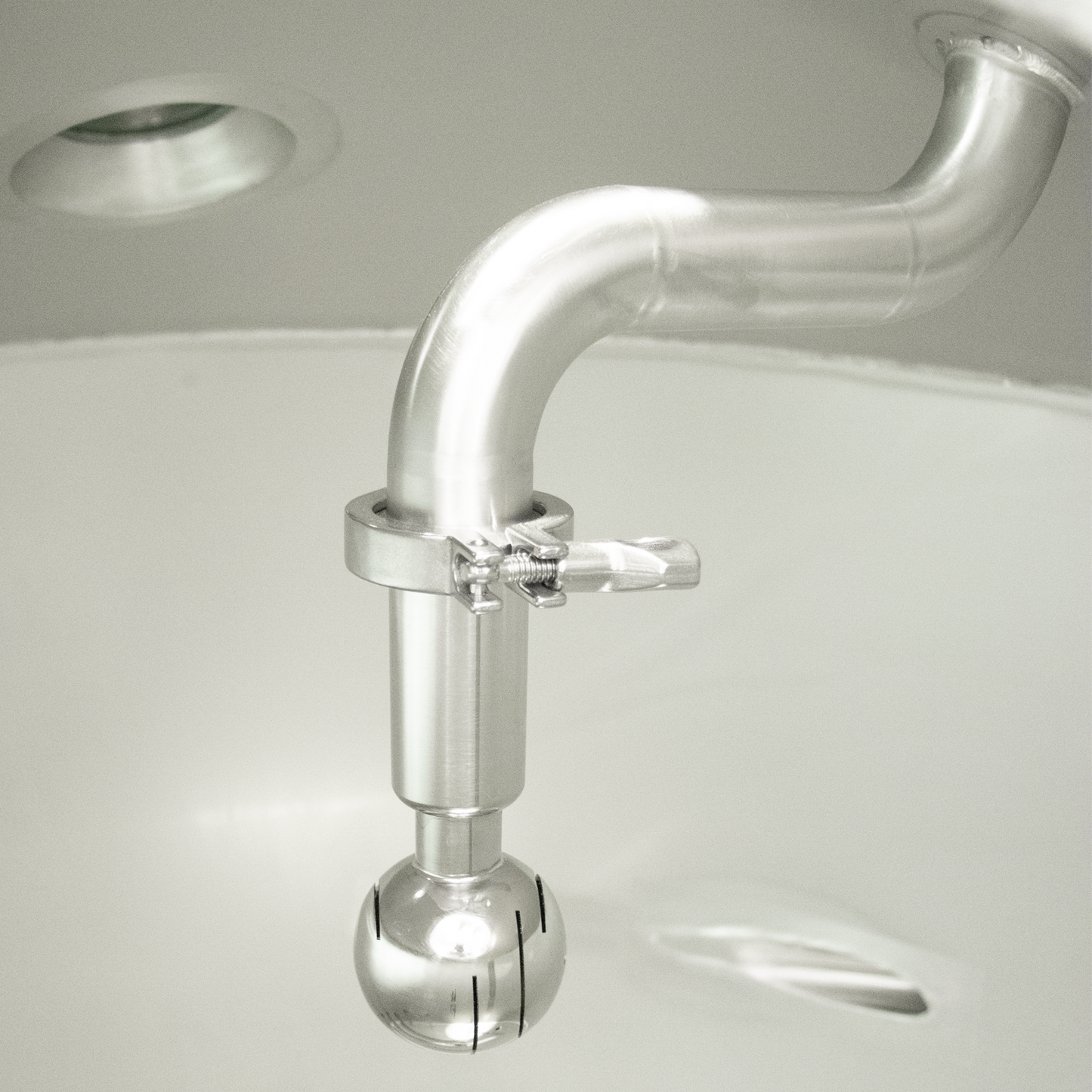

• CIP Ball

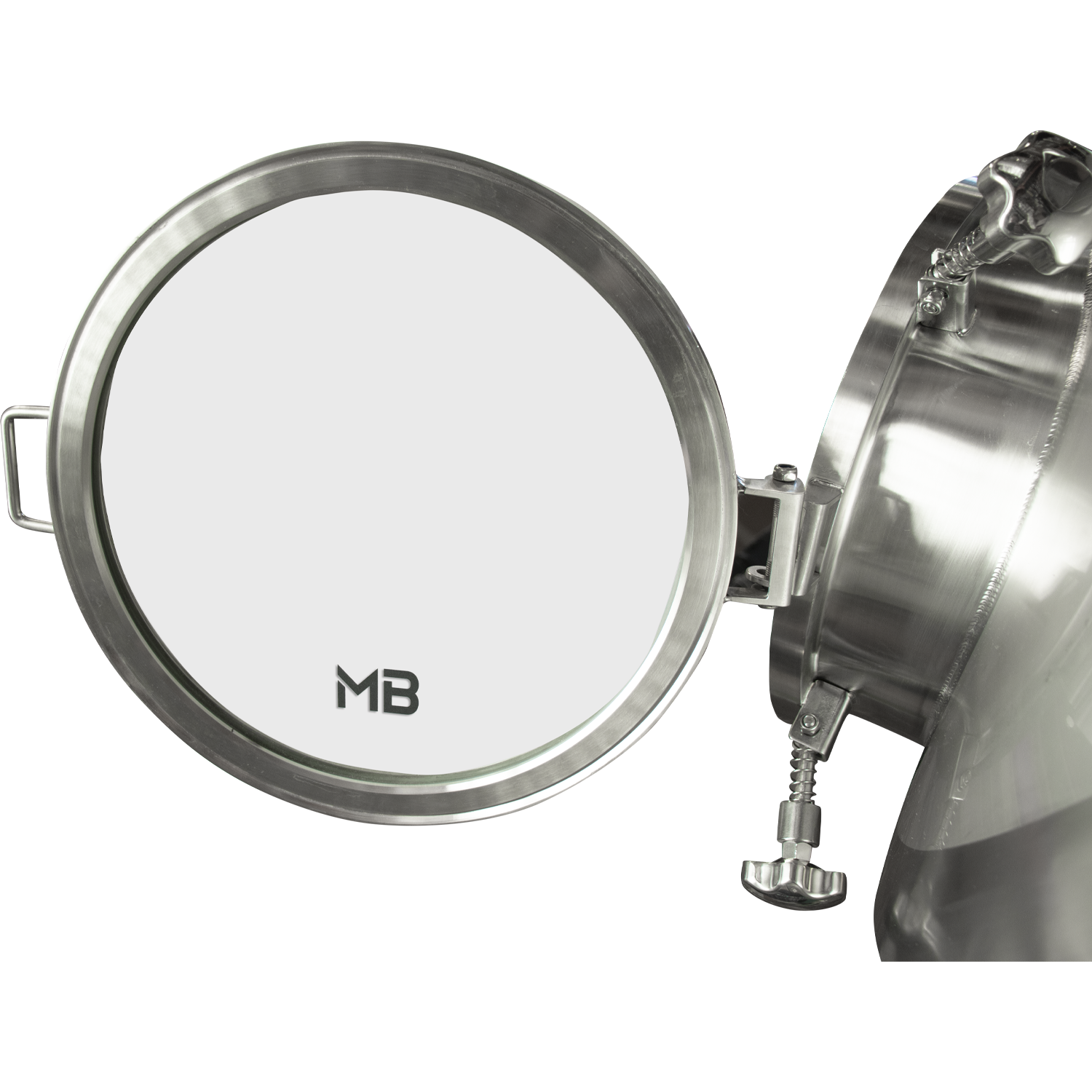

• Glass Manway Door

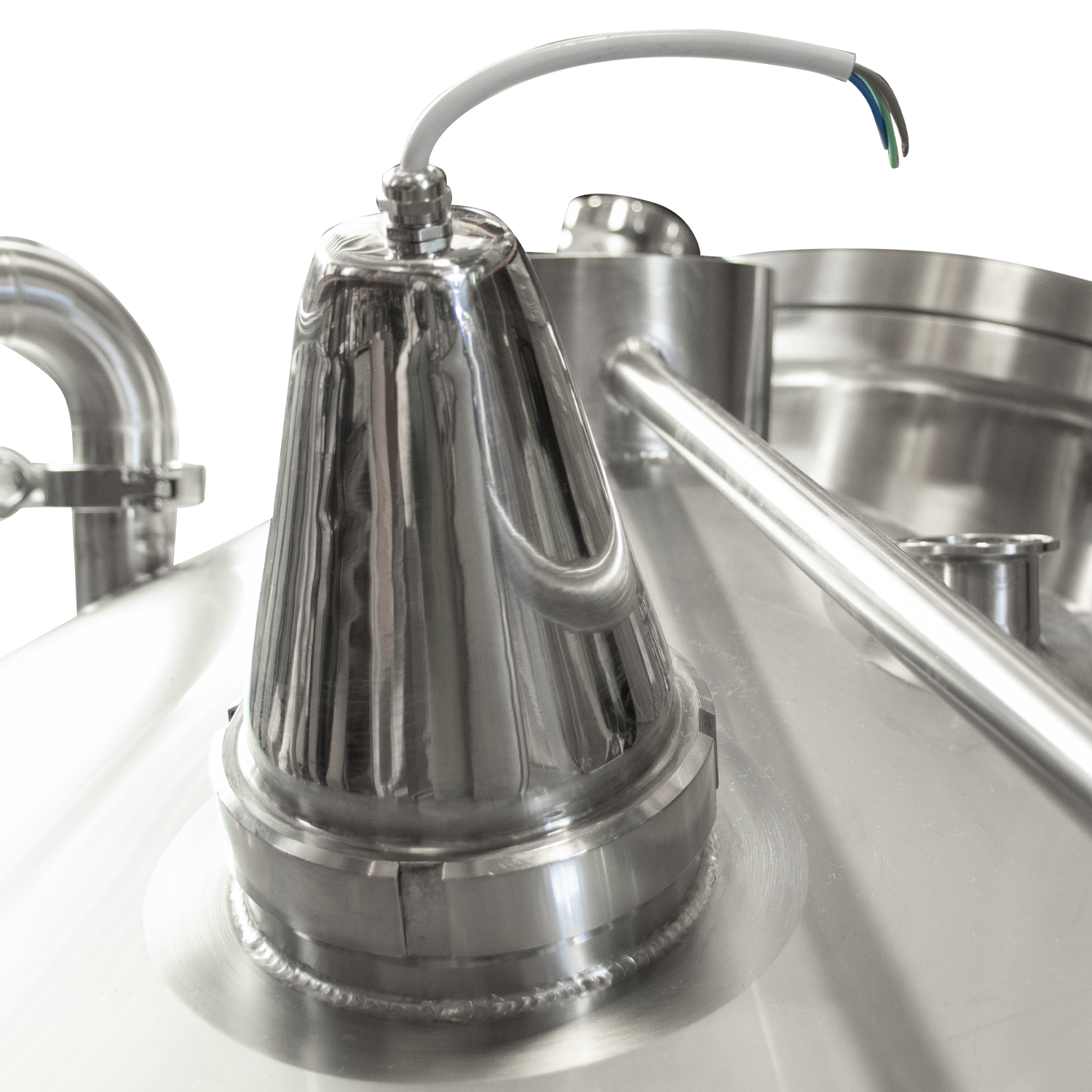

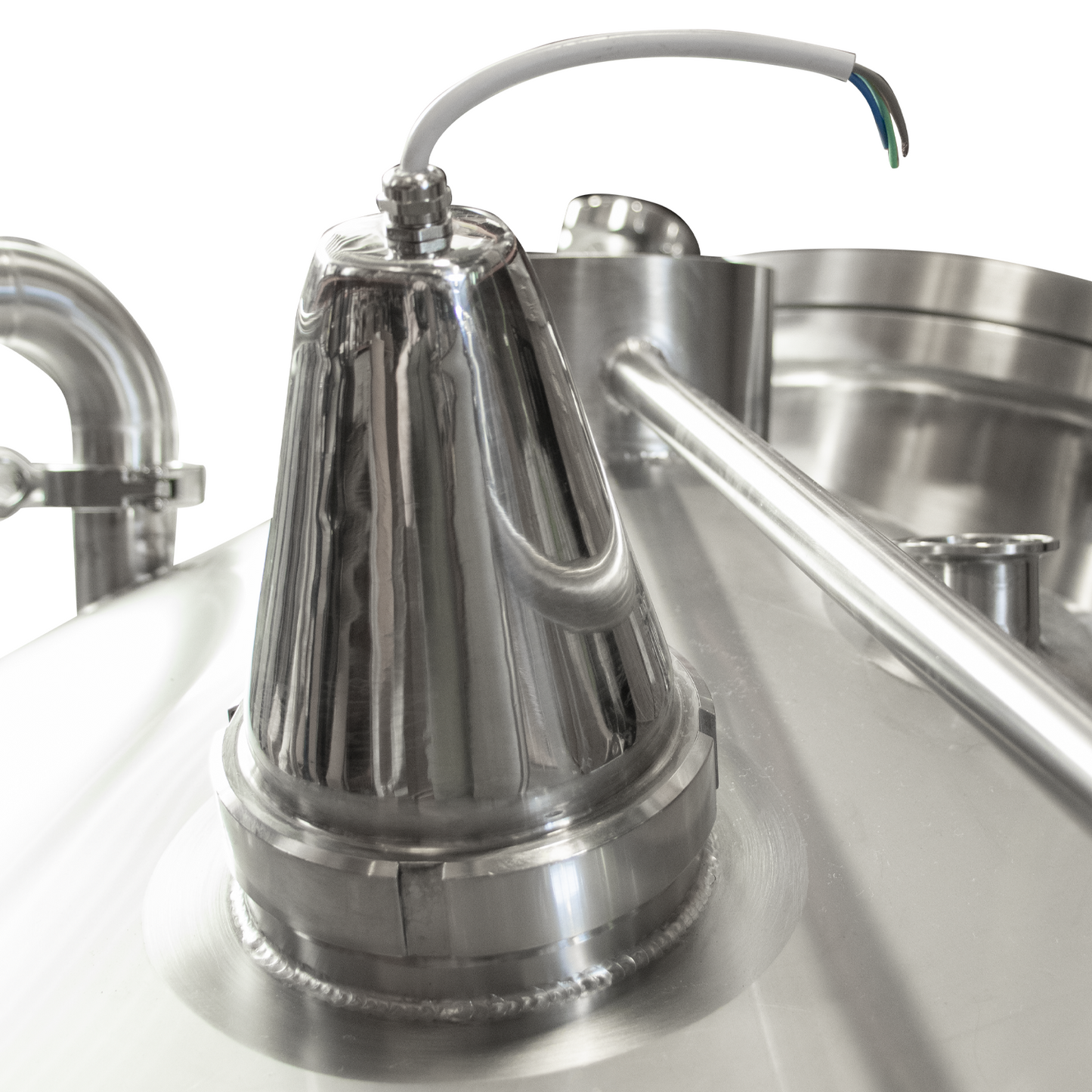

• Internal LED Light

Boil Kettle Specifications:

• Grade 304 Stainless Steel
• Internal Finish: #2B
• Tank Height: 54"
• Tank Diameter: 41"
• Empty Weight: 360 lbs
• Working Volume: 3.5 bbl
• Max Volume: 5.1 bbl

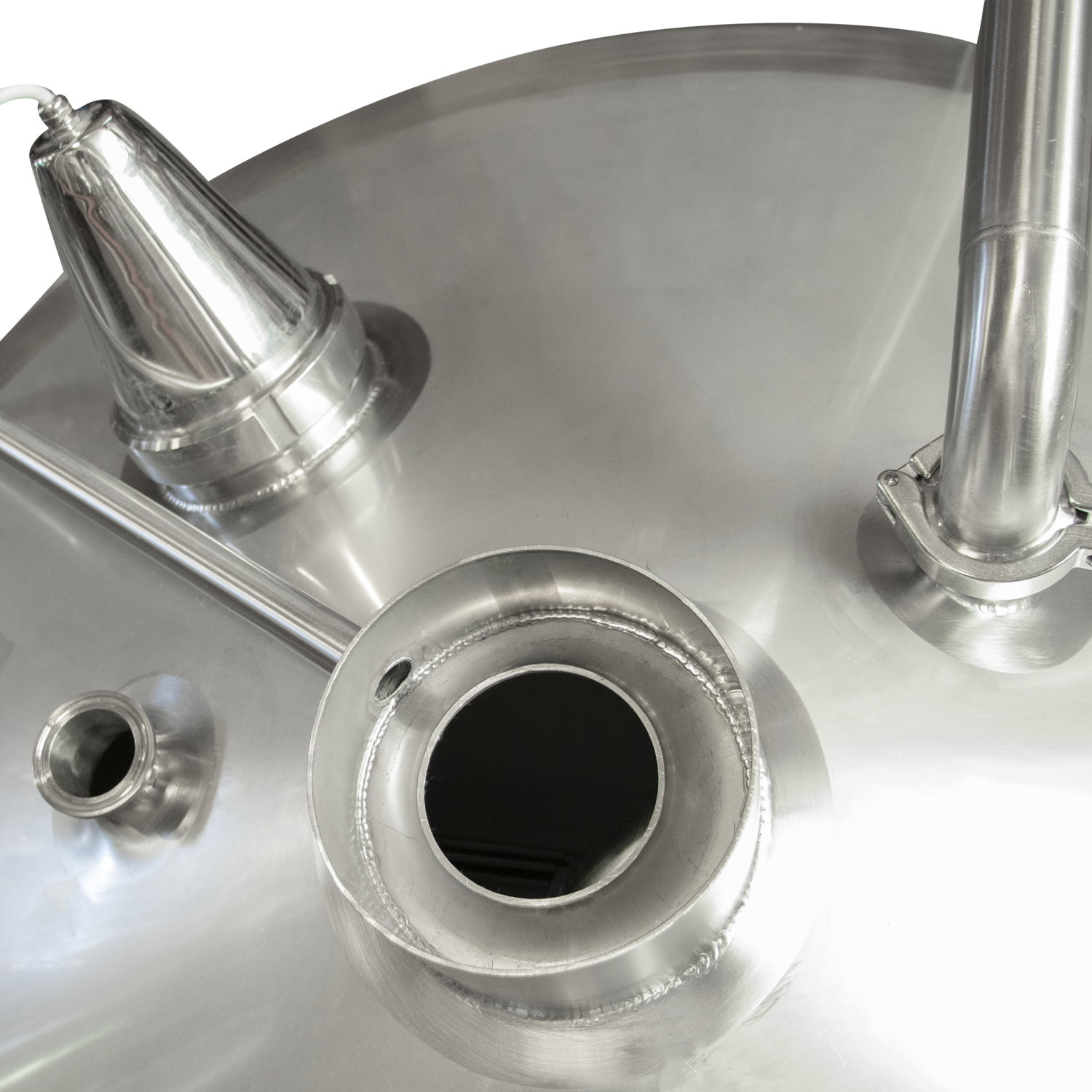

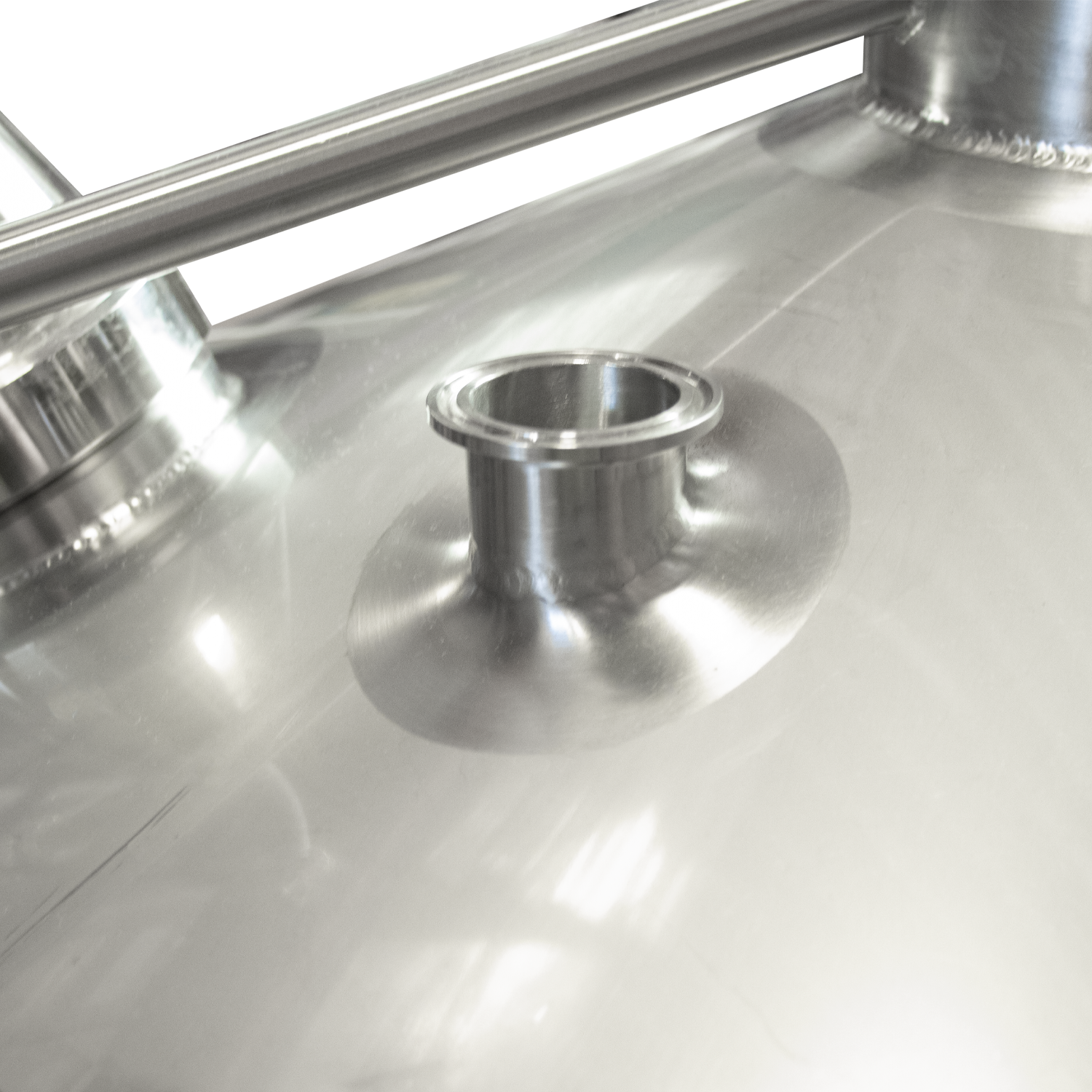

• All ports are 1.5" TC except for DN350 Manway, DN219 Vent Port, DN80 LED Light Port, 2" TC Drain Outlet, 2" TC Element Ports

Important Electrical Notes:

1. This unit is supplied without controls for the electric elements.
2. The power requirements listed represent actual amperage draw. Please consult a licensed electrician to determine what amperage breaker is required based on your local codes.
3. This Electric Hot Liquor Tank requires a professional electrician for installation.
