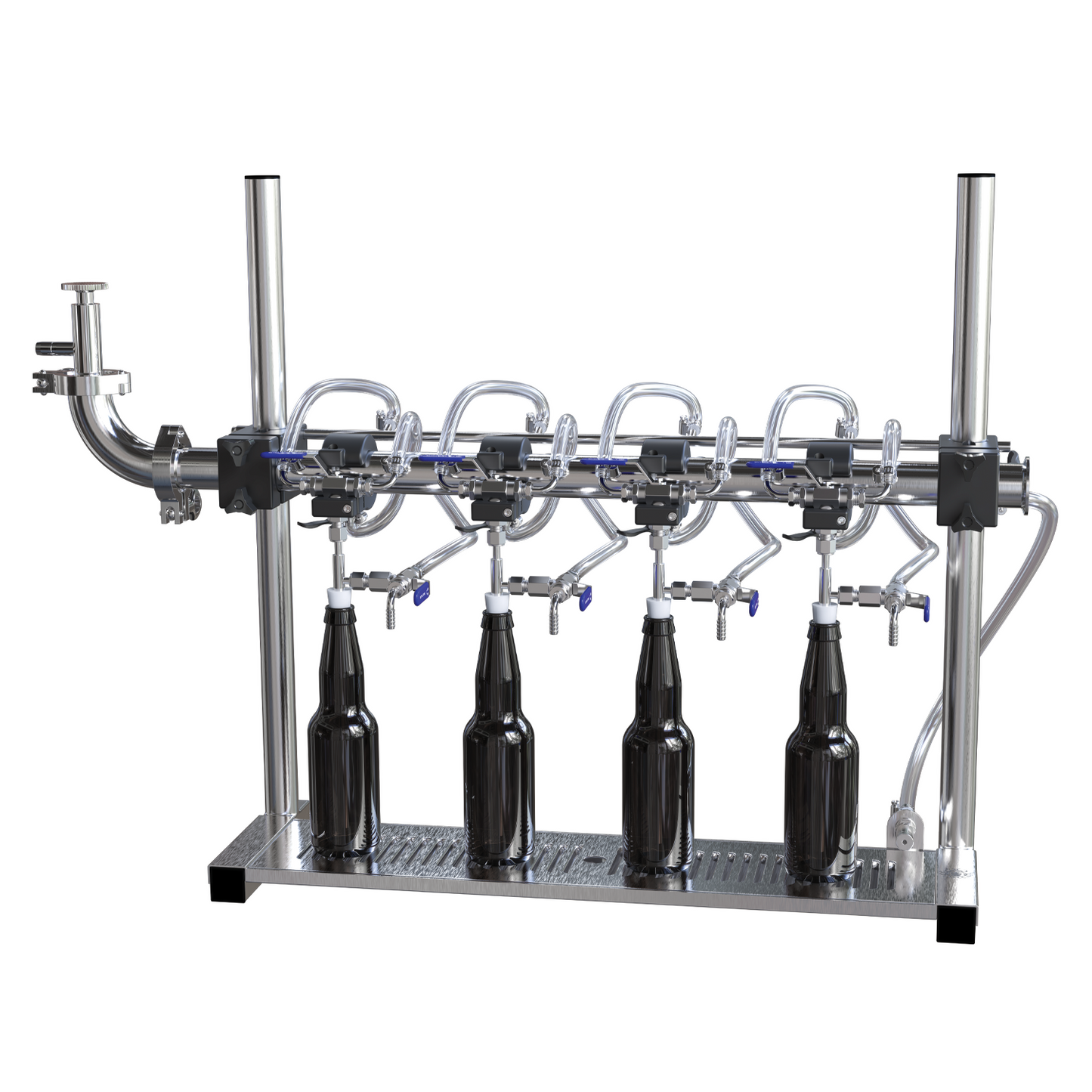

Medusa™ Counter Pressure Bottle Filler | 4 Head | GEN2

Introducing the newly redesigned and updated G2 Medusa Multihead Counter Pressure Bottle Filler! The MB Engineering team designed this unique unit in-house, purpose-built for the smaller craft brewer. The Medusa speeds up bottling day while reducing exposure to oxygen during the bottling process, resulting in higher-quality beer with a longer shelf life. We've taken all the great features of the Gen 1 model—high-quality components, 304 stainless steel construction, easy-to-use functionality, and improved the design to bring you a top-of-the-line Bottle Filler.
The Medusa Multihead Counter Pressure Bottle Filler can be adjusted to cater to all bottling needs. The four heads can operate individually, and the height, back pressure, and fill speeds are adjustable for various bottle styles. We've packed this unit with features that will handle all jobs while keeping costs as low as possible.

Features include:

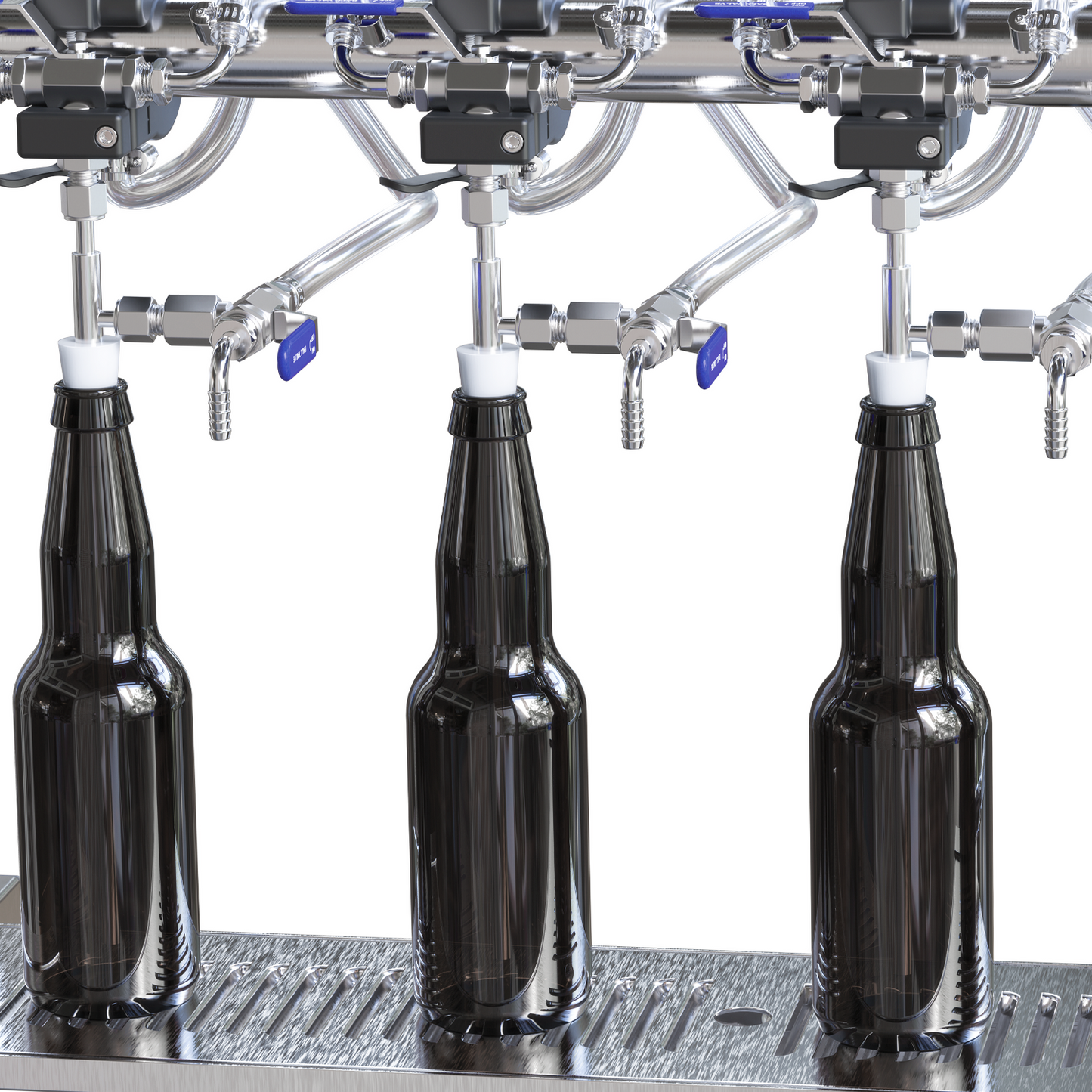

• Four separate filling heads.
• 3-way stainless steel valves on both inlet & back pressure sides of all fill heads.

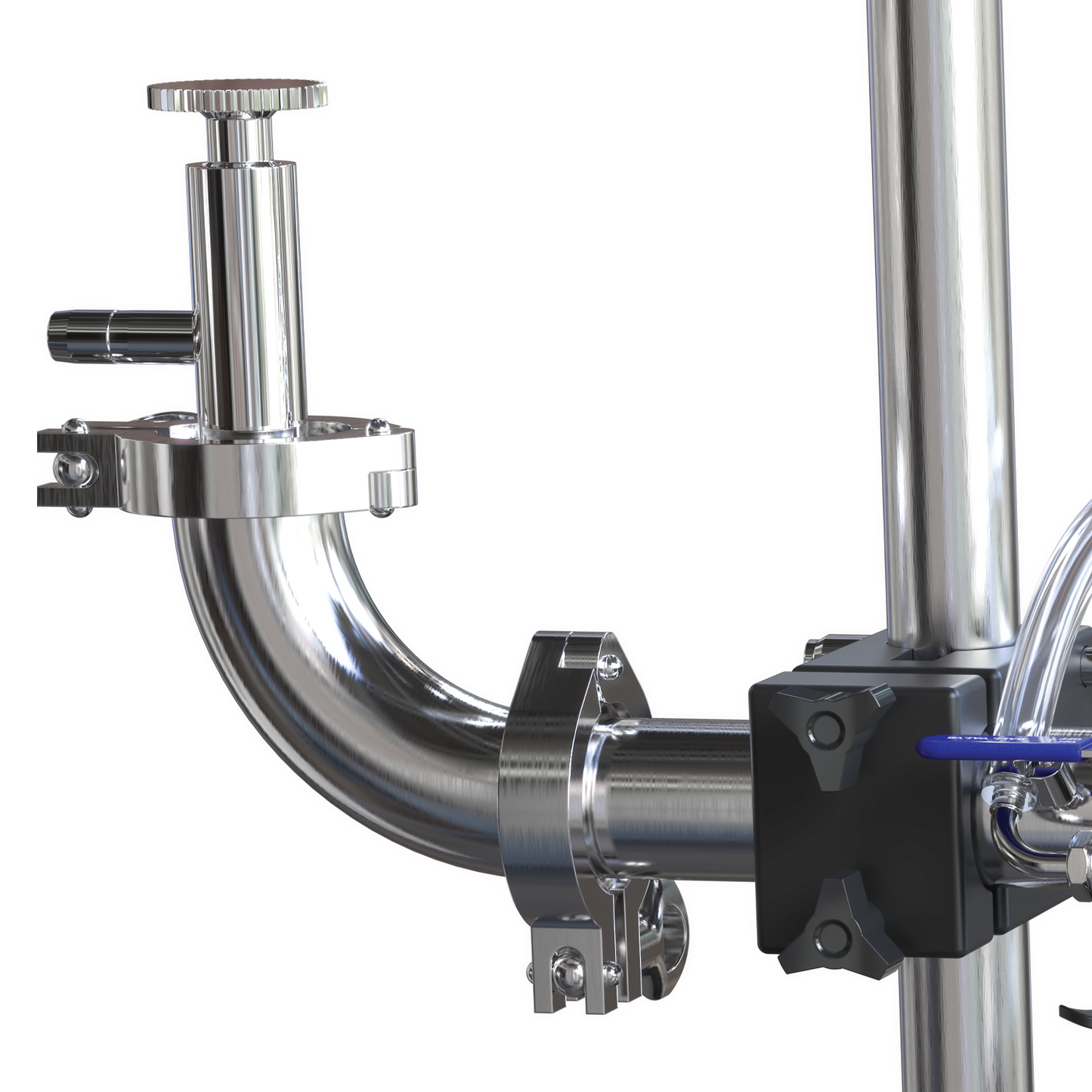

• Pressure Relief Valve has higher accuracy over fill rates and directs foam into the drip tray rather than onto your bottles.

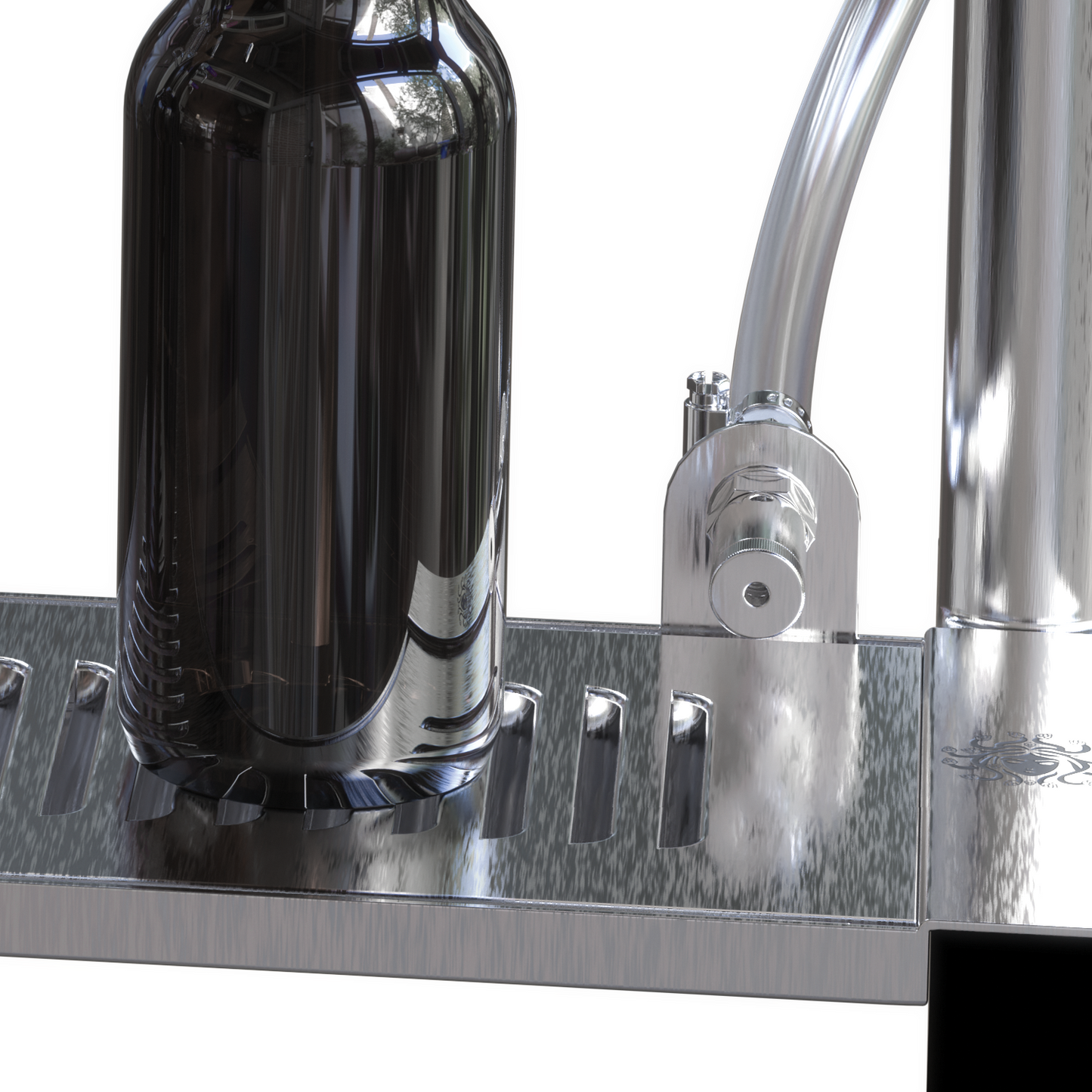

• The removable Drip Tray is fully draining with a barbed outlet for constant filling & easy cleaning.

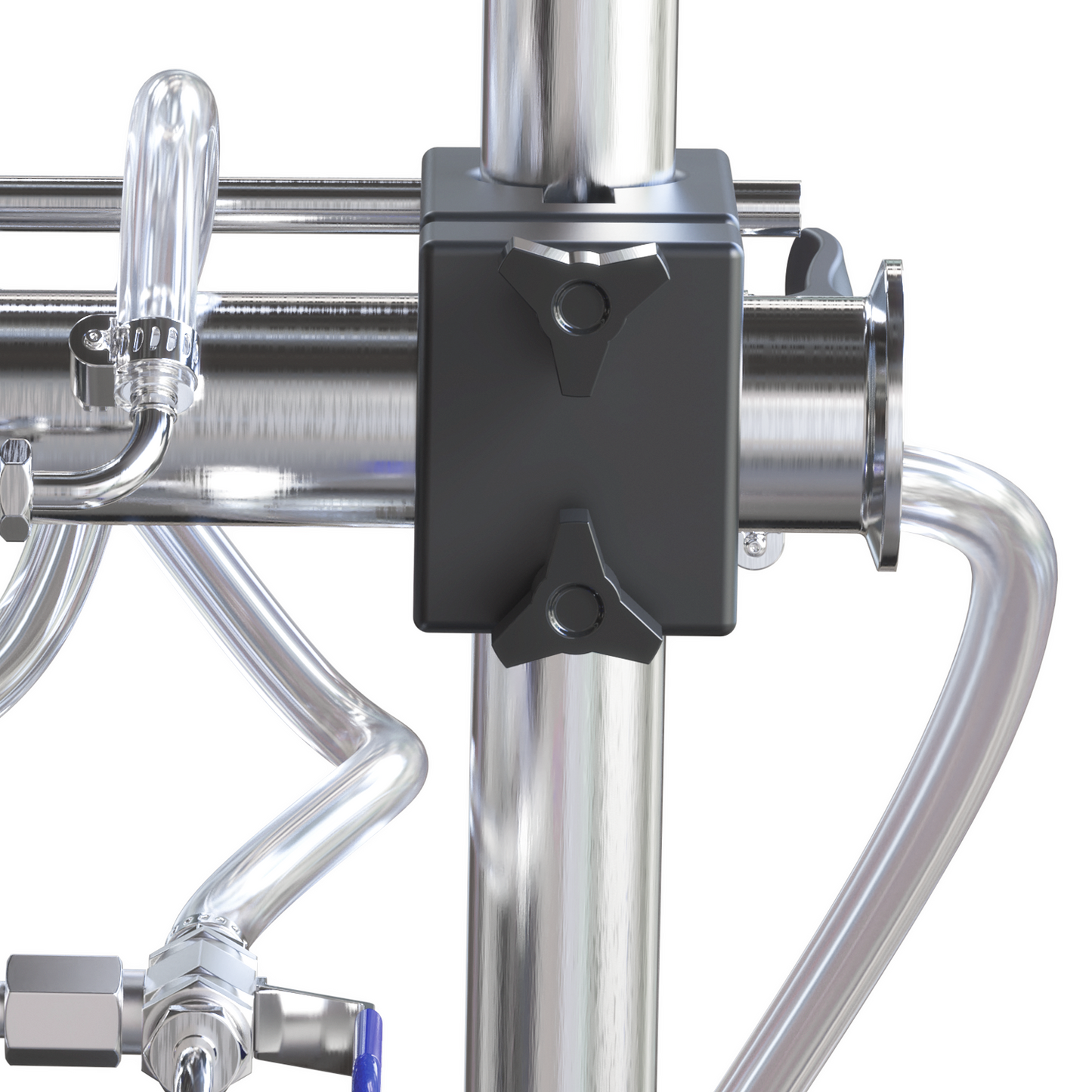

• The robust stainless steel frame stands independently or can be easily bolted or clamped to a work surface.
• Stainless steel fill reservoir keeps fill rates equal & reduces foaming.
• Inverted fill tubes & reservoir purge for cleaner filling with less possibility for foam.
• The Dual TC Fill reservoir is easier to clean and allows for upgrades as they become available.
• Easily adaptable to fill from almost any pressurized vessel.
• Height is adjustable from shorty bottles to growlers.
• It is easily disassembled for cleaning, storage & maintenance.
• Sanitary 1.5" TC inlet for beer, 3/8" tube connection for CO2.
• Backpressure Bar allows for a single adjustment point for fill rates. No need to adjust PRVs on each fill head.

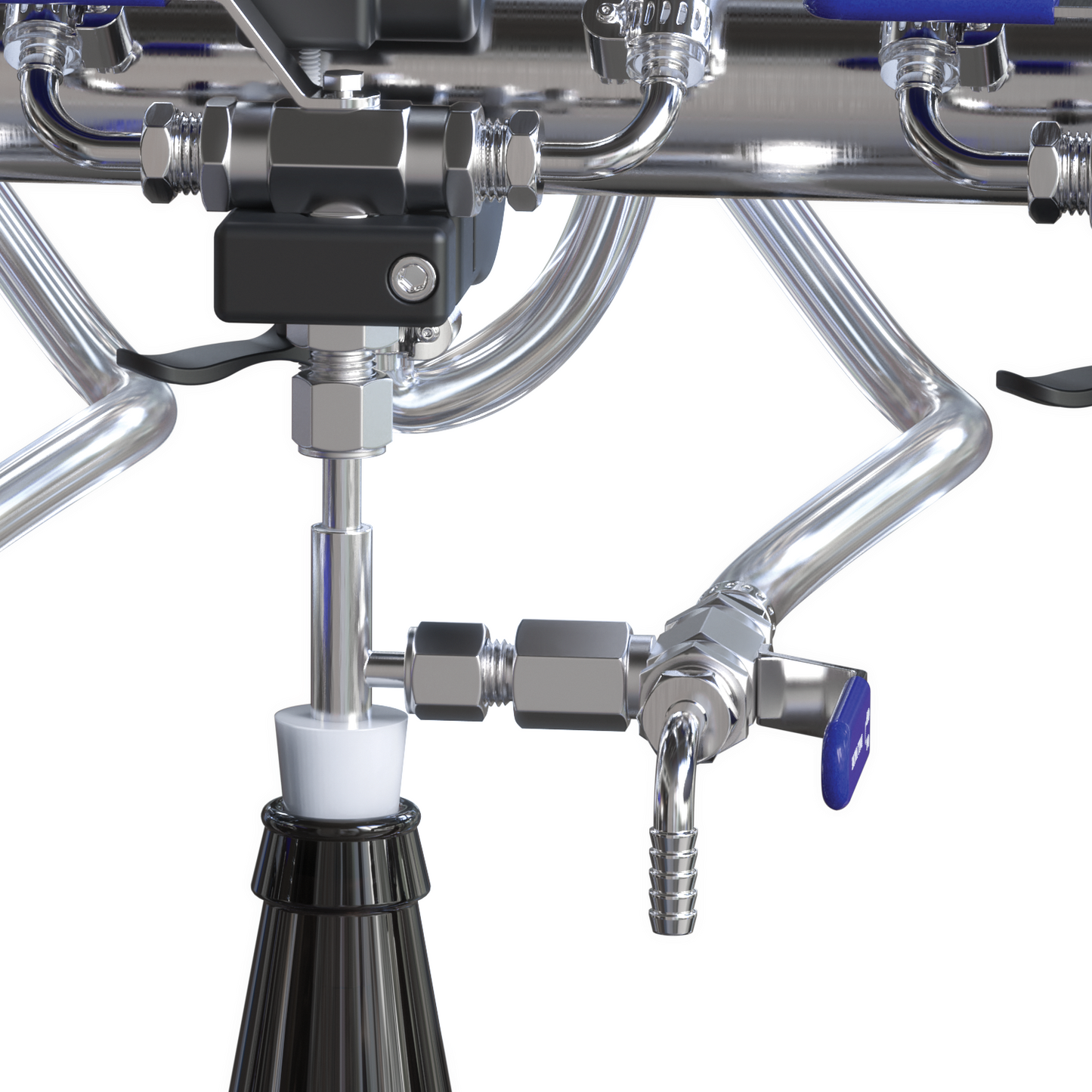

• Individual Purge Valves on each head allow nearly complete removal of all oxygen in a bottle keeping beer fresh!

Dimensions:

• Footprint: 26–3/8" L x 8" W
• Drip tray:  23–1/2" L x 5–1/2" W
• Overall height: 25–3/8"
