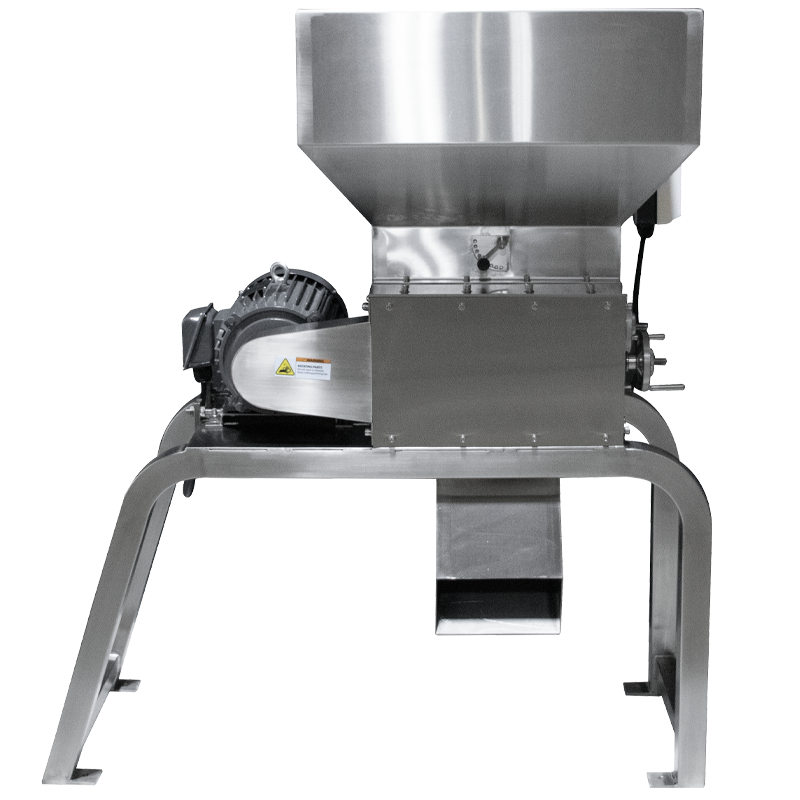

Commercial Grain Mill | 2,200 lbs/hr

Process upwards of 2,000 lbs of grain per hour and features large diameter slotted alloy rollers for an excellent crush and long life. This mill can easily power through whatever you throw at it, including barley, wheat, rye, and corn.

Differential Roller Speed
Rotating the rollers at different speeds is the key to a superior crush. Standard grain mills rotate the rollers at the same speed, creating a pinch point between them where the grain kernels are cracked open. Although effective, this can often lead to an excess of flour and damaged grain husks. The MB pro mill drives the rollers at different speeds to apply enough force to open the grain kernels as they pass through the rollers without damaging the husk. This action results in a better crush that will improve efficiency and lauter performance.

Slotted Rollers
Many grain mills feature hardened steel knurled rollers due to the lower cost, but they don't provide the best crush possible. Rather than shredding the grain into submission, slotted rollers (also known as fluted rollers) are more effective at shearing the grain husk to expose the endosperm while leaving the hull intact. The rollers are made from steel alloy which are harder and longer lasting than stainless steel. This roller features a 155mm diameter, which lowers the angle of attack on the kernel and allows the mill to pull grain more efficiently.

Professional Quality

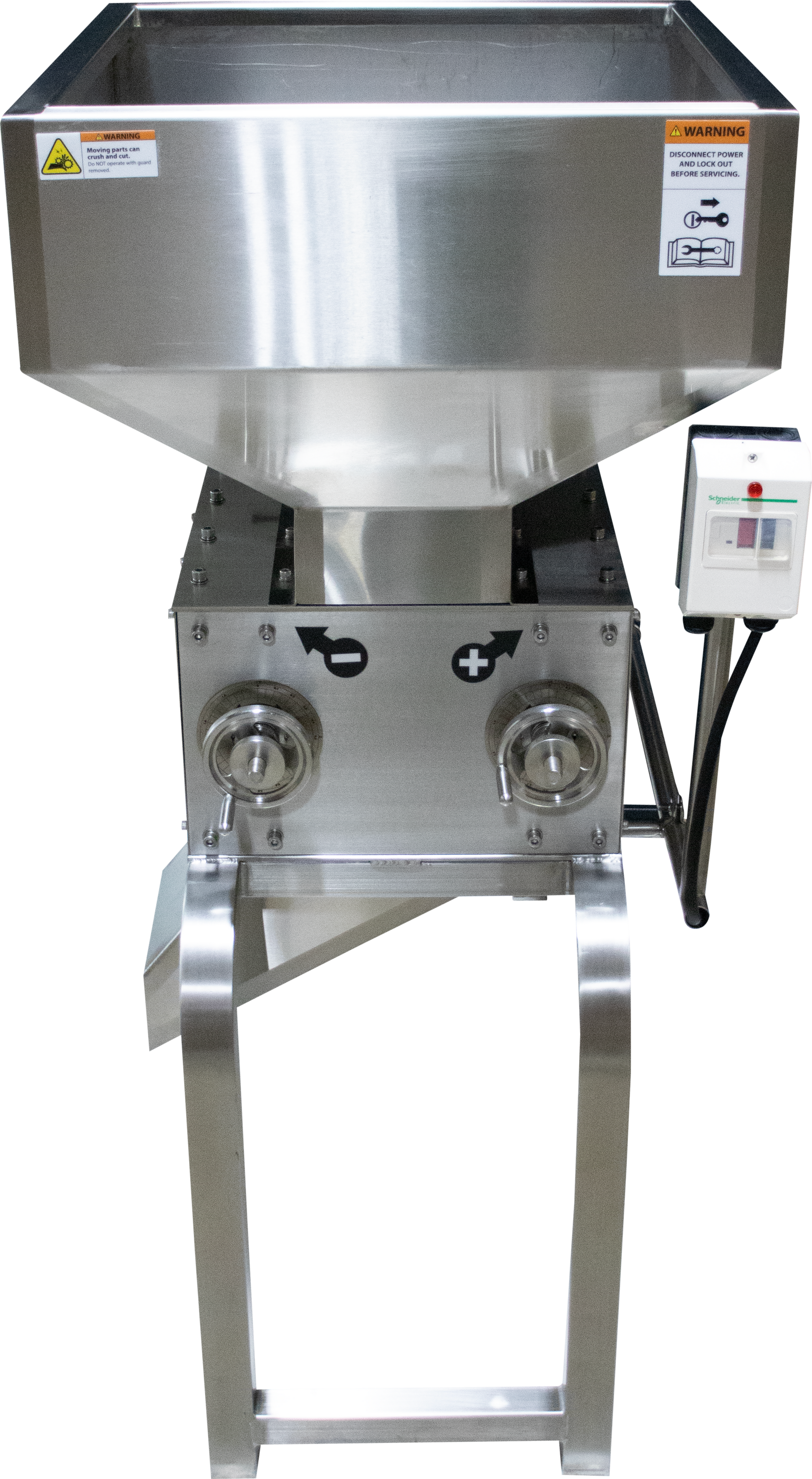

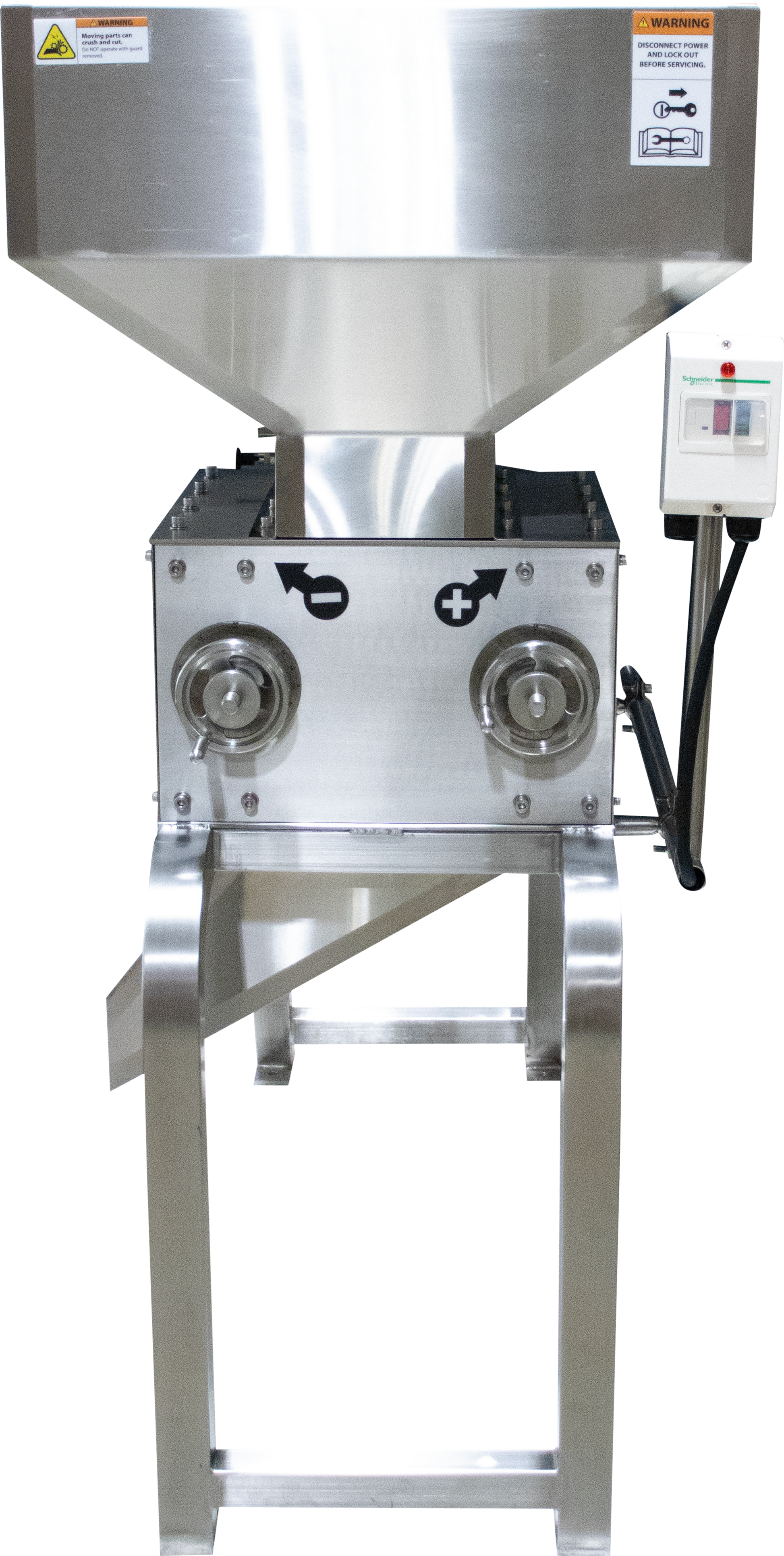

The MB pro mill is an industrial workhorse and the best value for a commercial mill on the market. The hopper capacity is 55 lbs of grain and large adjustment wheels make for easy gap adjustments. Stainless steel construction throughout, and anchor holes in the feet allow the unit to be bolted to the ground.

Specifications:

• Processing Speed: approx. 2,200 lbs/hr
• Hopper Capacity: 55 lbs
• Voltage: 208V/220V 3-phase motor
• Power: 4 HP
• Amperage: 8.3 amps
• Mill Gap: 0.4mm - 1mm
• Mill Roller Size: 155mm diameter, 110mm long

Important Electrical Notes:

1. The unit will arrive bare without a power cord, plug, or controls to power the motor on or off. You will need an electrician to wire the appropriate power cord and shutoff switch to the motor.
2. This unit REQUIRES 208-220V Three Phase power and will not function on anything else. Please confirm that you have the proper power for this unit before purchasing, and plan to have a qualified electrician install a fused shutoff and wire directly to the included on/off switch.
