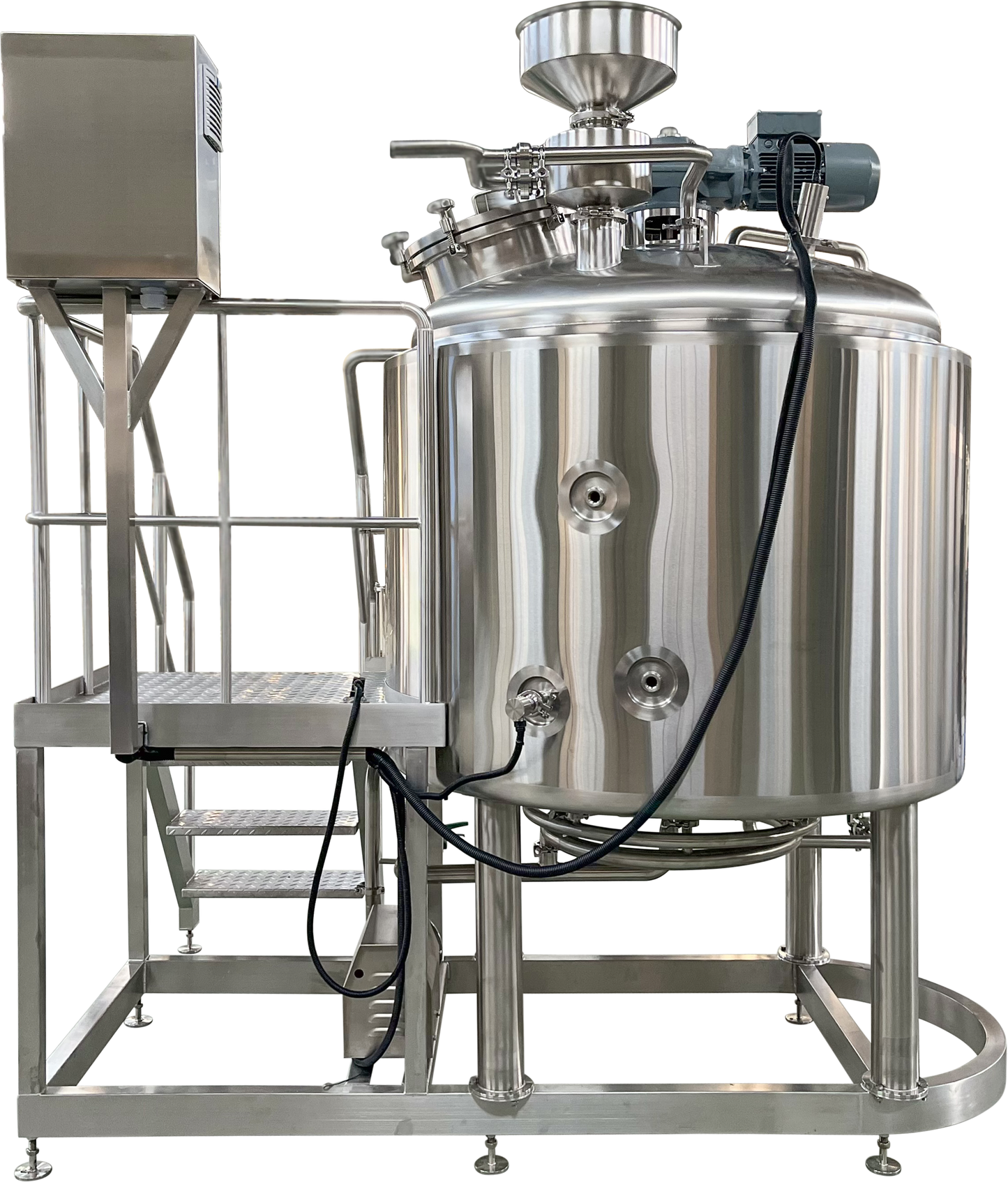

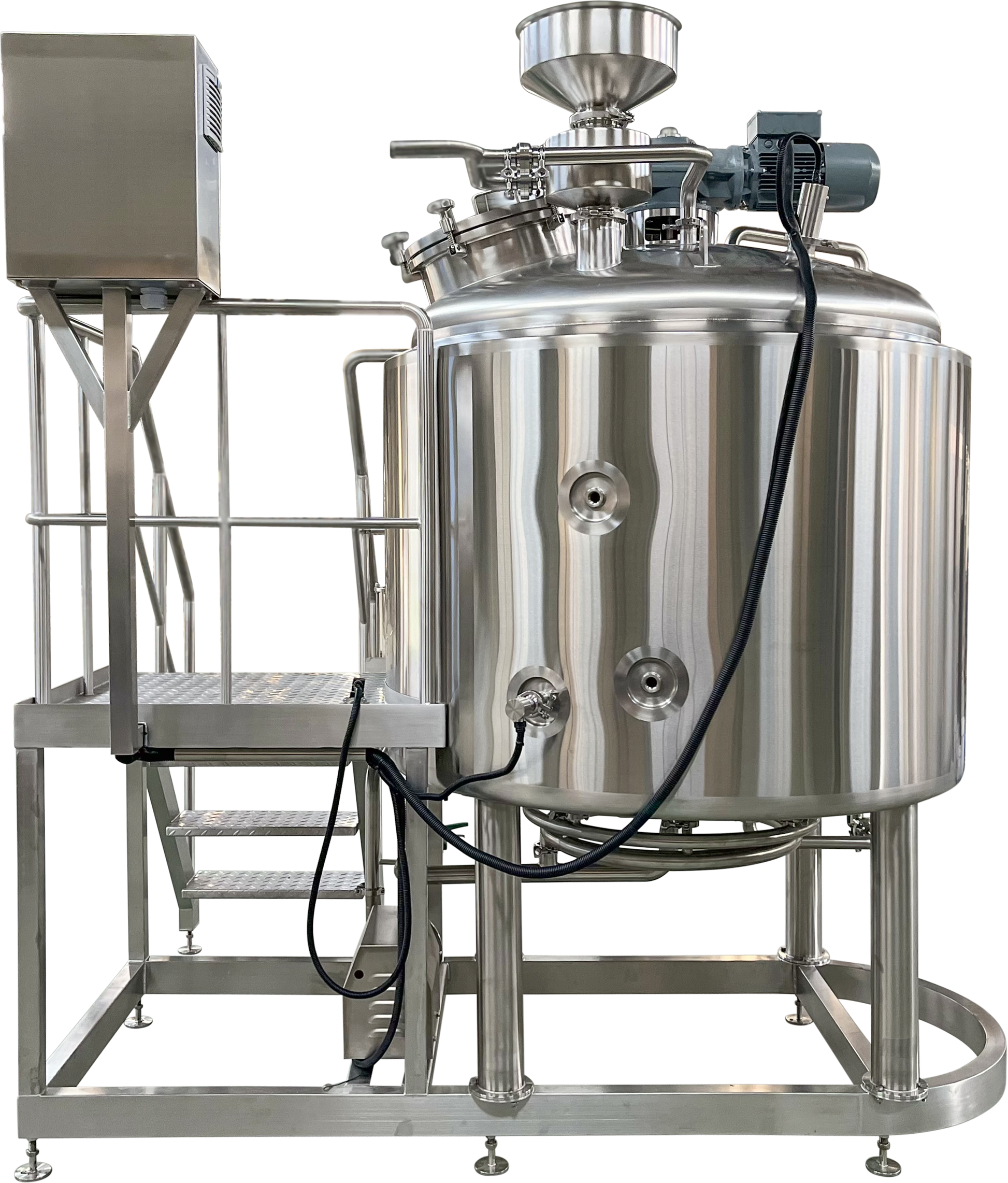

Cold Brew Coffee System | 1 to 10 bbl

Available in sizes from 1 to 10 bbl.

• Self-contained brewing system purpose-built for producing large batches of cold brew coffee
• Cold brew temperature is maintained via coolant circulated around the jacketed tank

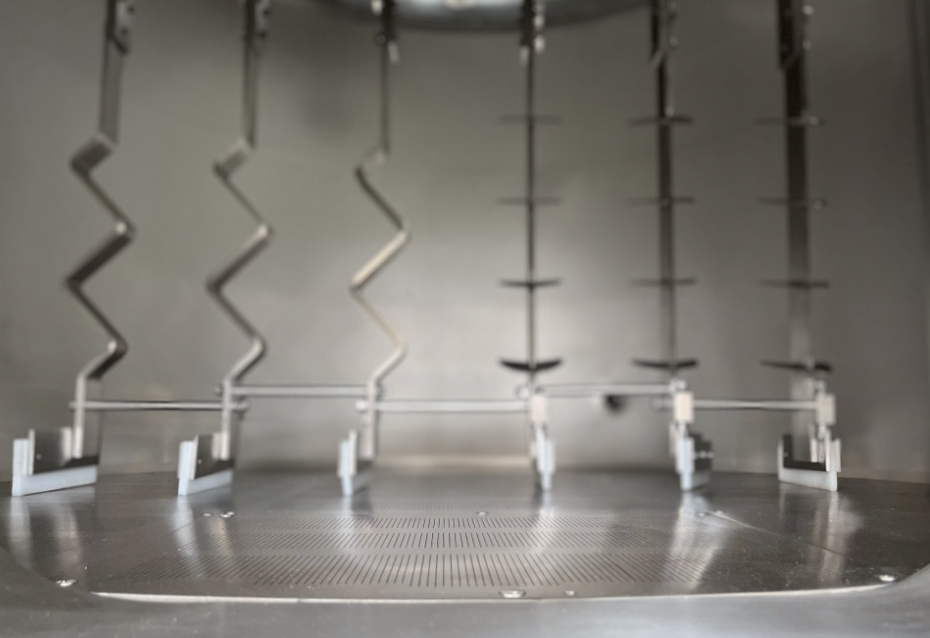

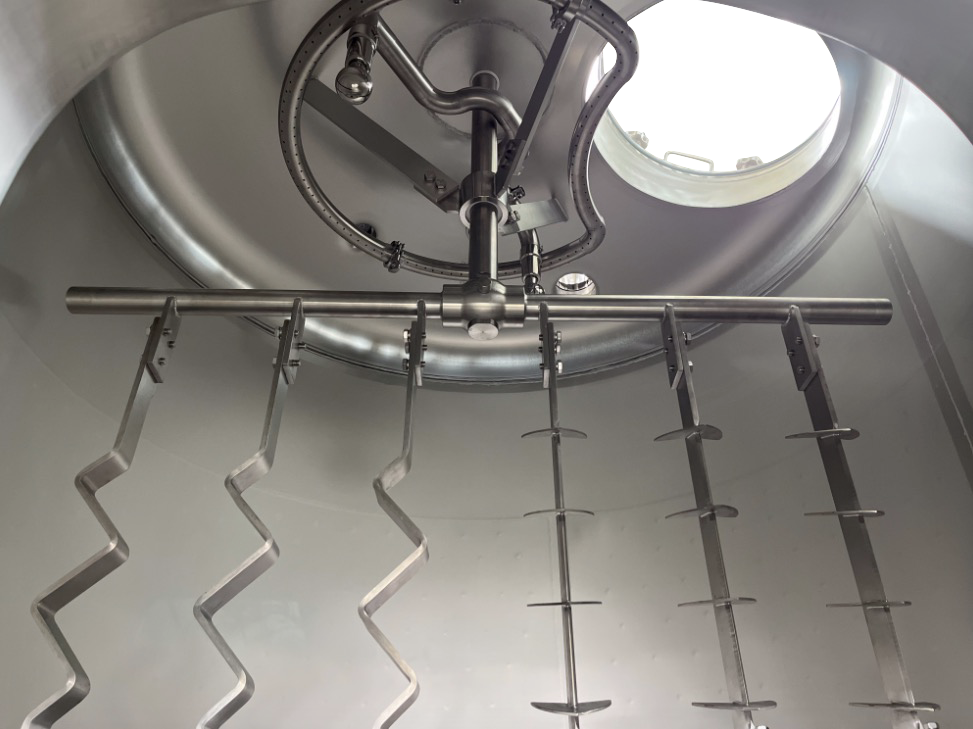

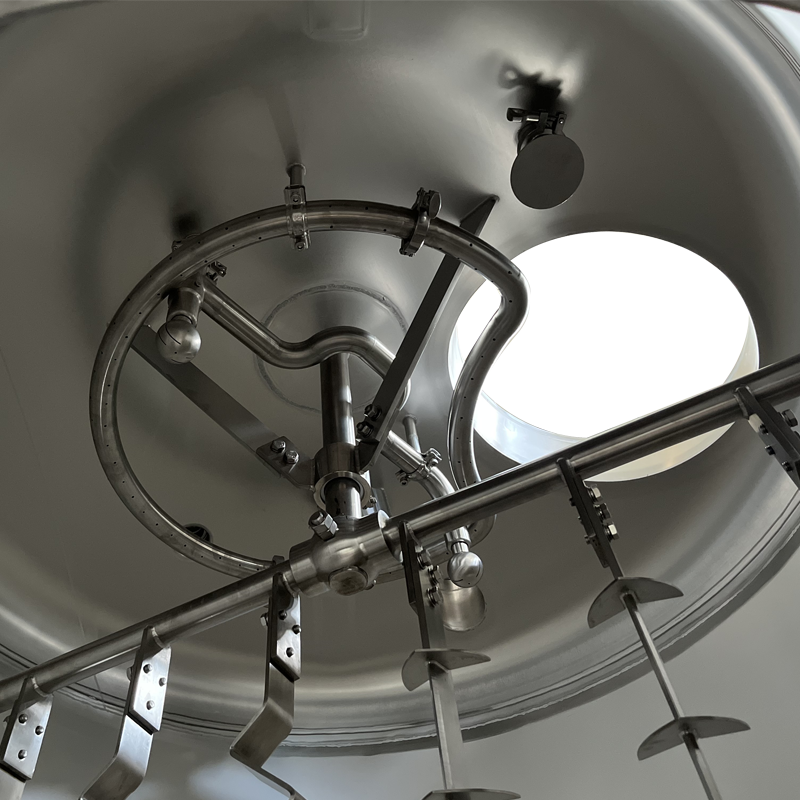

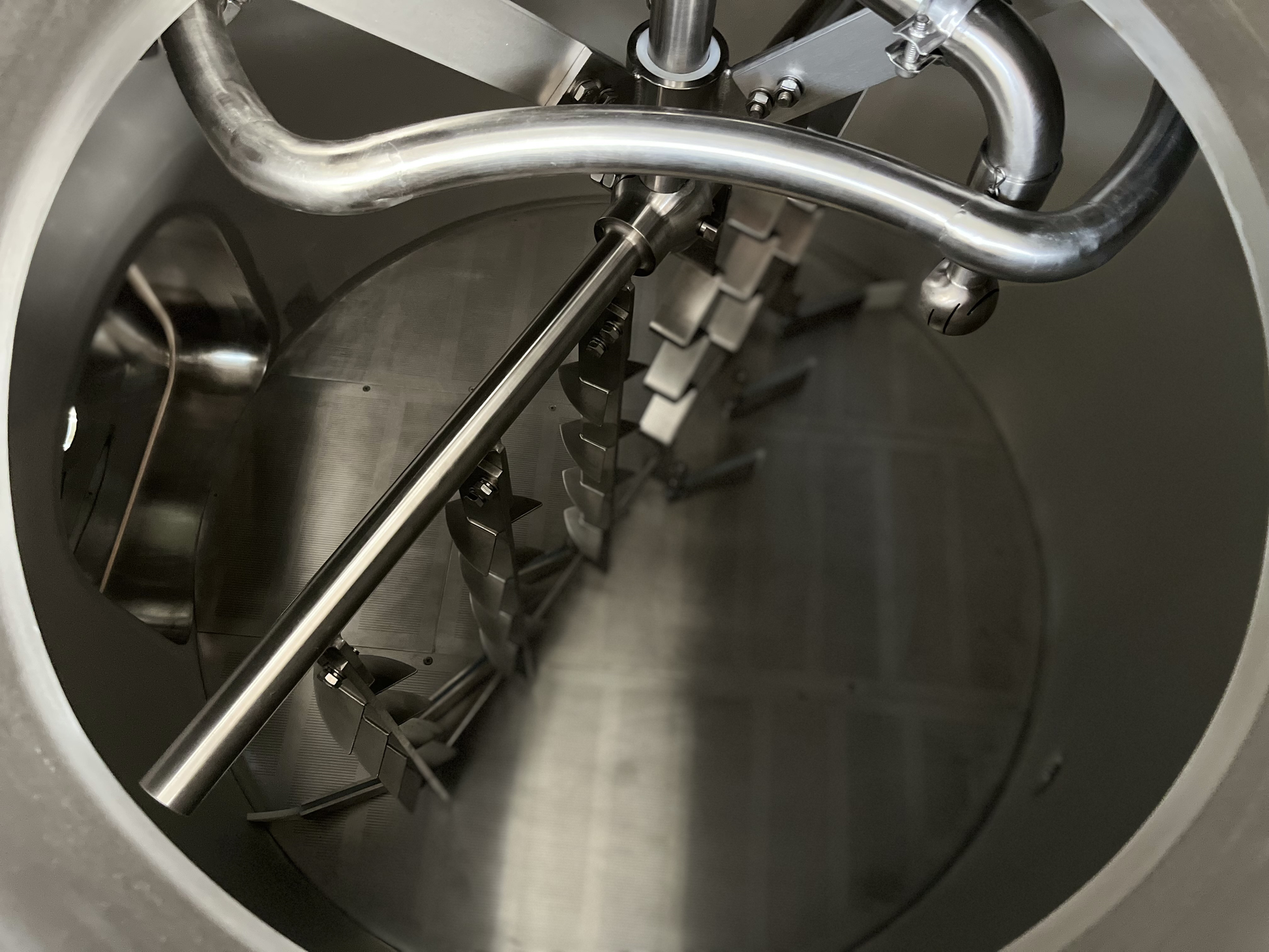

• Rake system ensures all coffee grounds and water are thoroughly and evenly mixed
• Built-in pump recirculates and clarifies the coffee when extraction is complete

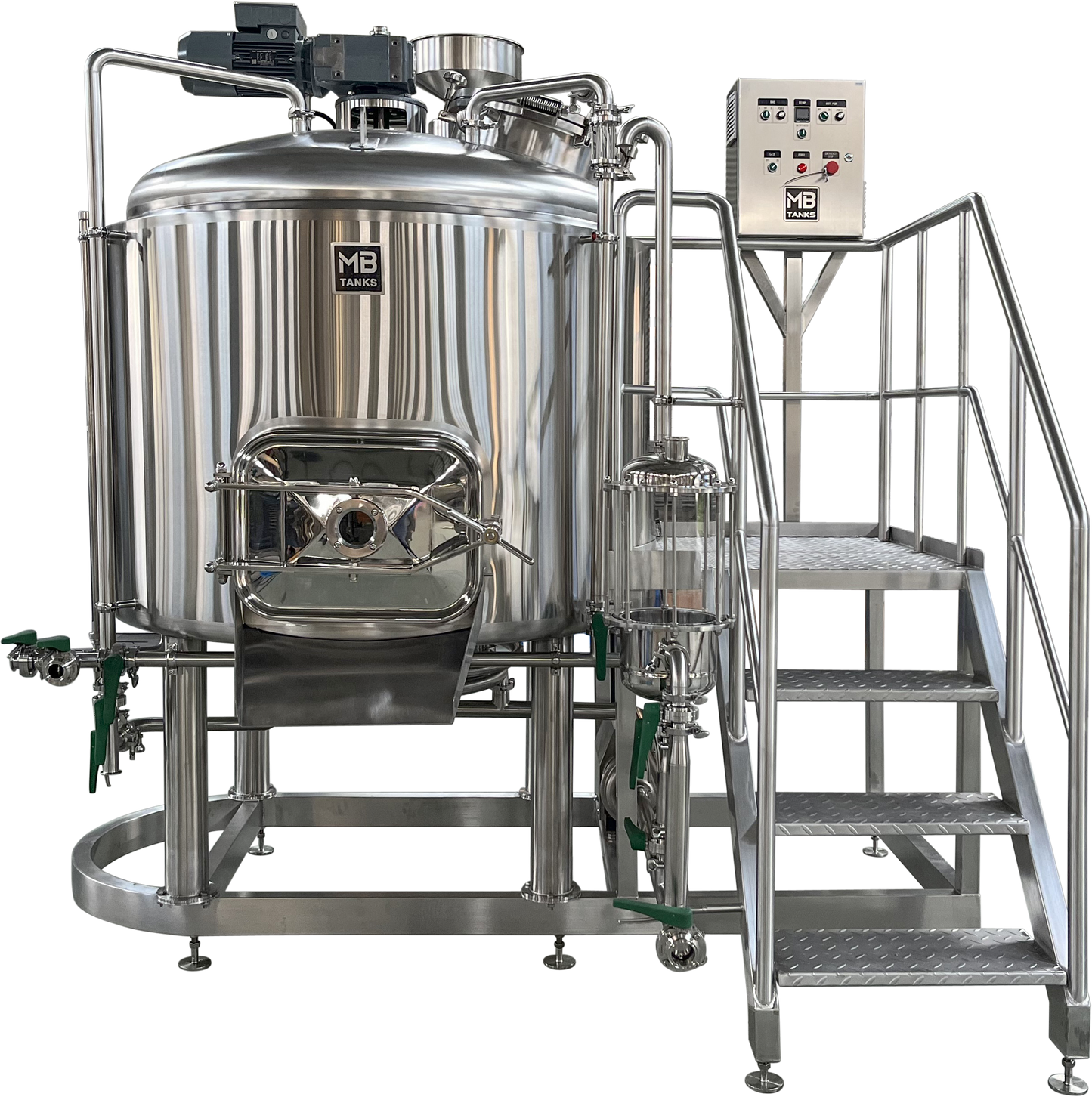

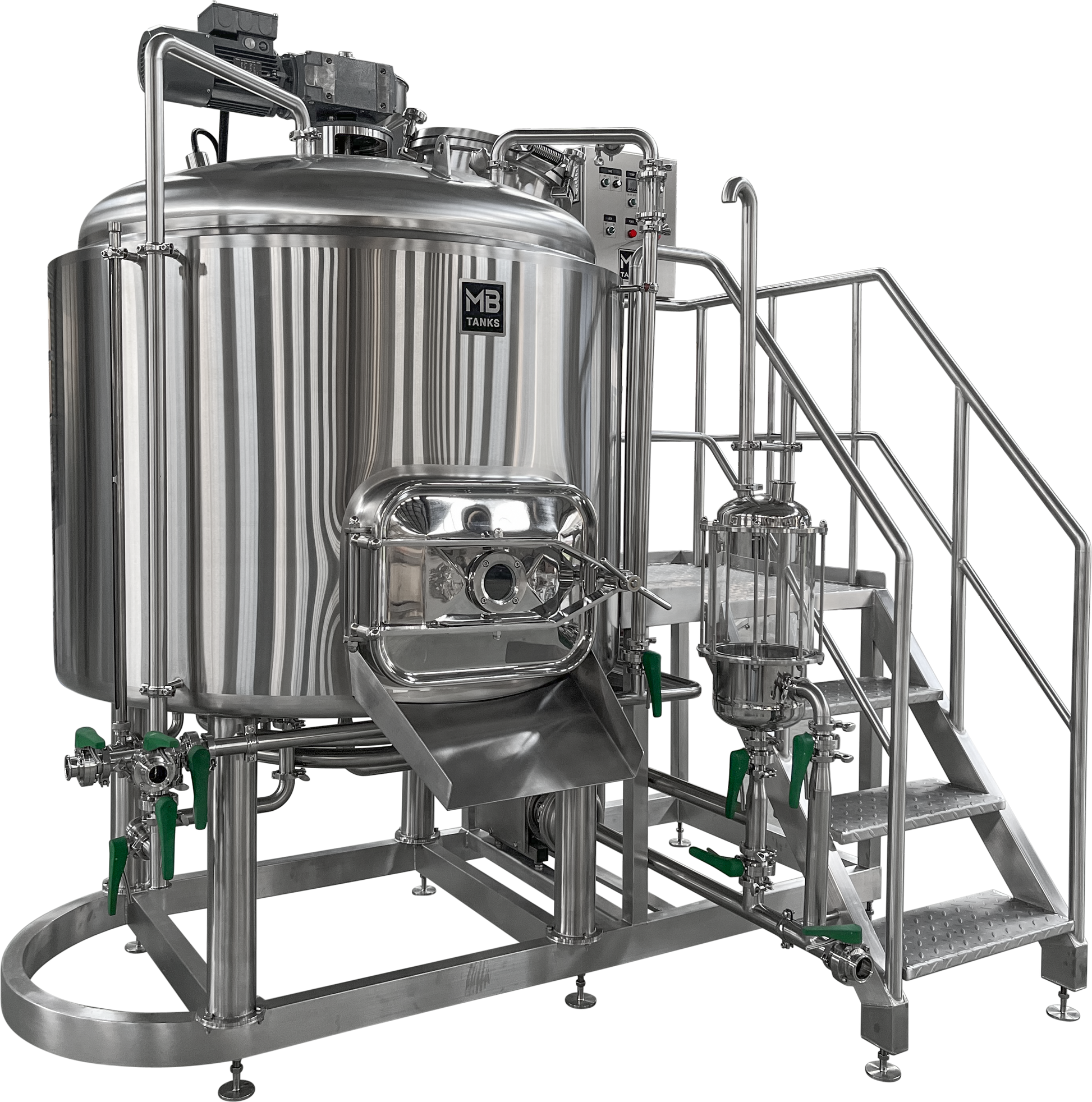

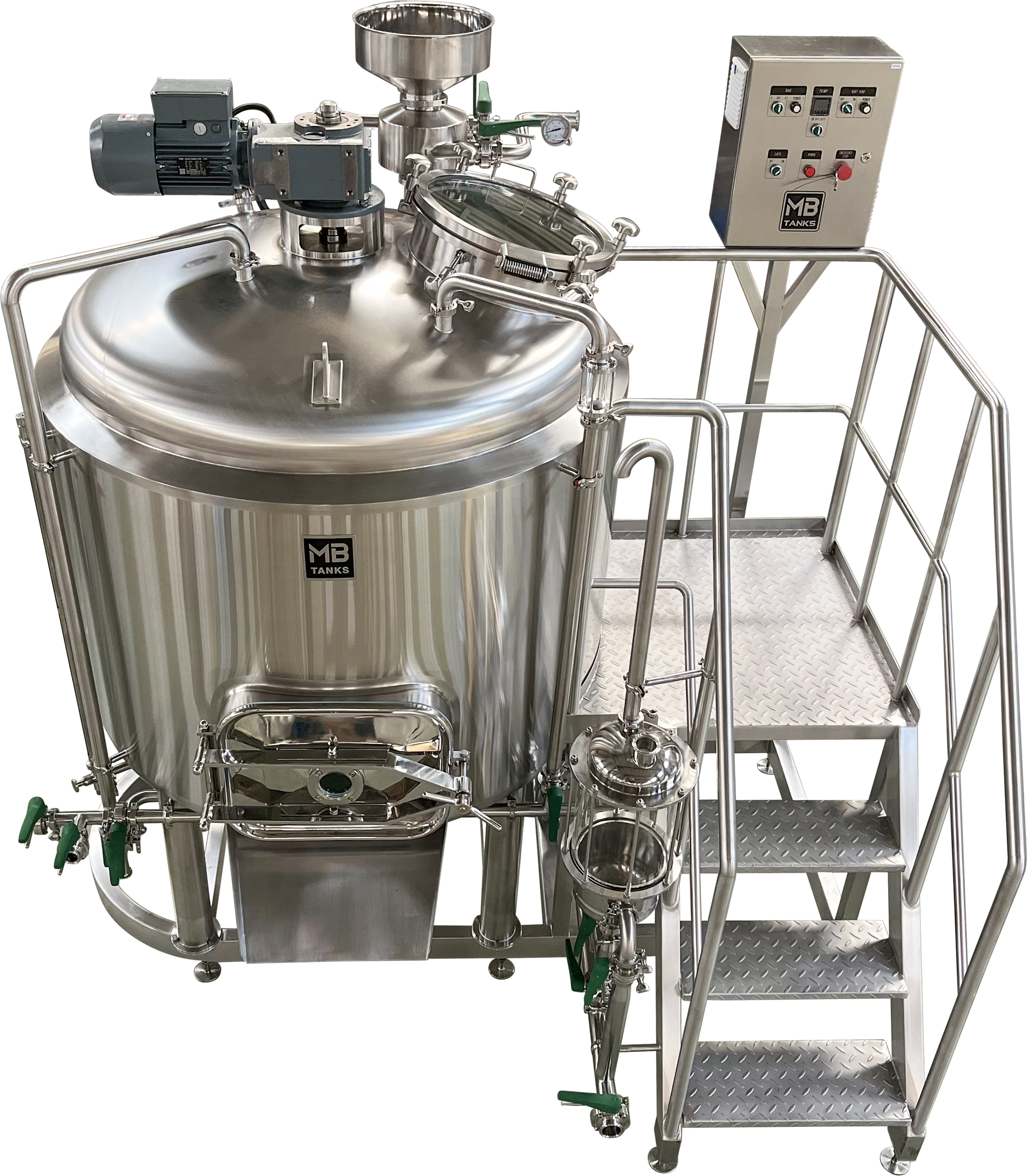

• 7 & 10 bbl systems feature coffee ground hydrator and integrated brew deck

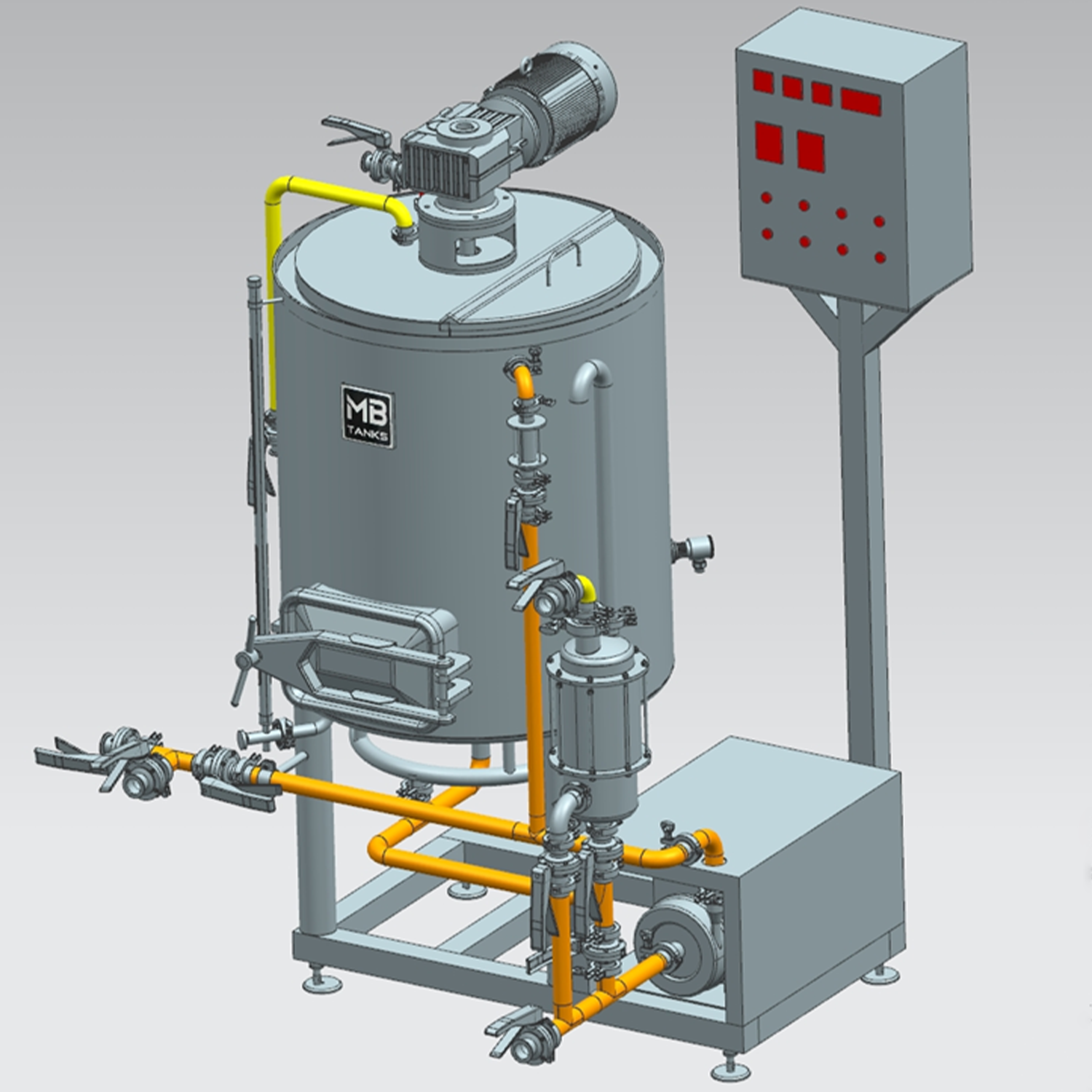

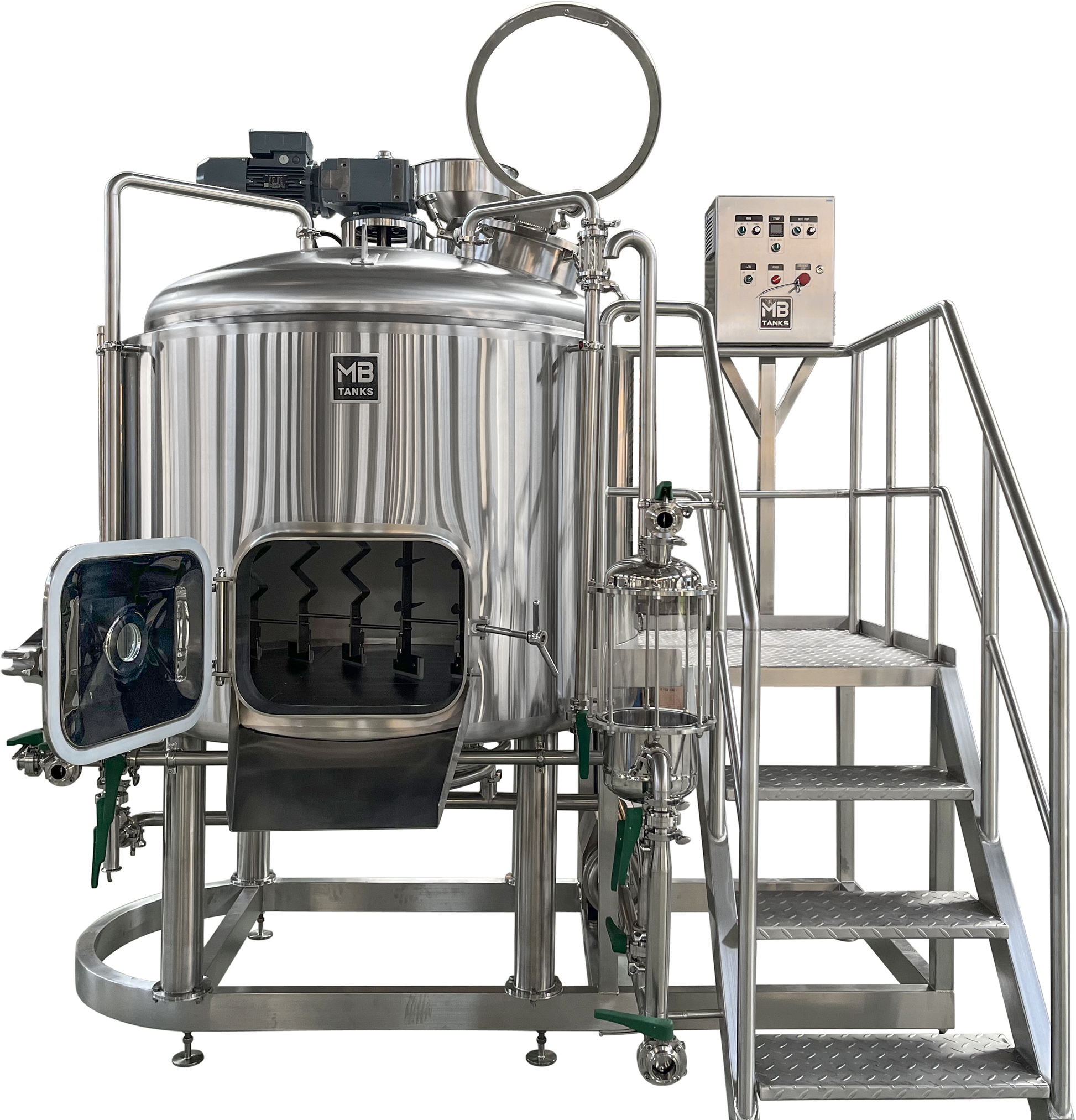

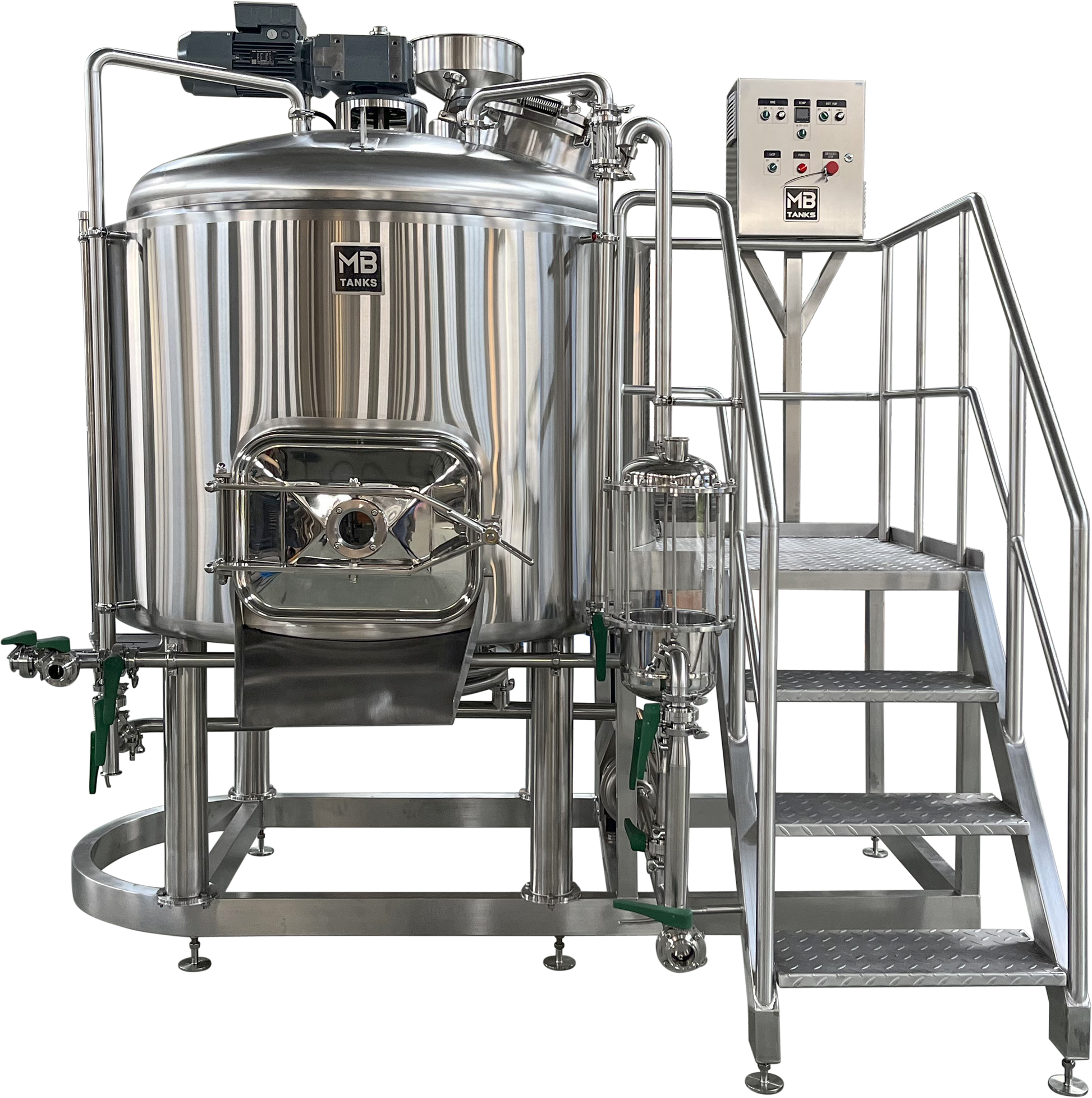

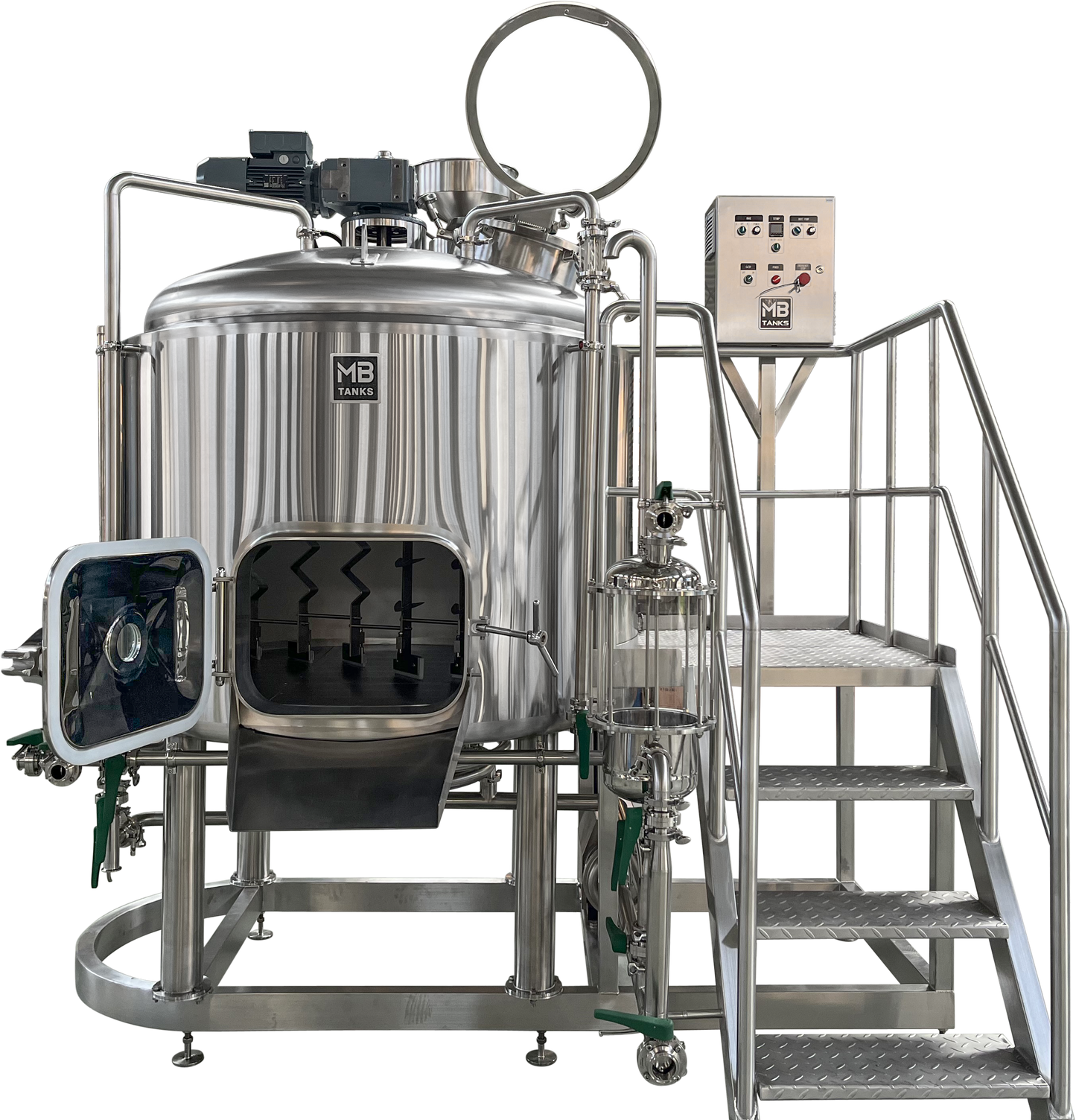

The MB Cold Brew Coffee System is a self-contained electric brewhouse used for producing commercial batches of cold brew coffee. After coffee grounds and water are added to the tank, the mixing rake system ensures even distribution and full infusion of grounds and water. Program your preferred brewing temperature between 35-80°F, and the controller will automatically circulate coolant through the tank's cooling jacket to maintain your set temperature. When extraction is complete, the coffee is recirculated until it runs clear, and then passed through a filter on its way to a holding tank where it can be stored until packaging.

Features:

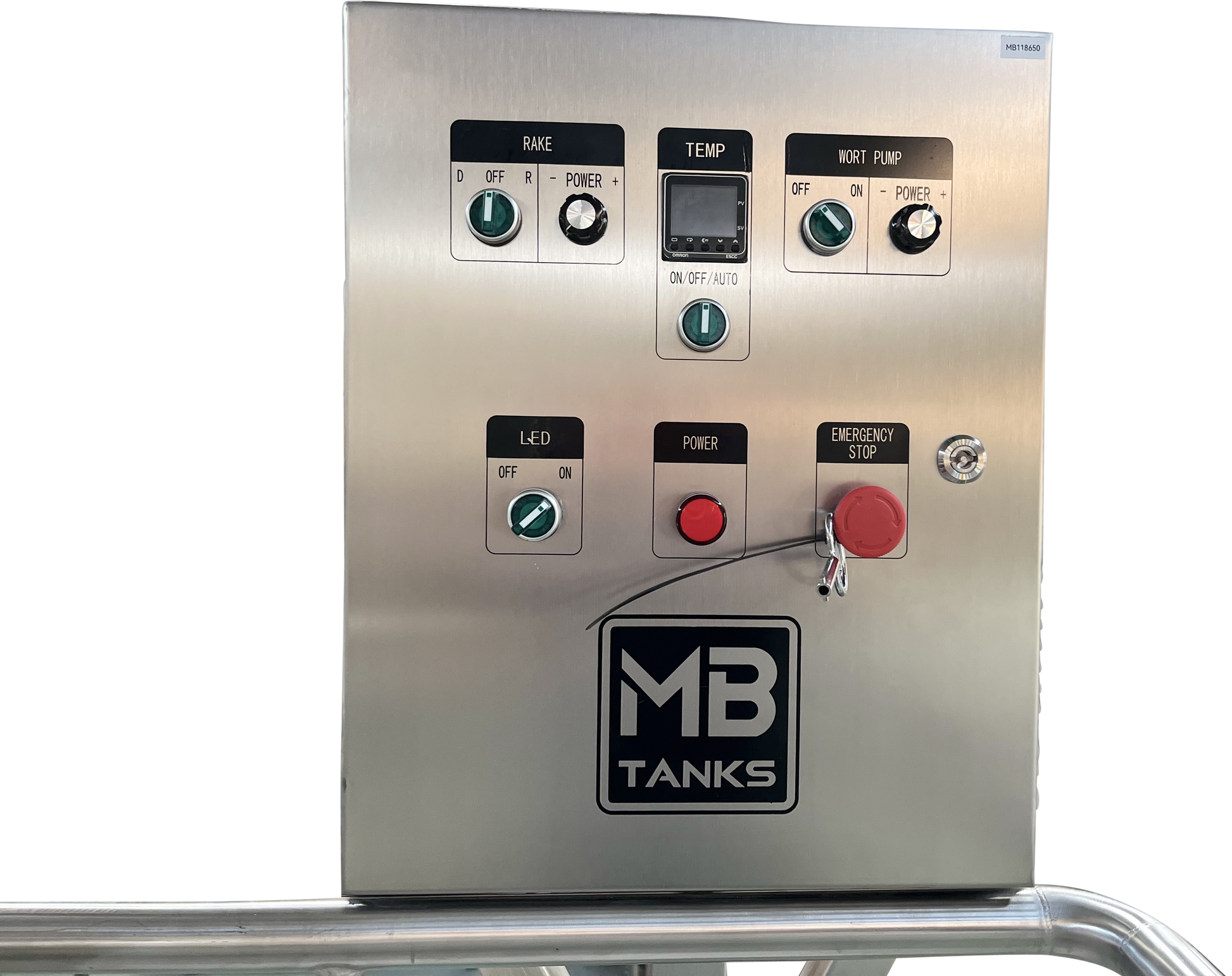

• Button control panel
• Glass grant w/ CIP
• Viewing port

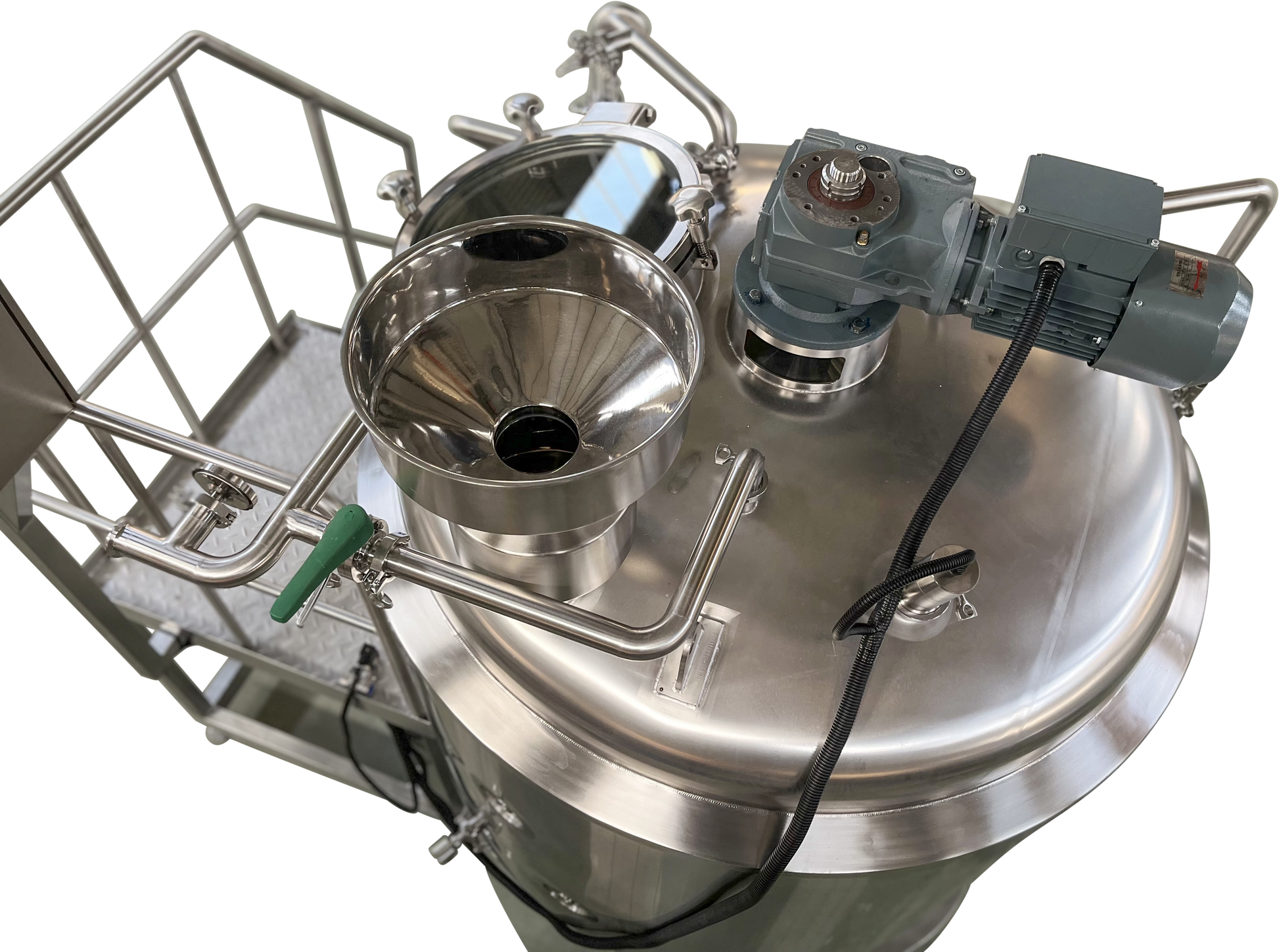

• Coffee ground hydrator (7 bbl & above)
• Brew deck (7 bbl & above)

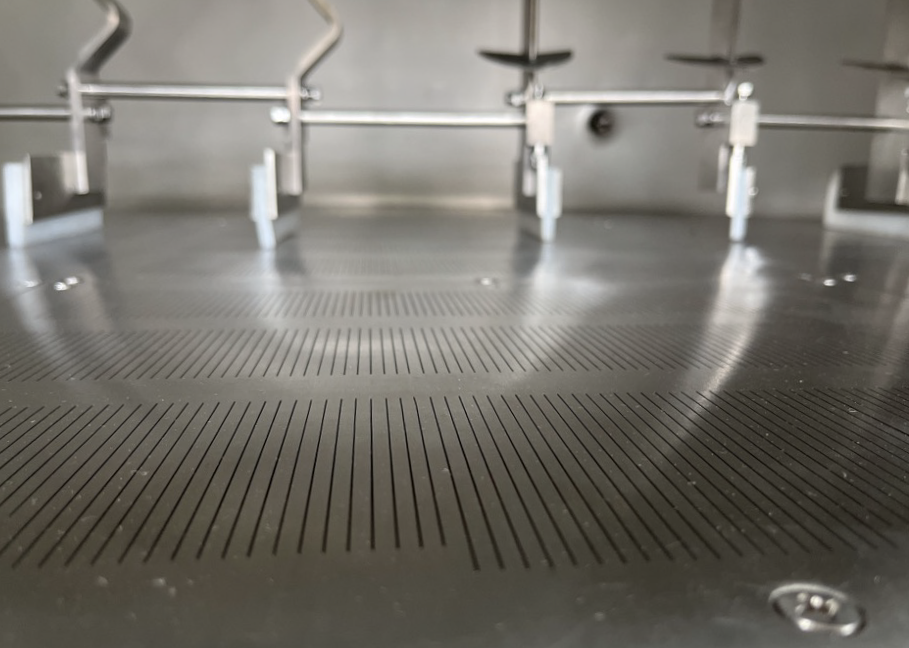

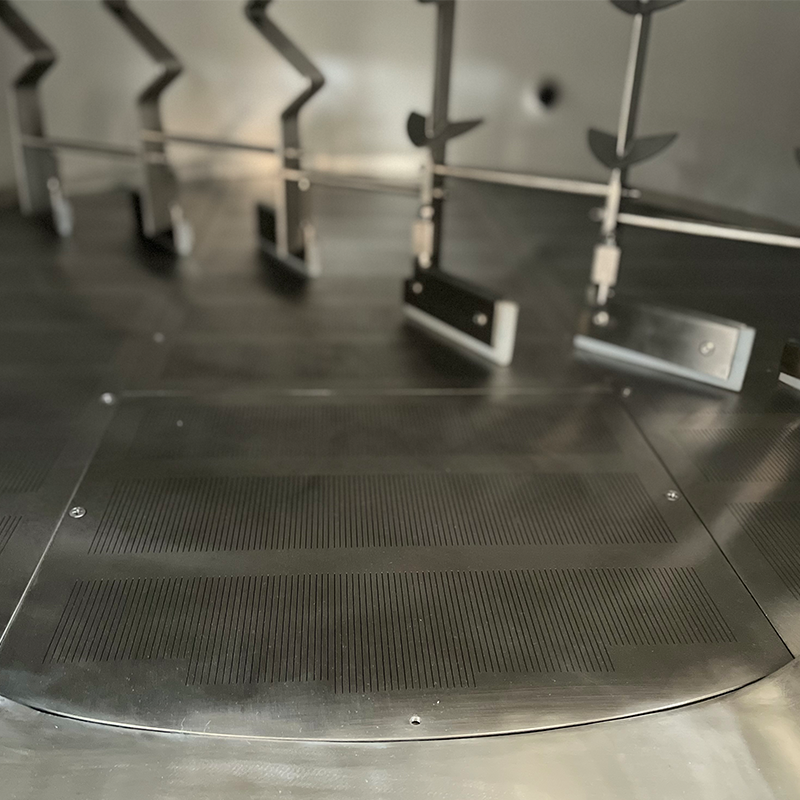

• CIP ring below the tank to clean the underside of the screen (7 bbl & above)
• Liquid level sight gauge
• Built-in centrifugal pump
• Pipeline sight glass
• Square manway & chute
• All tri-clamp butterfly valves / fittings included
• 230V 60Hz, 3-Phase
• Required Power:
  • 1 bbl: 1.3 kW
  • 2 bbl: 1.5 kW
  • 3 bbl: 1.5 kW
  • 5 bbl: 1.85 kW
  • 7 bbl: 1.85 kW
  • 10 bbl: 3 kW
