MB Stainless

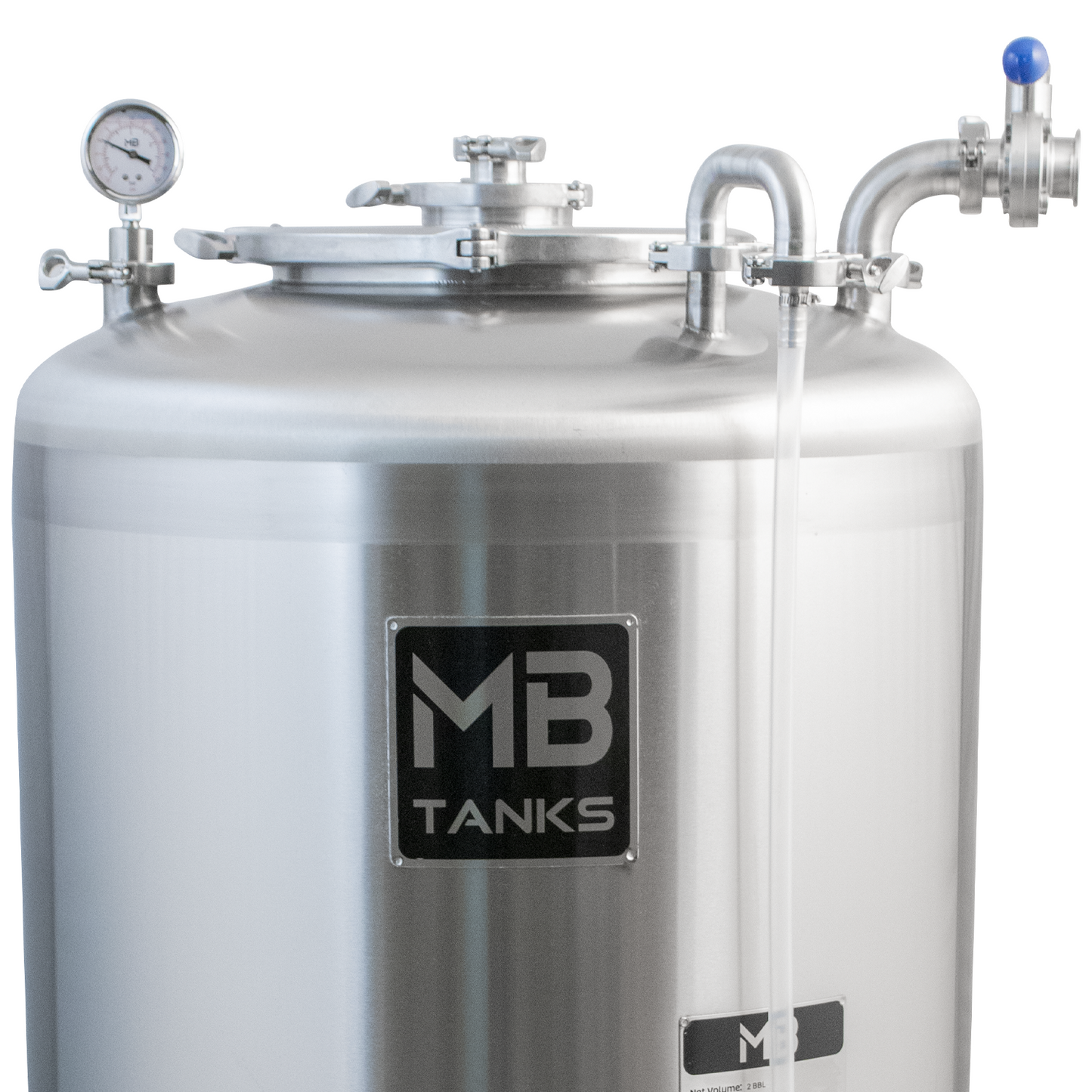

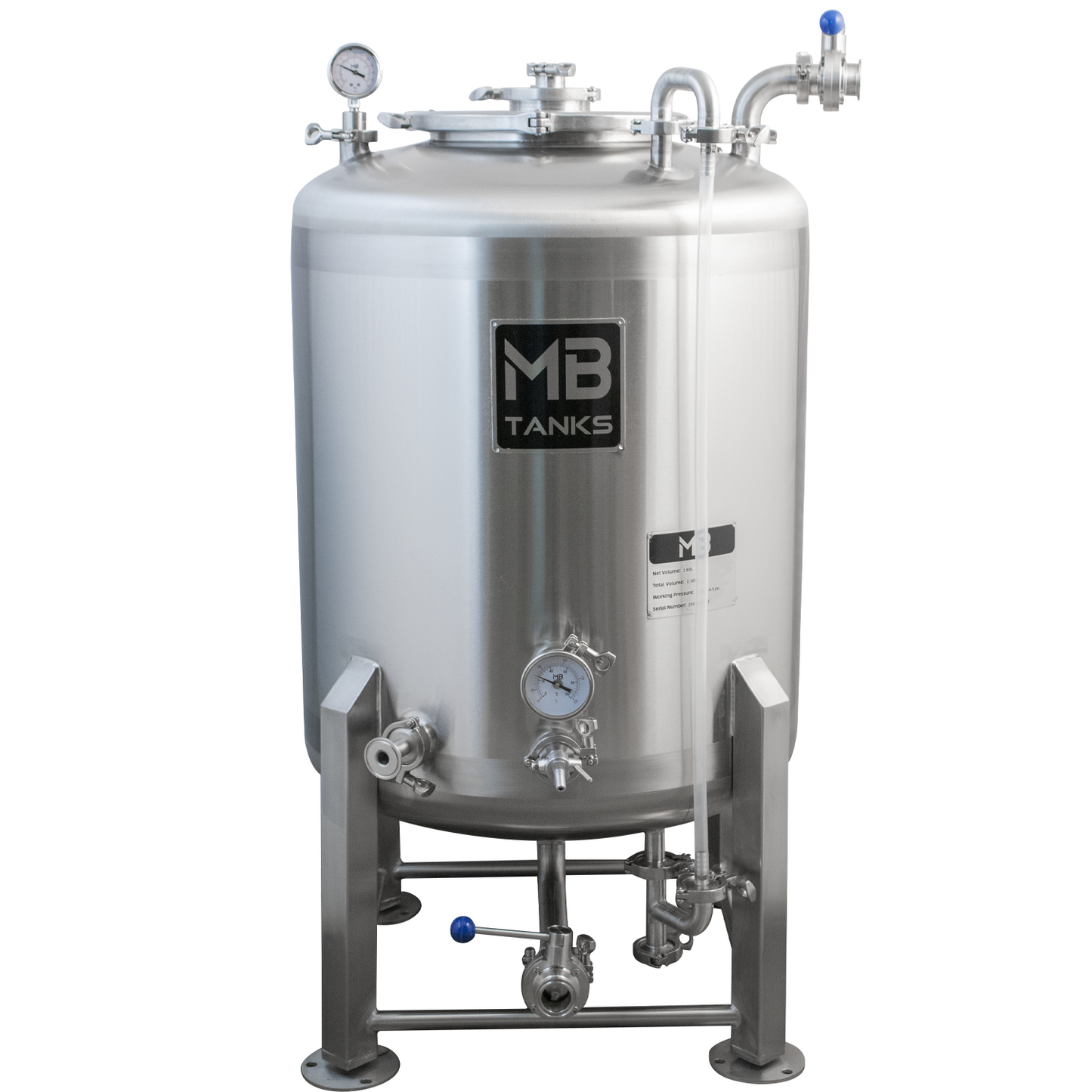

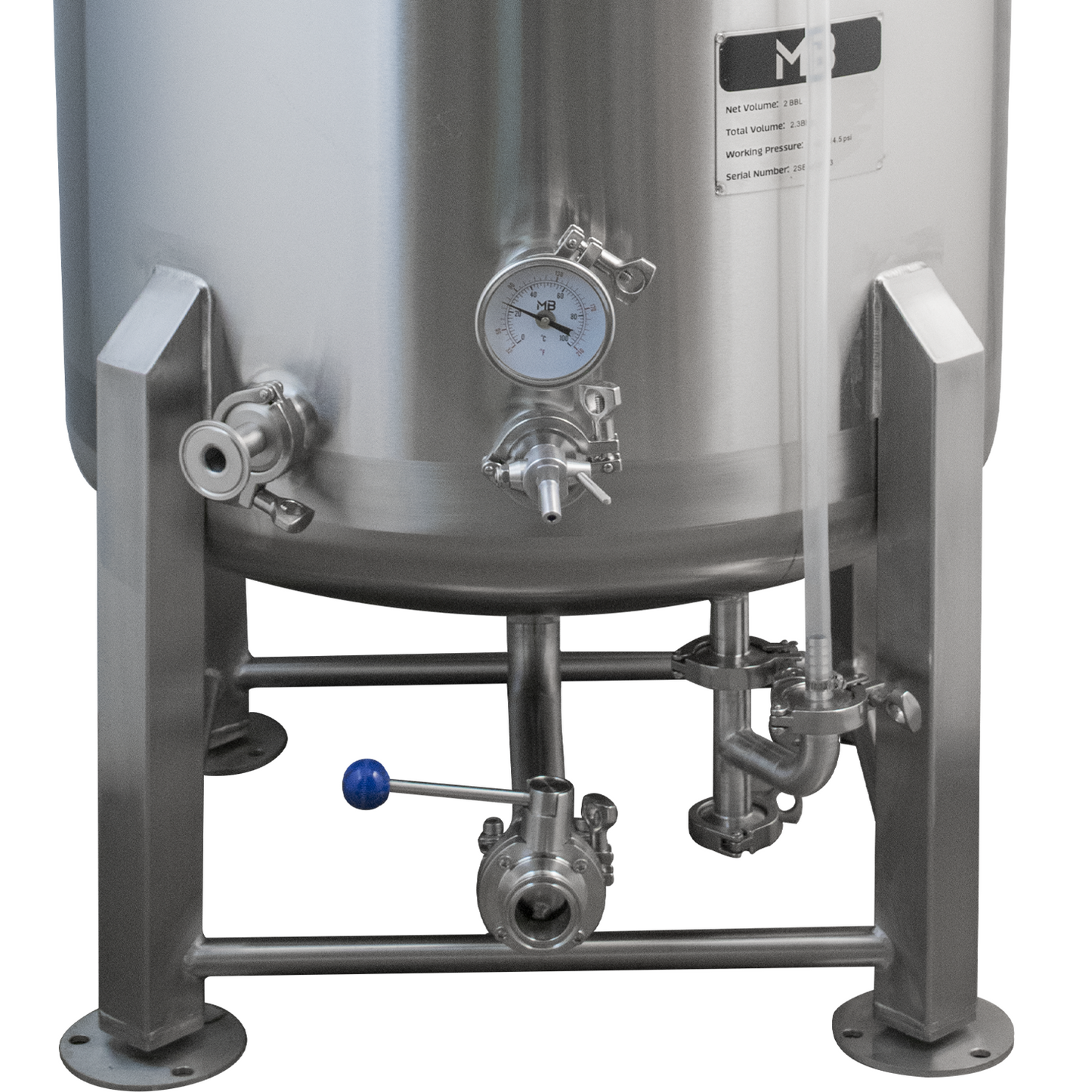

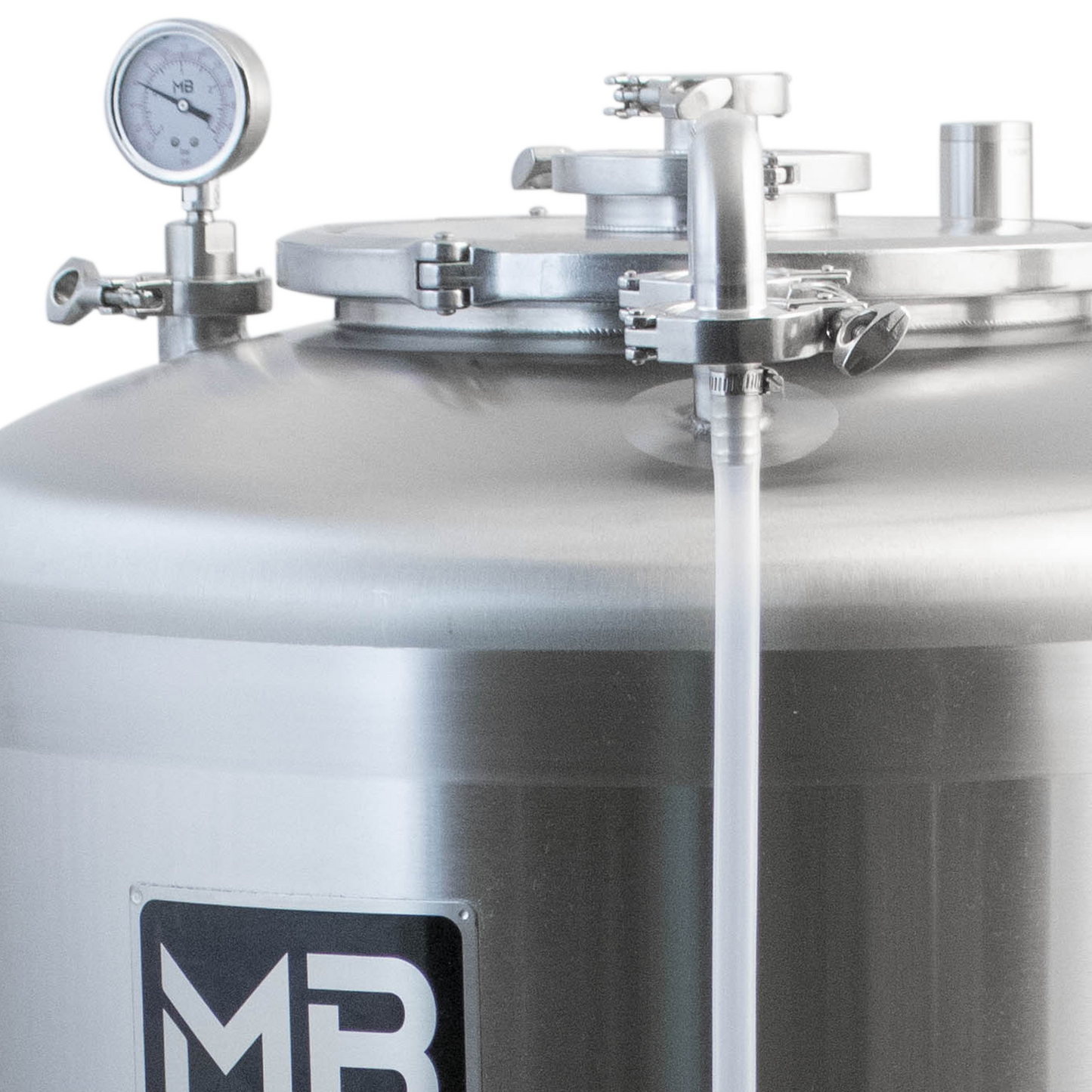

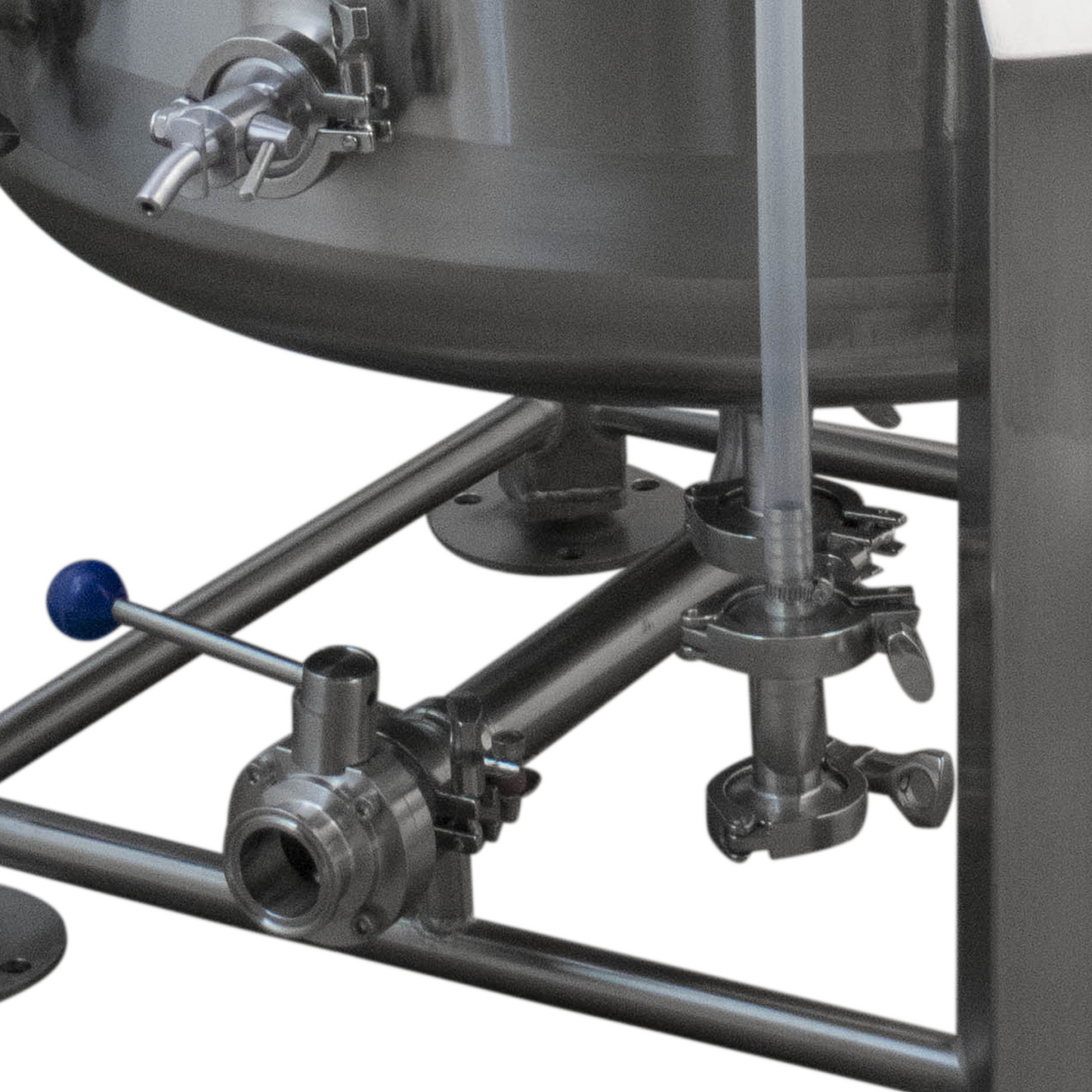

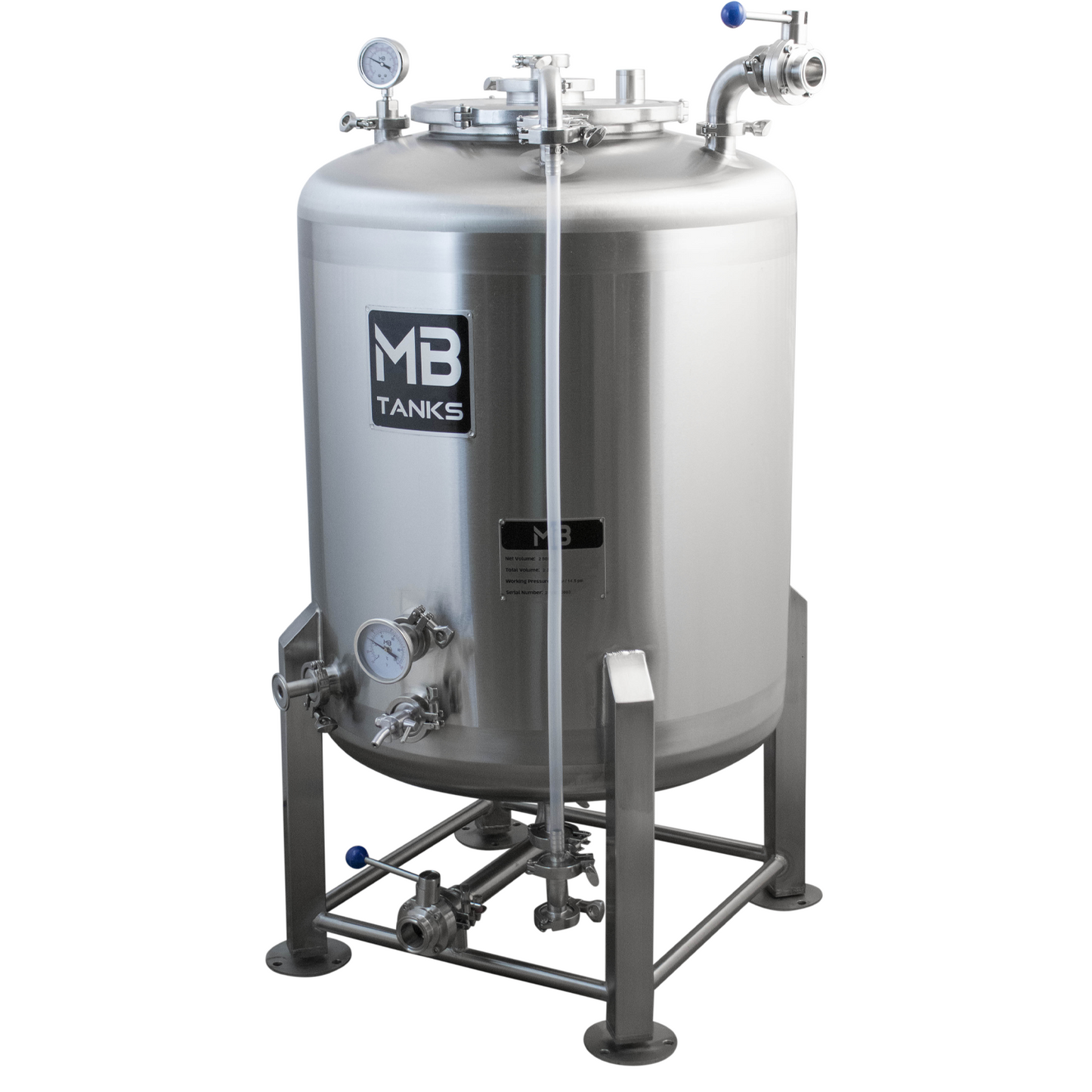

Brite Tank | Single Wall | 1 bbl

Brite Tank | Single Wall | 1 bbl

Our heavy-duty Brite Tanks are purpose-built for longevity, quality, and cost-effectiveness and boast a hefty list of quality features to ease the brewing process. MB Brite Tanks are made from 304 stainless steel and built to high-quality standards. All of our brite tanks are pressure tested at the factory, feature 100% sanitary welds, and are backed by our one-year warranty. Each tank features an average 15% headspace not stated in the volume, so, for example, a 10 bbl brite actually has 11.5 bbl of volume.

1 & 2 bbl Jacketed Brites feature a sealed pressure gauge and plunger-style sample valve to protect against infection. These tanks also feature full-length site gauges extending below the tank’s bottom, allowing you to see when the tank is down to its last couple of pints rather than its last couple of gallons.

Important Note: these units do not have a built-in cooling jacket and are intended to be used in a walk-in cold room for temperature control.

MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.

First-class Features

  • 304 stainless steel construction
  • True domed top and bottom
  • Full length site gauge with sediment trap
  • Pressure/Vacuum relief valve 1 Bar / 15 PSI
  • Carbonation stone
  • Sealed pressure gauge
  • Analog temperature gauge
  • Sample valve
  • Center bottom tri-clamp drain
  • Top vent/CO2 port with butterfly valve
  • Pt100 Thermocouple interface

Specifications
  • Grade 304 Stainless Steel
  • 2mm thick single shell design
  • Internal Finish: #2B
  • Tank Height w/ Blowoff Pipe: 47"
  • Tank Diameter w/ Fittings: 28"
  • Empty Weight: 100 lbs
  • Working Volume: 1 bbl
  • Max Volume: 1.2 bbl
  • Working Pressure: 1 Bar (14.5)
  • All ports are 1.5" TC except 10" TC Dome Port and 4" TC Hopping Port
