MB Stainless

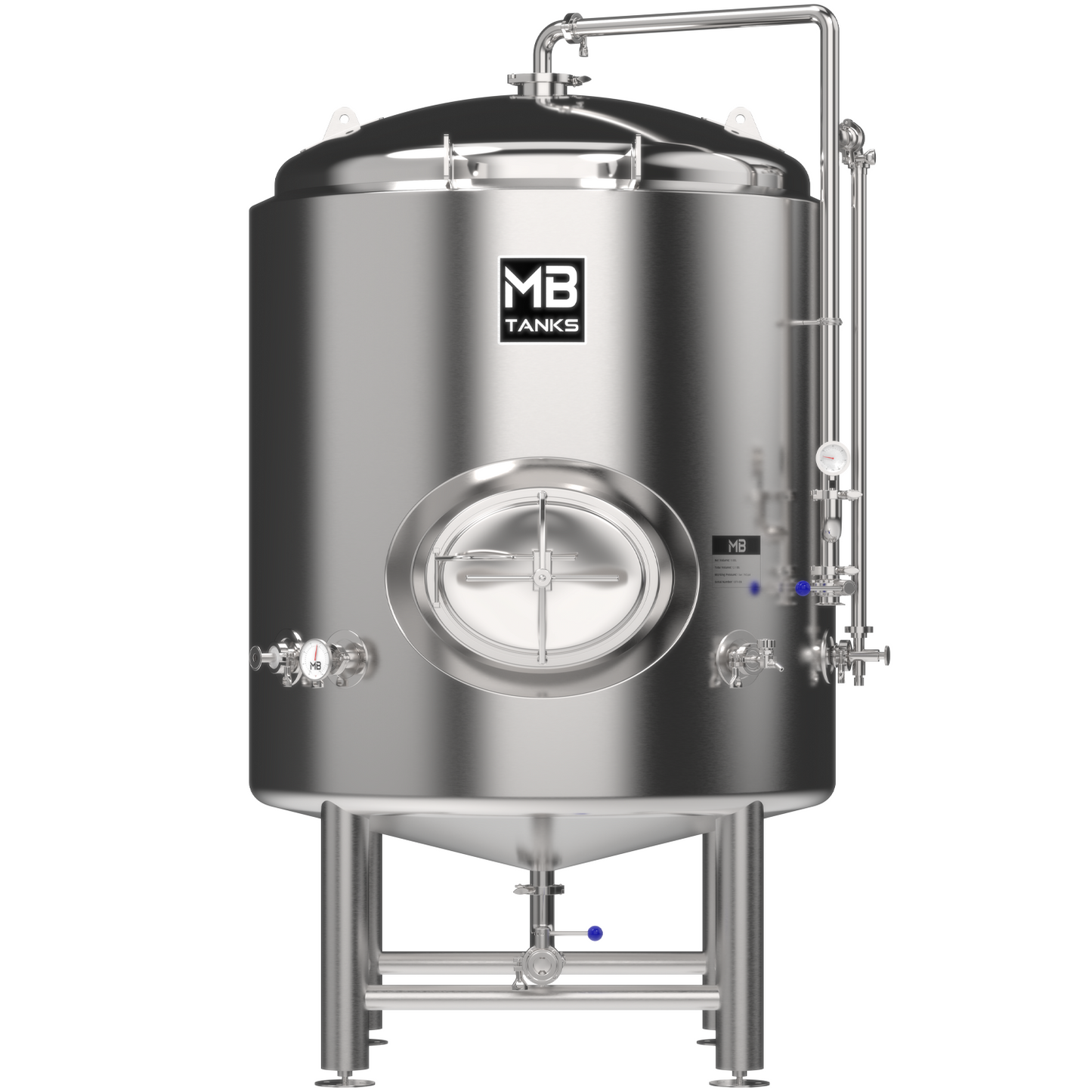

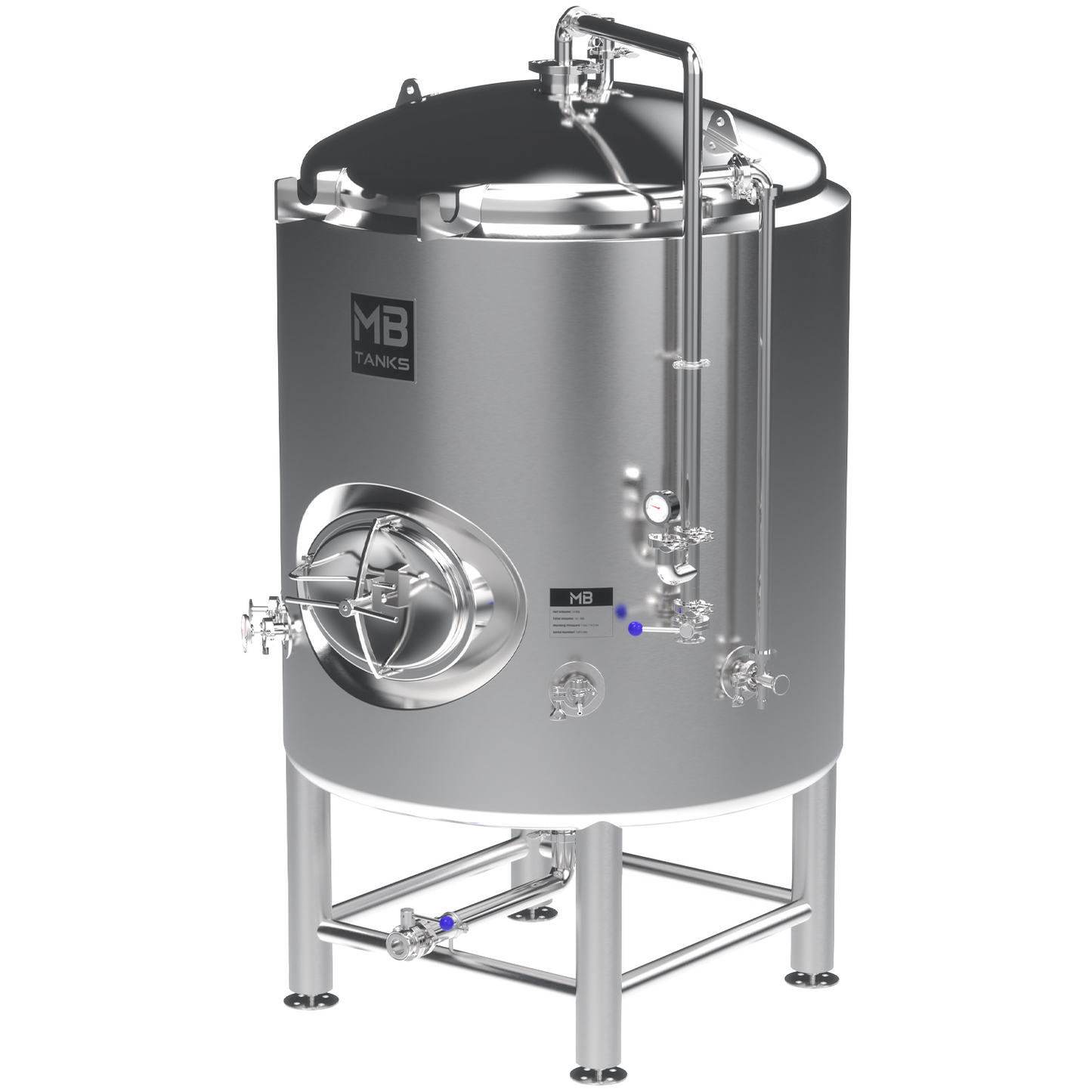

Brite Tank | Jacketed | 20 bbl
Brite Tank | Jacketed | 20 bbl
Couldn't load pickup availability
MB offers a full range of professional-level conical fermenters and brite tanks. Our stainless steel tanks represent a fantastic overall value, boasting exquisite construction and an impressive feature set.
Our jacketed brite tanks are made from 304 stainless steel and built to high-quality standards. All of our brite tanks are pressure tested at the factory, feature 100% sanitary welds, and are backed by our one-year warranty. Every brite tank features an average 15% headspace not stated in the volume, so, for example, a 10 bbl brite actually has 11.5 bbl of volume.
MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.
First-class Features
View full details
Our jacketed brite tanks are made from 304 stainless steel and built to high-quality standards. All of our brite tanks are pressure tested at the factory, feature 100% sanitary welds, and are backed by our one-year warranty. Every brite tank features an average 15% headspace not stated in the volume, so, for example, a 10 bbl brite actually has 11.5 bbl of volume.
MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.
First-class Features
- 15 PSI (1 bar) working pressure

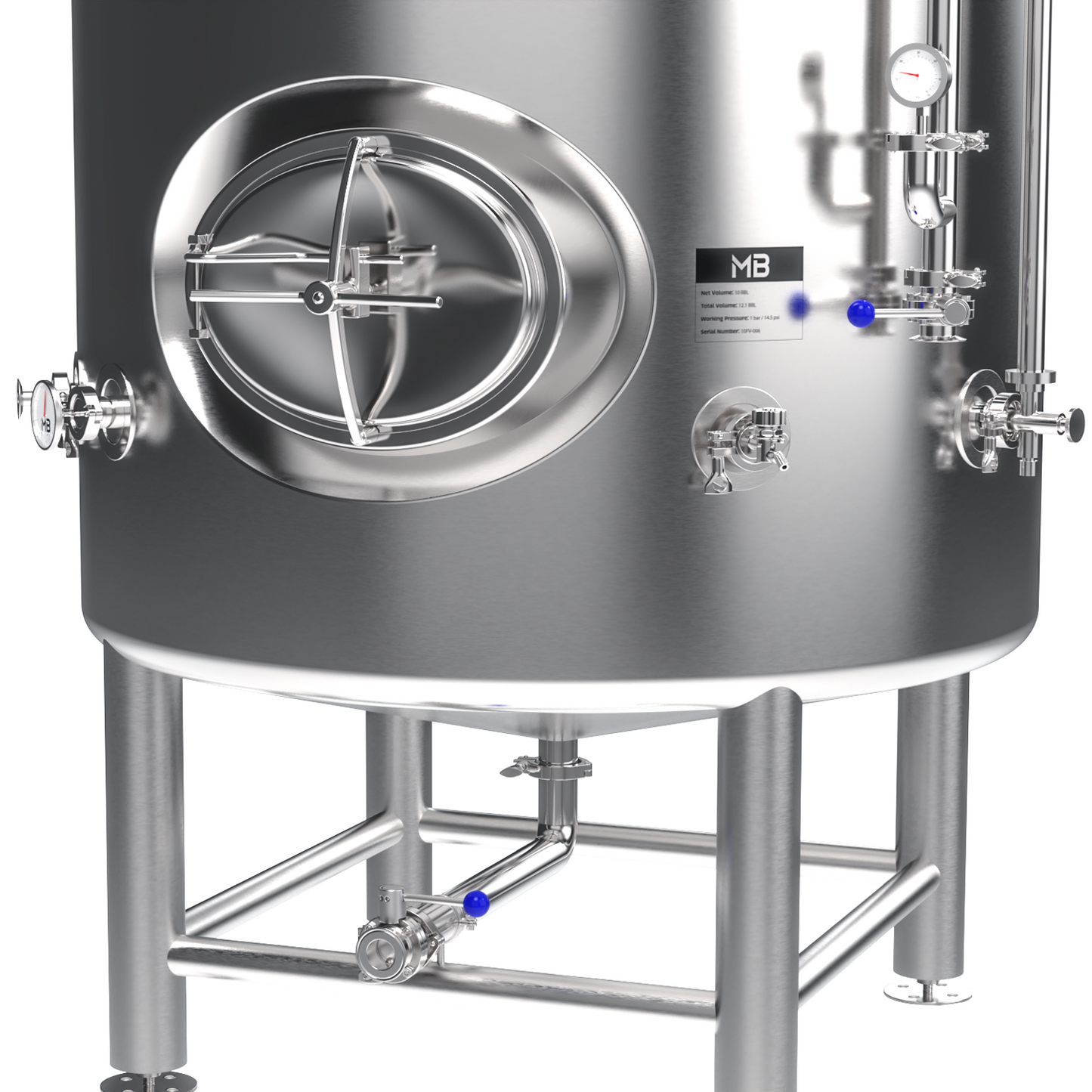

- Side manway door for cleaning
- 1.5" Tri-clamp carbonation stone

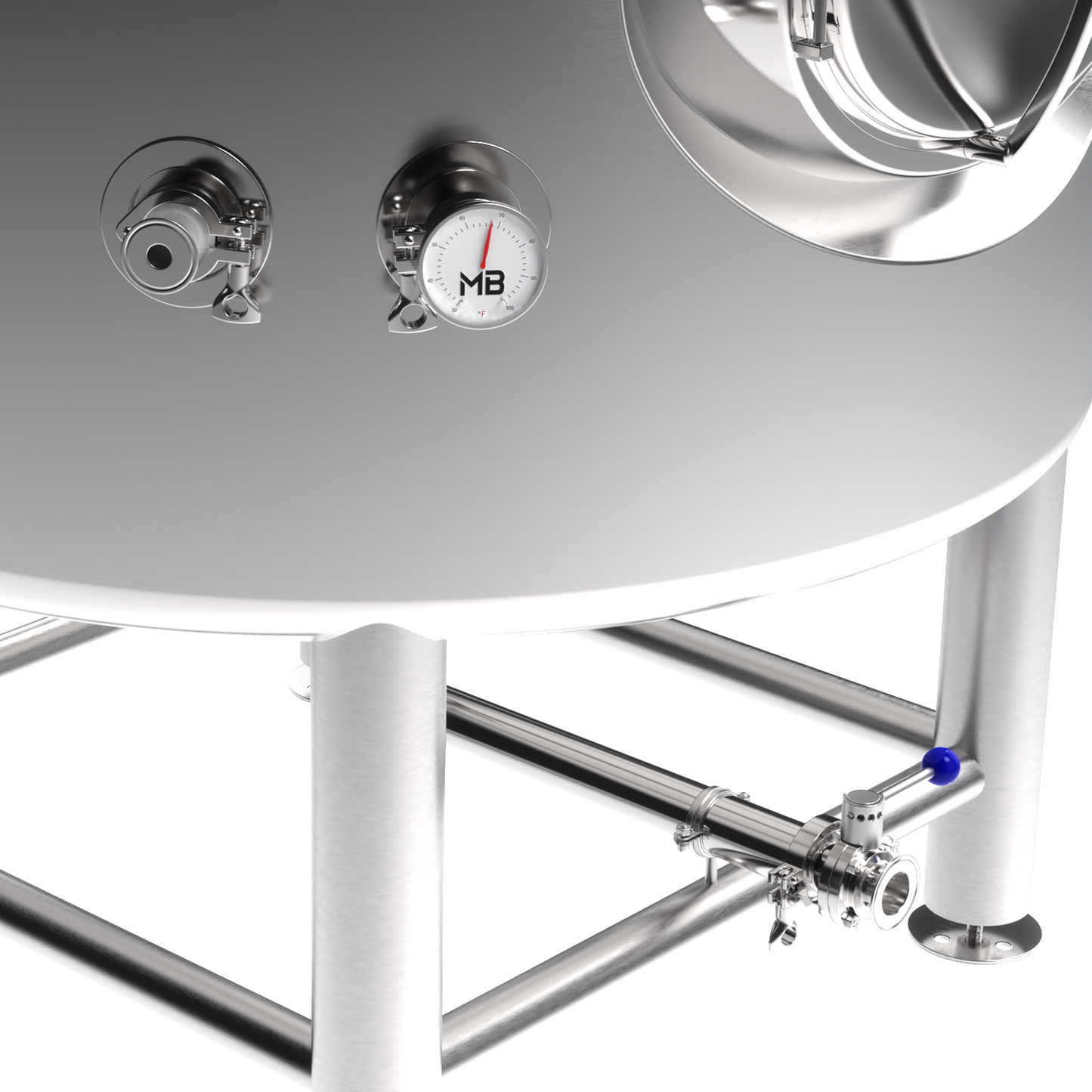

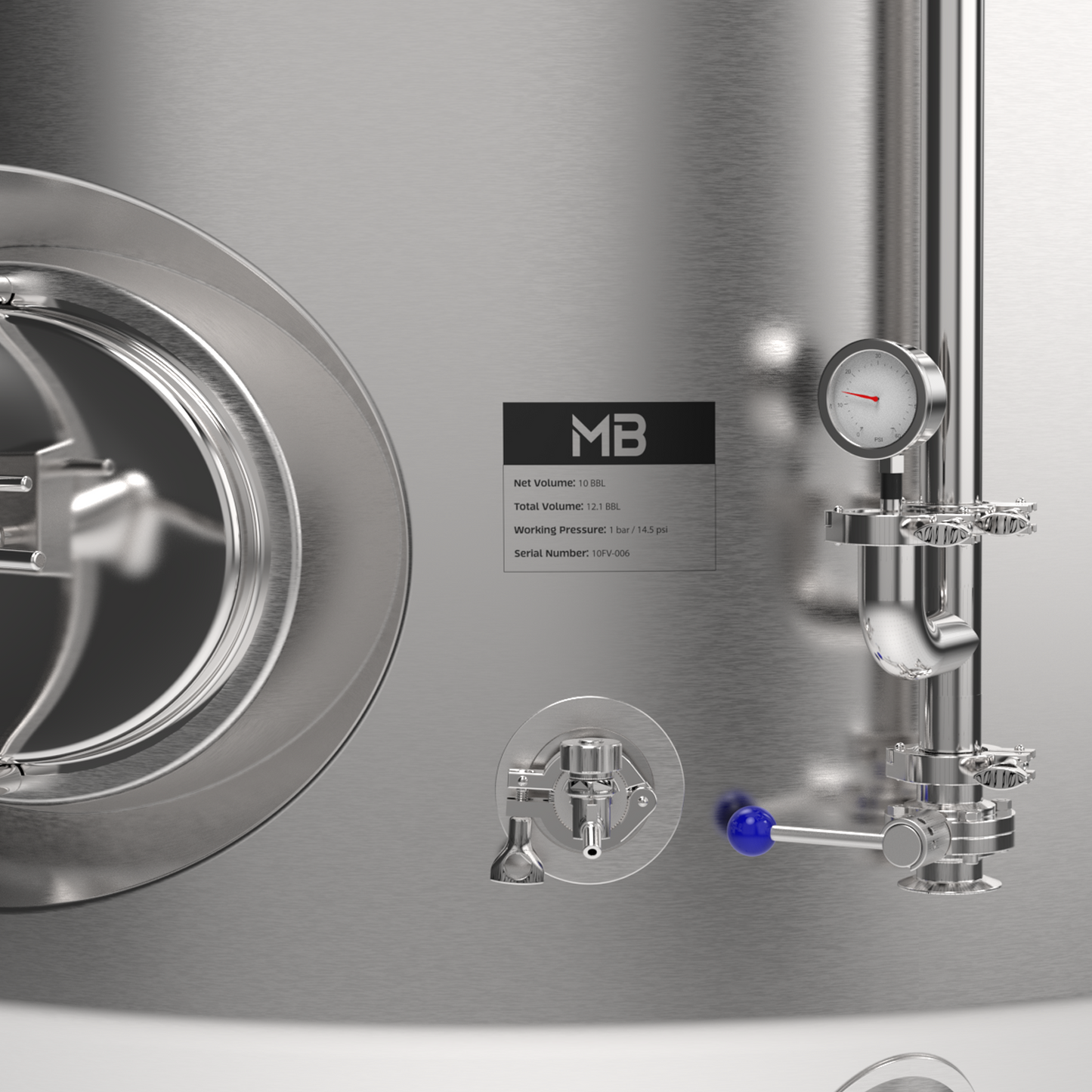

- 1.5" Tri-clamp pressure gauge
- 1.5" Tri-clamp dial face bi-metal, easy-read analog thermometer
- 1.5" Tri-clamp Perlick-style sample valve
- 2" Tri-clamp pressure/vacuum relief
- 2" Center bottom tri-clamp drain
- Sight-glass for reading volumes

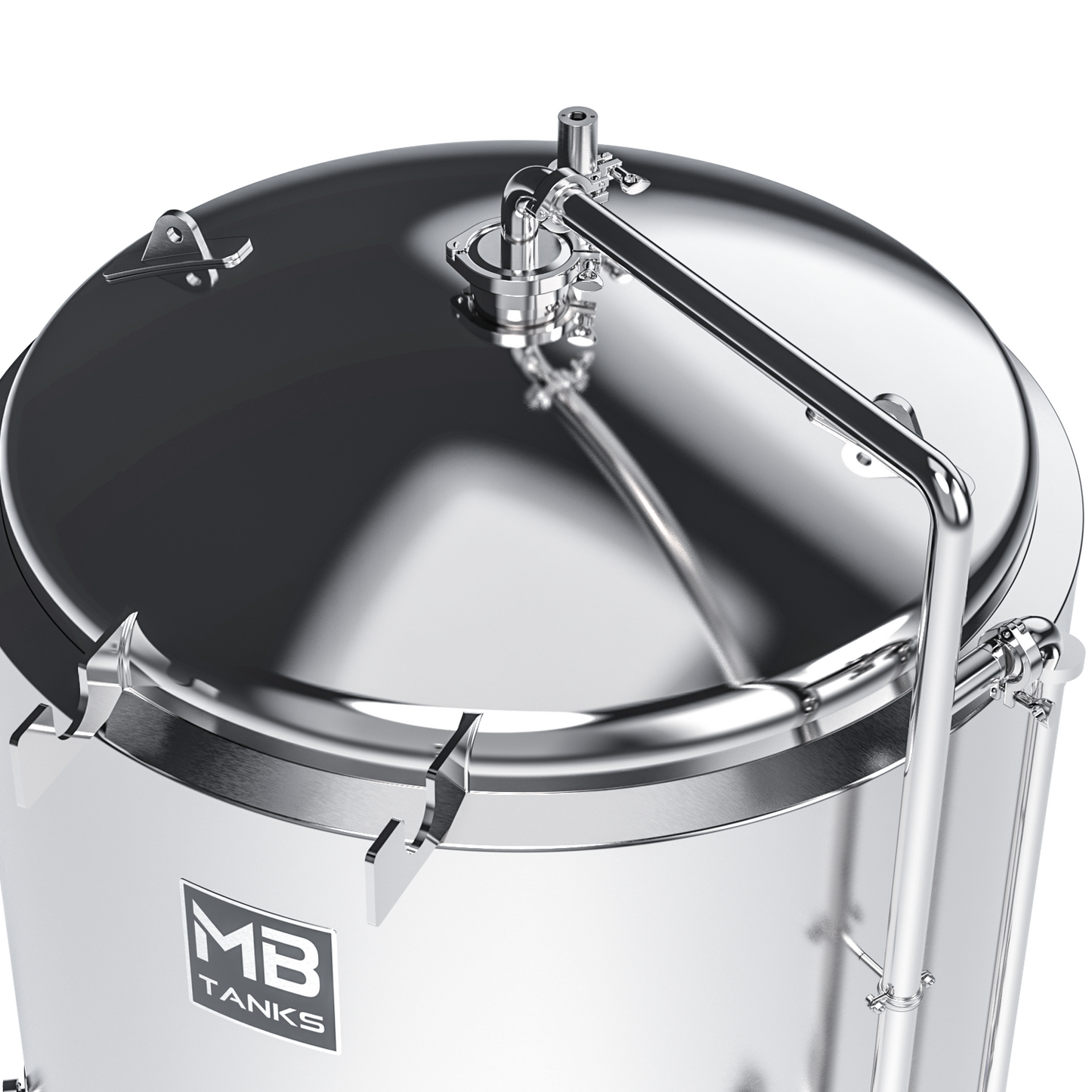

- Dedicated pipe system with 4" Tri-clamp center top opening and 1.5" tri-clamp rotating CIP spray ball for easy cleaning
- 3/4" NPT glycol ports
- PT100 Thermocouple interface
- Shadowless Manway
- 304 stainless steel construction
- Double walled with 80 mm thick polyurethane insulation
- External Shell: 2 mm thick with brushed finish
- Internal tank: 3 mm thick with smooth ground welds, 2B finish and passivated
- Glycol Jacket: dual cooling zone, 1.5mm thick
- Tank Height: 100"
- Tank Diameter: 62"
- Empty Weight: 1,102 lbs
- Working Volume: 20 bbl
- Total Volume: 23 bbl
- Jacket Surface Area: 8,291 in² (5.349 m²)
