MB Stainless

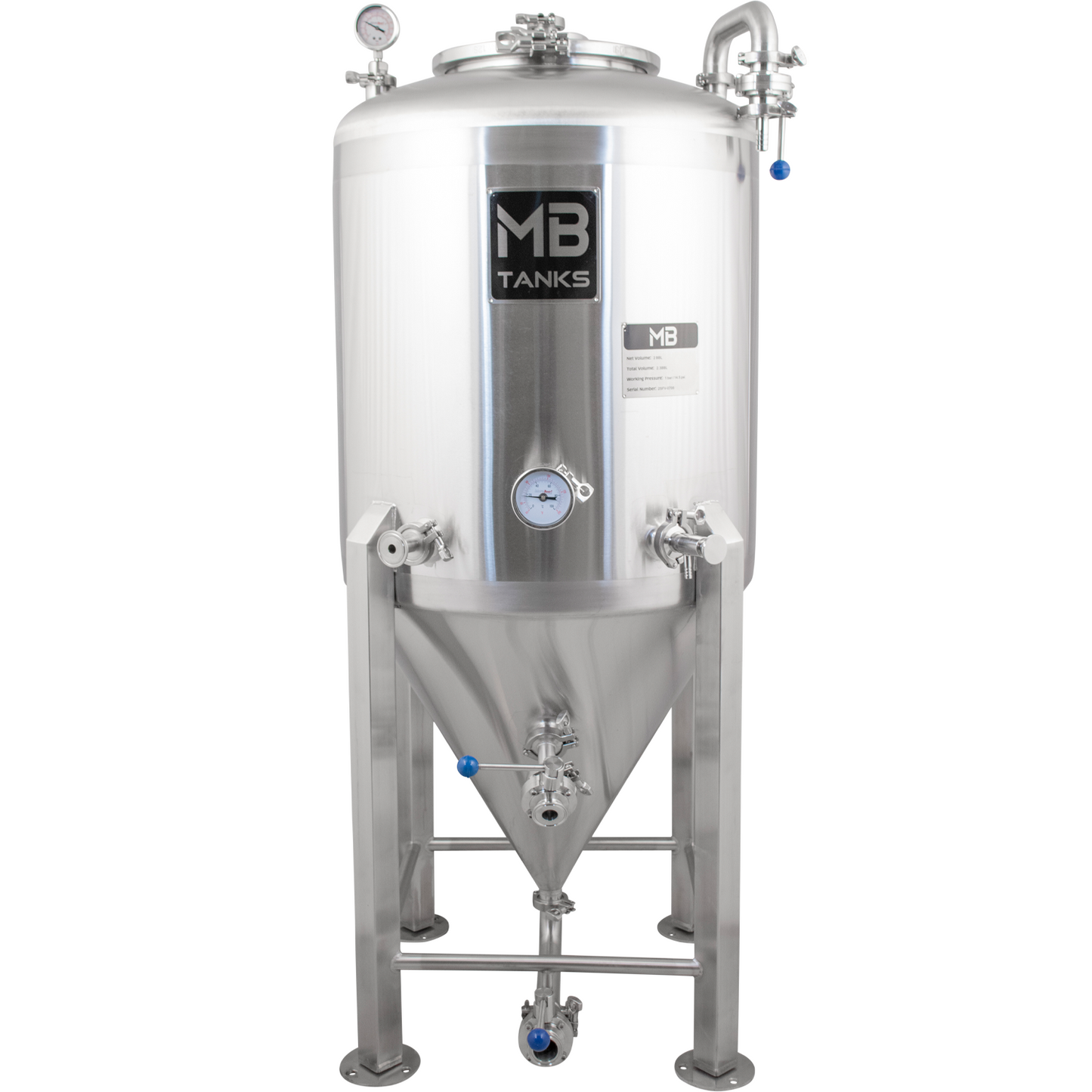

Conical Fermenter | 1 bbl

Conical Fermenter | 1 bbl

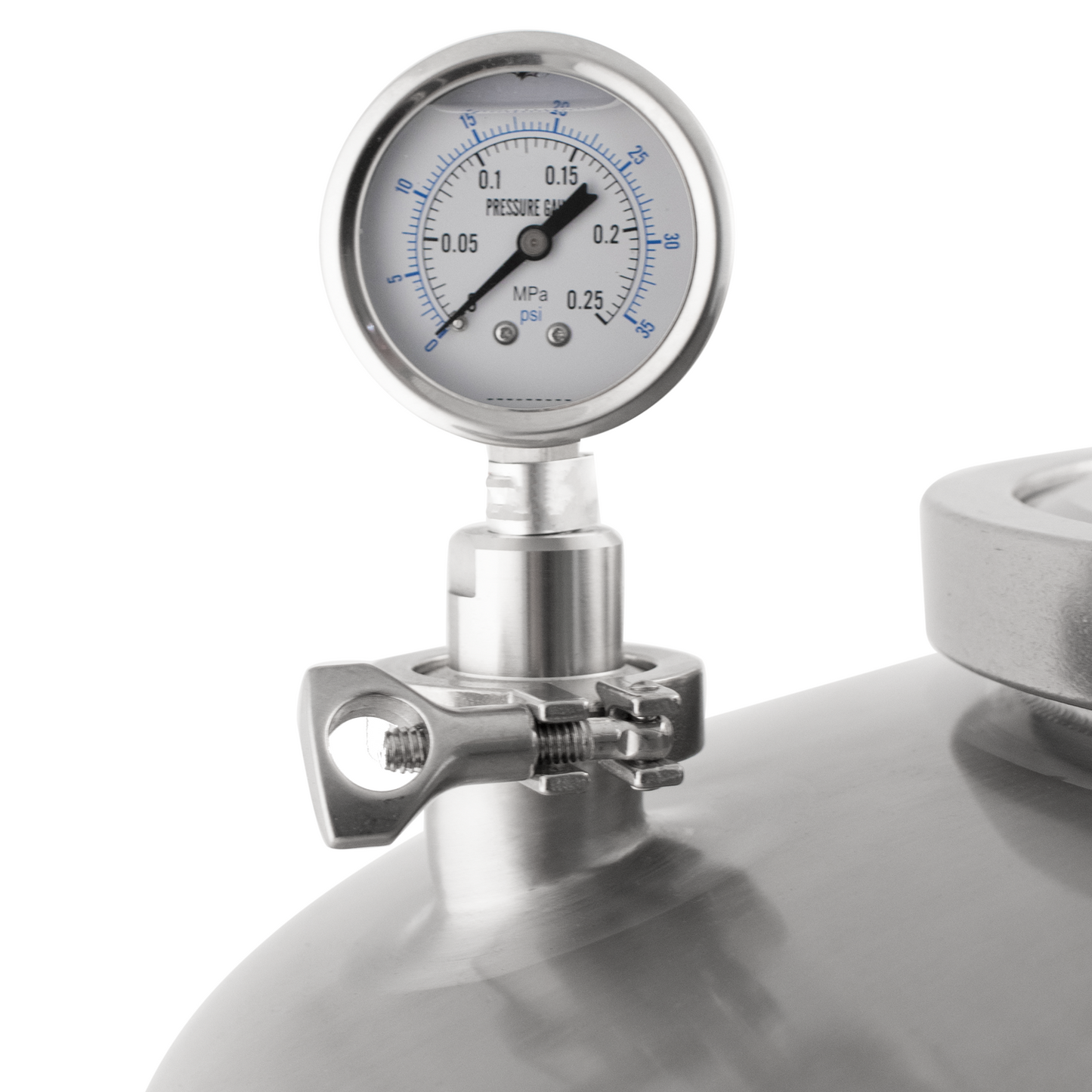

These heavy-duty Beer Tanks are purpose-built for longevity, quality, and cost-effectiveness and boast a hefty list of quality features to facilitate the brewing process. Starting with High Quality 304 grade stainless steel, the tank features a 2 mm thick single shell design. A large 10" T.C. dome top port allows easy access for cleaning and sanitizing, and a 1.5" T.C. port provides an attachment of a CIP spray ball. Valuable features such as Blowoff Pipe, Hop Ports, and Rotating Racking Arms keep you brewing and fermenting at top efficiency. Also features a sealed pressure gauge and plunger-style sample port to protect against infection.

MB professional brewing equipment is designed by our in-house team of R&D designers. Brewhouse design is led by Colin Kaminski, a product designer who became a brewmaster for 15 years and combined both skills into brewing equipment design. Cleanability, ease of use, and durability are our primary design criteria. Large-scale equipment is manufactured internationally, while our in-house metal shop gives us the unique ability to perform R&D and fabricate as needed. Quality control is executed at our factory and upon receipt in our warehouses.

Features:

  • 304 stainless steel construction
  • Single shell design, inner surface is 2B finish and passivated
  • Oversized for 20% headspace
  • Pressure/Vacuum relief valve 1 Bar / 15 PSI
  • 60° conical bottom
  • Sample valve
  • Rotating racking arm
  • Analog temperature gauge
  • Yeast dump port
  • Hop port
  • CIP port
  • Carb stone

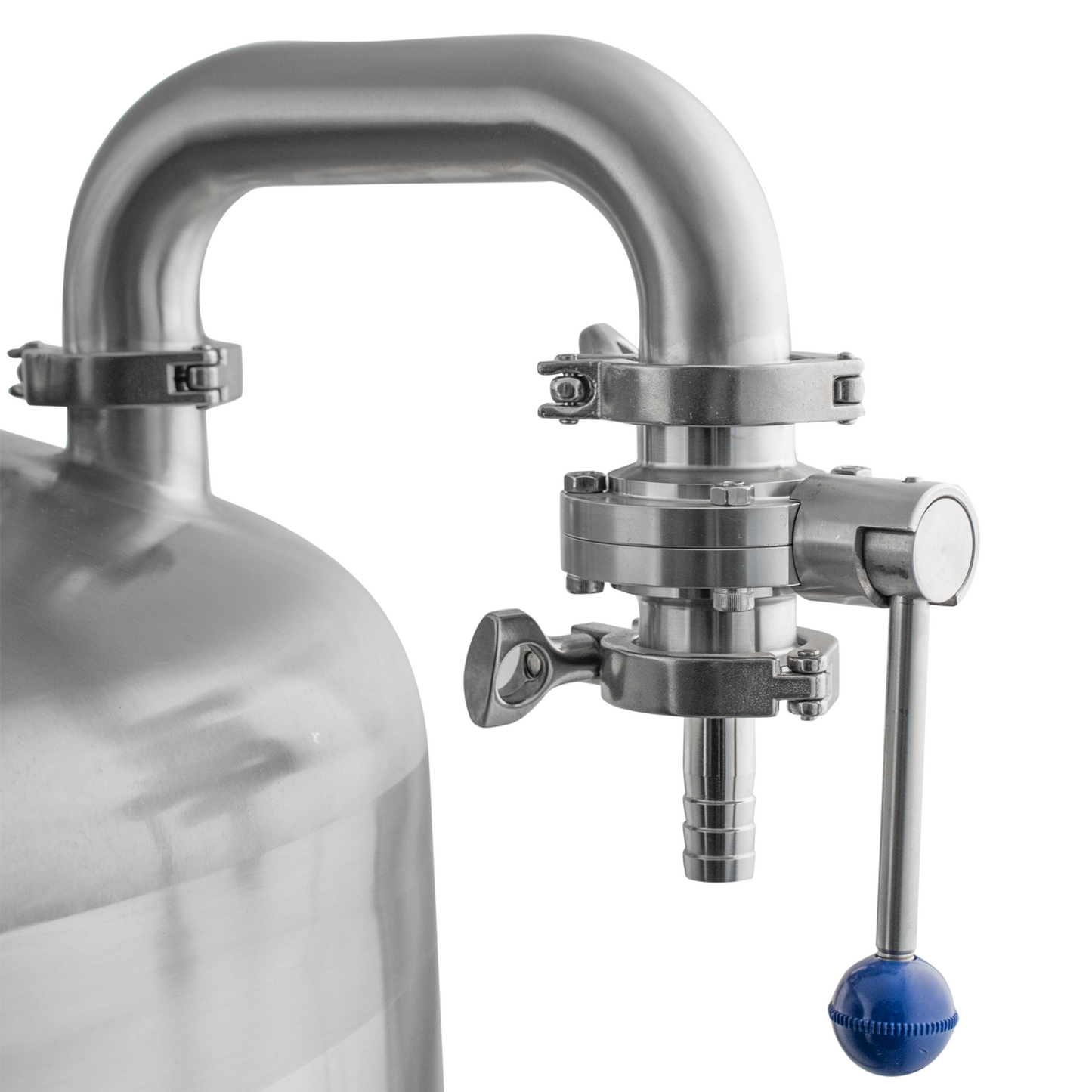

  • Separate blow-off pipe

Specifications:

  • Grade 304 Stainless Steel
  • 2mm thick single shell design
  • Internal Finish: #2B
  • Total Height w/ Blowoff Pipe: 53"
  • Tank Diameter: 19.75"
  • Empty Weight: 110 lbs
  • Working Volume: 1 bbl
  • Max Volume: 1.2 bbls
  • Working Pressure: 1 Bar (14.5 psi)
  • All ports are 1.5" TC except for 10" TC Dome Port and 4" TC Hopping Port
